Product Description

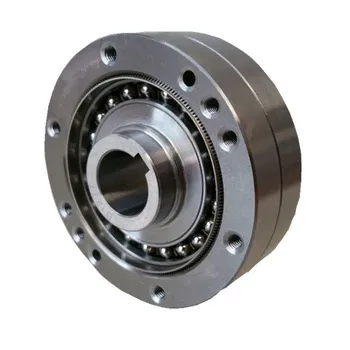

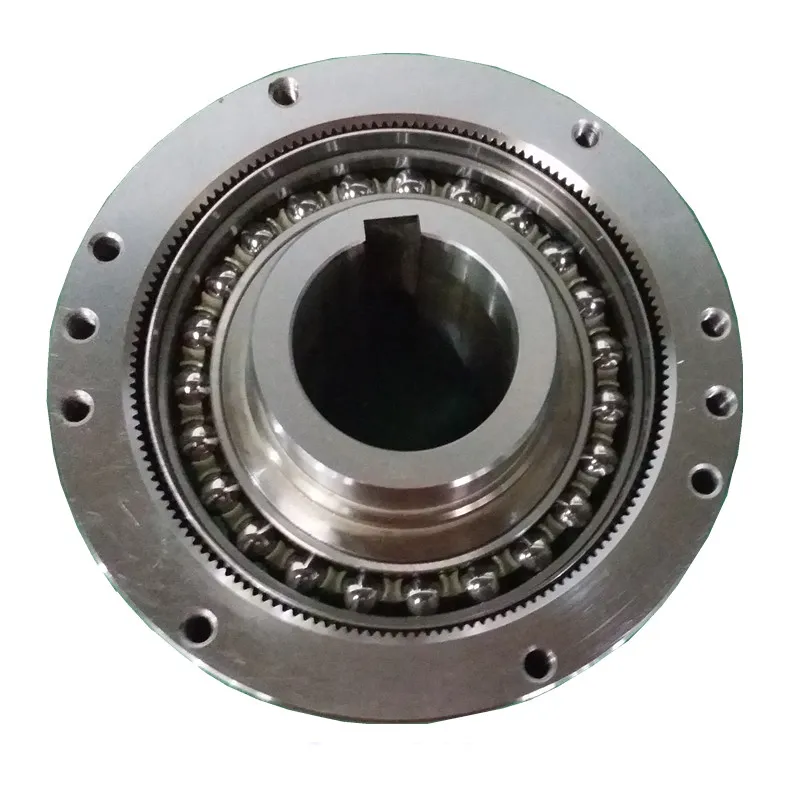

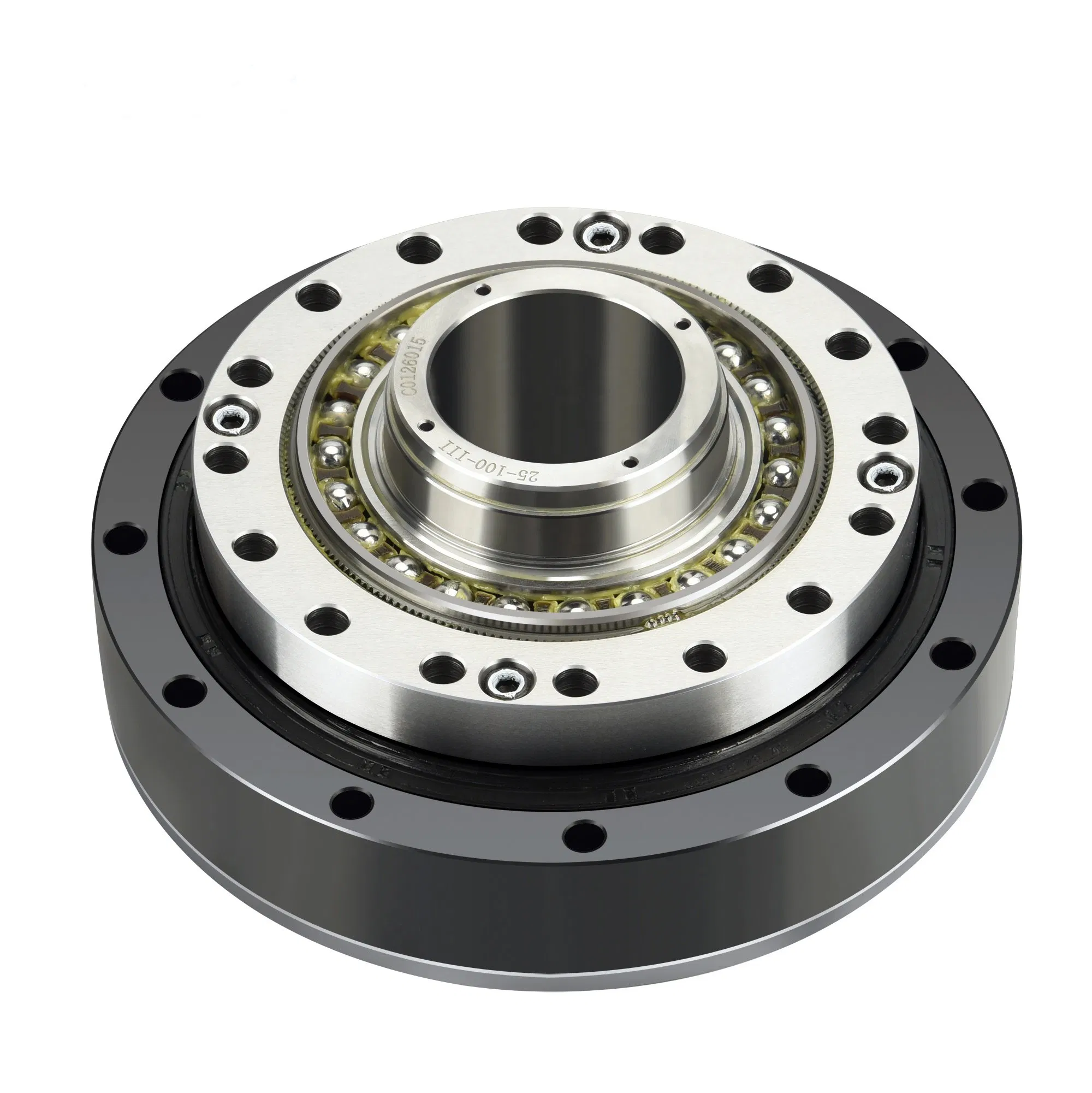

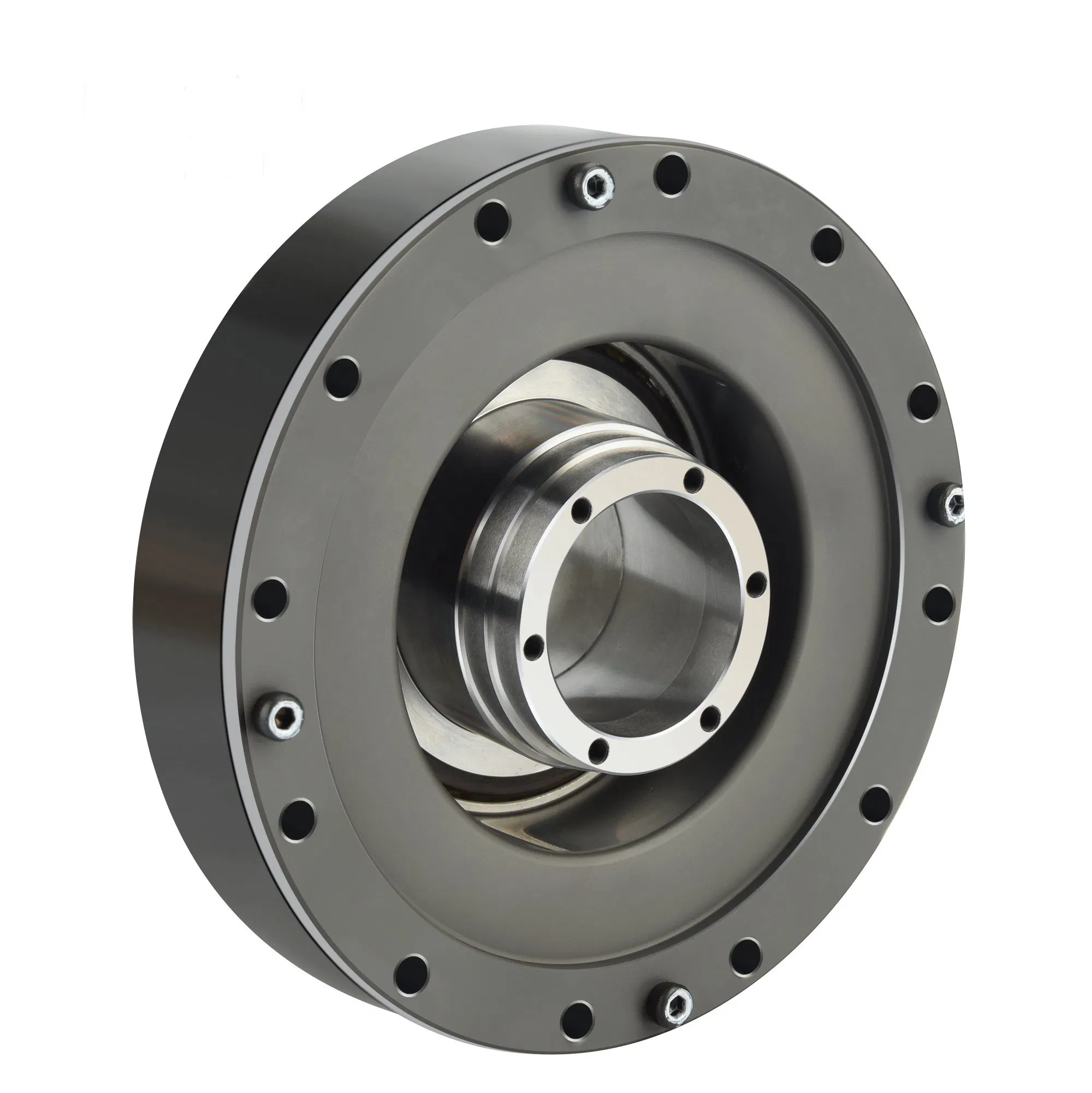

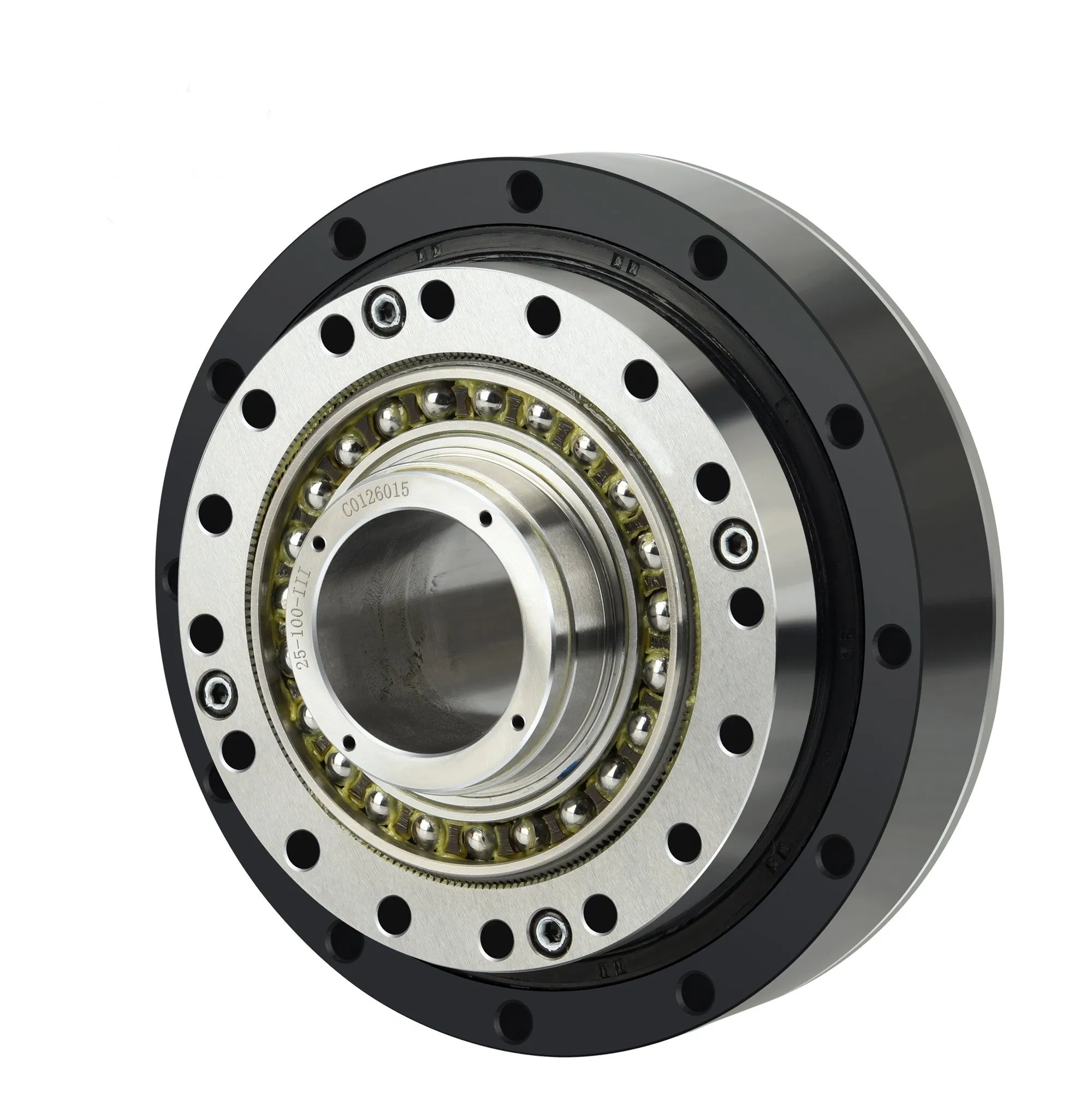

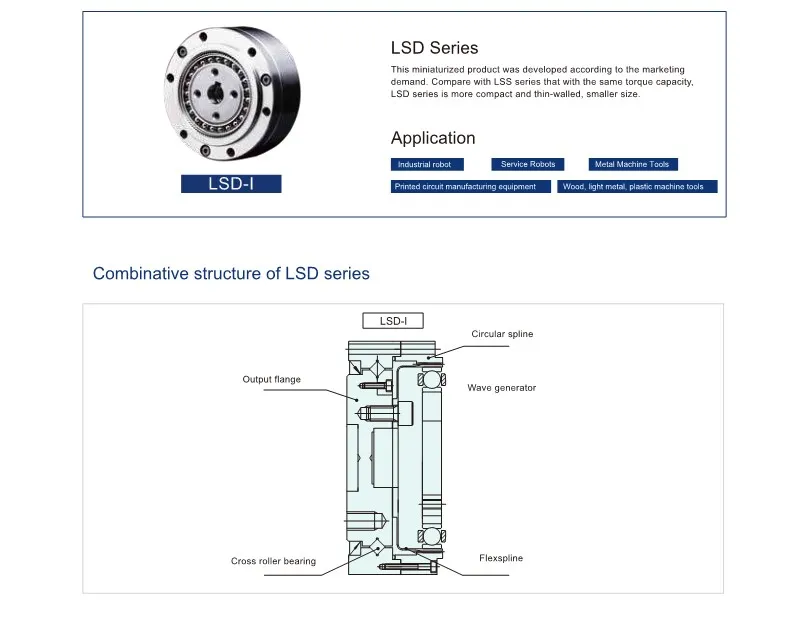

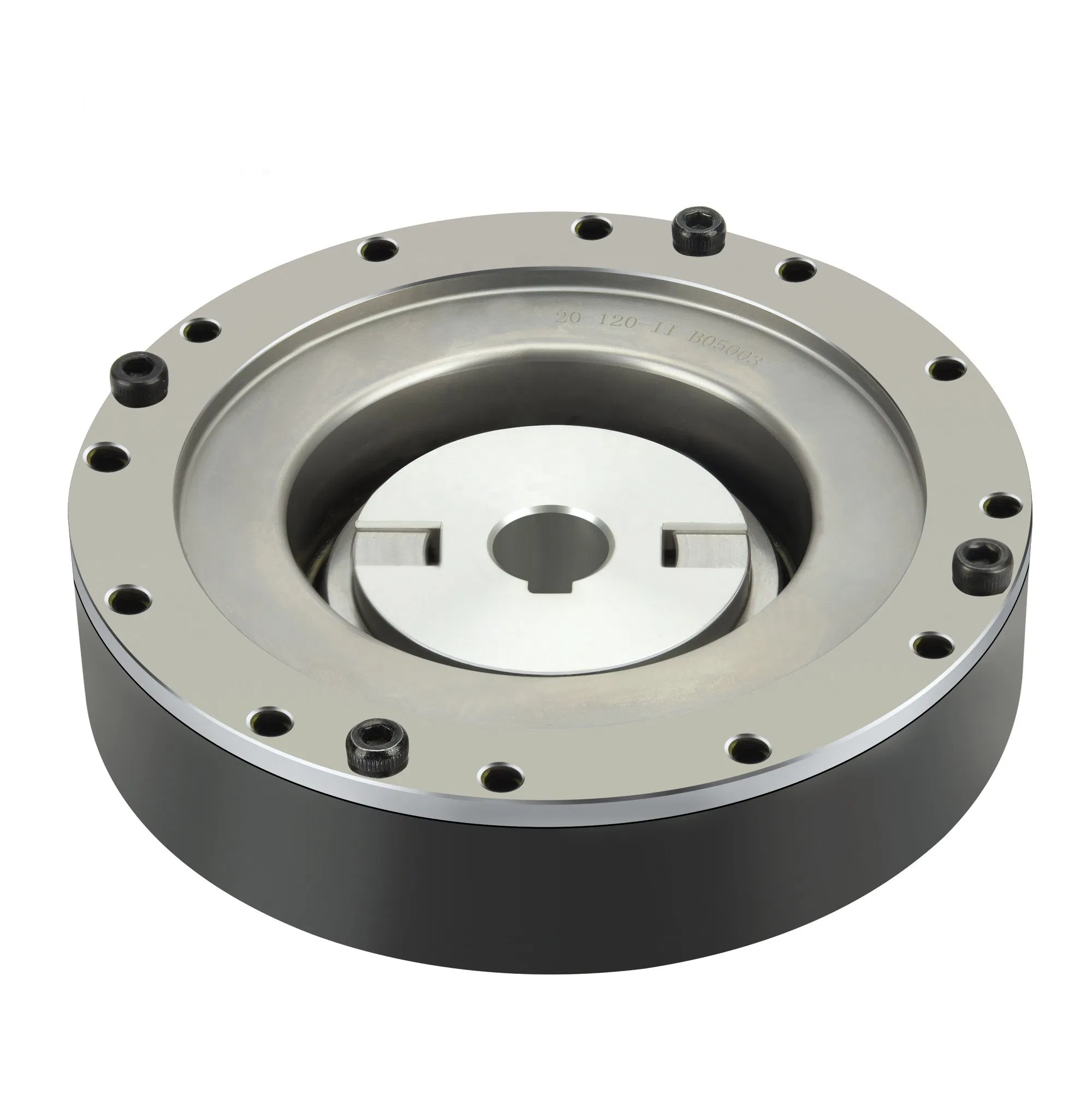

LSD Series

This miniaturized product was developed according to the marketing demand. Compare with LSS series that with the same torque capacity, LSD series is more compat and thin-walled, smaller size.

CONTAST US

LSD Rated parameters

Model	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Permissible maximum input rotational speed	Permissible average input rotational speed	Backlash	Design life
		Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Grease	Grease	Backlash	Design life
		Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	Hour
14	50	3.7	0.38	12	1.2	4.8	0.49	24	2.4	8500	3500	<=30	7000
	80	4.2	0.43	16	1.6	5.9	0.6	31	3.1
	100	5.4	0.55	19	1.9	7.7	0.79	35	3.6
17	50	11	1.1	23	2.3	18	1.9	48	4.9	7300	3500	<=30	10000
	80	14	1.4	30	0.3	21	2.1	58	5.9
	100	16	1.6	37	3.8	27	2.8	71	7.2
20	50	17	1.7	39	4	24	2.4	69	7	6500	3500	<=30	10000
	80	21	2.1	46	4.7	30	3.1	81	0.8
	100	28	2.9	57	5.8	34	3.5	95	9.7
