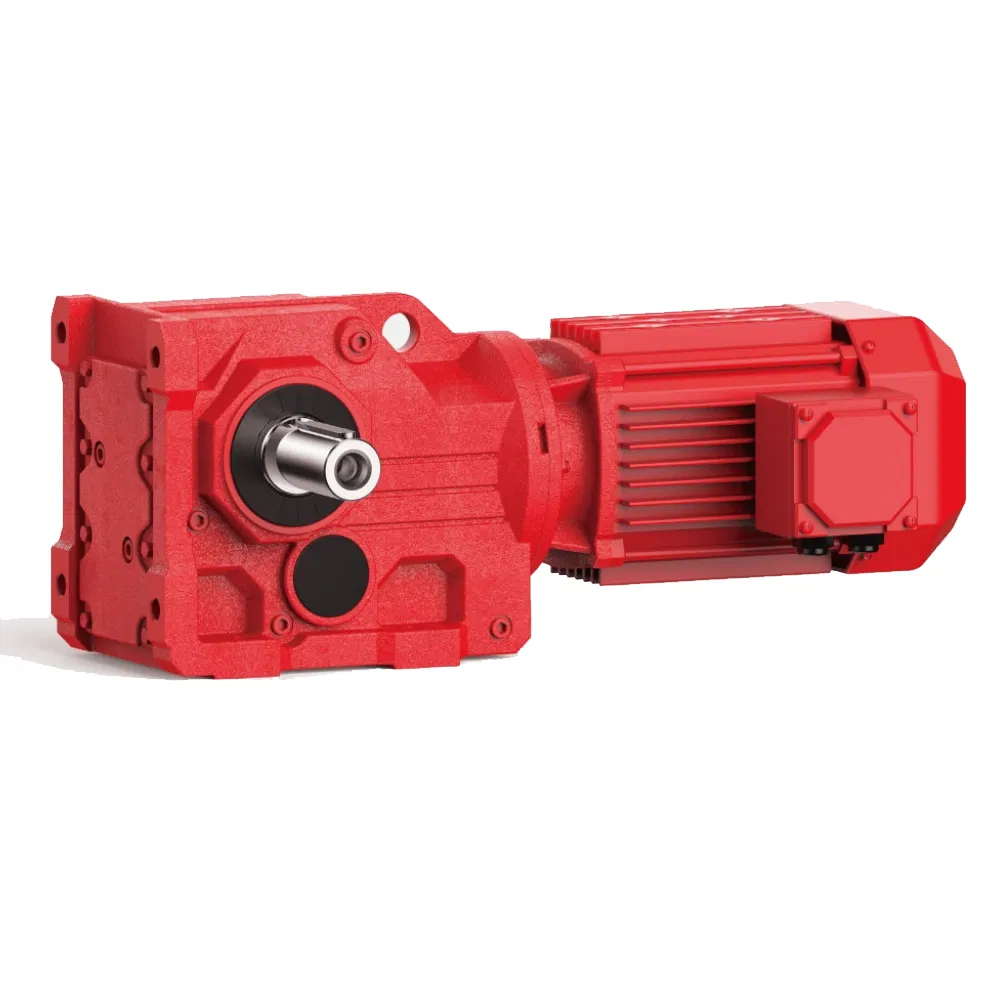

Helical Bevel Gear Motor Speed Reducer

Raydafon Group's Helical Bevel Gear Motor Speed Reducer offers efficient power transmission in compact designs, ideal for industrial automation. Built with durable materials and precision engineering, it ensures smooth operation and long lifespan. Perfect for engineers and manufacturers seeking reliable performance, this reducer enhances productivity and reduces downtime. Experience seamless integration and superior torque control, setting a new standard in gear technology.

Send Inquiry

Product Description

K series Helical Bevel Gear Motor Shaft Mounted Gear Speed Reducer Marine Transmission Gearbox Harmonic Drive Reducer

1. Housing with tendon are made of cast iron to get high strenth and fine heat loss.

2. Gears made of forge steel and finished through gas carburising process and precise grinding to achieve
High precision and high efficiency.

3. Carburized gears are durable and highly accurate.

4. Flange-mounted with hollow shaft, foot-mounted with hollow shaft, and optional torque arm and other special accessories.

5. Large strength, long service life.

6. Large output torque, smooth startup, high efficiency.

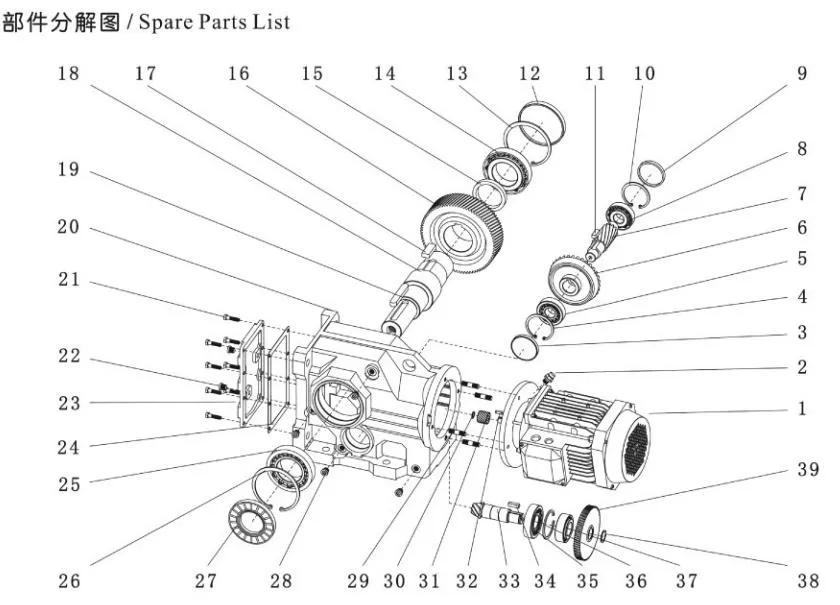

K Series Helical Bevel Gear Motor Shaft Mounted Gear Speed Reducer Marine Transmission Gearbox Harmonic Drive Reducer

K Series Helical Bevel Gear Motor Shaft Mounted Gear Speed Reducer Marine Transmission Gearbox Harmonic Drive Reducer

Model:	K Series - Foot-mounted, solid shaft output KAB Series - Foot-mounted, hollow shaft output KA Series – Keyed hollow shaft output KF Series – B5 Flange-mounted, solid shaft output KAF Series – B5 Flange-mounted, hollow shaft output KAZ Series – B14 Flange-mounted, hollow shaft output KAT Series – Hollow shaft output, torque arm KH, KHB, KHF, KHZ Series – Hollow shaft output, shrink disk KV, KVB, KVF, KVZ Series – Hollow shaft output, splined hollow shaft K(KA, KF, KAF, KAB, KAZ)S Series – Solid shaft input
Housing	Cast Iron
Input power	0.12-200kw
Output torque	10-61900N.m
Output speed	0.08-261rpm
Bearing	C&U Bearing,NSK,SKF or on request
Ratio	5.36~178.37

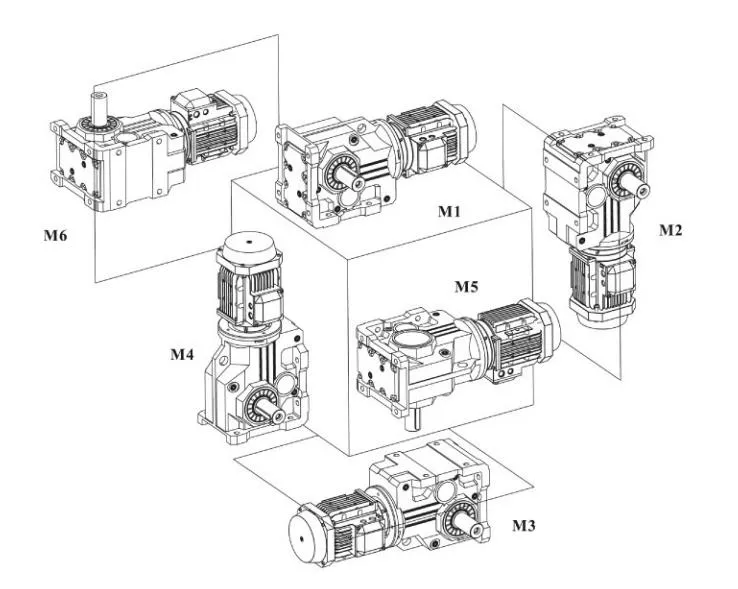

Installation Form	Foot, Flange, Shaft Mounted
Seal	SKF,CTY,CFW or on request
Gears	Helical-bevel Gears
Input Configurations	Equipped with Electric Motors Solid Shaft Input IEC-normalized Motor Flange
Applicable Motors	Single Phase AC Motor, Three Phase AC Motor Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor
Output Configurations	Solid Shaft Output Hollow Shaft Output
nstallation	Foot-mounted B5 Flange-mounted B14 Flange-mounted Shaft-mounted
Lubrication	Oil-bath and Splash Lubrication
