Industrial Pin Wheel Gearbox

Cyclo Speed Reducer Reduction Gearbox Supplier Industrial Cycloidal X WB Series Pin Wheel Miniature Wheel Drive Double Shaft Durable Professional BW BWD BlD

X / B series high quality cycloidal gearbox small planetary reducer

Quick Details:

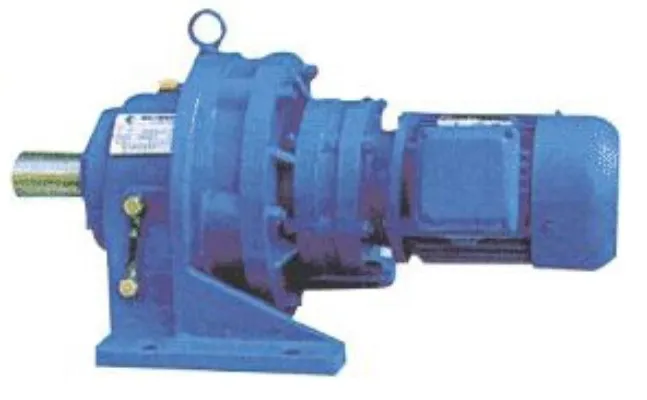

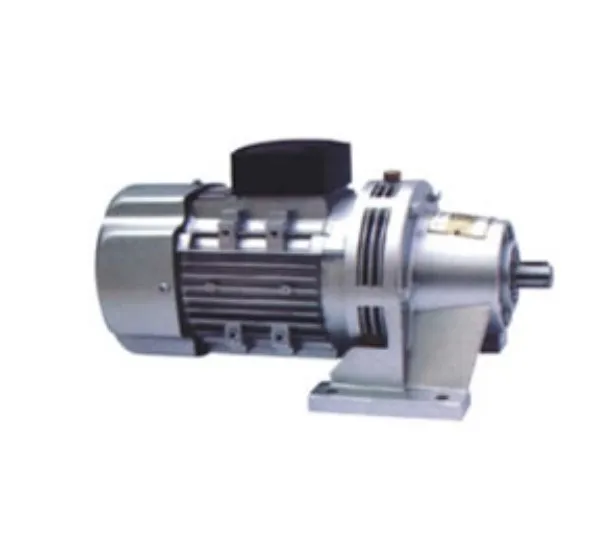

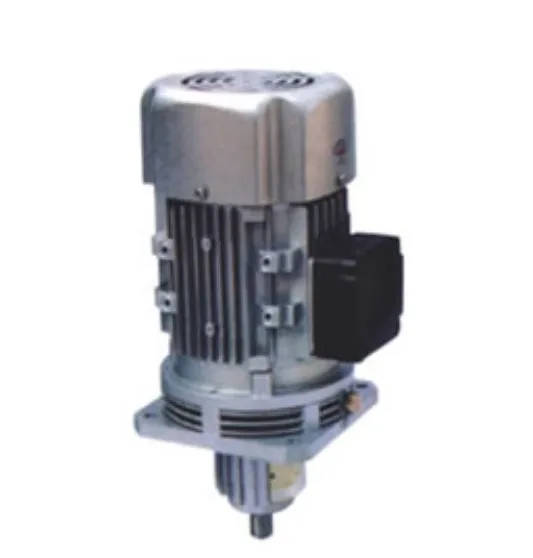

Type: XB series Cycloidal Pin Wheel Speed Reducer

Input Speed: 1000-1500rmp

Output Speed: 0.3-280rpm

Certification: ISO9001 CE

Ex Power:0.09-132KW

Warranty: 1Years

A cycloidal reducer, also known as a cycloidal drive or cycloidal gearbox, is a type of speed reducer used in various industrial applications. It consists of a high-speed input shaft, a set of eccentric cams or pins, and an output shaft. The unique design of a cycloidal reducer enables it to achieve high torque output with compact size and high efficiency.

How does it work?
When the input shaft rotates, the eccentric cams or pins engage with a set of rolling pins or needle bearings. As the cams rotate, they cause the rolling pins to move in a cycloidal motion along the inside of a circular housing known as the cycloid disc. This creates a series of small, overlapping orbits that result in the rotation of the output shaft.

Benefits of a cycloidal reducer:
1. High Torque Output: Cycloidal reducers are known for their high torque capacity, making them suitable for applications that require heavy loads or high torque transmission.

2. Compact Size: Cycloidal reducers have a compact and lightweight design, allowing them to be used in applications with limited space or weight restrictions.

3. High Efficiency: Due to the rolling motion of the pins, cycloidal reducers offer high efficiency in power transmission, resulting in less energy loss and reduced operating costs.

4. Smooth Operation: The cycloidal motion of the pins provides a smooth and uniform output rotation, reducing vibrations and ensuring precise and accurate positioning in machinery.

5. Wide Speed Range: Cycloidal reducers can achieve a wide range of speed ratios, making them versatile for various applications that require different output speeds.

Applications of a cycloidal reducer:
Cycloidal reducers are commonly used in industrial machinery and equipment, including:

- Robotics and automation systems
- Conveyors and material handling equipment
- Machine tools and CNC machines
- Packaging and printing machinery
- Textile machinery
- Food processing and pharmaceutical equipment
