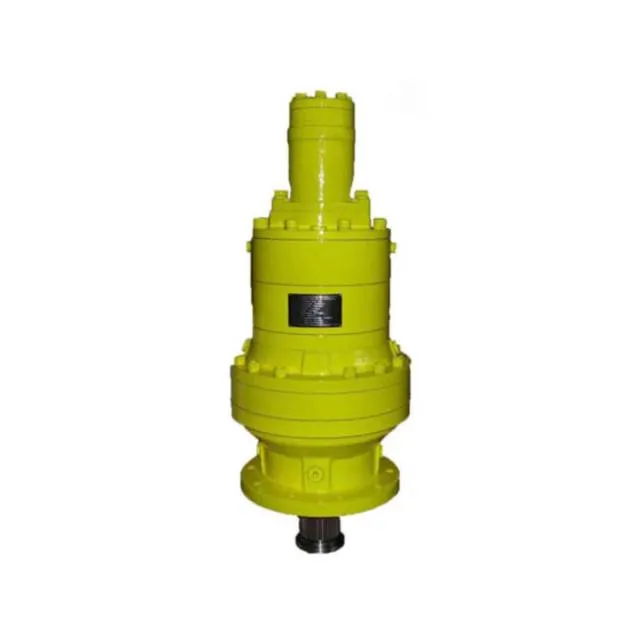

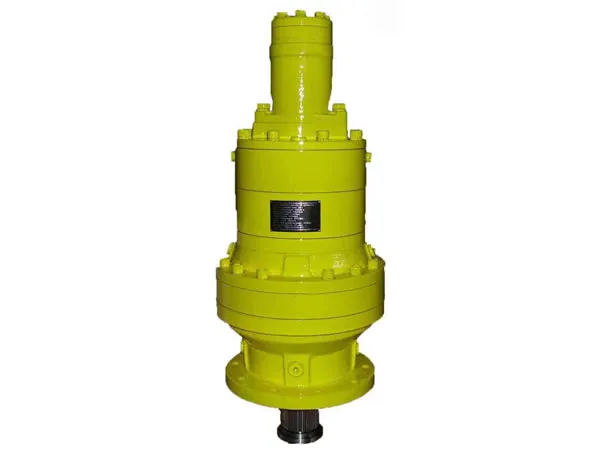

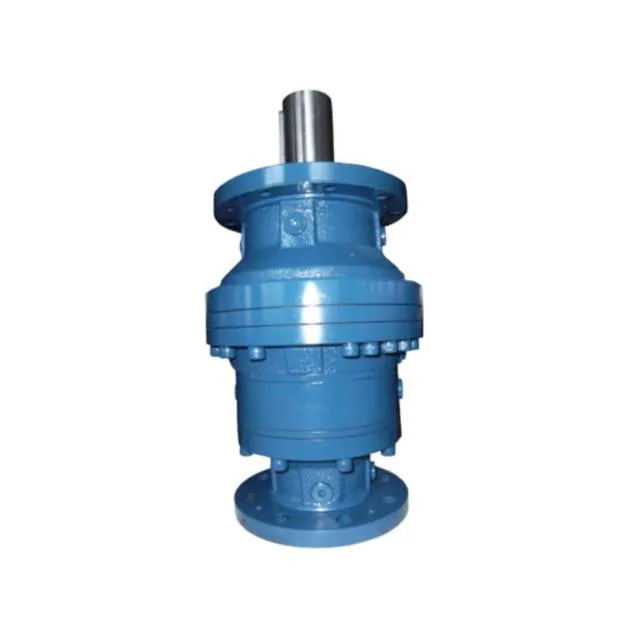

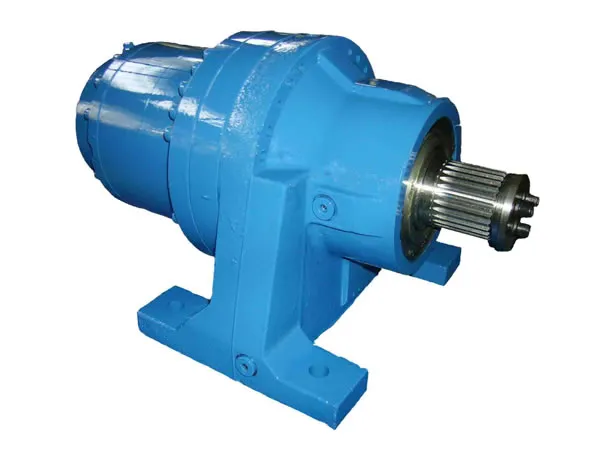

Inline Planetary Gear Reducer 301

Raydafon Group's Inline Planetary Gear Reducer 301 delivers efficient and reliable torque transmission for industrial automation. With precision engineering, durable materials, and compact design, it reduces maintenance and boosts productivity for engineers and manufacturers. Experience smoother operations and enhanced durability, standing out for its high performance and cost-effectiveness.

Send Inquiry

Product Description

301 Series Inline Planetary Gear Reducer Replacement Bonfiglioli 301L1 301L2 301L3 301L4 301R2 301R3 301R4

The 300L series and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli

300L 1	300L 2	300L 3	300L 4	300R2	300R3	300R4
301L 1	301L 2	301L 3	301L 4	301R2	301R3	301R4
303L 1	303L 2	303L 3	303L 4	303R2	303R3	303R4
305L 1	305L 2	305L 3	305L 4	305R2	305R3	305R4
306L 1	306L 2	306L 3	306L 4	306R2	306R3	306R4
307L 1	307L 2	307L 3	307L 4	307R2	307R3	307R4
309L 1	309L 2	309L 3	309L 4	309R2	309R3	309R4
310L 1	310L 2	310L 3	310L 4	310R2	310R3	310R4
311L 1	311L 2	311L 3	311L 4	311R2	311R3	311R4
313L 1	313L 2	313L 3	313L 4	313R2	313R3	313R4
315L 1	315L 2	315L 3	315L 4		315R3	315R4
316L 1	316L 2	316L 3	316L 4		316R3	316R4
317L 1	317L 2	317L 3	317L 4		317R3	317R4
318L 1	318L 2	318L 3	318L 4			318R4
319L 1	319L 2	319L 3	319L 4			319R4
321L 1	321L 2	321L 3	321L 4			321R4

Torque range
1,000 ... 1,100,000 Nm (8,850 … 9,735,820 in-lb)
Gear ratios
3.4 ... 5,000
Transmissible Mechanical Power
up to 1,050 kW
Brake options
Hydraulic brake
Hydraulically released parking brake on request
Electric brake
DC and AC type
Output
Foot and flange mounted
Output shaft: solid with key, splined, splined hollow, hollow with shrink disc
Input
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adapters
Solid input shaft
Applicable motors
Piston hydraulic motors
Hydraulic orbit motors
Electric motors IEC

Key Features
1. Torque range: 1000-450.000 Nm
2. Transmissible mechanical power: up to 540 kW
3. Gear ratios: 3.4-9.000
4. Gear unit versions: in line
5. Output configurations:
1) Foot and flange mounted
2) Output shaft: solid with key, splined, splined hollow
3) Hollow with shrink disc
6. Input configurations:
1) Flanged axial piston hydraulic motors
2) Hydraulic orbit motors
3) IEC and Nema motor adaptors
4) Solid input shaft
7. Hydraulic brake: hydraulically released parking brake
8. Electric brake: DC and AC type

Application

301 Series Inline Planetary Gear Reducer Replacement Bonfiglioli 301L1 301L2 301L3 301L4 301r2 301r3 301r4

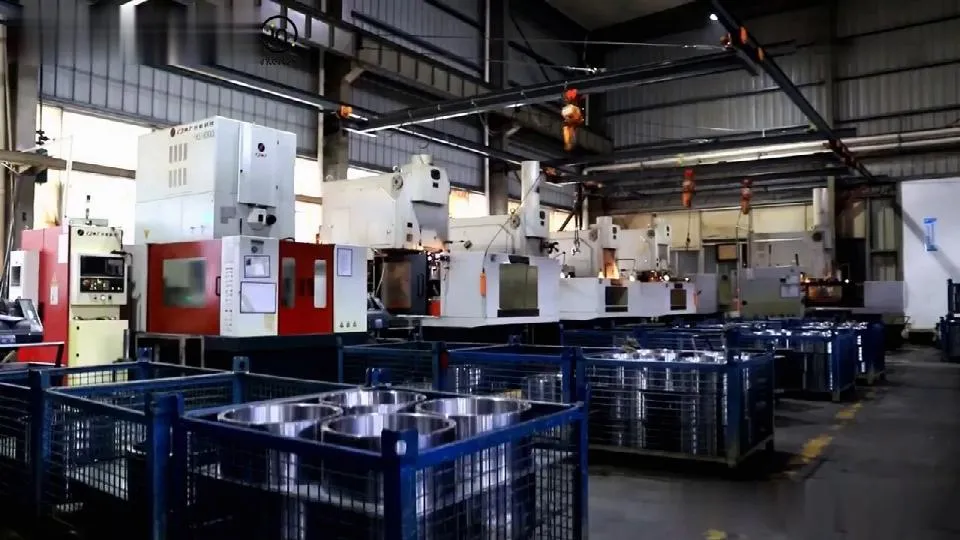

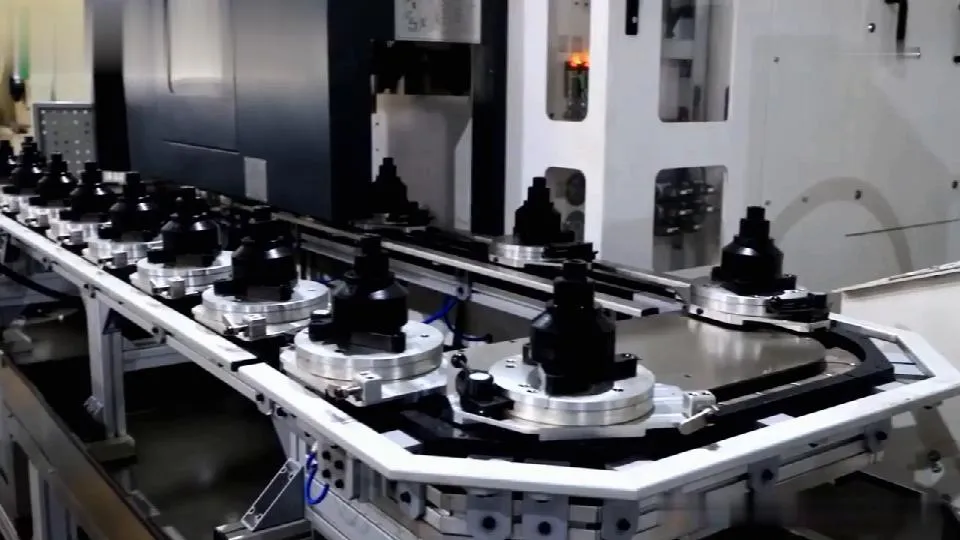

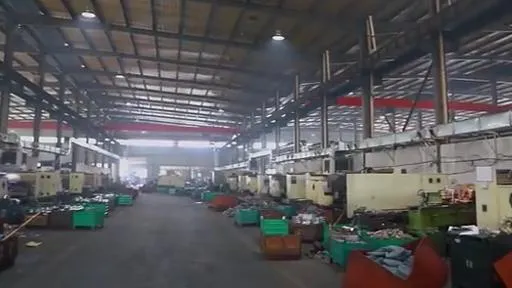

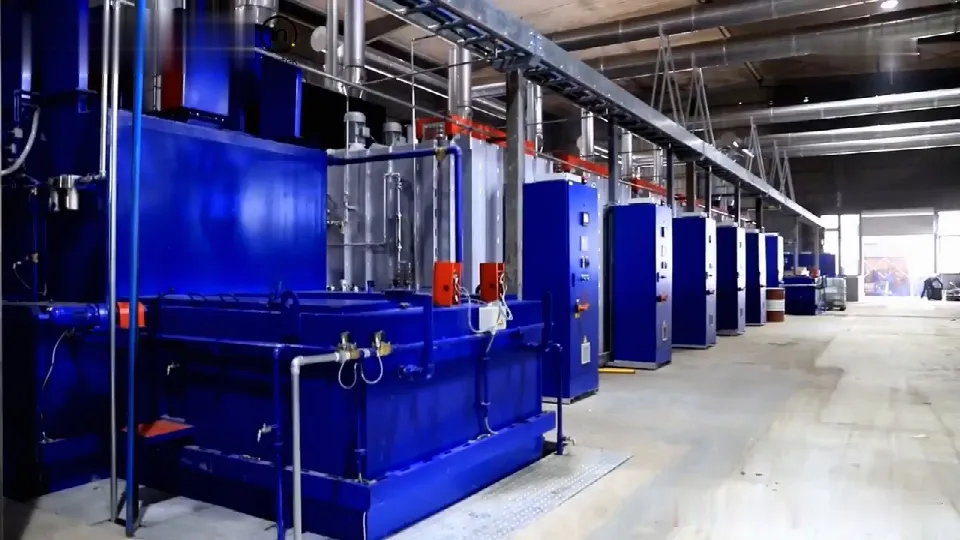

Our factory
