Japanese Duplex Sprockets NK35-2B

Product DescriptionNK Standard Sprockets B Type (Duplex) NK35-2B Chain TypeNo.35-2 Pitch(P)9.525 mmInternal Width(W)4.78 mmRoller Dia.(Dr)5.08 mmTeeth width(T)4.1 mm (M)14.2 mmSprockets No.Outside Dia.DoPitch Dia.DpBore dHubWeight(kg)TypeTeeth No.Stockmin.max.BDBLNK35-2B103430.829111020300.10113833......

Send Inquiry

Product Description

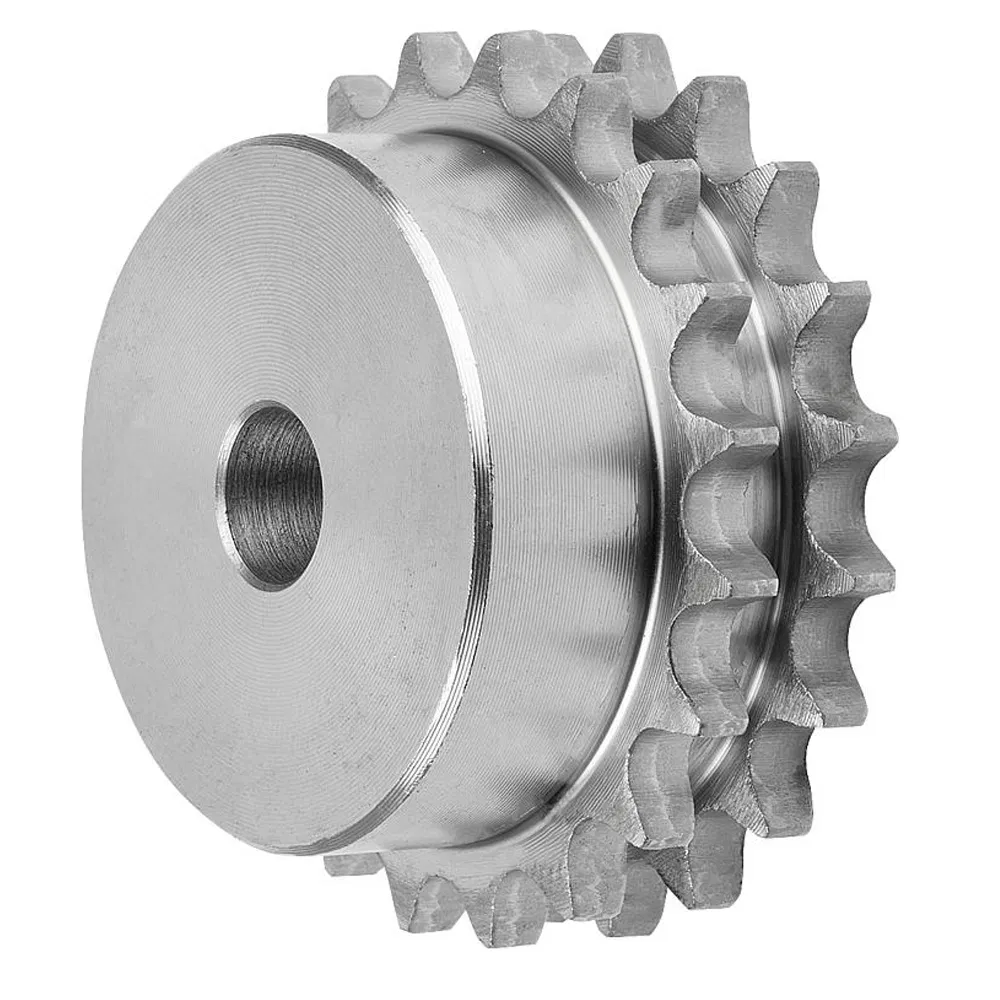

NK Standard Sprockets B Type (Duplex) NK35-2B

Chain Type	No.35-2
Pitch	(P)	9.525 mm
Internal Width	(W)	4.78 mm
Roller Dia.	(Dr)	5.08 mm
Teeth width	(T)	4.1 mm
	(M)	14.2 mm

Sprockets No.		Outside Dia. Do	Pitch Dia. Dp	Bore d			Hub		Weight (kg)
Type	Teeth No.	Outside Dia. Do	Pitch Dia. Dp	Stock	min.	max.	BD	BL	Weight (kg)
NK35-2B	10	34	30.82	9	11	10	20	30	0.10
	11	38	33.81	10	12	12	23	30	0.11
	12	41	36.80	10	12	14	26	30	0.14
	13	44	39.80	10	12	14	27	30	0.17
	14	47	42.81	10	12	18	32	30	0.21
	15	51	45.81	10	12	20	35	30	0.25
	16	54	48.82	10	12	20	38	30	0.29
	17	57	51.84	11.5	13.5	22	41	30	0.34
	18	60	54.85	11.5	13.5	25	44	35	0.45
	19	63	57.87	11.5	13.5	28	47	35	0.51
	20	66	60.89	12	14	30	50	40	0.64
	21	69	63.91	12	14	30	50	40	0.64
	22	72	66.93	12	14	32	55	40	0.67
	24	78	72.97	15	17	38	60	40	0.82
	25	81	76.00	15	17	38	60	40	0.92
	28	90	85.07	15	17	42	65	45	1.26
	30	96	91.12	15	17	42	65	45	1.34
	32	102	97.18	15	17	42	65	45	1.43
	40	127	121.40	15	17	42	65	45	2.30
	45	142	136.55	19	21	55	83	45	2.84
	50	157	151.70	19	21	55	83	45	3.22
	60	187	182.00	19	21	63	93	50	4.70

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Duplex Japanese Nk Standard Sprockets B Type Nk35-2b

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: Duplex Japanese Nk Standard Sprockets B Type Nk35-2b, Sprocket, Wheel and Sprocket
