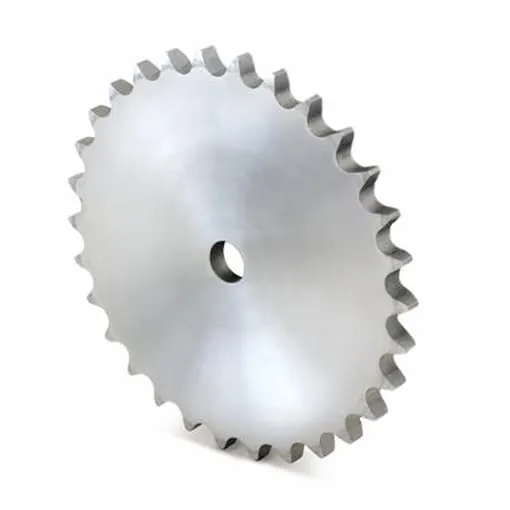

K Standard Plate Wheel Sprockets K100A

Product Parameters K Standard Sprockets A type K100A "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"BIG INVENTORY.REASONABLE PRICES.DELIVERY ON TIME.AVAILABLE MADE-TO-ORDER SPROCKET.Chain Pitch(P)31.75mm (1-1/4 inch)Inner Width(W)19.05mmBush Dia.(Dr)19.05mmTooth Width(T)17.6mm(Dimension : mm......

Send Inquiry

Product Description

K Standard Sprockets A type K100A

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

Chain Pitch	(P)	31.75	mm (1-1/4 inch)
Inner Width	(W)	19.05	mm
Bush Dia.	(Dr)	19.05	mm
Tooth Width	(T)	17.6	mm

(Dimension : mm)
Sprocket No.	Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d	Weight (kg)	Material	Teeth
Type	Teeth	Stock Bore	Min.
K100A	10	117	102.74	20	22	1.10	Mild Steel	10
11	127	112.70	20	22	1.30	11
12	138	122.67	20	22	1.60	12
13	148	132.67	20	22	1.90	13
14	158	142.68	20	22	2.15	14
15	168	152.71	20	22	2.50	15
16	179	162.74	20	22	2.83	16
17	189	172.79	20	22	3.20	17
18	199	182.84	20	22	3.60	18
19	209	192.90	20	22	4.00	19
20	220	202.96	20	22	4.40	20
21	230	213.03	20	22	4.90	21
22	240	223.10	20	22	5.35	22
23	250	233.17	20	22	5.80	23
24	260	243.25	20	22	6.40	24
25	270	253.32	20	22	6.90	25
26	281	263.40	20	22	7.50	26
27	291	273.49	20	22	8.10	27
28	301	283.57	20	22	8.70	28
29	311	293.66	20	22	9.30	29
30	321	303.75	26	28	10.00	30
31	331	313.83	26	28	10.63	31
32	341	323.92	26	28	11.35	32
33	352	334.01	26	28	12.00	33
34	362	344.11	26	28	12.80	34
35	372	354.20	26	28	13.50	35
36	382	364.29	26	28	14.40	36
37	392	374.38	26	28	15.10	37
38	402	384.48	26	28	16.00	38
39	412	394.57	26	28	16.80	39
40	422	404.67	26	28	17.70	40
41	433	414.77	26	28	18.60	41
42	443	424.86	26	28	19.50	42
43	453	434.96	26	28	20.50	43
44	463	445.06	26	28	21.45	44
45	473	455.16	26	28	22.40	45
46	483	465.25	26	28	23.40	46
48	503	485.45	26	28	25.50	48
50	524	505.65	26	28	27.70	50
52	544	525.85	26	28	29.90	52
54	564	546.05	26	28	32.30	54
55	574	556.15	26	28	33.00	55
60	625	606.66	26	28	39.90	60
65	675	657.17	26	28	46.80	65
70	726	707.68	26	28	54.30	70
75	777	758.20	26	28	62.30	75
80	827	808.71	26	28	70.90	80
90	928	909.75	26	28	89.58	90

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

K Standard Plate Wheel Sprockets a Type K100A (Japanese KANA Standard)

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: K Standard Plate Wheel Sprockets a Type K100A (Japanese KANA Standard), Sprocket, Chain Sprocket
