Product Description

K Standard Sprockets A type K120A

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

Chain Pitch	(P)	38.10	mm (1-1/2 inch)
Inner Width	(W)	25.40	mm
Bush Dia.	(Dr)	22.23	mm
Tooth Width	(T)	23.5	mm

(Dimension : mm)
Sprocket No.	Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d	Weight (kg)	Material	Teeth
Type	Teeth	Stock Bore	Min.
K120A	10	140	123.29	20	22	2.16	Mild Steel	10
11	153	135.24	20	22	2.60	11
12	165	147.21	20	22	3.10	12
13	177	159.20	20	22	3.60	13
14	190	171.22	20	22	4.20	14
15	202	183.25	20	22	4.80	15
16	214	195.29	20	22	5.50	16
17	227	207.35	20	22	6.20	17
18	239	219.41	20	22	6.95	18
19	251	231.48	20	22	7.70	19
20	263	243.55	20	22	8.55	20
21	276	255.63	20	22	9.40	21
22	288	267.72	26	28	10.30	22
23	300	279.80	26	28	11.30	23
24	312	291.90	26	28	12.30	24
25	324	303.99	26	28	13.30	25
26	337	316.09	26	28	14.40	26
27	349	328.19	26	28	15.50	27
28	361	340.29	26	28	16.70	28
29	373	352.39	26	28	17.80	29
30	385	364.50	26	28	19.20	30
31	398	376.60	26	28	20.40	31
32	410	388.71	26	28	21.80	32
33	422	400.82	26	28	23.20	33
34	434	412.93	26	28	24.60	34
35	446	425.04	26	28	26.10	35
36	458	437.15	26	28	27.60	36
38	483	461.38	26	28	30.80	38
40	507	485.60	26	28	34.10	40
42	531	509.84	26	28	37.60	42
44	556	534.07	26	28	41.20	44
45	568	546.19	26	28	43.10	45
46	580	558.30	26	28	45.10	46
48	604	582.54	26	28	49.00	48
50	628	606.78	26	28	53.30	50
54	677	655.26	26	28	62.10	54
60	750	727.99	26	28	76.70	60
70	871	849.22	26	28	104.30	70
75	932	909.84	26	28	119.80	75
80	993	970.46	26	28	136.30	80

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

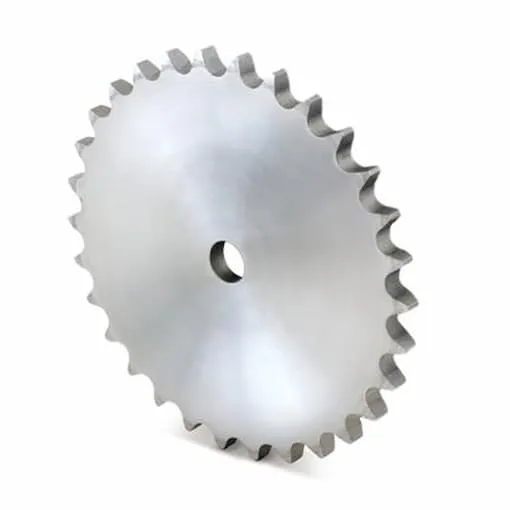

K Standard Plate Wheel Sprockets a Type K120A (Japanese KANA Standard)

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: K Standard Plate Wheel Sprockets a Type K120A (Japanese KANA Standard), Sprocket, K120A Sprockets
