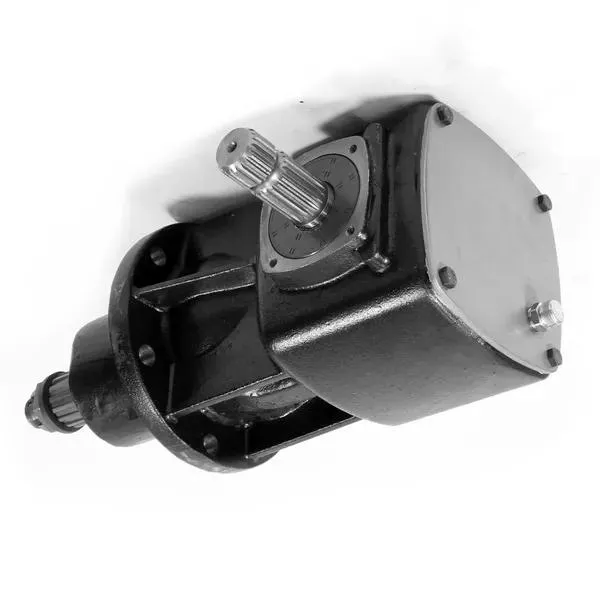

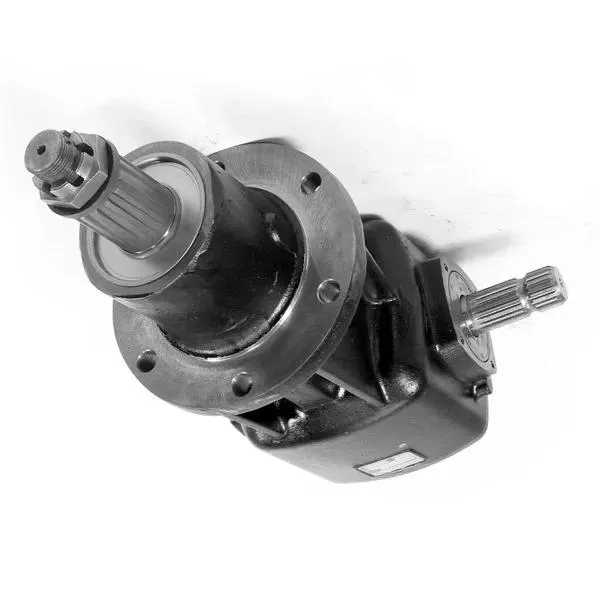

Rotary mower gearbox LF-149B is a type of gearbox that is commonly used in rotary mowers. This rotary mower gearbox is designed to transfer power from the mower's engine to the blades that cut the grass. The rotary mower gearbox LF-149B has a standard thread output shaft that is compatible with most rotary mowers on the market. It is made from high-quality materials such as steel and aluminum, giving it durability and longevity. Additionally, the rotary mower gearbox LF-149B is designed for low maintenance and is easy to install, making it a popular replacement choice for many rotary mowers.
| Product Description |
Rotary Mower Gearboxes - Replacement of Gearbox LF-149B 1:1
|
|---|---|

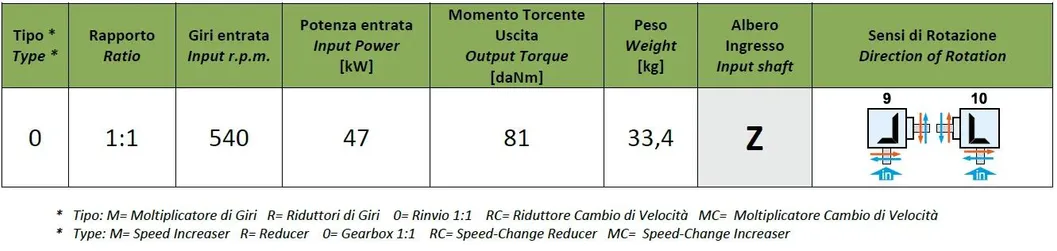

| Product details |
|
| Max. input power |
47 kW
|
| Contains oil |
No
|
| Max. oil capacity |
0.8 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GGG40
|
| Weight |
33.4 kg
|
| Gear arrangement Increasing |
3
|
| Gear ratio |
1:1
|
| Input power kW / HP Increasing |
47 / 55 kW/HP
|
| Input shaft Increasing |
Z
|
| Output Torque DaNm Increasing |
81 daNm
|
| Ratio Increasing |
1: 1
|
| Ratio Reducing |
1: 1
|
| Shaft Z |
1 3/8" (21)
|
We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.

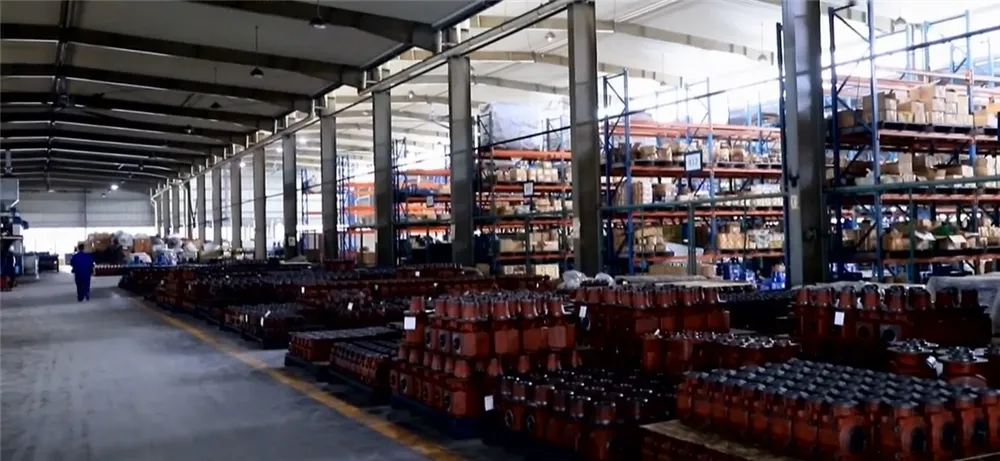

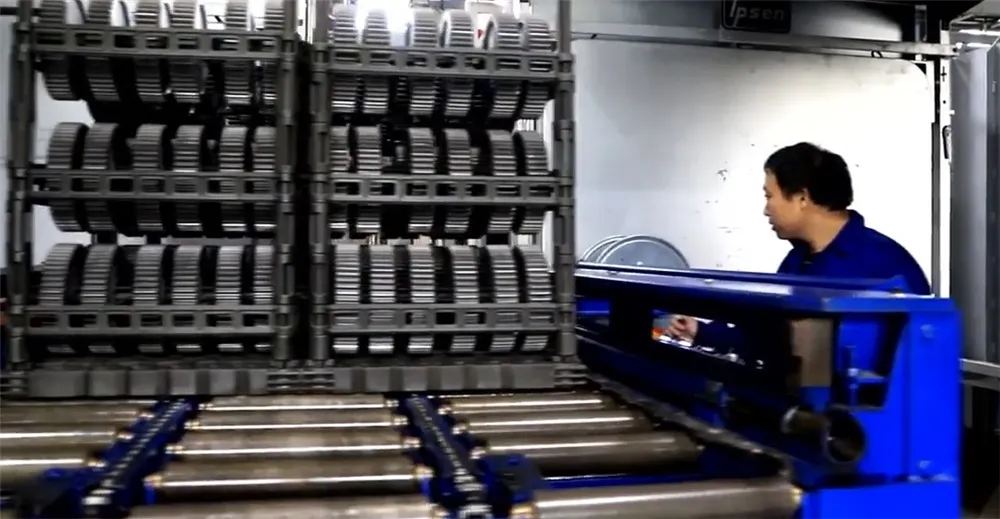

Our Equipments
PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
