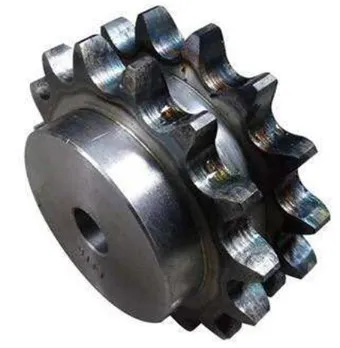

We stock a wide range of metric roller chain sprockets right off the shelf for immediate delivery. Our metric sprockets are typically supplied as standard steel with heat-treated teeth (up to 30 teeth) and stock bores. When a sprocket has heat-treated hardened teeth, it typically lasts longer and performs better than those that don't.
All of our metric roller chain sprockets are manufactured to ISO or DIN specifications so they directly interchange with other brands of metric chain sprockets. This also ensures the proper contact between the roller chain and sprocket, which will prevent premature wear.
|

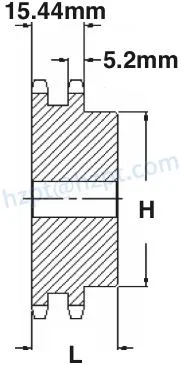

Sprocket Size
|
Tooth Count
|
Pitch Diameter
|
Stock Bore
|
Maximum Recommended Bore
|
Hub Diameter (H)
|
Length Thru Bore (L)
|
Weight (KG)
|
|---|---|---|---|---|---|---|---|
| D06B12 | 12 | 36.80mm | 10mm | 16mm | 25mm | 25mm | 0.16 |
| D06B13 | 13 | 39.79mm | 10mm | 18mm | 28mm | 25mm | 0.20 |
| D06B14 | 14 | 42.80mm | 10mm | 18mm | 31mm | 25mm | 0.25 |
| D06B15 | 15 | 45.81mm | 10mm | 20mm | 34mm | 25mm | 0.29 |
| D06B16 | 16 | 48.82mm | 12mm | 20mm | 37mm | 30mm | 0.34 |
| D06B17 | 17 | 51.83mm | 12mm | 24mm | 40mm | 30mm | 0.39 |
| D06B18 | 18 | 54.85mm | 12mm | 25mm | 43mm | 30mm | 0.45 |
| D06B19 | 19 | 57.87mm | 12mm | 28mm | 46mm | 30mm | 0.52 |
| D06B20 | 20 | 60.89mm | 12mm | 30mm | 49mm | 30mm | 0.59 |
| D06B21 | 21 | 63.91mm | 12mm | 30mm | 52mm | 30mm | 0.68 |
| D06B22 | 22 | 66.93mm | 12mm | 35mm | 55mm | 30mm | 0.75 |
| D06B23 | 23 | 69.95mm | 12mm | 38mm | 58mm | 30mm | 0.80 |
| D06B24 | 24 | 72.97mm | 12mm | 39mm | 61mm | 30mm | 0.84 |
| D06B25 | 25 | 76.00mm | 12mm | 40mm | 64mm | 30mm | 0.89 |
| D06B26 | 26 | 79.02mm | 12mm | 42mm | 67mm | 30mm | 0.91 |
| D06B27 | 27 | 82.05mm | 12mm | 45mm | 70mm | 30mm | 1.00 |
| D06B28 | 28 | 85.07mm | 12mm | 48mm | 73mm | 30mm | 1.07 |
| D06B29 | 29 | 88.10mm | 12mm | 50mm | 76mm | 30mm | 1.14 |
| D06B30 | 30 | 91.12mm | 12mm | 52mm | 80mm | 30mm | 1.22 |
| D06B32 | 32 | 98.18mm | 16mm | 52mm | 80mm | 30mm | 1.30 |
| D06B35 | 35 | 106.26mm | 16mm | 52mm | 80mm | 30mm | 1.42 |
| D06B36 | 36 | 109.29mm | 16mm | 60mm | 90mm | 30mm | 1.58 |
| D06B38 | 38 | 115.35mm | 16mm | 60mm | 90mm | 30mm | 1.72 |
| D06B40 | 40 | 121.40mm | 16mm | 52mm | 80mm | 35mm | 1.81 |
| D06B42 | 42 | 127.46mm | 19mm | 60mm | 90mm | 35mm | 2.05 |
| D06B45 | 45 | 136.55mm | 19mm | 60mm | 90mm | 35mm | 2.35 |
| D06B48 | 48 | 145.64mm | 19mm | 60mm | 90mm | 35mm | 2.75 |
| D06B52 | 52 | 157.75mm | 19mm | 60mm | 90mm | 35mm | 3.13 |
| D06B57 | 57 | 172.91mm | 19mm | 60mm | 90mm | 35mm | 3.47 |
| D06B60 | 60 | 182.00mm | 19mm | 60mm | 90mm | 35mm | 3.78 |
| D06B68 | 68 | 206.24mm | 19mm | 60mm | 90mm | 35mm | 4.43 |
| D06B70 | 70 | 212.30mm | 19mm | 60mm | 90mm | 35mm | 4.56 |
| D06B72 | 72 | 218.37mm | 19mm | 60mm | 90mm | 35mm | 4.89 |
| D06B76 | 76 | 230.49mm | 19mm | 60mm | 90mm | 38mm | 5.67 |
| D06B84 | 84 | 254.74mm | 19mm | 60mm | 90mm | 38mm | 7.10 |
| D06B95 | 95 | 288.08mm | 25mm | 62mm | 95mm | 38mm | 8.64 |
| D06B96 | 96 | 291.11mm | 25mm | 62mm | 95mm | 38mm | 8.75 |
| D06B114 | 114 | 345.68mm | 25mm | 62mm | 95mm | 38mm | 11.12 |
|

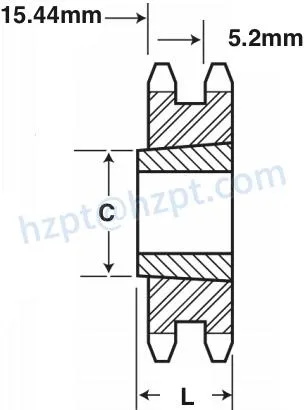

Sprocket Size
|
Tooth Count
|
Pitch Diameter
|
Bushing Number
|
Maximum Bushing Bore
|
(L)
|
(C)
|
Sprocket Weight (KG)
|
Bushing Weight (KG)
|
|---|---|---|---|---|---|---|---|---|
| D06BTB19 | 19 | 57.87mm | 1008 | 25.40mm | 22.23mm | 46.43mm | 0.6 | 0.14 |
| D06BTB20 | 20 | 60.89mm | 1008 | 25.40mm | 22.23mm | 49.20mm | 0.8 | 0.14 |
| D06BTB21 | 21 | 63.91mm | 1008 | 25.40mm | 22.23mm | 52.39mm | 1.4 | 0.14 |
| D06BTB22 | 22 | 66.93mm | 1008 | 25.40mm | 22.23mm | 55.56mm | 1.7 | 0.14 |
| D06BTB24 | 24 | 72.97mm | 1210 | 31.75mm | 25.40mm | 61.91mm | 1.8 | 0.27 |
| D06BTB25 | 25 | 76.00mm | 1210 | 31.75mm | 25.40mm | 61.91mm | 1.9 | 0.27 |
| D06BTB26 | 26 | 79.02mm | 1210 | 31.75mm | 25.40mm | 66.68mm | 2.0 | 0.27 |
| D06BTB30 | 30 | 91.12mm | 1610 | 41.28mm | 25.40mm | 79.38mm | 1.8 | 0.41 |
| D06BTB32 | 32 | 97.18mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.0 | 0.41 |
| D06BTB35 | 35 | 106.26mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.3 | 0.41 |
| D06BTB38 | 38 | 115.34mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.5 | 0.41 |
| D06BTB40 | 40 | 121.40mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.9 | 0.41 |
| D06BTB45 | 45 | 136.55mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 3.2 | 0.41 |
| D06BTB48 | 48 | 145.64mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 3.5 | 0.41 |
| D06BTB54 | 54 | 163.82mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 3.9 | 0.41 |
| D06BTB57 | 57 | 172.91mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 4.1 | 0.41 |
| D06BTB60 | 60 | 182.00mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 4.9 | 0.41 |
| D06BTB70 | 70 | 212.30mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 6.3 | 0.41 |
| D06BTB76 | 76 | 230.49mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 6.8 | 0.41 |
| D06BTB95 | 95 | 288.08mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 6.9 | 0.41 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
