Product Information
Please tell us what you need:
1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on
2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1

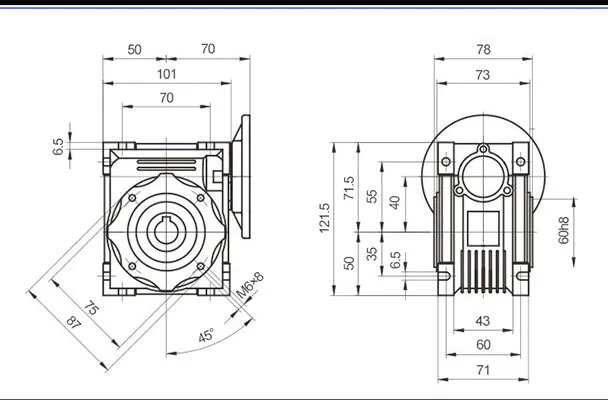

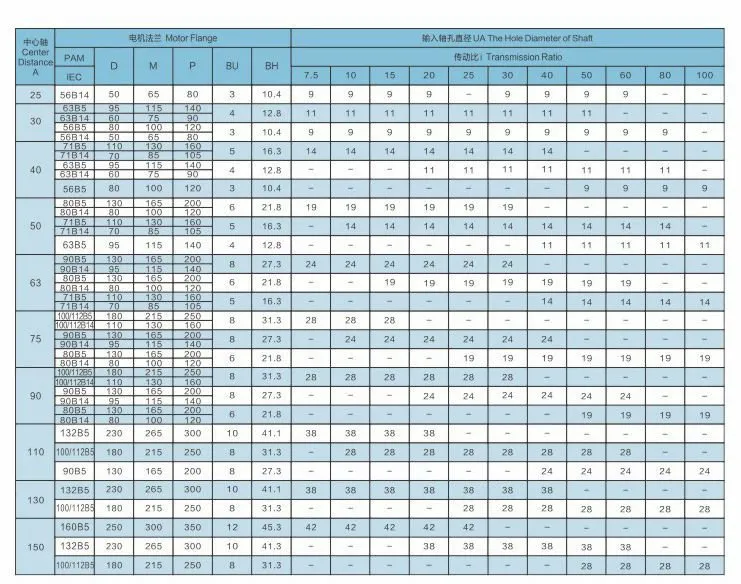

3, Confirm the input hole and output size: please refer to the detailed size table for the specific size
4, Confirm the size of motor flange: there are two kinds of large flange (B5) and small flange (B14), choose one.
5, Confirm the diameter of motor shaft hole: 11mm, 14mm, 19mm, 24mm, 28mm, 38mm
6, Confirm the motor specification: the standard configuration is a three-phase 380V motor with a speed of 1400rpm. If necessary: single phase 220 V motor, variable frequency motor, brake motor, 6-level motor, the price is determined separately.
|
Type
|

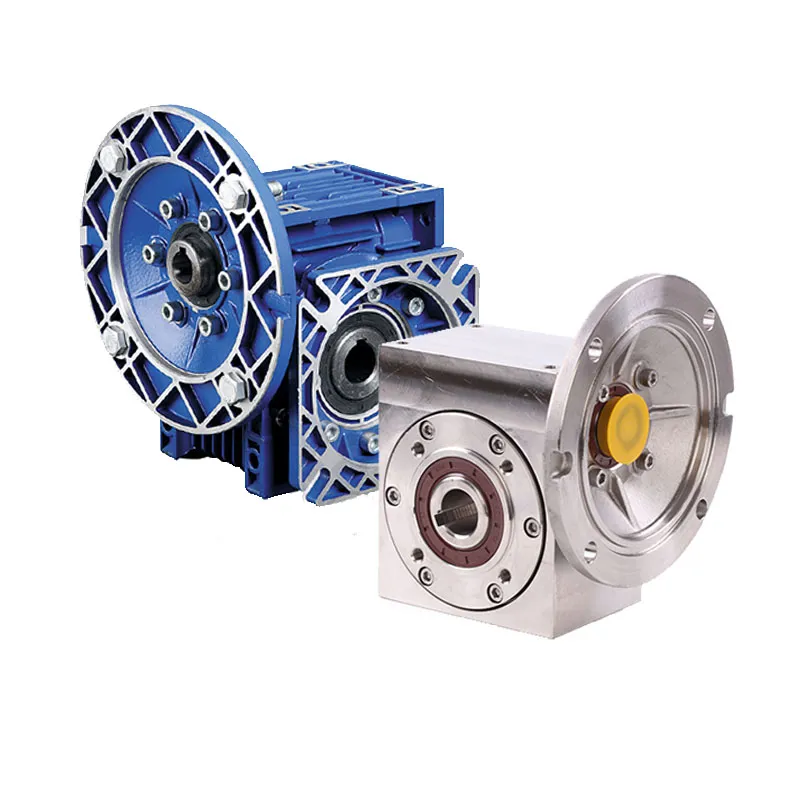

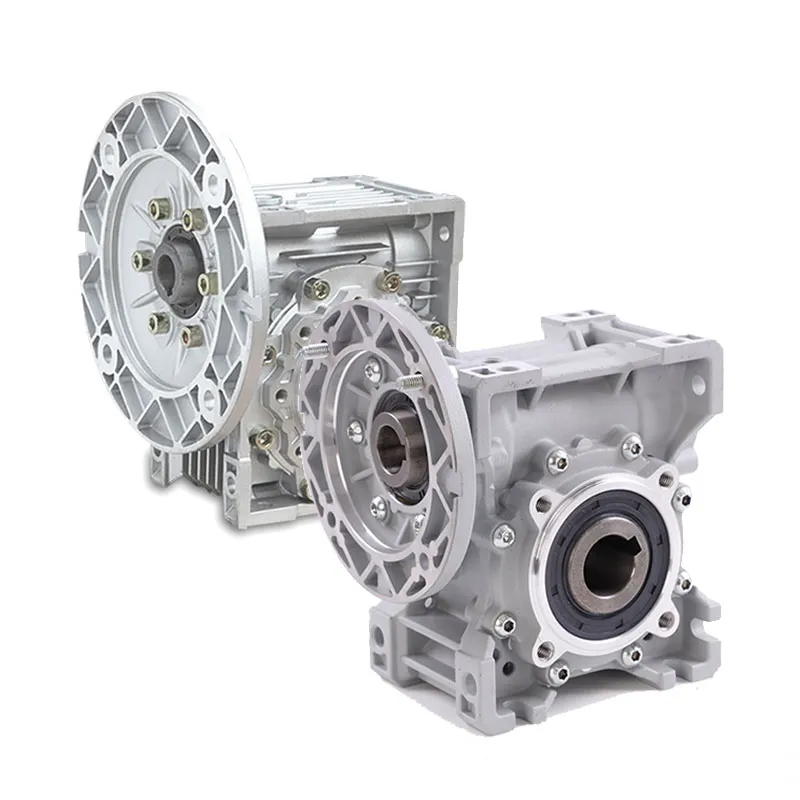

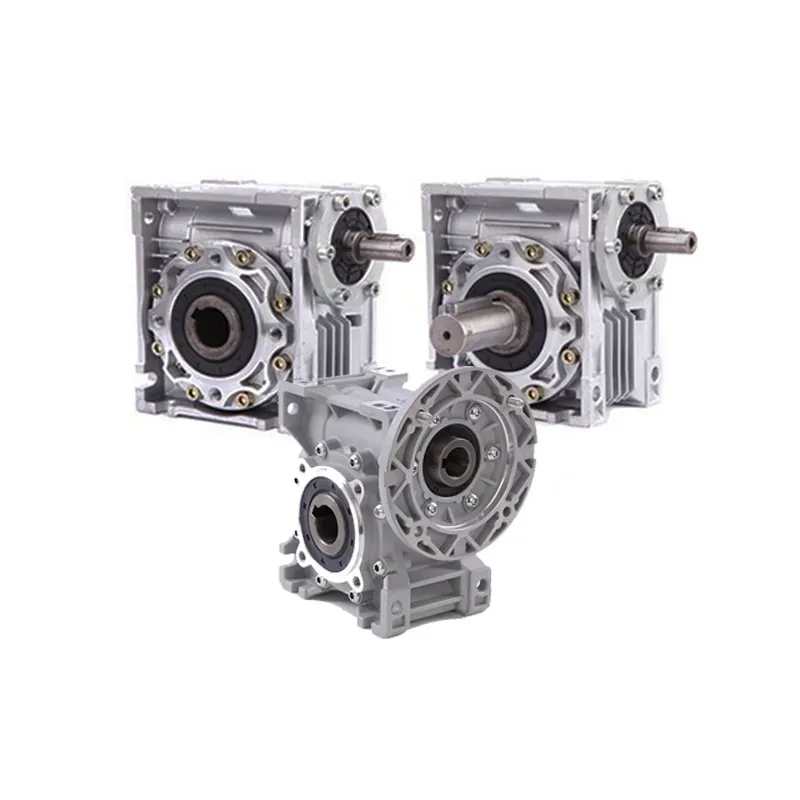

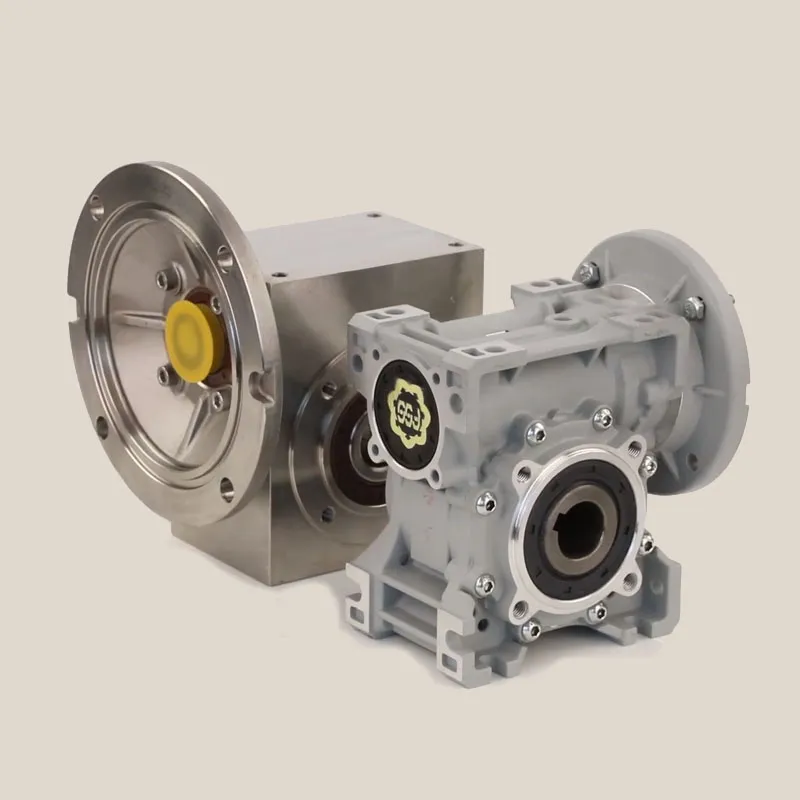

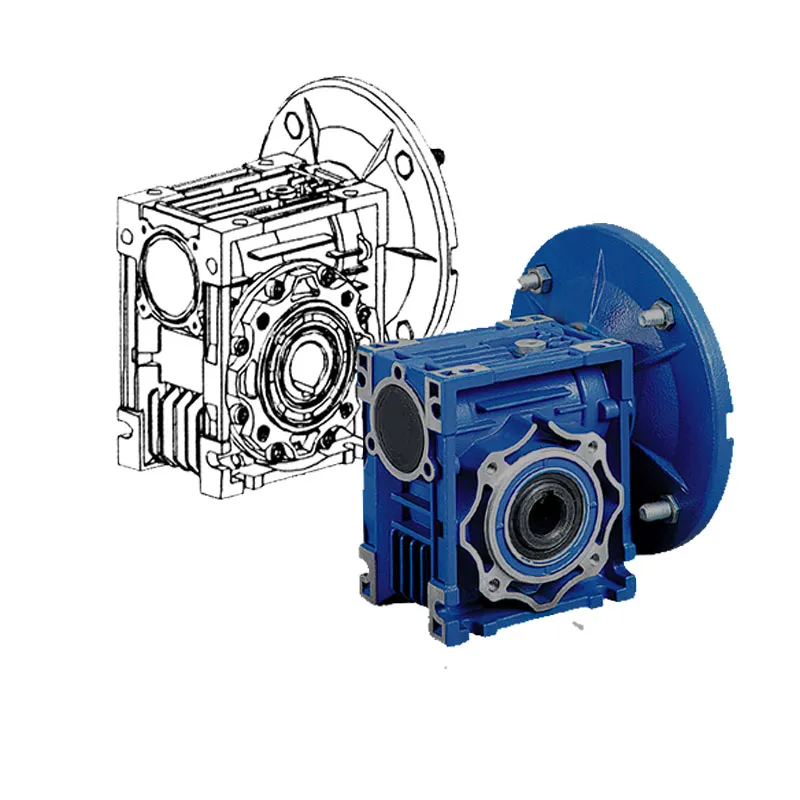

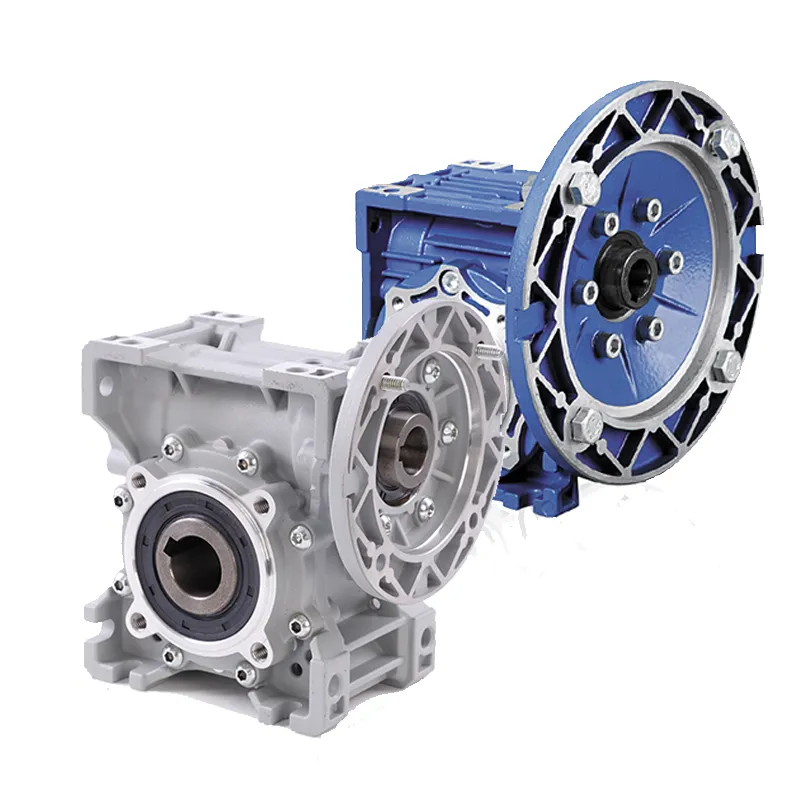

Worm Gear Speed Reducer / Gearbox / Reductor
|
|
Model
|
NMRV25/30/40/50/63/75/90/110/130/150/185
|
|
Color
|
Customized Color
|
|
Packing
|
Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
|
|
Usage
|
Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
|
|
Flange
|
IEC standard flange or customized dimensions
|
|
Housing Material
|
Aluminum&Cast iron
|
|
Size
|
11 sizes(WMRV25~WMRV185)
|
|
Power
|
0.06~22 KW
|
|
Nominal torque
|
≤2548 N.m
|
|
Ratio
|
5~100
|
