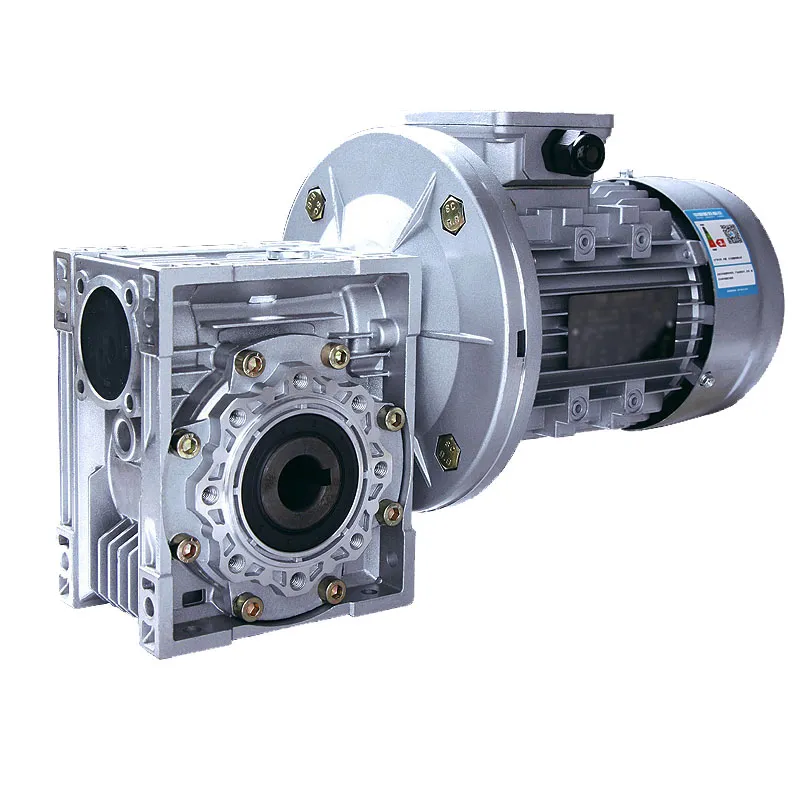

NMVR060 Worm Gearbox

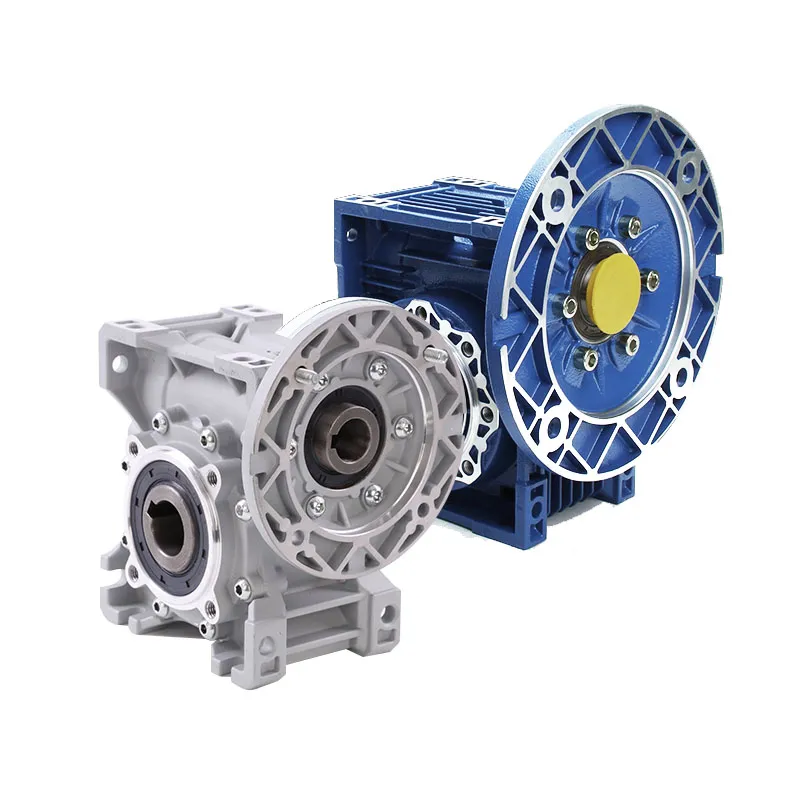

The casing of the worm gear box is made of three materials, as follows


NMRV series		WP series
Aluminum	Stainless steel	Cast iron
Models:RV030-040-050-063-075-105-110-130-150 Input Options: with input shaft, With Square flange,With Input Flange Input Power 0.06 to 11 kW RV-Size from 030 to 105 in die-cast aluminium alloy budy and over 110 in cast iron Ratios between 5 and 100 Max torque 1550 N.m and admissible output radial loads max 8771 N Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity Worm wheel: Copper (KK Cu).  Loading capacity in accordance with: ISO 9001:2015/GB/T 19001-2016 Size 030 and over are painted with RAL 5010 blue Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRVpower+NMRV, JWB+NMRV NMRV, NRV+VS,NMRV+AS,NMRV+VS,NMRV+F Options: torque arm, output flange, viton oil seals, low/high temperature oil, filling/drain/breather/level plug.		Models: Single speed: WPA WPDA WPKA WPDKA WPS WPDS WPKS WPDKS WPO WPDO WPZ WPDZ WPX WPDX WPKZ WPDKZ Double speed: WPEA WPEDA WPEKA WPEDKA WPES WPEDS WPEKS WPEDKA WPEO WPEDO WPWEDO WPWEO WPEX WPEDX WPWEKO WPWEDKO WPWE WPWED WPWEK WPWEDK Universal speed: WPW WPWD WPWK WPWDK WPWA WPWDA WPWKA WPWDKA WPWS WPWDS WPWKS WPWDKS WPWO WPWDO WPWKO WPWDKO WPWX WPWDX WPWKT WPWDKT WPWT WPWDT WPWKV WPWDKV WPWV WPWDV

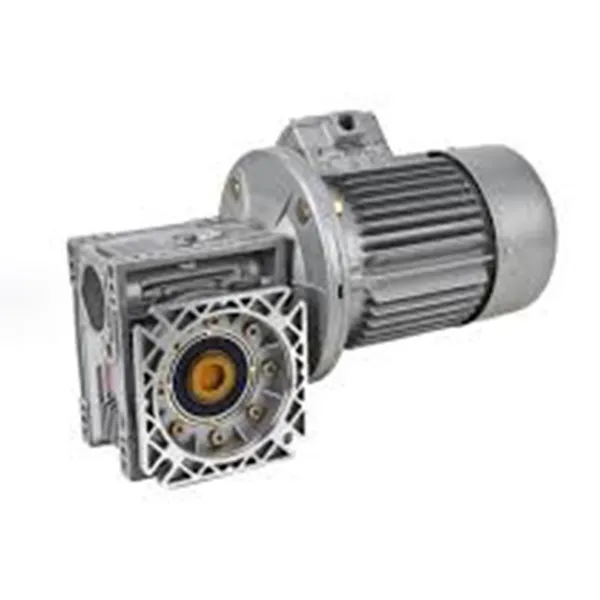

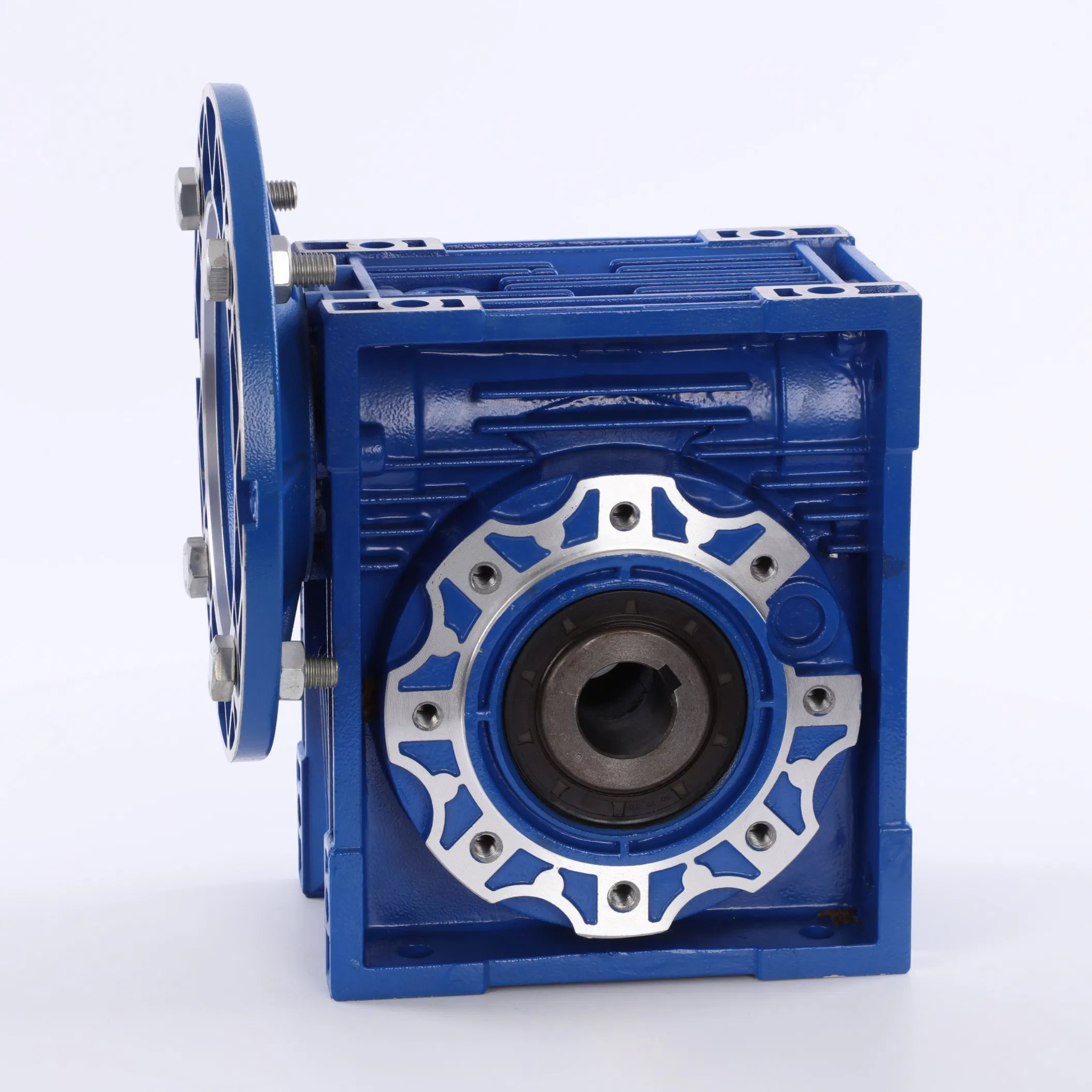

RV (NMRV) series
RV reducer is one of the common reducers in the worm gear reducer family. It is composed of worm and worm gear. It has compact structure, large transmission ratio, and self-locking function under certain conditions. It is one of the commonly used reducers with low vibration, low noise, and low energy consumption.
NMRV series reducers are used in food, leather, textile, glass, ceramics, medical, chemical, light industry and other mechanical equipment industries, especially for various automatic wire drive reducers.

WP series


--Wide universality
Stable transmission, low vibration, impact and noise, large reduction ratio, wide versatility, and can be used with various mechanical equipment.

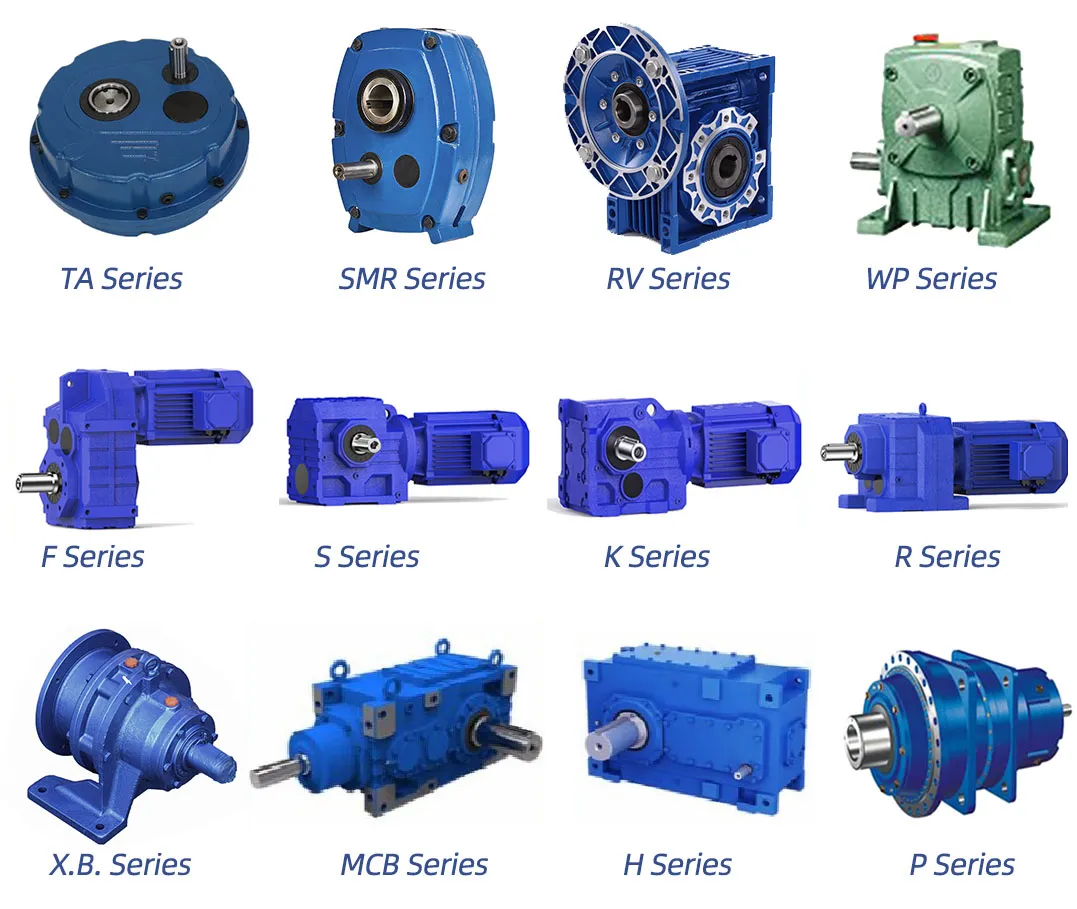

Hangzhou Ever-power transmission Co., Ltd. is a modern industrial and trade enterprise integrating scientific research, design and sales. The main products of the company are R, K, F, S series helical gears -- hard tooth surface reducer, aluminum alloy reducer, precision planetary reducer, intermittent separator, small gear reducer, medium gear reducer, cast iron worm gear reducer, spiral bevel gear steering gear and other transmission products.
Ever-power's mission: to provide reassuring, stable, professional and automated transmission solutions and services for the machinery industry, and continue to create value for customers! The company's products are all advanced A2A, 2A, 2B gear grinding machines from Switzerland and Niles gear hobbing machines from Germany; 7163 conical grinding wheel gear grinder 215 gear grinder; THA6350 horizontal machining center; WENIEL CMM production and processing. The mature technology and reliable quality assurance have made the products of BJM highly praised by the majority of users at home and abroad, and can be widely used in the fields of mechanical equipment such as petroleum, chemical industry, plastics, rubber, food, packaging, textile, printing, light industrial machinery, three-dimensional parking garage and assembly line, winning the satisfaction and praise of users

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.

Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.

These features enable a reliable and safe service life of over 200 000 operational hours.

Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
