Parallel Shaft Helical Gearbox for Conveyor Drives

Experience the superior performance of Raydafon Group's Parallel Shaft Helical Gearbox for Conveyor Drives, engineered with precision for durability and smooth operation. Ideal for industrial applications, it enhances efficiency, reduces downtime, and offers reliable power transmission. Trust our innovative design for unmatched quality and customer satisfaction.

Send Inquiry

Product Description

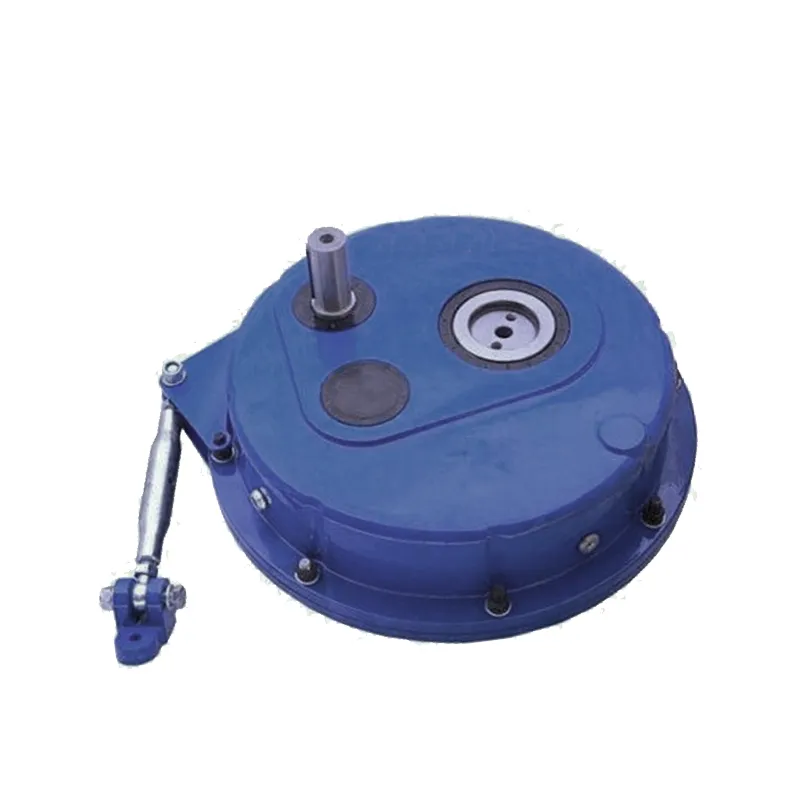

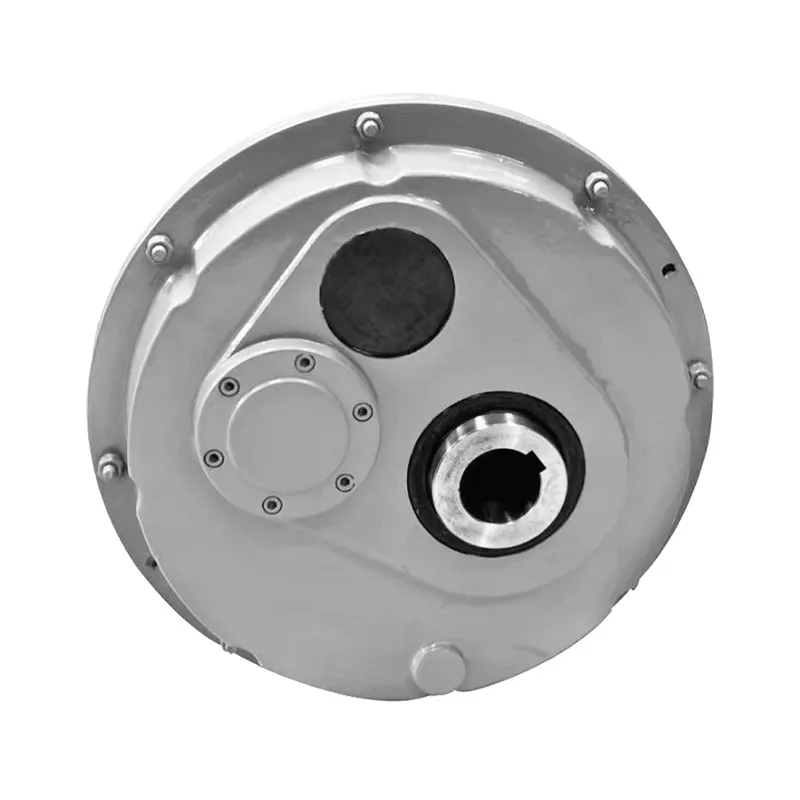

Industrial Transmission TA parallel shaft mounted helical Hanging gearbox gear motor reducer for Belt conveyor drives

Components:

Housing	Nodular Cast Iron(Ductile Iron) QT600
Gears Profile	Hardened Helical Gears
Gears Material	20CrMnTi
Gears Processing	Carburizing, Quenching, Grinding
Gears Hardness	Surface Hardness: HRC58-62
Gears Hardness	Inner Hardness: HRC58-62
Gears Accuracy	6 Class
Shafts Material	40Cr
Input Configurations	Keyed Solid Shaft Input IEC Normalized Motor Flange
Output Configurations	Keyed Hollow Shaft Output
Bearings	NSK, HRB, ZWZ, LYC
Spare Parts	Torque arm, Optional Backstop
Models	1 Stage: ATA30, ATA35, ATA40, ATA45, ATA50, ATA60, ATA70, ATA80, ATA100, ATA125
Models	2 Stage: ATA35D, ATA40D, ATA45D, ATA50D, ATA60D, ATA70D, ATA80D, ATA100D, ATA125D

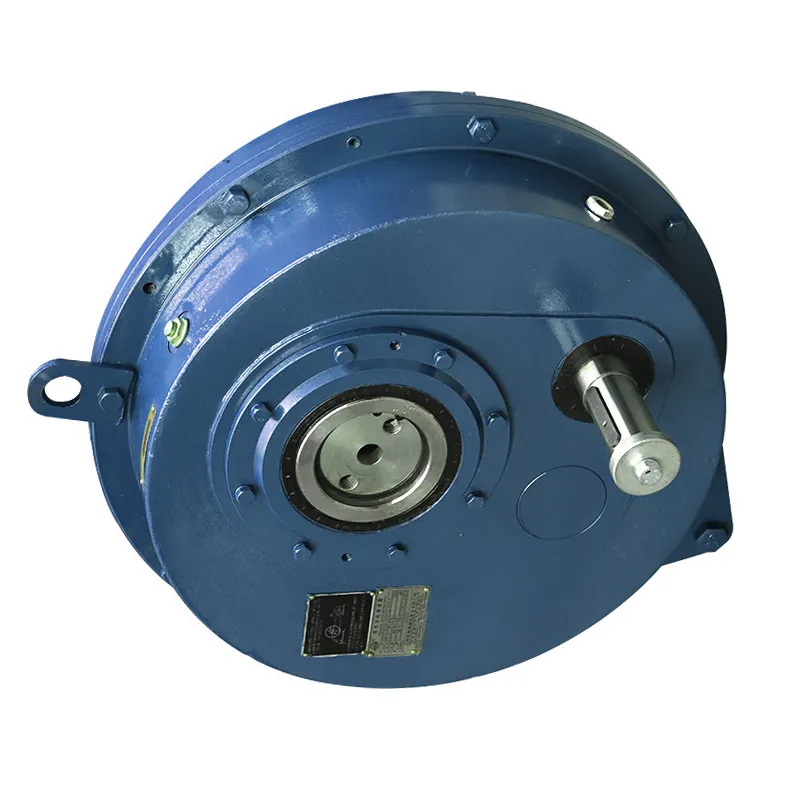

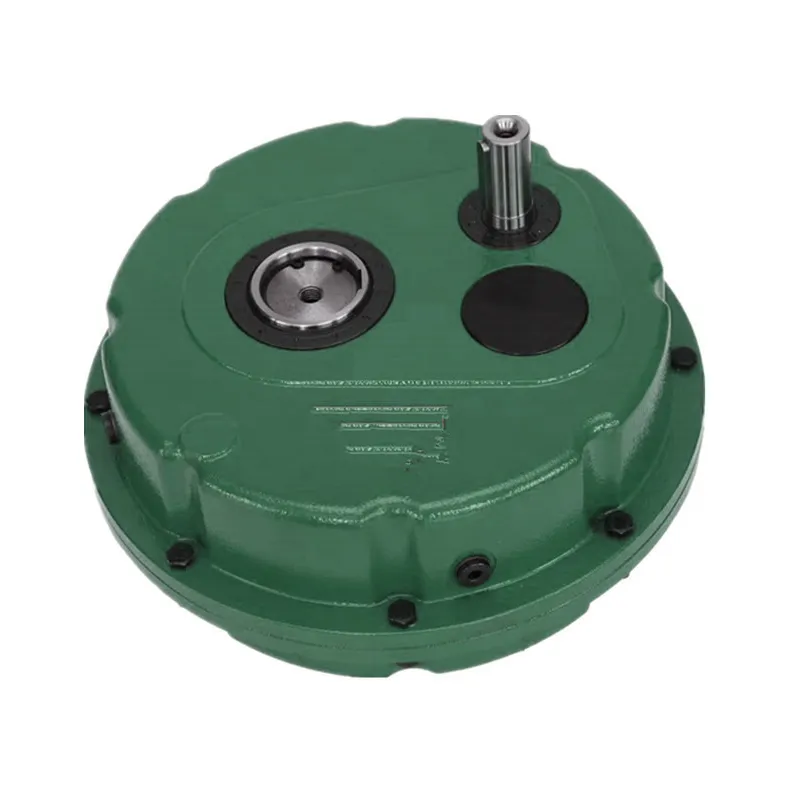

Industrial Transmission Ta Parallel Shaft Mounted Helical Hanging Gearbox Gear Motor Reducer for Belt Conveyor Drives

Features:
1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded ATA30) to prevent backdriving in case of incline conveyors
6. Dimensions are same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

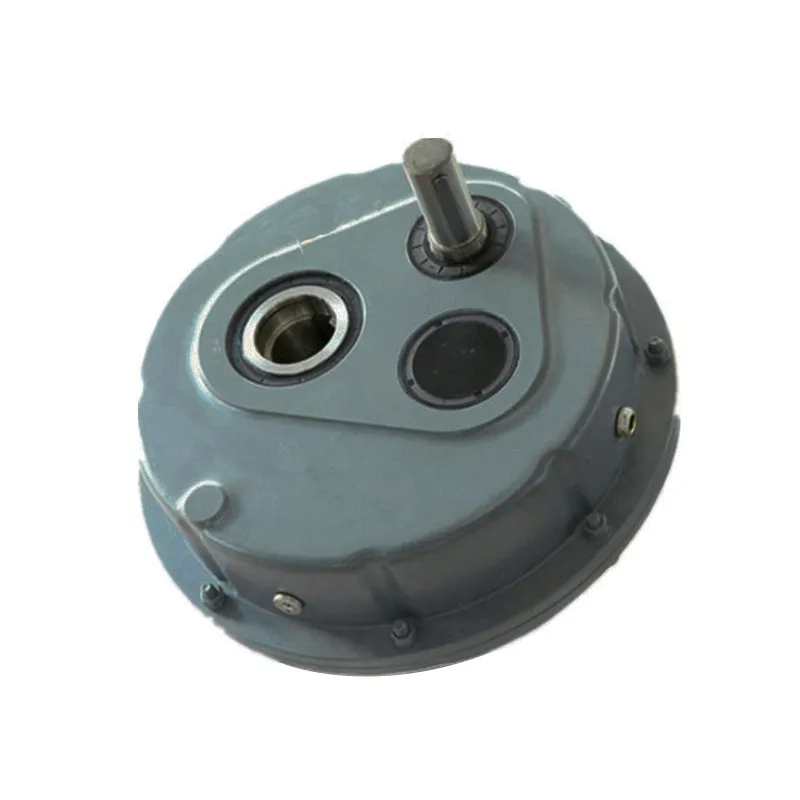

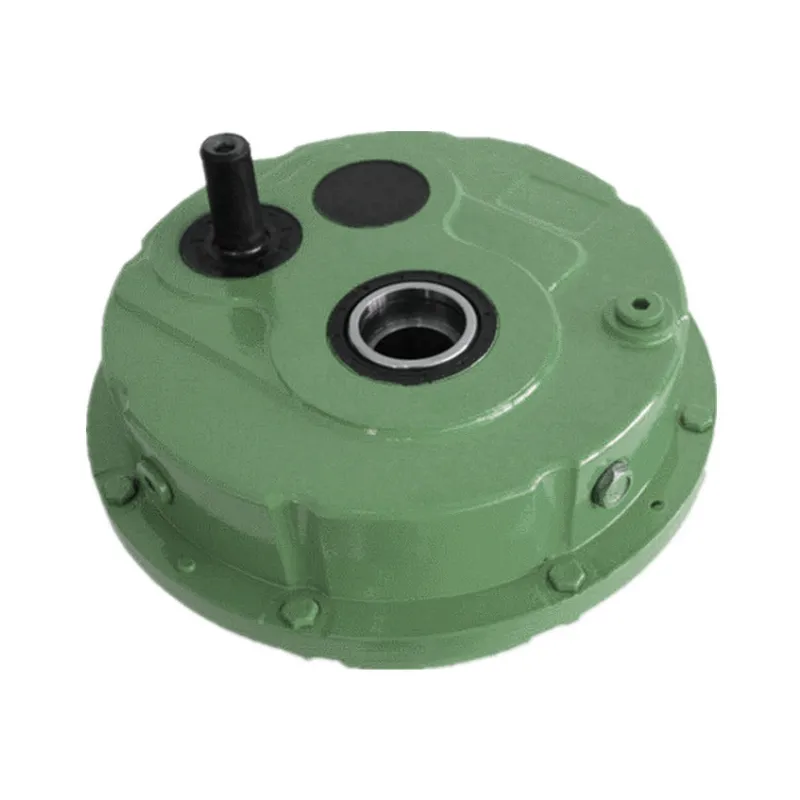

Industrial Transmission Ta Parallel Shaft Mounted Helical Hanging Gearbox Gear Motor Reducer for Belt Conveyor Drives

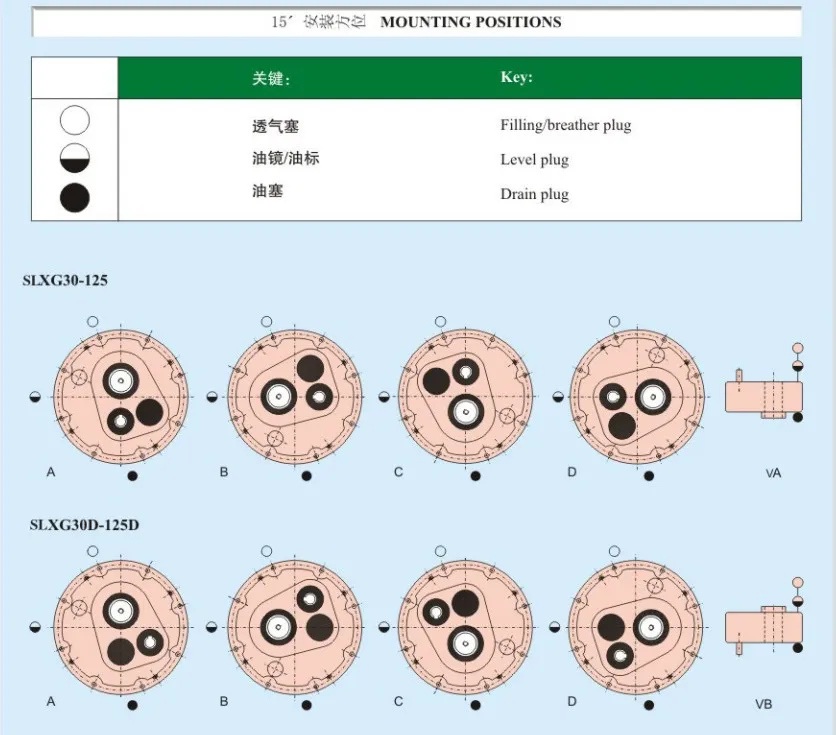

Models	Output Bore Dia.	Maximum Torque	Nominal Ratio(i)
ATA30	30mm	180Nm	5 7 10 12.5 15 20 25 31
ATA35	35mm	420Nm
ATA40	40mm/45mm	950Nm
ATA45	45mm/50mm/55mm	1400Nm
ATA50	50mm/55mm/60mm	2300Nm
ATA60	60mm/70mm	3600Nm
ATA70	70mm/85mm	5100Nm
ATA80	80mm/100mm	7000Nm
ATA100	100mm/125mm	11000Nm
ATA125	125mm/135mm	17000Nm
