Plastic Injection Sprockets & Wheels for Chain

Raydafon Group offers high-quality plastic injection sprockets and wheels for chain, ideal for industrial applications. Durable, lightweight, and corrosion-resistant, they ensure smooth operation and reduced maintenance. Perfect for manufacturers and engineers, these components enhance efficiency and reliability. Our innovative design and precision engineering set us apart from competitors. Experience superior performance and long-term savings—choose Raydafon Group for your chain system needs.

Send Inquiry

Product Description

Sprockets & Idler Wheels for 881BEVEL-881TAB Chain

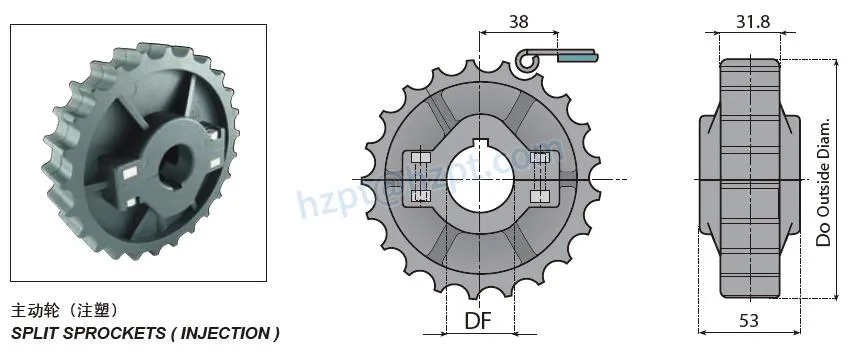

Product Specifications

CODE	Z	Do mm	DF mm
F19021	21	129	25/30/35/40
F19023	23	142	25/30/35/40
F19025	25	154	25/30/35/40

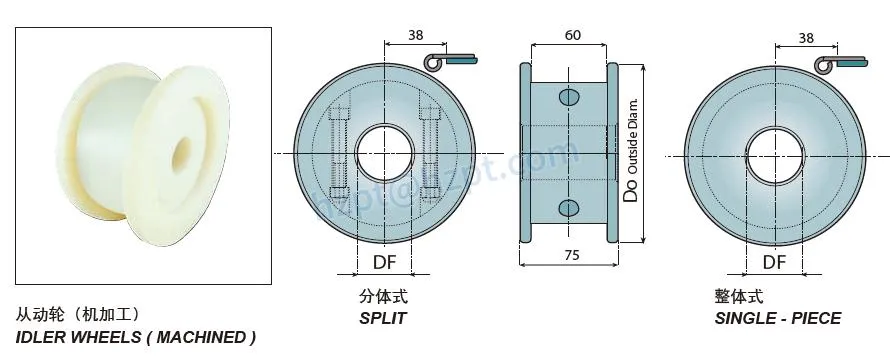

Product Specifications (Split Idler Wheels)

CODE	Z	Do mm	DF mm
F20017-1	17	104	25/30/35/40
F20019-1	19	117	25/30/35/40
F20021-1	21	129	25/30/35/40
F20023-1	23	142	25/30/35/40
F20025-1	25	154	25/30/35/40
F20027-1	27	166.8	25/30/35/40
F20029-1	29	178.5	25/30/35/40

Product Specifications (Single-Piece Idler Wheels)

CODE	Z	Do mm	DF mm
F20017-2	17	104	25/30/35/40
F20019-2	19	117	25/30/35/40
F20021-2	21	129	25/30/35/40
F20023-2	23	142	25/30/35/40
F20025-2	25	154	25/30/35/40
F20027-2	27	166.8	25/30/35/40
F20029-2	29	178.5	25/30/35/40

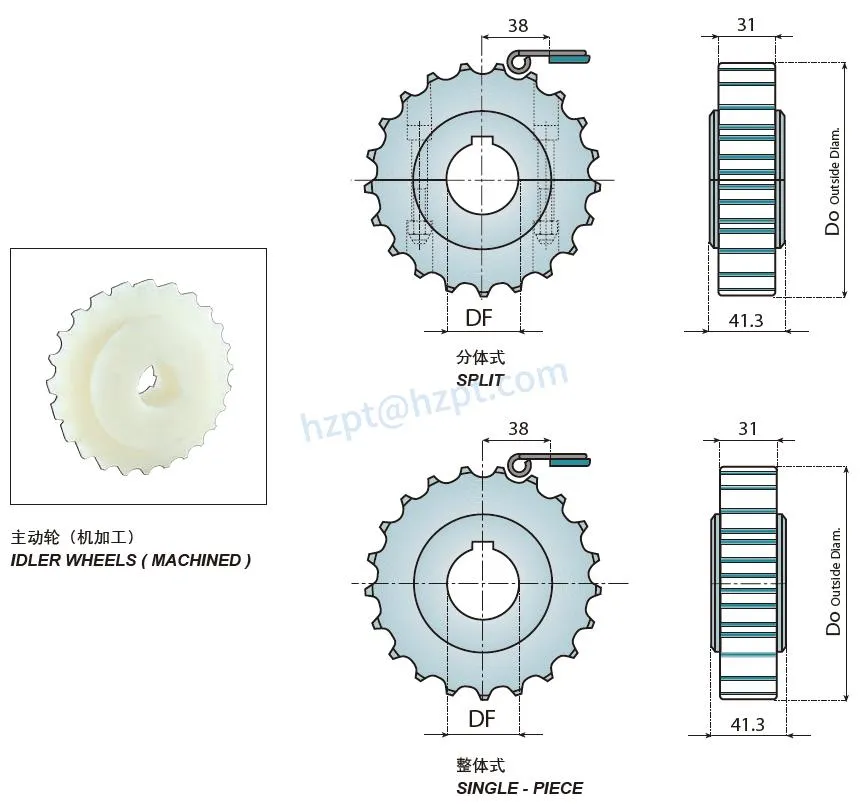

Product Specifications

CODE	Z	Do mm	DF mm
F21017-ID	17	104	25/30/35/40
F21019-ID	19	117	25/30/35/40
F21021-ID	21	129	25/30/35/40
F21023-ID	23	142	25/30/35/40
F21025-ID	25	154	25/30/35/40
F21027-ID	27	166.8	25/30/35/40
F21029-ID	29	178.5	25/30/35/40

Plastic Sprockets Key Features

Self-lubricating grade, negating the need for additional lubricants.
Lower coefficient of friction and increased wear resistance compared to metal parts.
Good corrosion resistance.
High impact strength.
Lighter weight than metal parts.
Reduced noise levels during operation than metal parts.
Split sprockets can be manufactured up to 400mm in diameter.

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Plastic Injection Split Sprockets & Idler Wheels for 881bevel-881tab Chain
