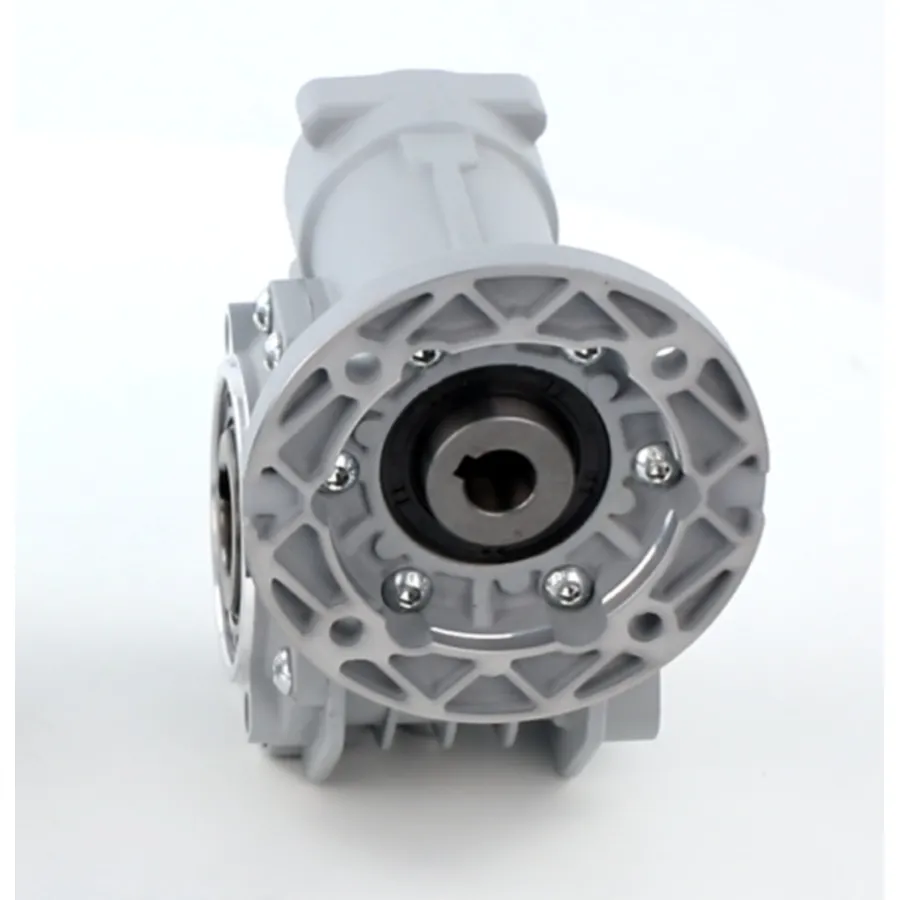

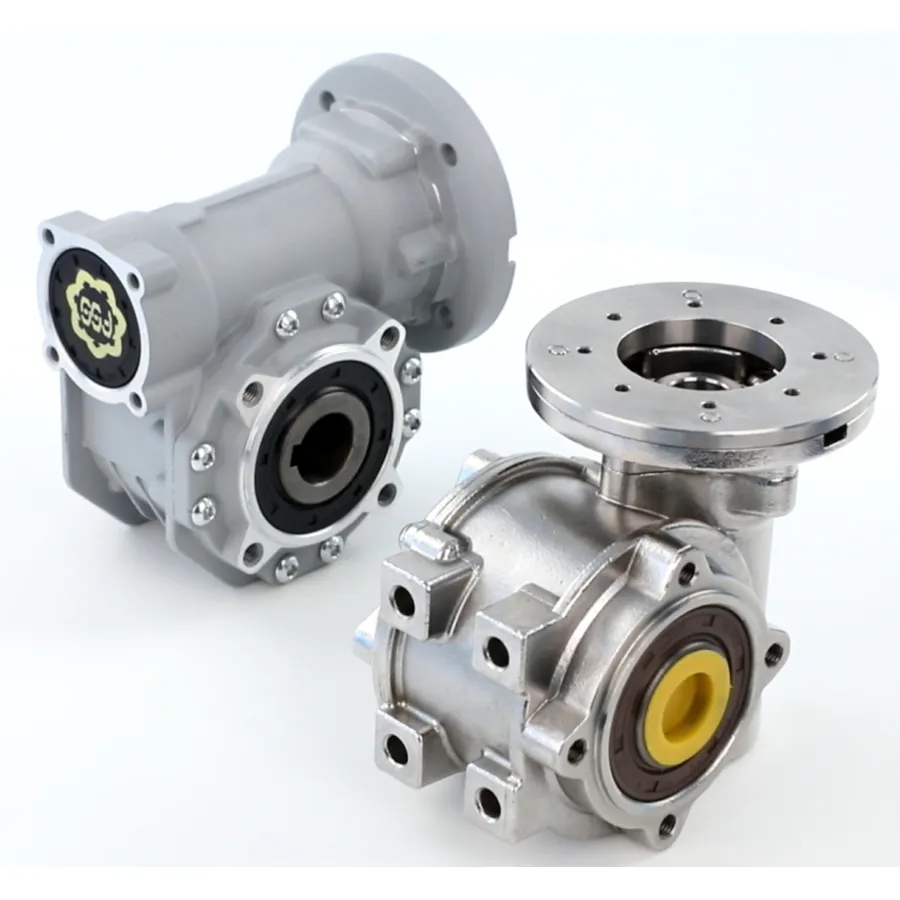

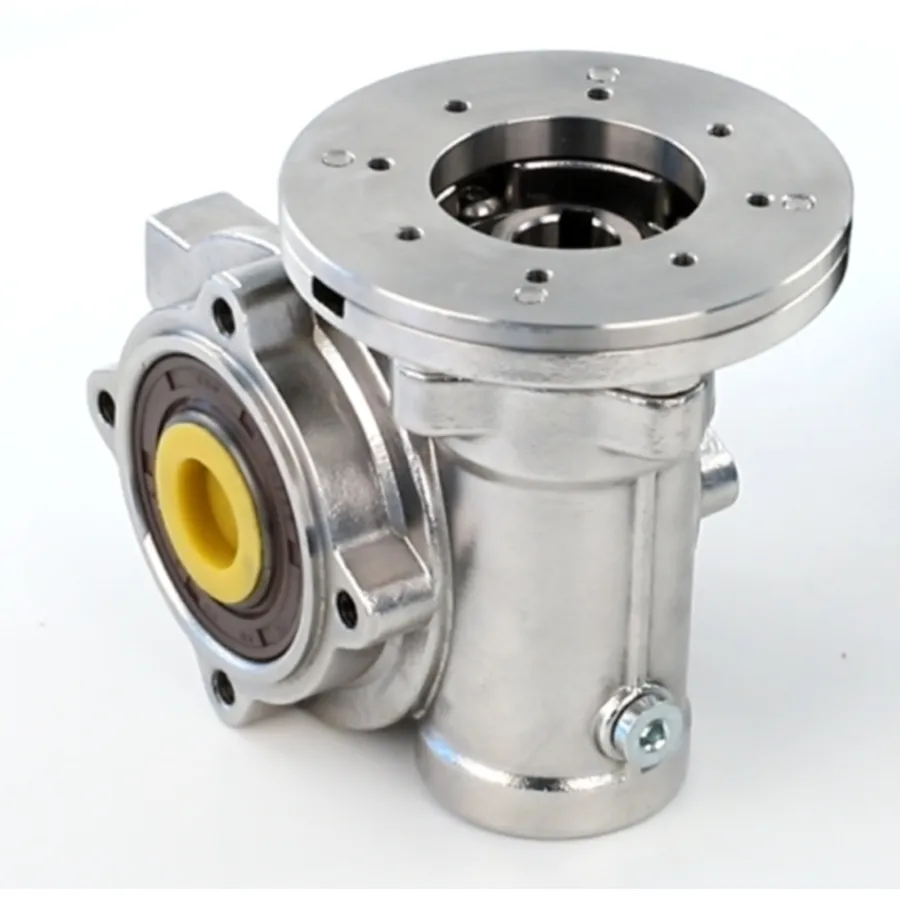

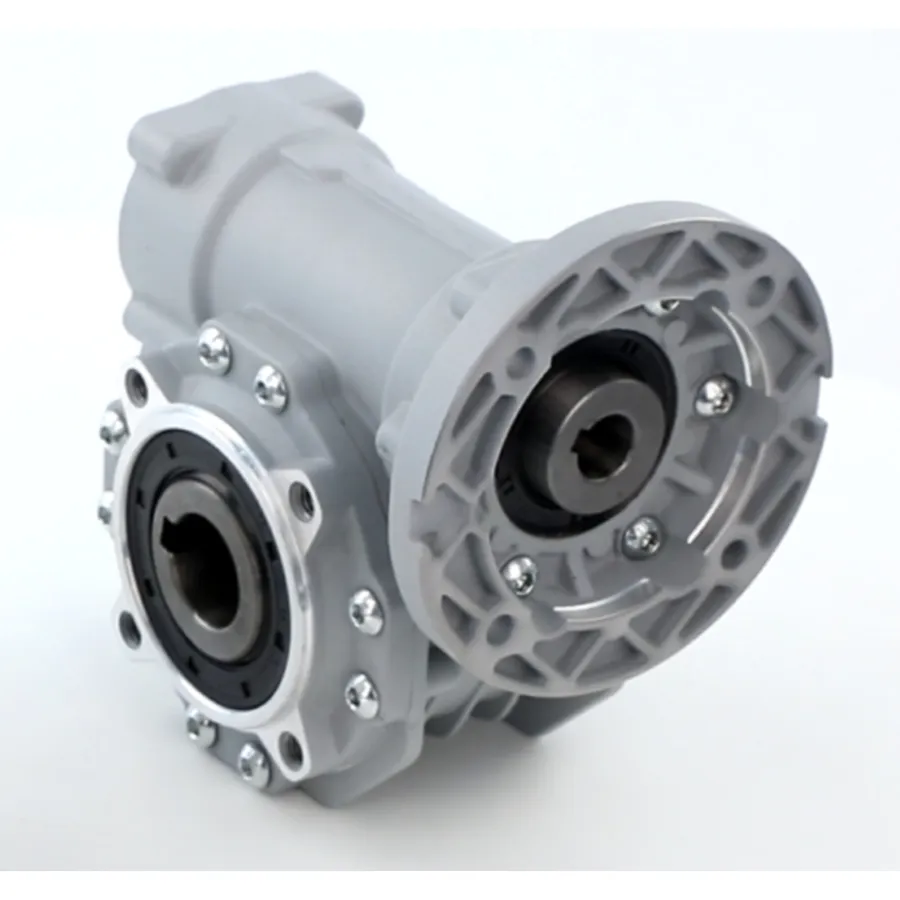

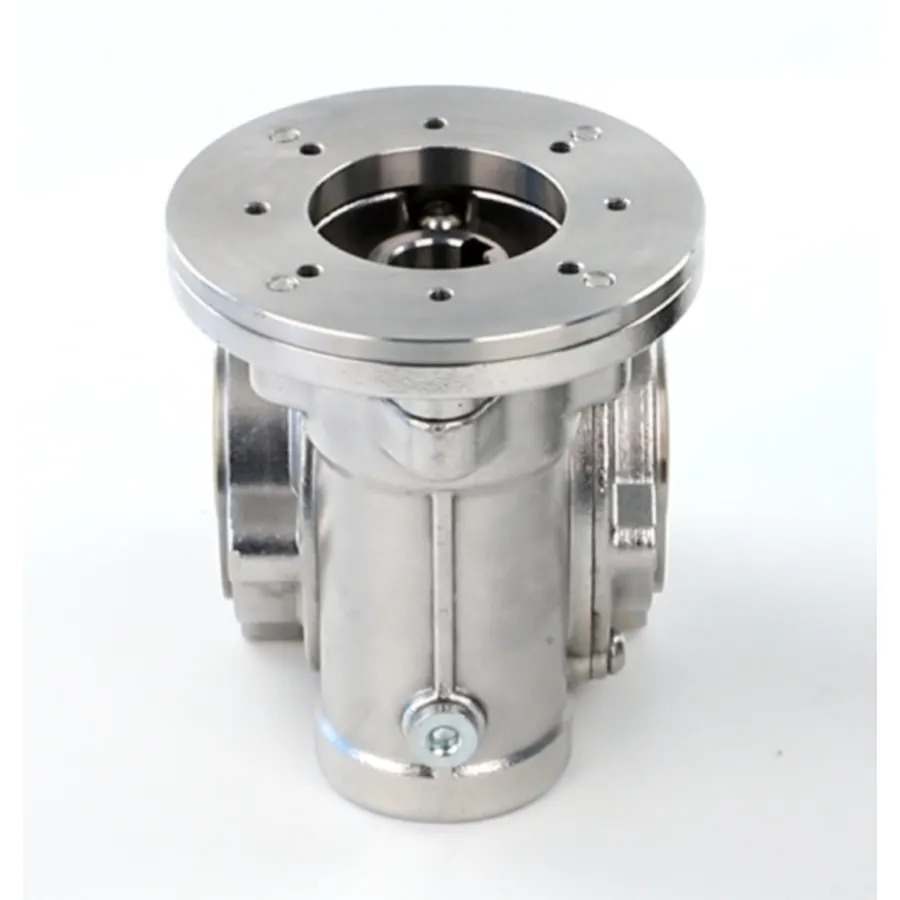

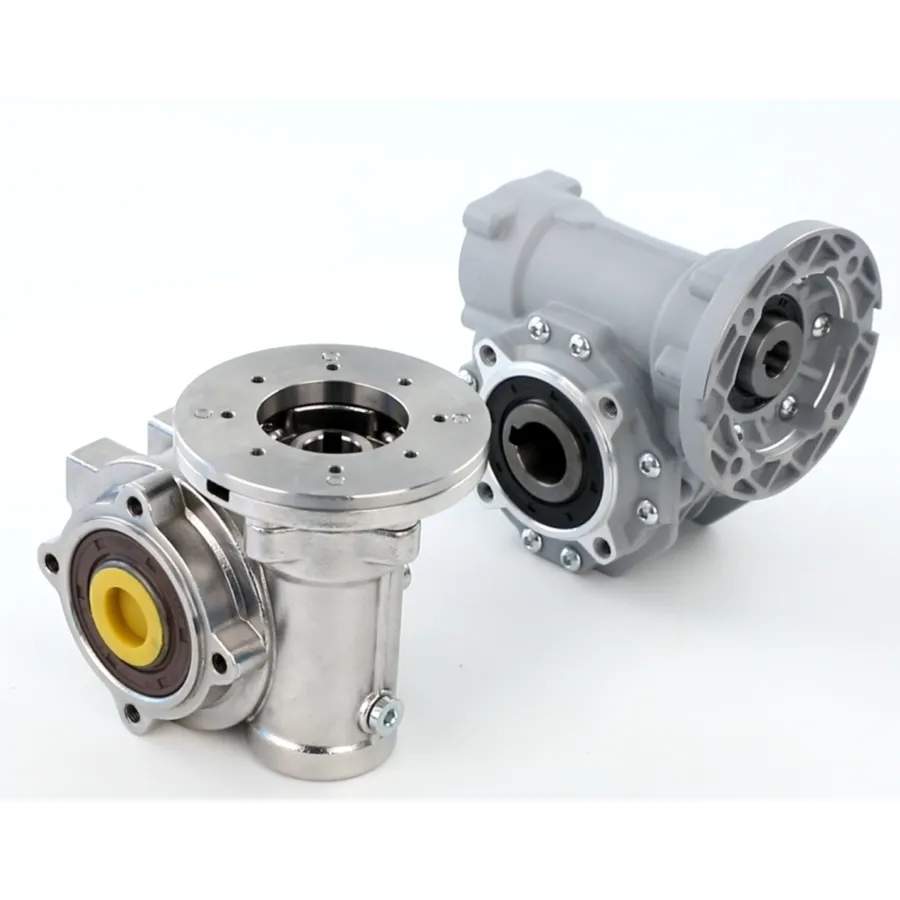

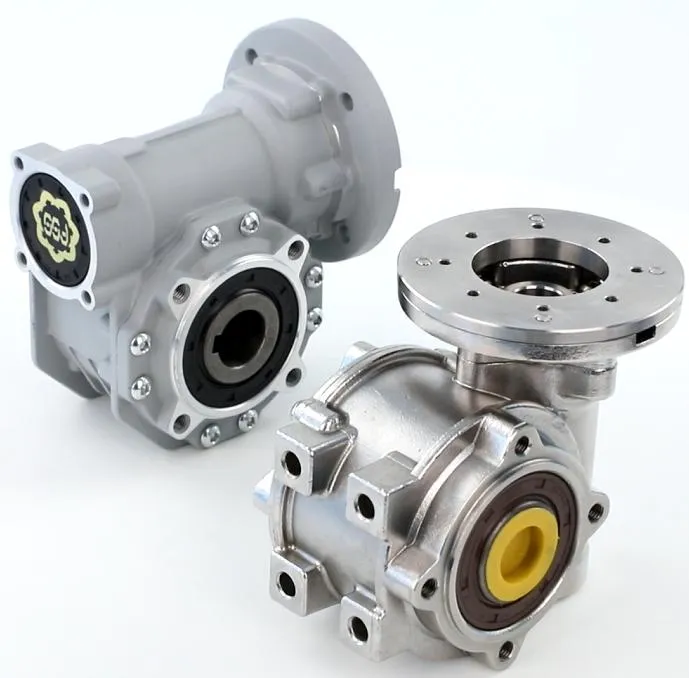

Precision Aluminium Worm Gear Reducers Vf63

Raydafon Group's Precision Aluminium Worm Gear Reducers Vf63 deliver superior torque reduction with lightweight aluminium construction, ideal for industrial automation. Enjoy enhanced durability and quiet operation, solving efficiency challenges in manufacturing. Stand out with precision engineering and unmatched reliability for seamless integration. Experience the difference and boost your productivity today!

Send Inquiry

Product Description

VF SERIES WORM GEAR SPEED REDUCER

According to European standard of similar product,we adopt high-quality artificial oil,imported famous brand seal parts and
manufacture technology to produce square multi-placed reductor. Feature beautiful appearance,easy installation,compact
structure,low noise and high efficiency.

Power: 0.04-15 Kw
Transmission Ration Range: 7-100
Output Torque: 24-2700 N.m

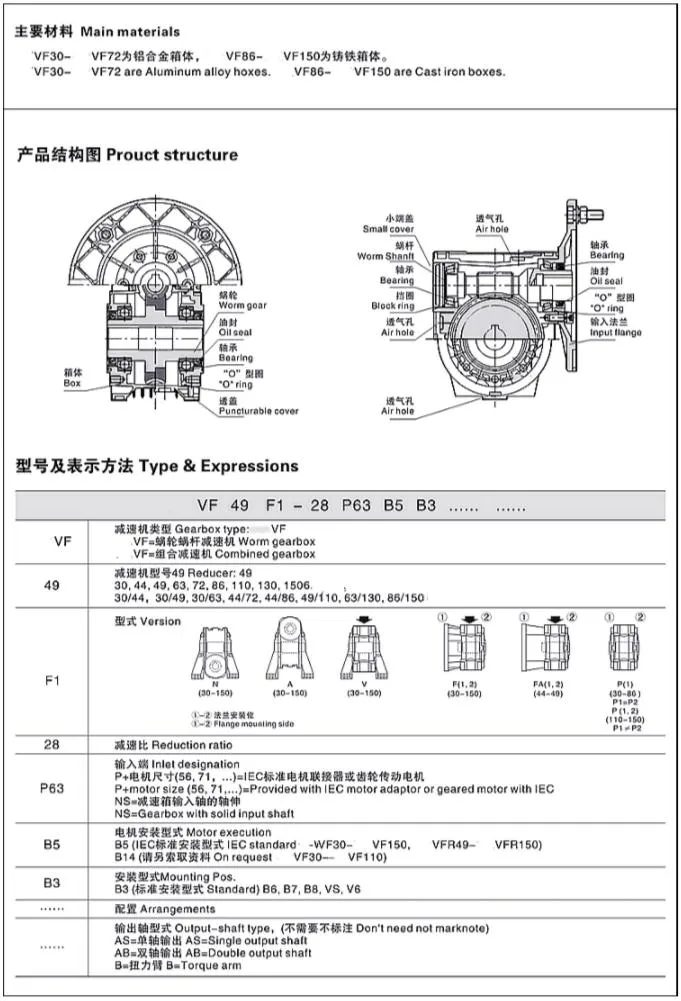

Models:
VF Type: VF30, VF44, VF49, VF63, VF72, VF86, VF110, VF130, VF150
VFR Type: VFR44, VFR49, VFR63, VFR72, VFR86, VFR110, VFR30, VFR150
VF-VF Combined Type: VF/VF 30/40, VF/VF 30/49, VF/VF 30/63, VF/VF 44/72, VF/VF 44/86, VF/VF 49/110, VF/VF 63/130, VF/VF 86/150

Application:
This product is widely applied to fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing, dyeing and pharmaceutical etc.
More mounting position and dimensions please click here to contact us.

Ratio:	1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue, Silver Or On Customer Request
Noise:	low noise (<50DB)
Advantage:	Efficient and safe operating
Material:	Housing: Die-Cast Aluminum Alloy
	Worm Gear-Bronze 9-4#
	Worm-20CrMnTi with carburizing and quenching, surface harness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Bearing:	C&U Bearing
Seal:	NAK SKF
Certificate:	ISO9001,CE,3C,OEM
Warranty:	12 months
Input Power:	0.06kw, 0.09kw, 0.12kw, 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw
Usages:	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.
IEC Flange:	56B5, 56B14, 63B5, 63B14, 71B5, 71B14, 80B5, 80B14, 90B5, 90B14, 100B5, 100B14, 112B5, 112B14, 132B5, 160B5
Lubricant:	Synthetic & Mineral
