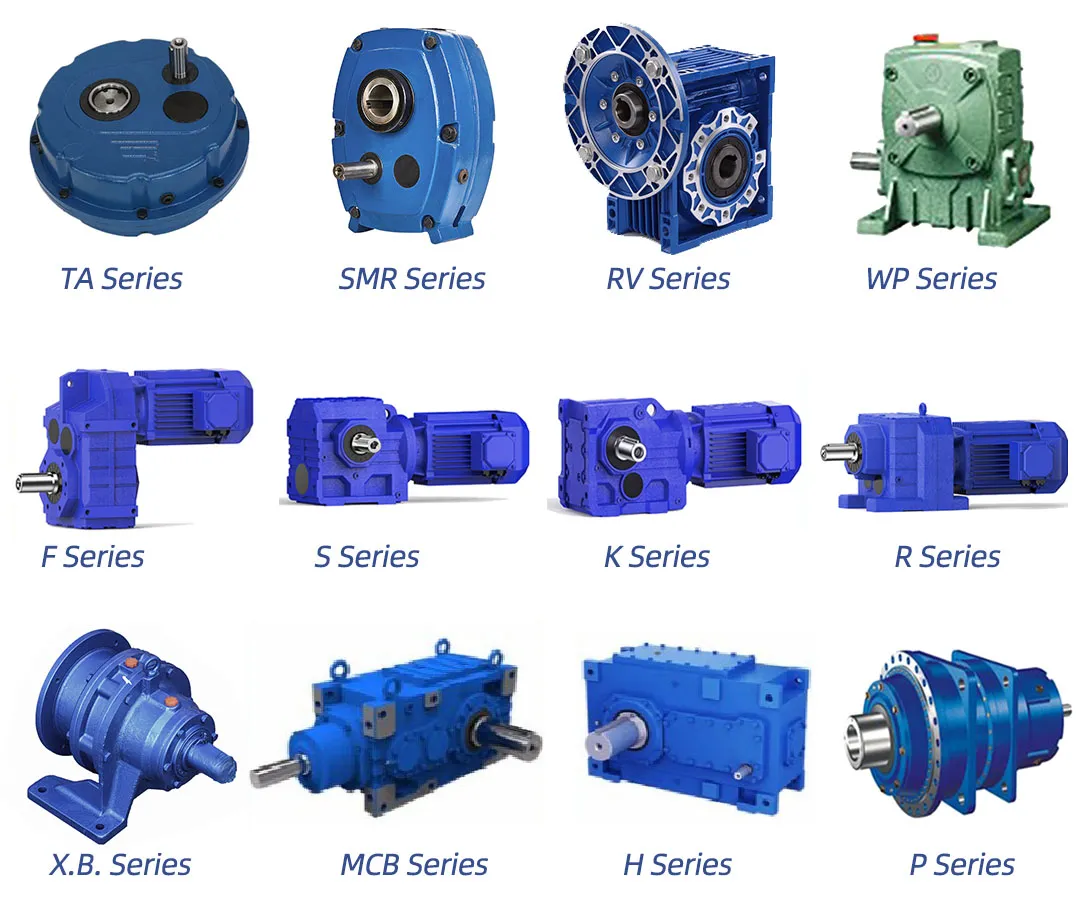

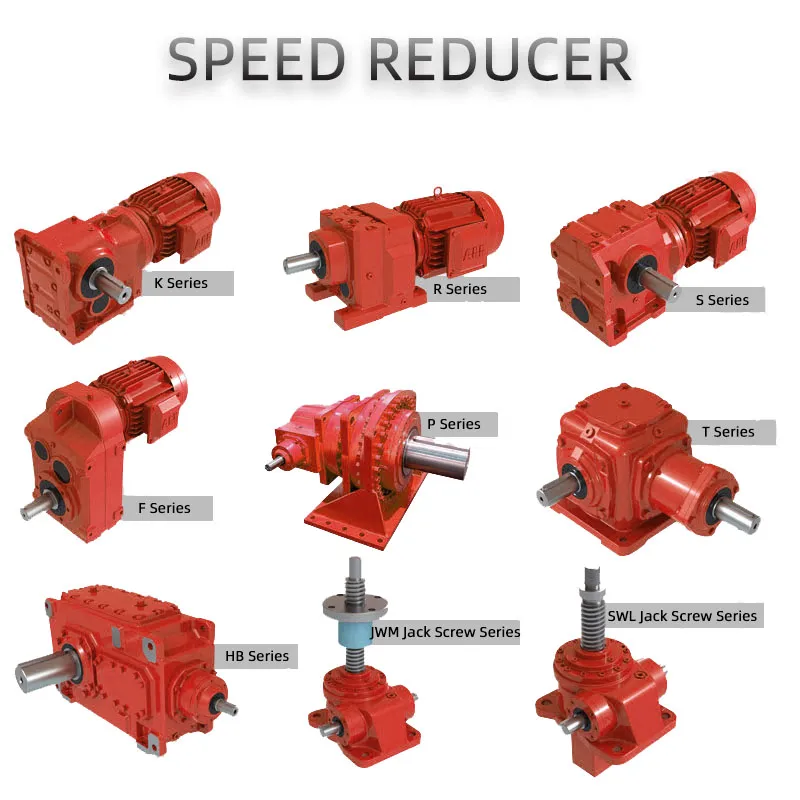

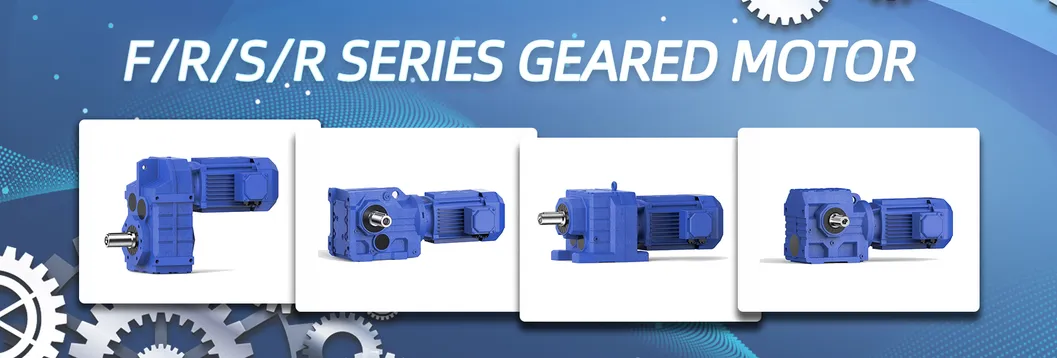

HZPT supplies four series of helical gearboxes, including the R series coaxial helical gearbox, F series parallel shaft helical gearbox, S series helical worm gearbox, and K series helical bevel gearbox. Get more information in the product list or contact us for any inquiries.
 |
 |

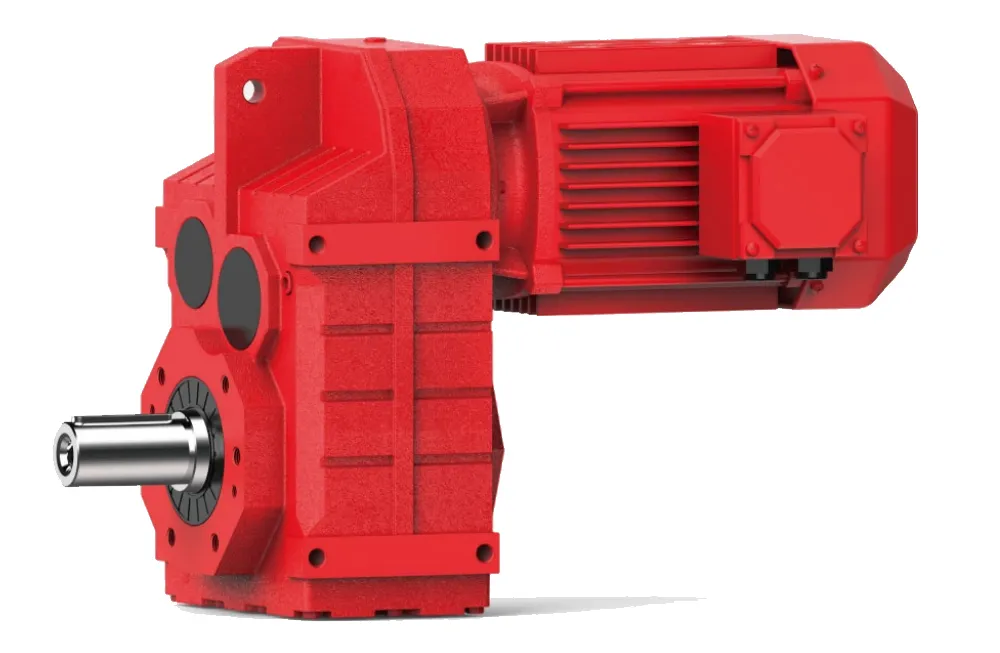

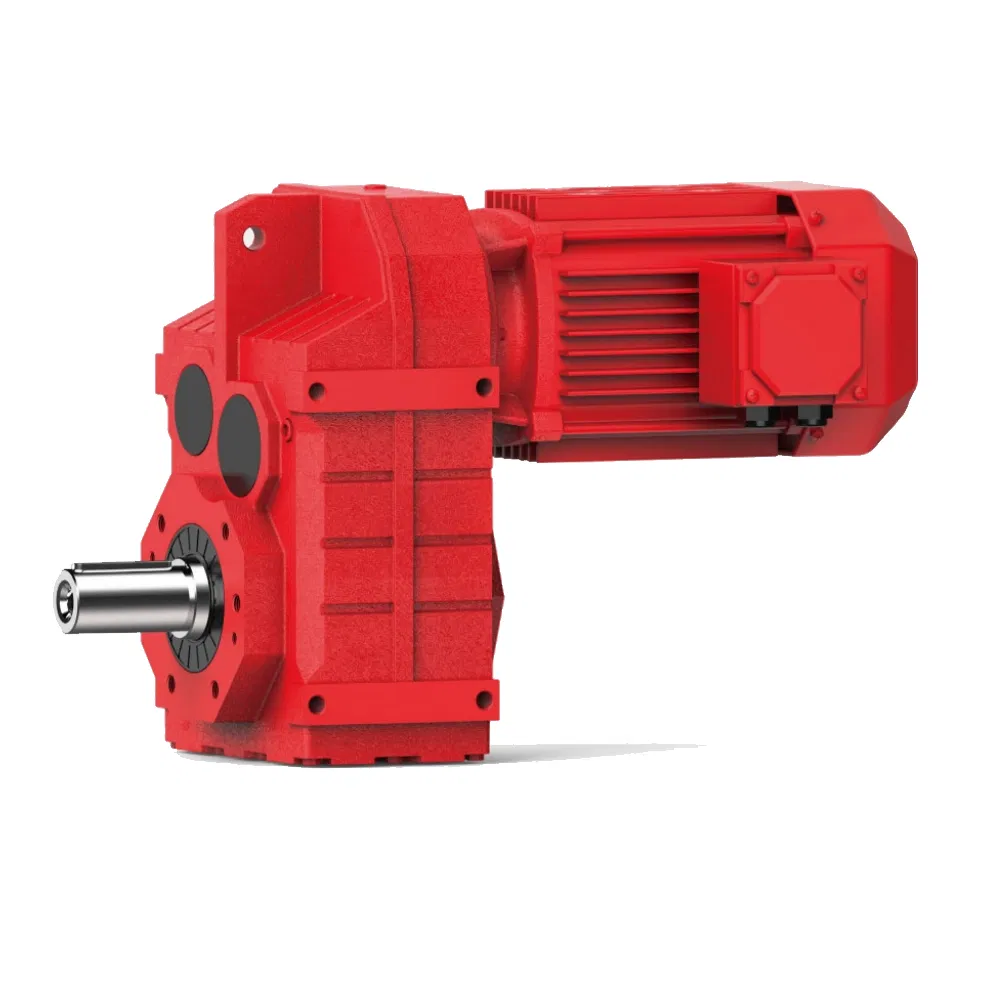

F Series Parallel Shaft Helical Gearbox |

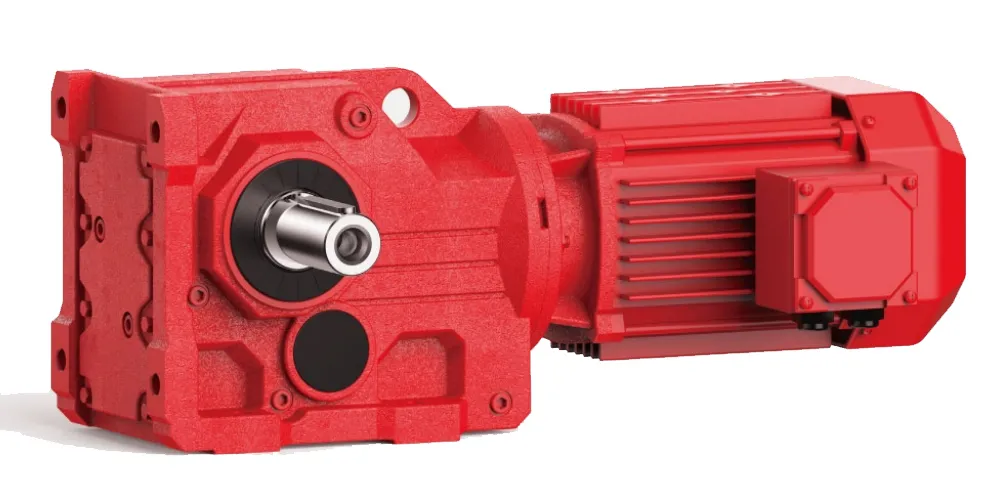

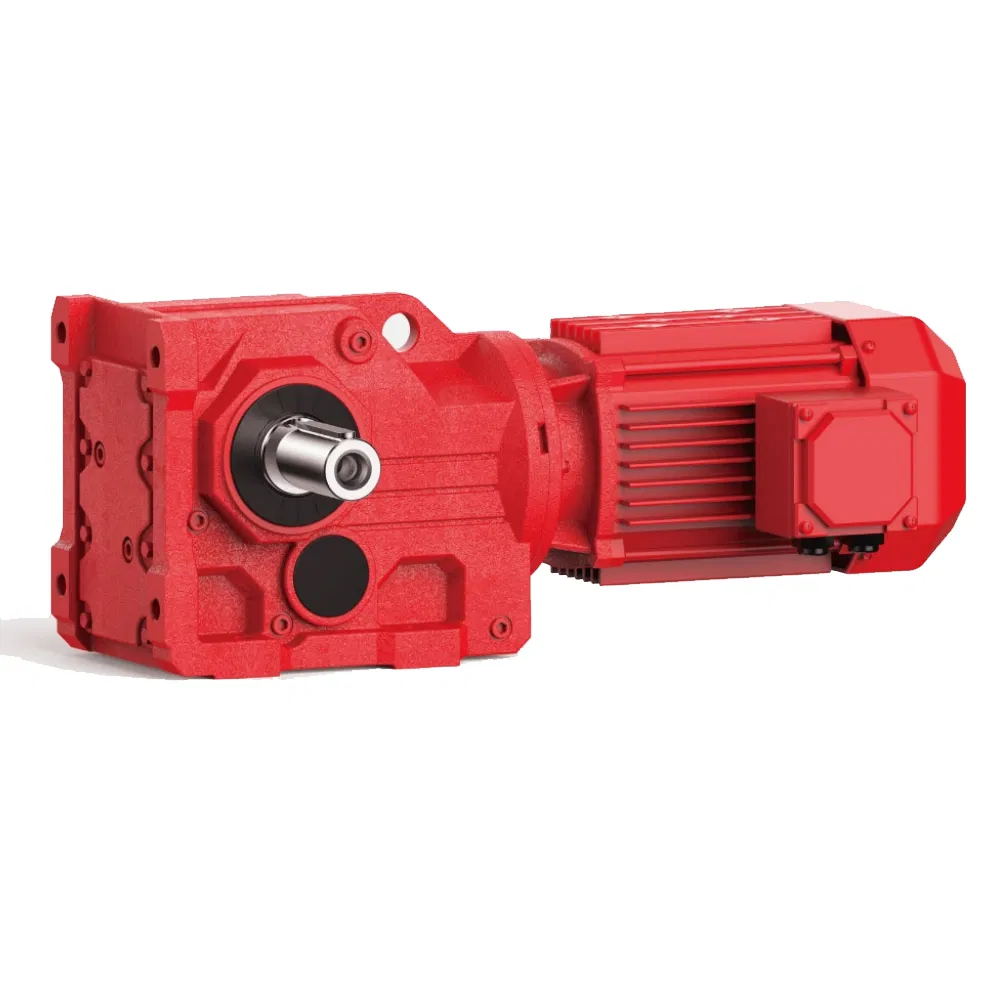

K Series Right Angle Helical Bevel Gearbox |
 |
 |

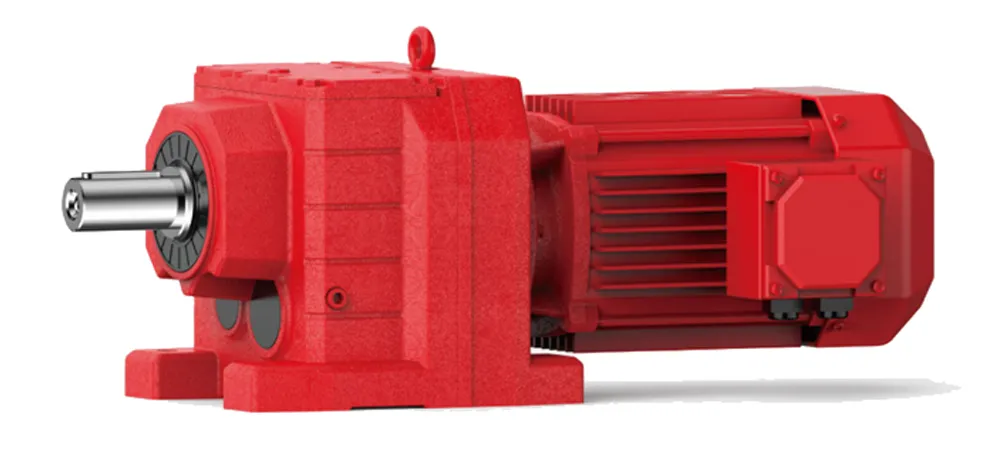

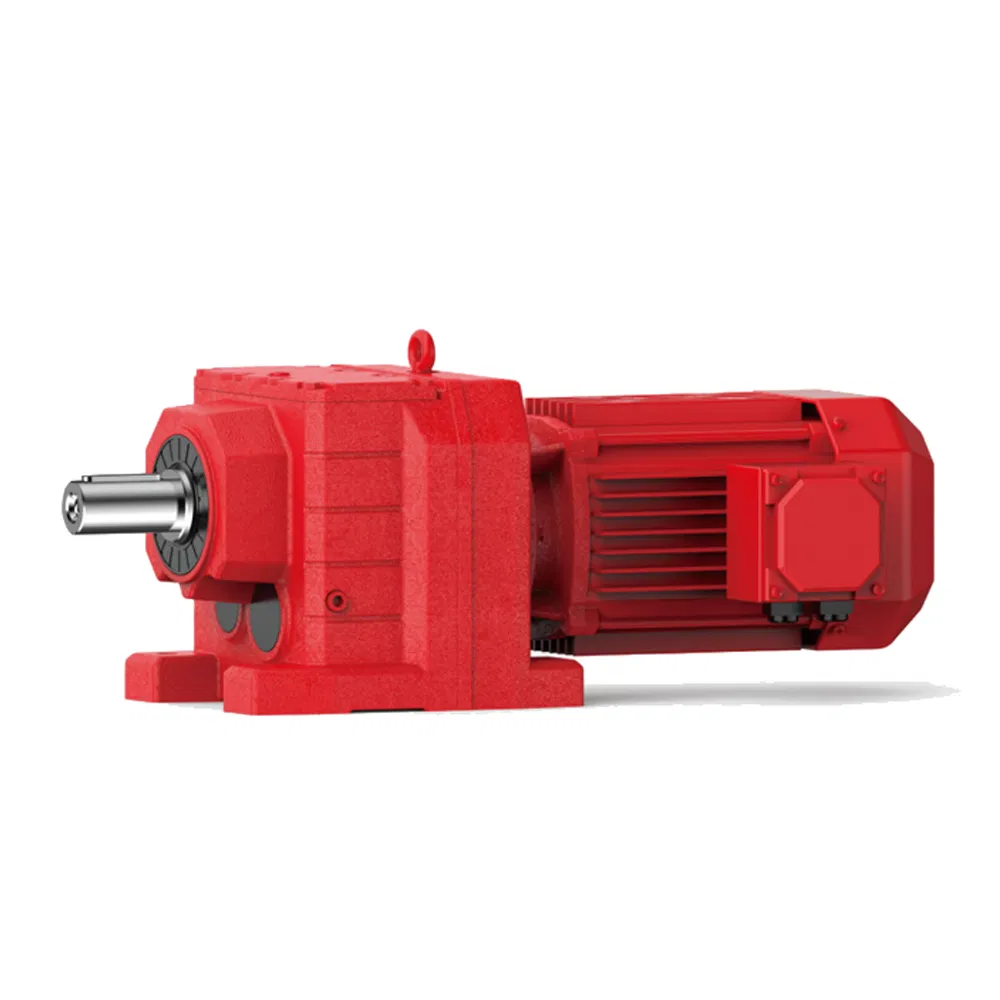

R Series Foot Mounted Coaxial Helical Gearbox |

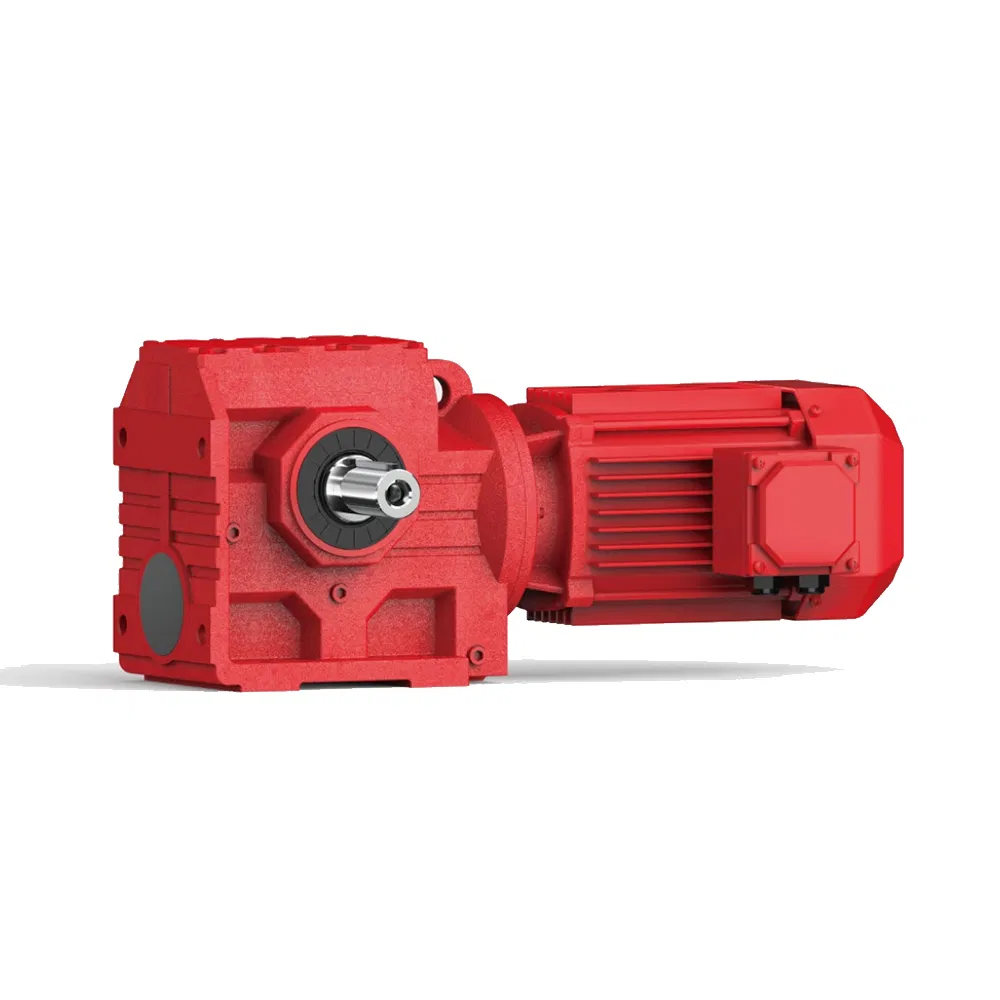

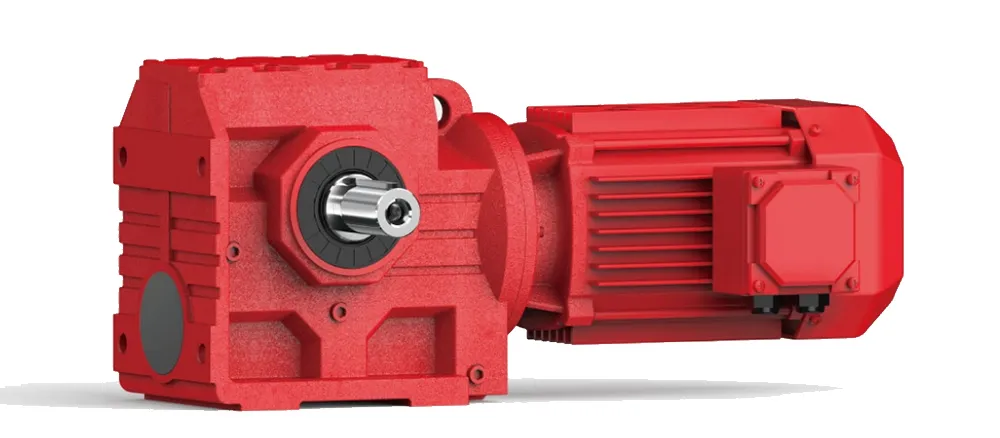

S Series Solid Shaft Helical Worm Gearbox |
Box: HT250 high-strength cast iron. Injection cavity, effectively reduce the wear of parts;
Gear: 20CrMo high-quality alloy steel, carbonitriding treatment (keep the tooth surface hardness HRC60 after fine grinding)
Flat key: 45 steel, surface hardness HRC50
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW

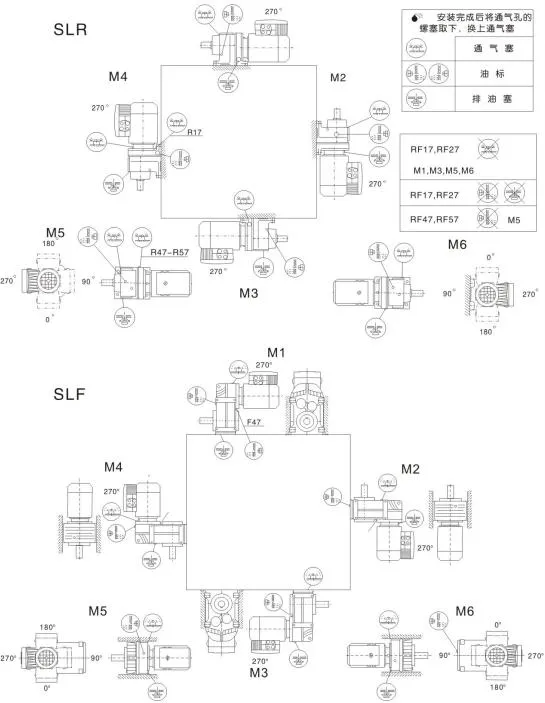

4) Mounted form: foot-mounted and flange-mounted mounting
|
Gear Material
|
20CrMnTi
|
|
Case Material
|
HT250
|
|
Shaft Material
|
20CrMnTi
|
|
Gear Processing
|
Grinding finish by HOFLER Grinding Machines
|
|
Color
|
Customized
|
|
Noise Test
|
65~70dB
|
|
Efficiency
|
94%~98% (depends on the transmission stage)
|
|
Lubricating oil
|
Shell Omala synthetic oil or mineral oil , or similar brand
|
|
Heat treatment
|
tempering, cementiting, quenching,etc.
|
|
Brand of bearings
|
C&U bearing, ZWZ,LYC, HRB,NSK and so on
|
|
Brand of oil seal
|
NAK or other brand
|
|
Temp. rise (MAX)
|
40 °
|
|
Temp. rise (Oil)(MAX)
|
50 °
|
|
Vibration
|
≤20µm
|
HZPT has over 20 years of helical gearbox manufacturing experience to provide our customers with superior helical gear reducers and service. Our technical team even has over 30 years of reducer product and industry experience as support. We have the confidence to assist you to find the ideal solution for your application or expand your helical gearbox business. Order the helical gearbox you need or contact us for any inquiries.
