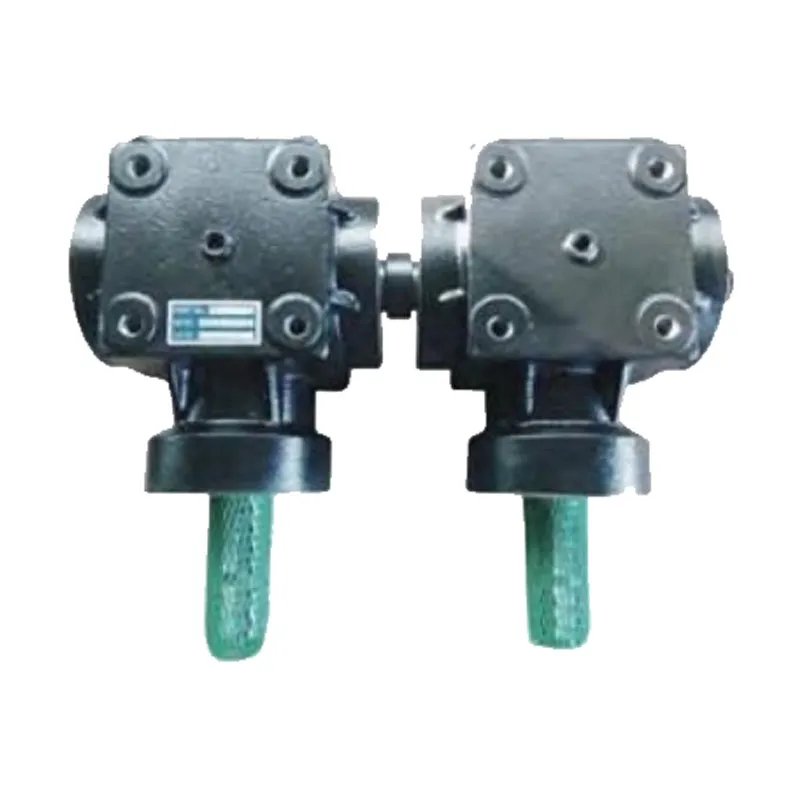

The TB-27C gearbox is a type of rotary tiller gearbox that is designed to be used with rotary tillers that have a power output of up to 15 horsepower. The rotary tiller gearbox is made of high-quality materials and is designed to be durable and long-lasting. It is also easy to install and maintain.. It is a high-performance gearbox that is designed to provide reliable and efficient power transmission for rotary tillers. If you are looking for a reliable and efficient gearbox for your rotary tiller, the rotary tiller gearbox TB-27C is a good option to consider.
 |
 |
| Description |

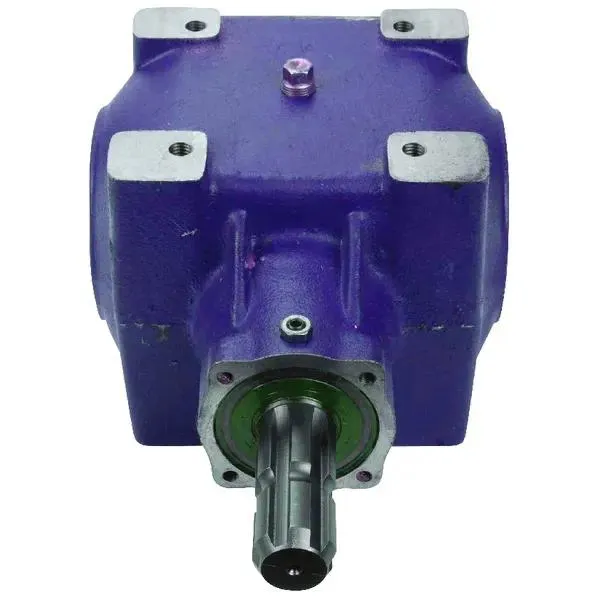

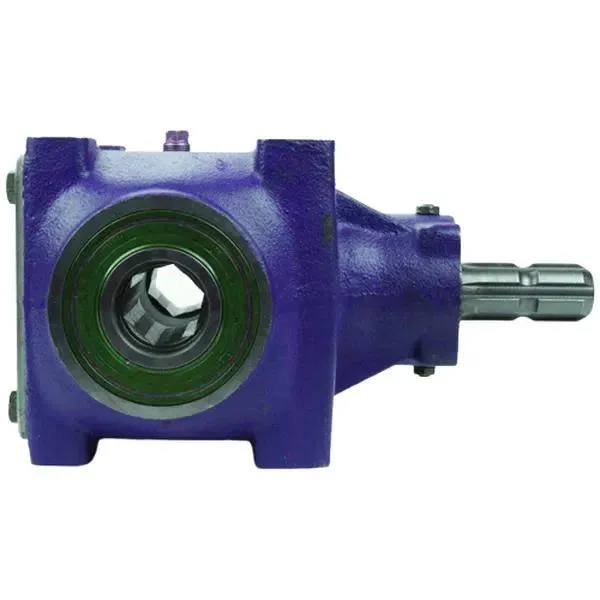

Rotary Tiller Gearbox - Replacement of Gearbox TB-27C
|
|---|---|
| Application |
|
| Consists of |
|
| Technical information |
|
| Max. input power |
40.5 kW
|
| Max. output torque |
693 nm
|
| Contains oil |
No
|
| Max. oil capacity |
1.1 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GG25
|
| Weight |
39.5 kg
|
| Gear arrangement |
26
|
| Ratio |
1:1
|

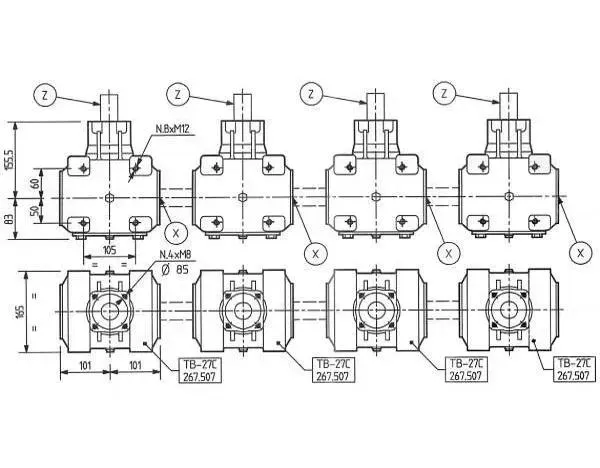

| Input shaft |
Z
|
| Shaft X |
1 3/8" (6) (C)
|
| Shaft Z |
1 3/8" (6) (A)
|
Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

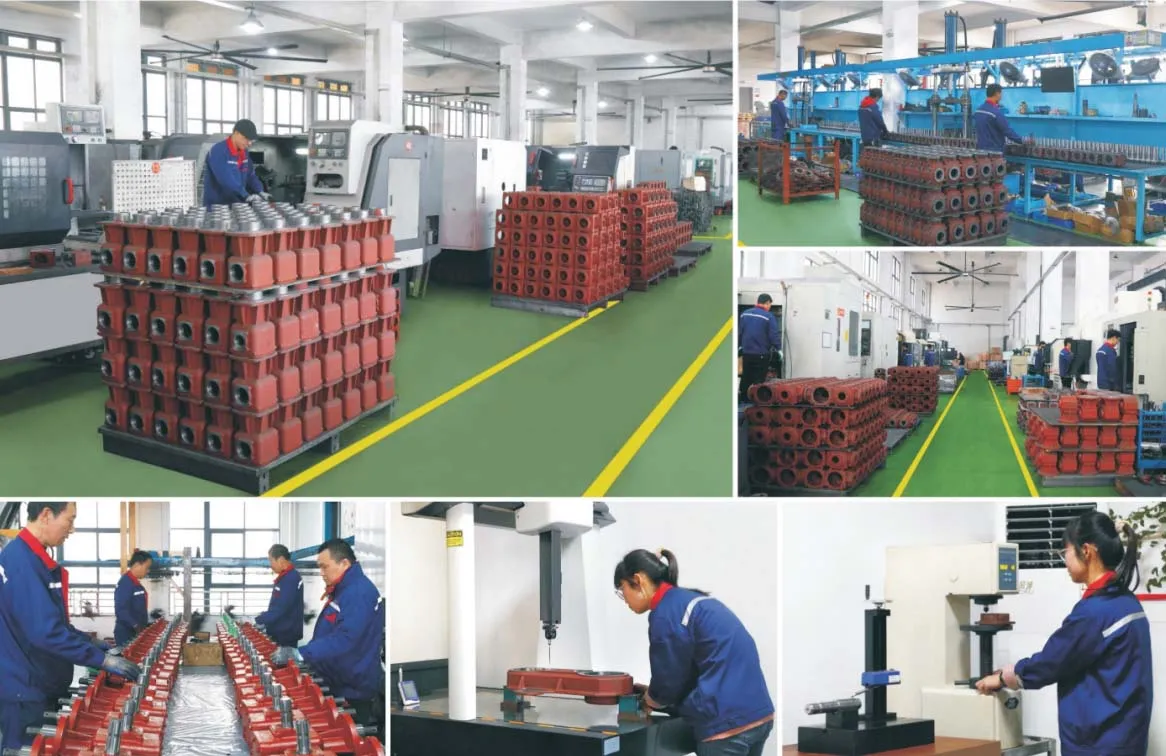

Our Equipments
