SMR Series Vertical Drive Gearbox for Conveyor

Raydafon Group's SMR Series Vertical Drive Gearbox for Conveyor delivers reliable, efficient power transmission for industrial applications. Built with durable materials and precision engineering, it excels in harsh environments, reducing downtime and maintenance costs. Ideal for manufacturers and logistics sectors, this gearbox ensures smooth operation and enhanced productivity. Experience peace of mind with its superior performance and innovative design, outperforming competitors. Invest in quality and drive success with Raydafon Group.

Send Inquiry

Product Description

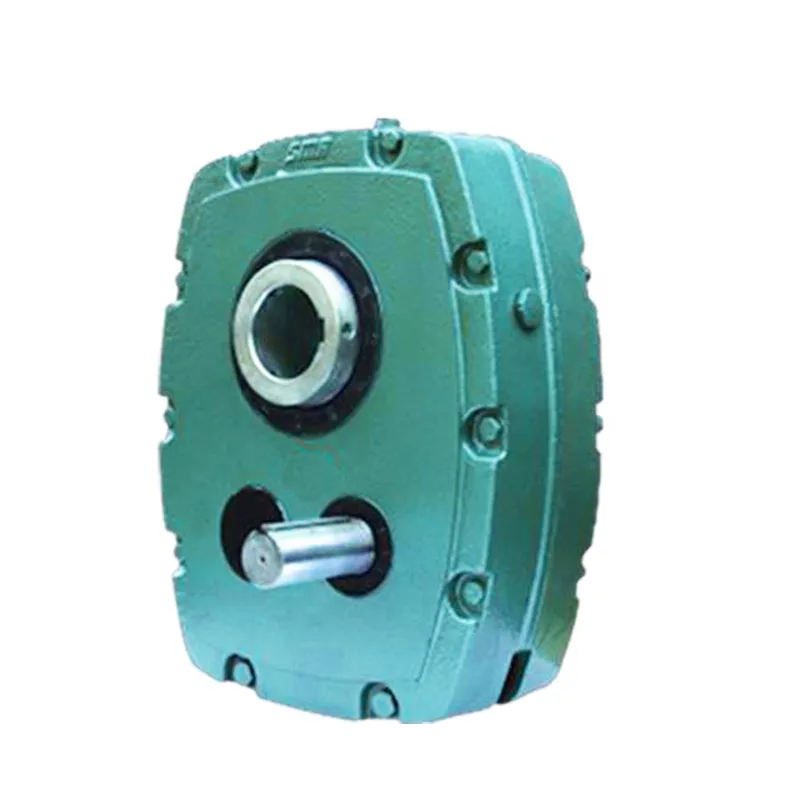

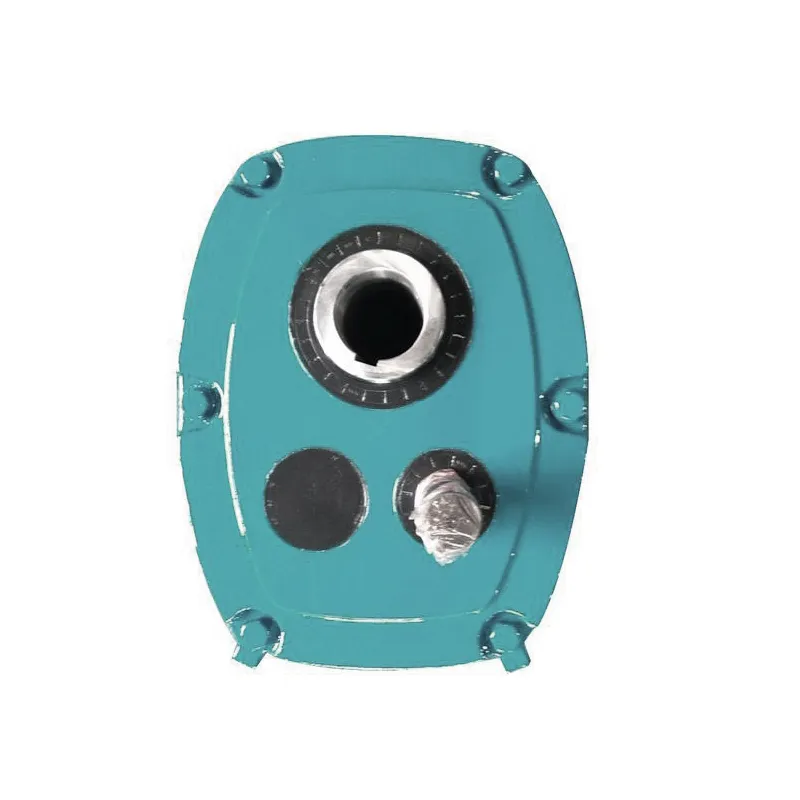

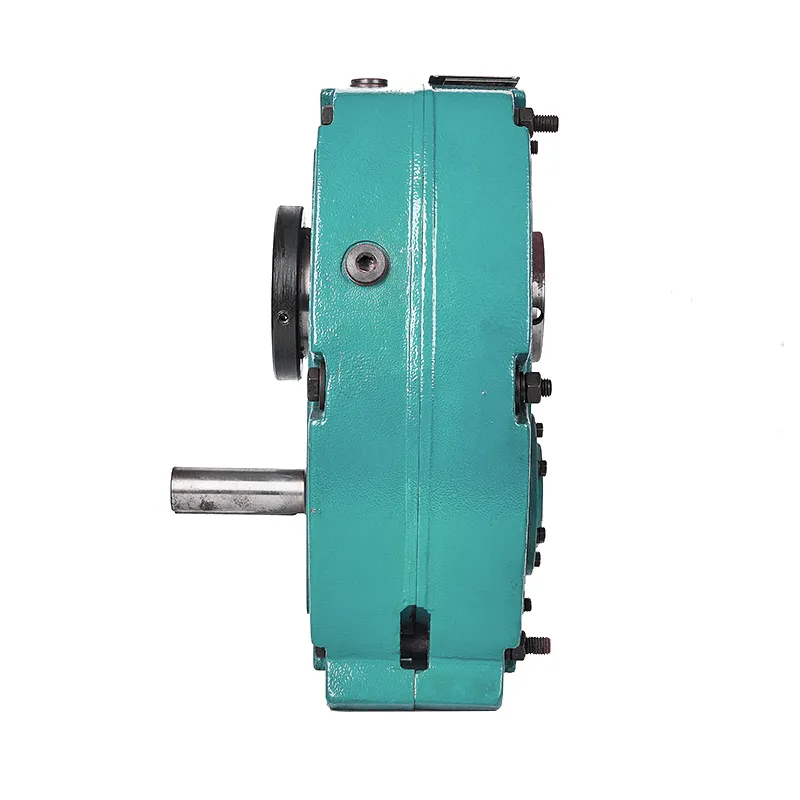

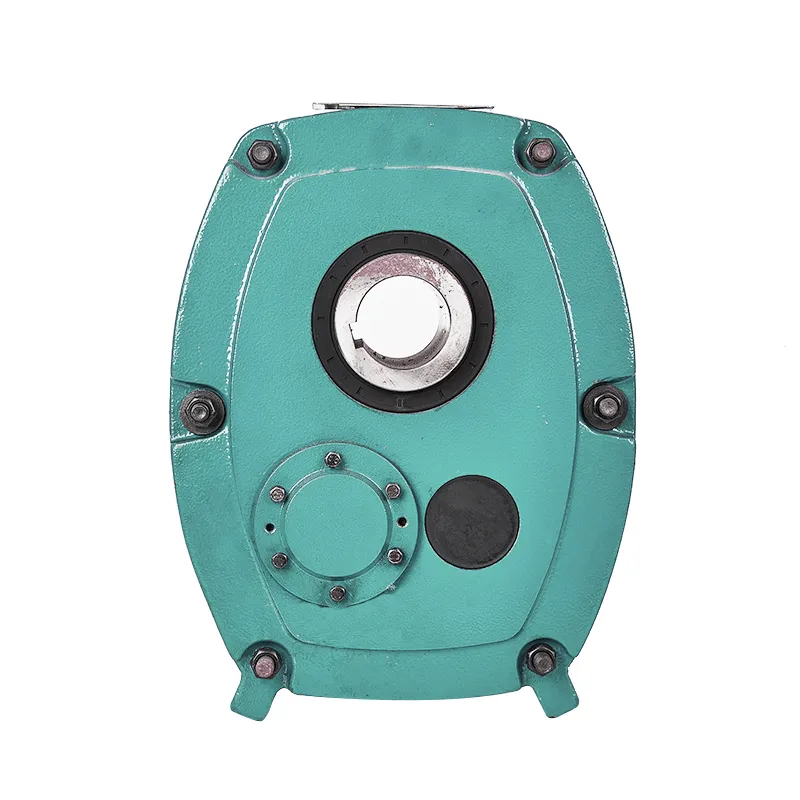

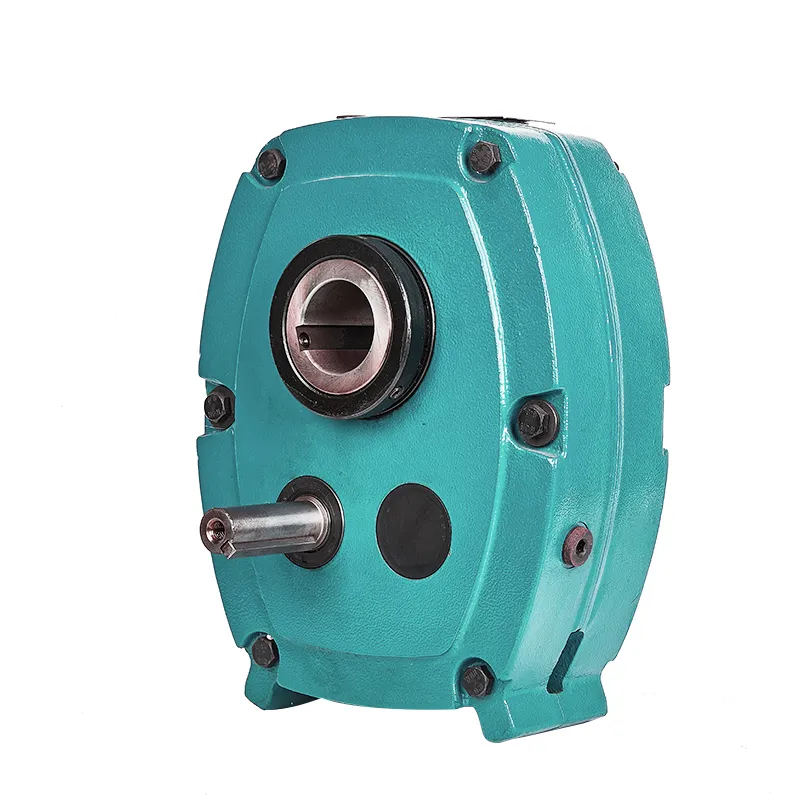

SMR Series Shaft Mounted Gear Box Vertical Drive Helical Bevel Motor Reduction Gearbox Speed Reducers For Conveyor System

Components:
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations: Keyed Solid Shaft Input
5. Output Configurations: Keyed Hollow Shaft Output
6. Oil Seal: Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional Backstop

Models:
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system

Applications:
Conveyors in Mine, Quarry, Gravel Transport, Baggage & Bulk Handling, Animal Feeding, etc.

Installation:
1. Hanging Shaft Mounted
2. Output Flange MountedLubrication:
Oil-bath and Splash

Lubrication
Lubricating Oil: Mineral Oil and Synthetic Oil
Extreme pressure oil is not recommended, unless in case of with backstop

Cooling:
Natural Cooling

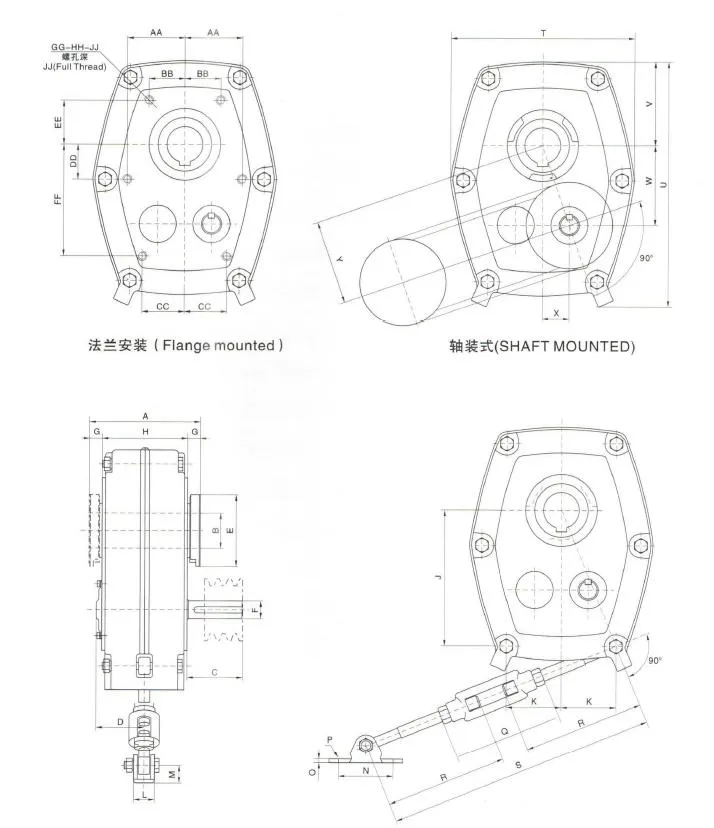

Smr Series Shaft Mounted Gear Box Vertical Drive Helical Bevel Motor Reduction Gearbox Speed Reducers for Conveyor System

Models	Output Shaft Bore		Max. Torque*	Nominal Ratio
Models	Standard	Optional	Max. Torque*	Nominal Ratio
SMR-B	30mm	40mm	277N.m	5 13 20
SMR-C	40mm	50mm	468N.m
SMR-D	50mm	55mm	783N.m
SMR-E	55mm	65mm	1194N.m
SMR-F	65mm	75mm	1881N.m
SMR-G	75mm	85mm	2970N.m
SMR-H	85mm	100mm	4680N.m
SMR-J	100mm	120mm	7449N.m
