Splined PTO Yoke

Splined PTO Yoke With Interfering BoltProduct Description One replacement Yoke for Landpride that is a 1-3/4" X 20 spline interfering bolt type Series 6 PTO yoke, accepts the 30.2mm X 92mm Series 6 Cross kit.This yoke is commonly used on the divider box end of the PTO shaft on several Landpride......

Send Inquiry

Product Description

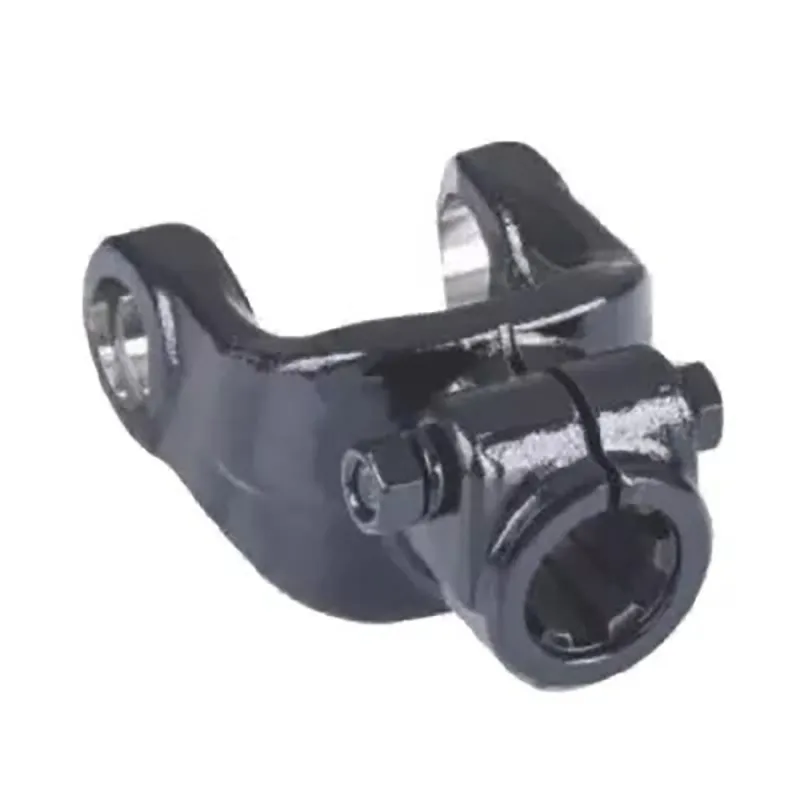

Splined PTO Yoke With Interfering Bolt

One replacement Yoke for Landpride that is a 1-3/4" X 20 spline interfering bolt type Series 6 PTO yoke, accepts the 30.2mm X 92mm Series 6 Cross kit.
This yoke is commonly used on the divider box end of the PTO shaft on several Landpride mowers.
We sell many replacement rotary cutter parts. If you don't see the parts you need to be listed please contact us we would love to earn your business. We are listing new items frequently so please check our store often.
We stock a wide variety of replacement parts for Agricultural Equipment please contact us if you have any questions or if you would like more information.

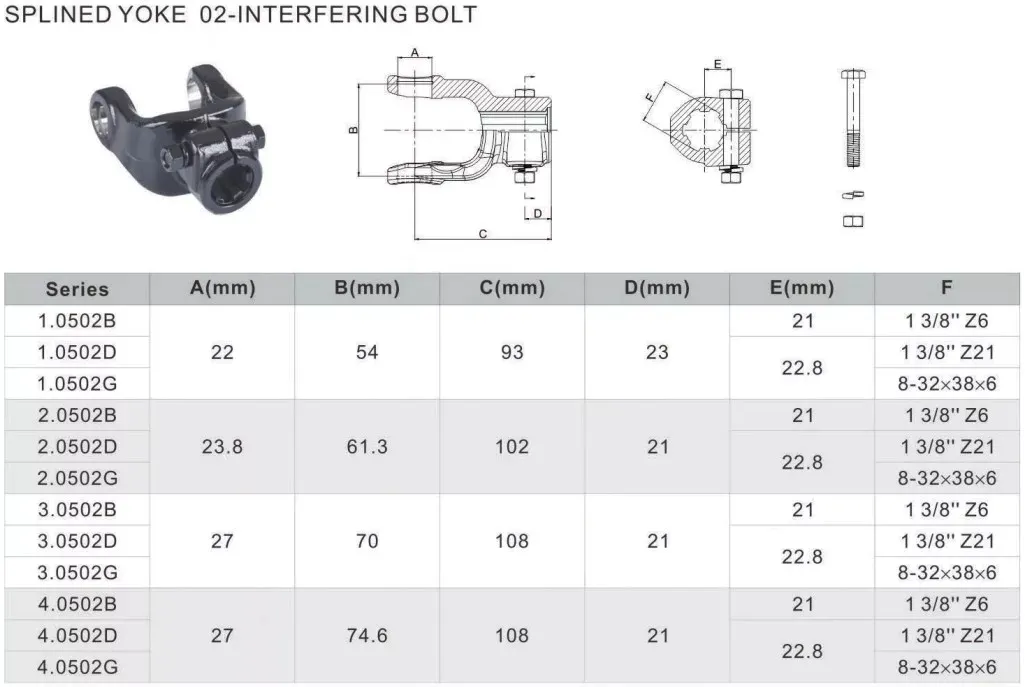

Specifications of Splined PTO Yoke
Series 6 Interfering Bolt Type PTO Yoke
Accepts 30.2mm X 92mm Series 6 Cross Kit
Interfering Bolt Included
Material:Steel 45#, 40Cr,20CrMnTi etc.
Process:Forged
Surface: Heat treatment; Rust prevention
Color:Yellow, Black, or as customer requirements
A splined PTO yoke with an interfering bolt refers to a specific type of connection used in power take-off (PTO) systems. In this setup, the yoke has splines that engage with the corresponding splines on the PTO shaft. Additionally, there is a bolt that passes through the yoke and shaft, creating interference to prevent rotational movement between the two components. This configuration provides a secure and reliable connection for transmitting power from the PTO to the driven equipment.

When selecting a splined PTO yoke with an interfering bolt, consider the following factors:

1. Size and Compatibility: Ensure that the splined PTO yoke and interfering bolt are compatible with the specific PTO shaft and equipment you are working with. Check the dimensions, spline count, and shaft diameter to ensure a proper fit.

2. Material and Strength: Choose a splined PTO yoke and interfering bolt made from high-quality materials such as hardened steel to withstand the torque and stress exerted during operation. Consider the load requirements and the application's demands to determine the appropriate material strength.

3. Interference Fit: The interfering bolt should provide a secure fit between the yoke and shaft. It should be properly tightened to create sufficient interference, preventing any rotational movement between the two components.

4. Ease of Installation: Look for a splined PTO yoke and interfering bolt that are easy to install. Consider features such as pre-drilled holes, clear installation instructions, and compatibility with standard tools to simplify the assembly process.

5. Maintenance and Inspection: Ensure that the splined PTO yoke and interfering bolt can be easily inspected and maintained. Regularly check for wear, damage, or loosening of the bolt to prevent any potential issues and ensure safe and reliable operation.

6. Manufacturer Reputation: Select splined PTO yokes and interfering bolts from reputable manufacturers known for producing reliable and durable products. Read reviews, consult professionals, or seek recommendations to ensure the quality and performance of the components.

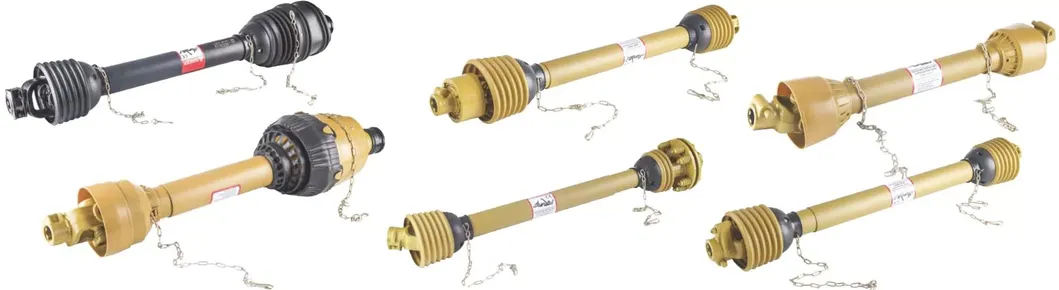

We also supply PTO shaft.
