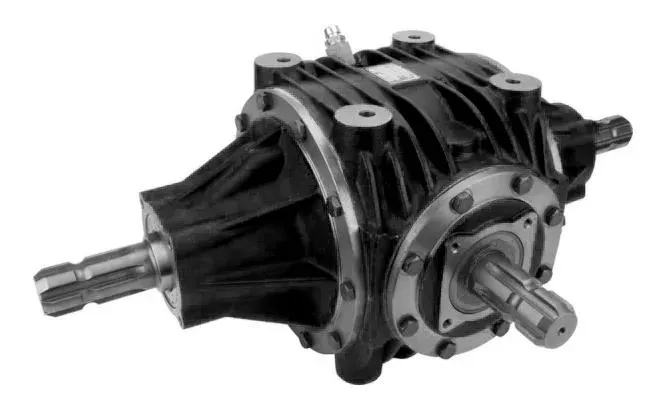

The flail mower gearbox T-301B is a type of gearbox that is designed for use in flail mowers, which are agricultural or landscaping machines used to mow large areas of grass or vegetation. The flail mower gearbox T-301B is a more heavy-duty version of the gearbox and is designed for larger and more demanding flail mower applications. It is constructed to be highly durable and can stand up to the rigors of heavy use, reducing maintenance and replacement costs.
| Product Description |
Flail Mower Gearbox - Replacement of Gearbox T-301B
|
|---|---|
| Product details |
|
| Application range |
|
| Model |
T-301B
|
| Max. input rotation speed |
1000 r/min
|
| Consists of |
|
| Max. input power |
132 kW
|
| Max. output torque |
76.4 daNm
|
| Connection 1 type |
Splined
|
| XConnection 1 outside diameter |
1-3/4 Inch
|
| Connection 1 number of splines |
6
|
| Connection 2 type |
Splined
|
| YConnection 2 outside diameter |
1-3/8 Inch
|
| Connection 2 number of splines |
6
|
| Connection 3 type |
Splined
|
| ZConnection 3 outside diameter |
1-3/8 Inch
|
| Connection 3 number of splines |
6
|
| Contains oil |
No
|
| Max. oil capacity |
4.4 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GGG40
|
| Original number equivalent |
9.301.041.00
|
| Weight |
61.5 kg
|
| Ratio Increasing |
1: 1.60
|

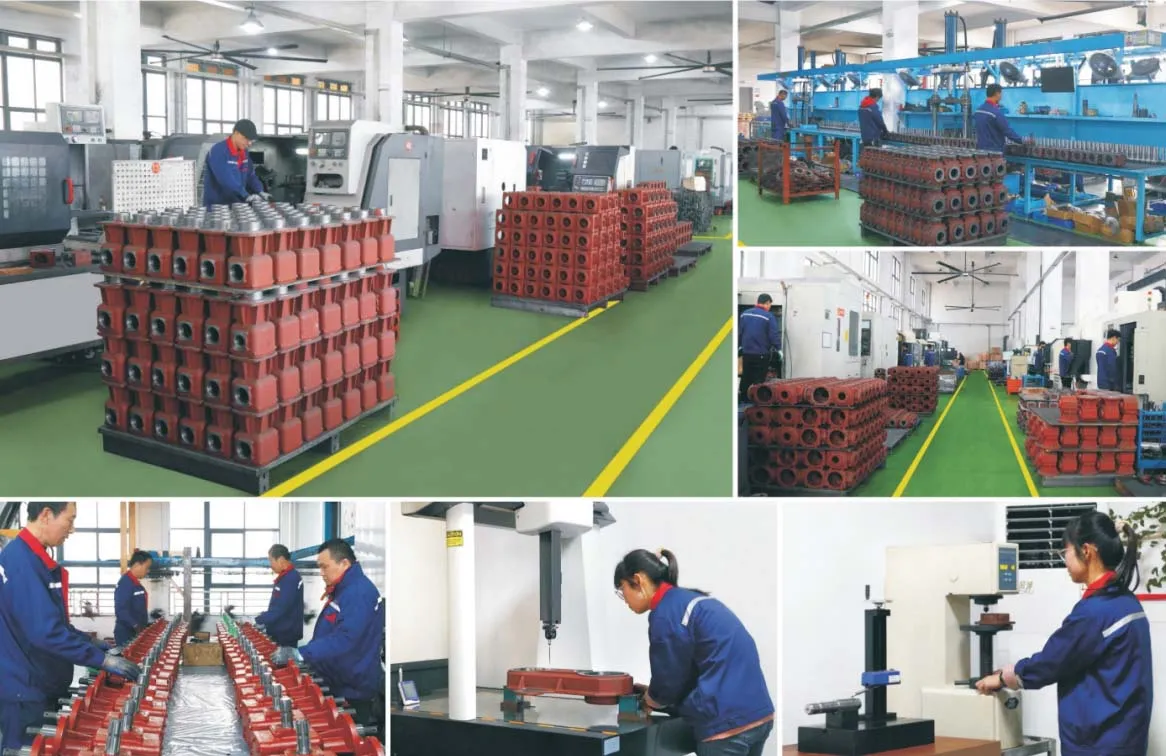

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

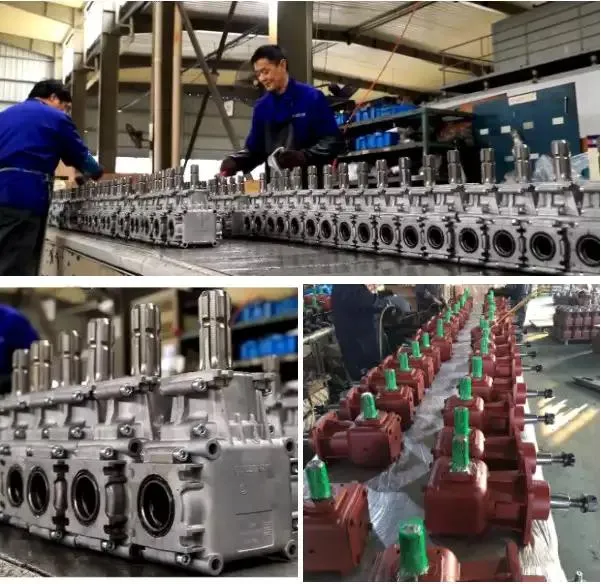

Our Equipments
