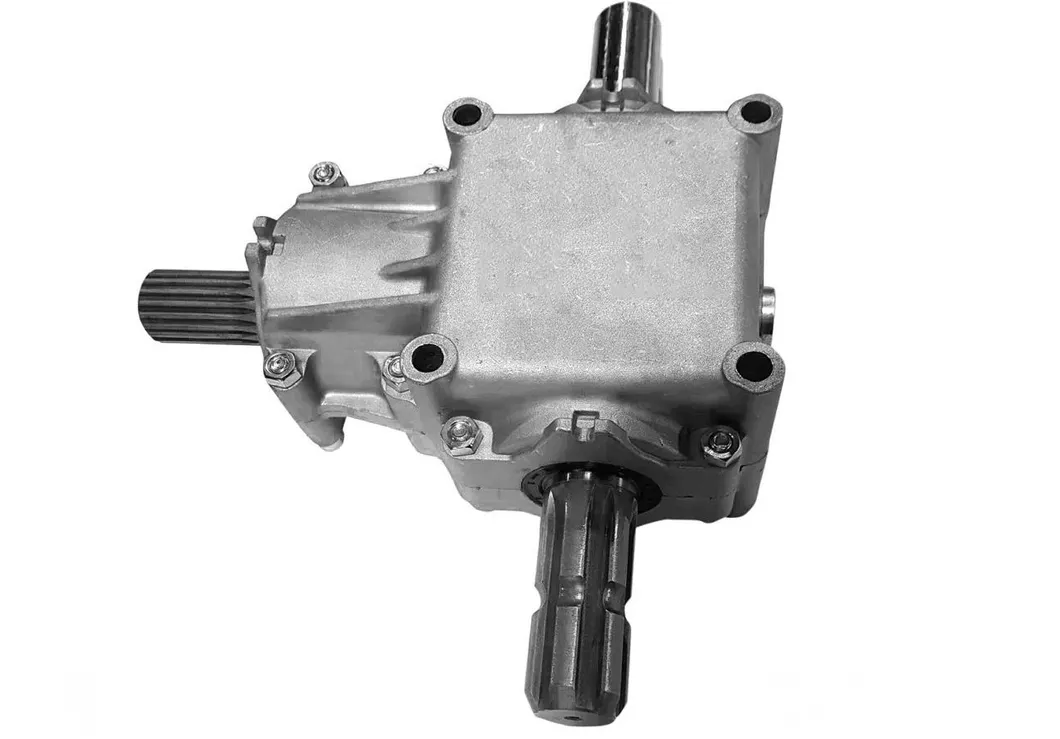

Flail mower gearbox T-281A is a type of gearbox designed specifically for flail mowers. It is typically used to transfer power from the tractor's PTO (power take-off) to the flail mower's blades. The flail mower gearbox T-281A is built with high-strength steel components and is designed to withstand the demanding conditions of heavy-duty mowing applications. It features durable housing, precision gears, and an oil bath lubrication system to ensure smooth and reliable operation.
| Product Description |

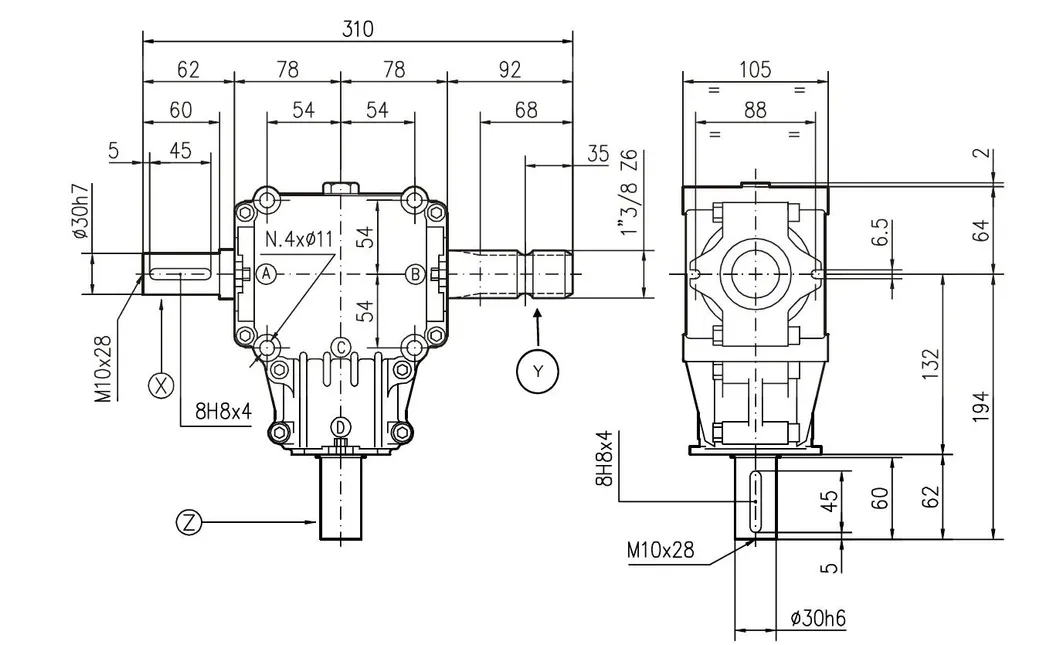

Flail Mower Gearboxes - Replacement of Gearbox T-281A 1:2.91
|
|---|---|
| Product details |
|
| Application range |
|
| Consists of |
|
| Max. output torque |
20 daNm
|
| Contains oil |
No
|
| Max. oil capacity |
0.5 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Aluminium
|
| Weight |
7.2 kg
|

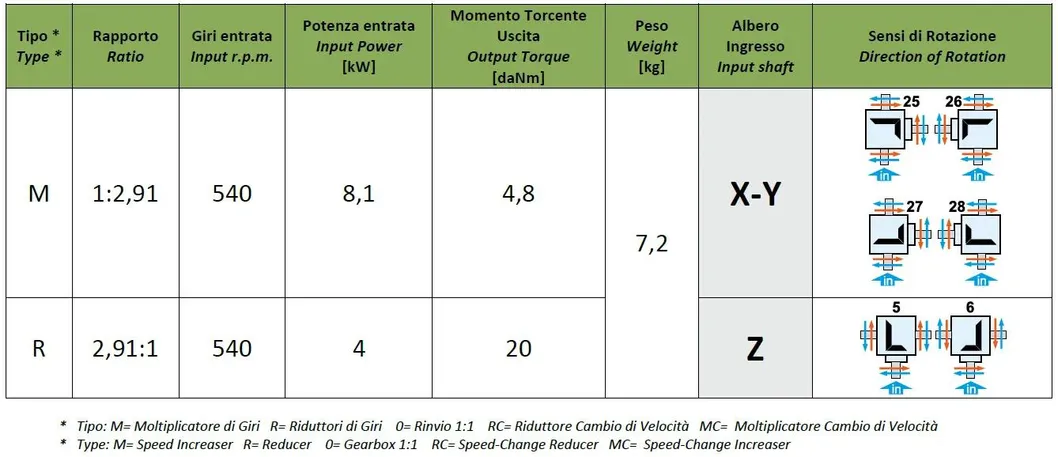

| Gear arrangement Increasing |
25 - 26 - 27 - 28
|
| Gear arrangement Reducing |
5 - 6
|
| Input power kW / HP Increasing |
8.1 / 11 kW/HP
|
| Input shaft Increasing |
X - Y
|
| Input shaft Reducing |
Z
|
| Input power KW / HP Reducing |
4 / 5 kW/HP
|
| Output Torque DaNm Increasing |
4.8 daNm
|
| Ratio Increasing |
1: 2.91
|
| Ratio Reducing |
2.91: 1
|
| Shaft X |
1 3/8" (6) (A)
|
| Shaft Y |
1 3/8" (6) (A)
|
| Shaft Z |
1 3/8" (6) (E)
|
Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

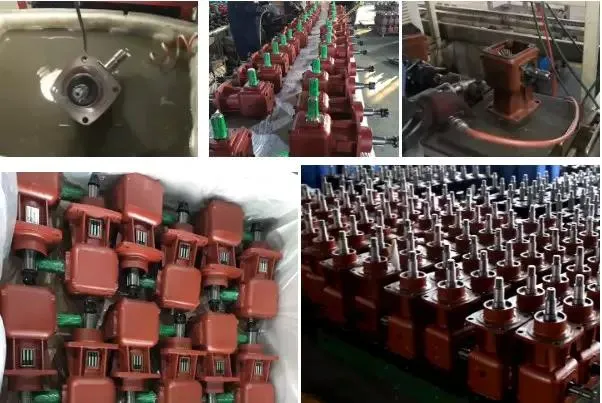

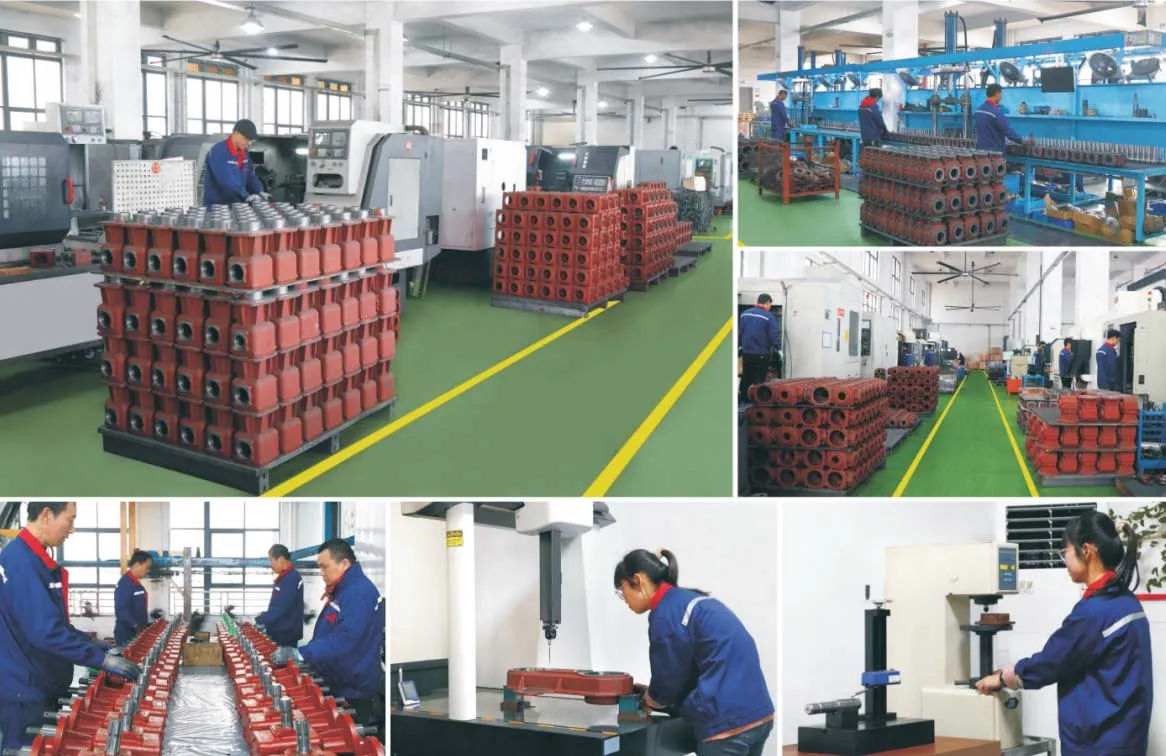

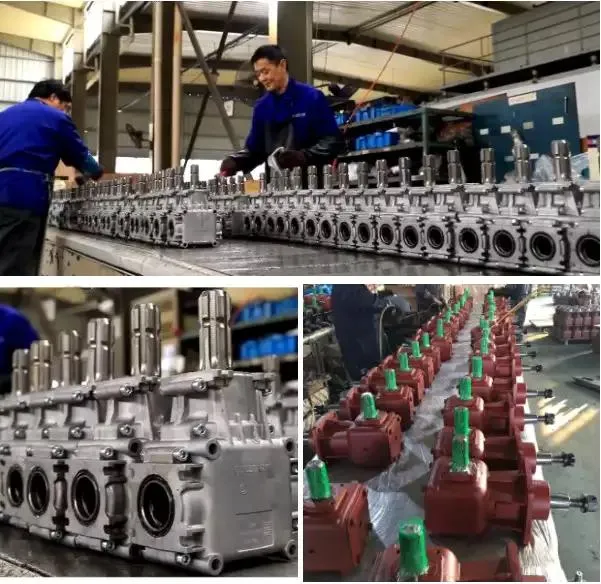

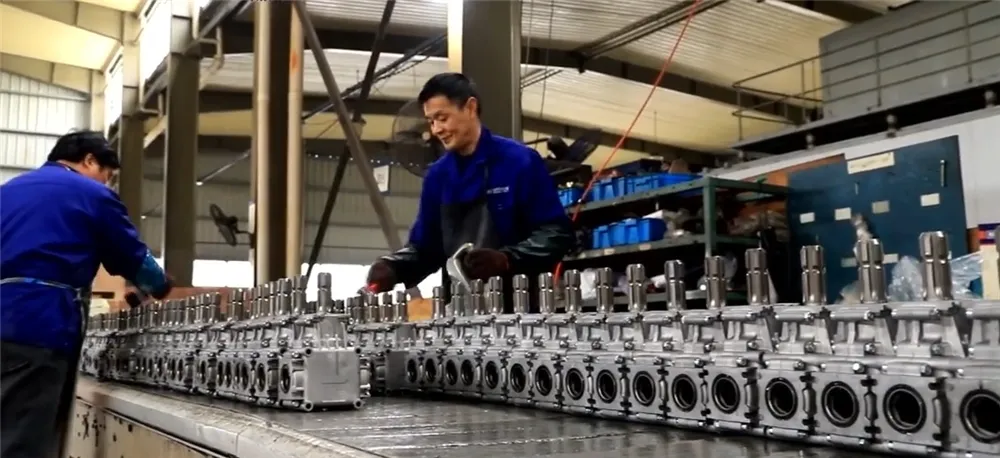

Our Equipments
PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
