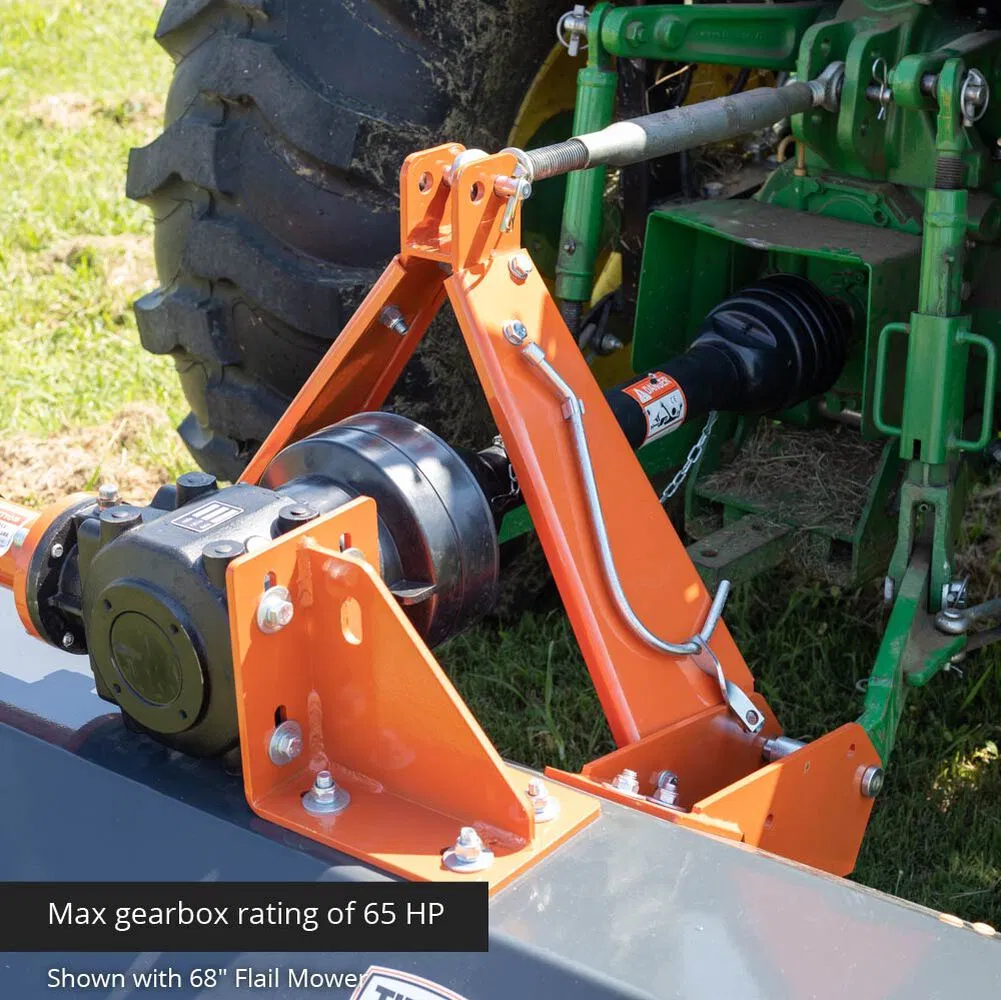

Flail mower gearbox T-310A is a type of gearbox used in flail mowers to transfer power from the PTO shaft of a tractor to the blades of the flail mower. It is designed to provide high torque and efficient power transmission to the blades, allowing for effective cutting and shredding of grass, weeds, and other vegetation. This flail mower gearbox is known for its strength, durability, and ability to withstand harsh conditions, making it a popular choice among farmers and landscapers. The flail mower gearbox T-310A is manufactured by many companies and can be used with various brands of flail mowers.
| Product Description |

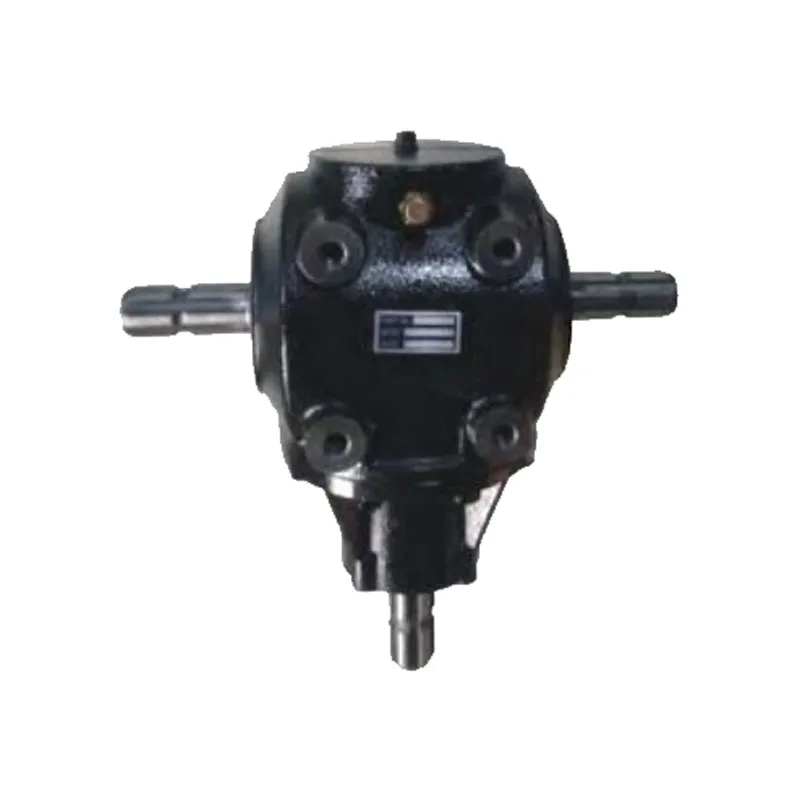

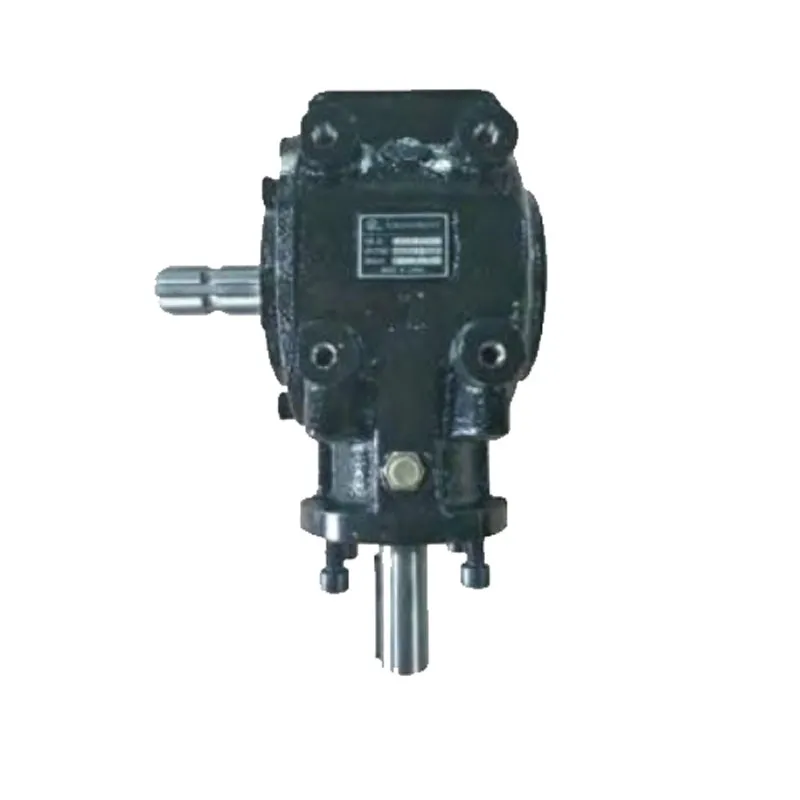

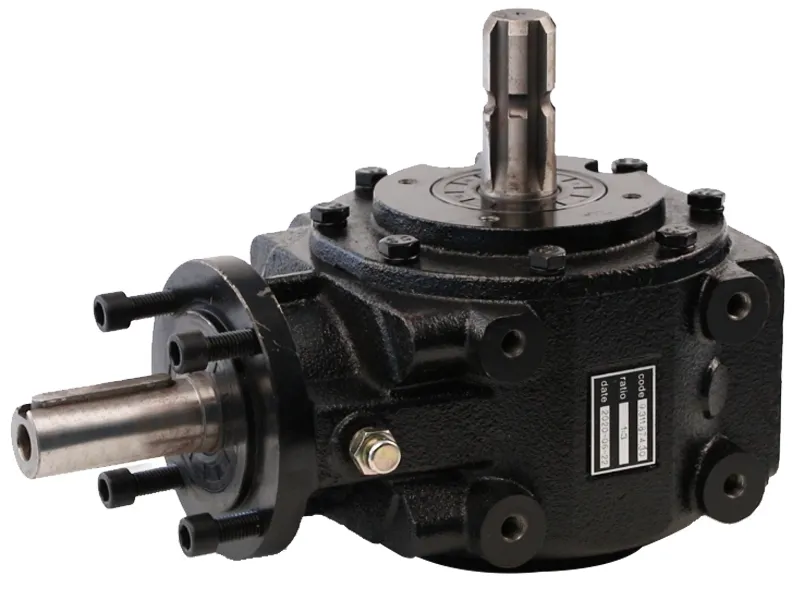

Flail Mower Gearbox - Replacement of Gearbox T-310A
|
|---|---|
| Product details |
|
| Type |
RT1000
|
| Model |
T-310A
|
| Max. input power |
22.1 kW
|
| Max. input torque |
420 nm
|
| Max. output torque |
12.6 daNm
|
| Connection 1 type |
Splined
|
| Connection 2 type |
n/a
|
| Contains oil |
No
|
| Max. oil capacity |
0.8 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GGG40
|
| Original number equivalent |
310702
|
| Weight |
18 kg
|

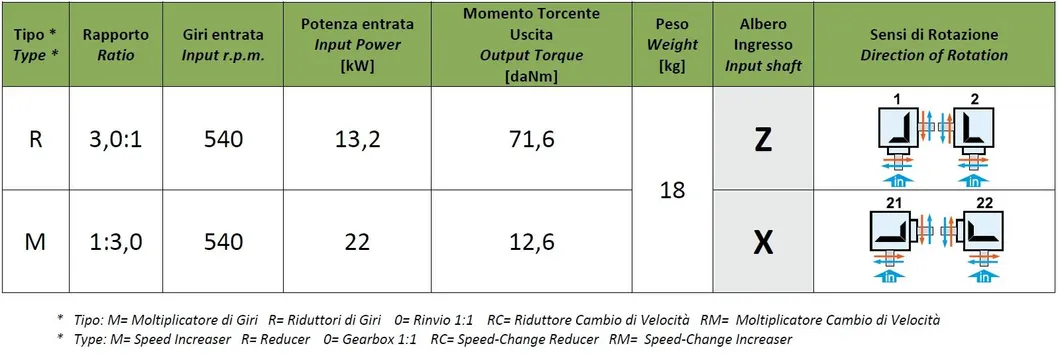

| Gear arrangement Increasing |
21 - 22
|
| Gear ratio |
1 : 3
|
| Input shaft Increasing |
X
|
| Input shaft Reducing |
Z
|
| Output Torque DaNm Increasing |
12.6 daNm
|
| Ratio Increasing |
1 : 3
|
| Ratio Reducing |
3 : 1
|

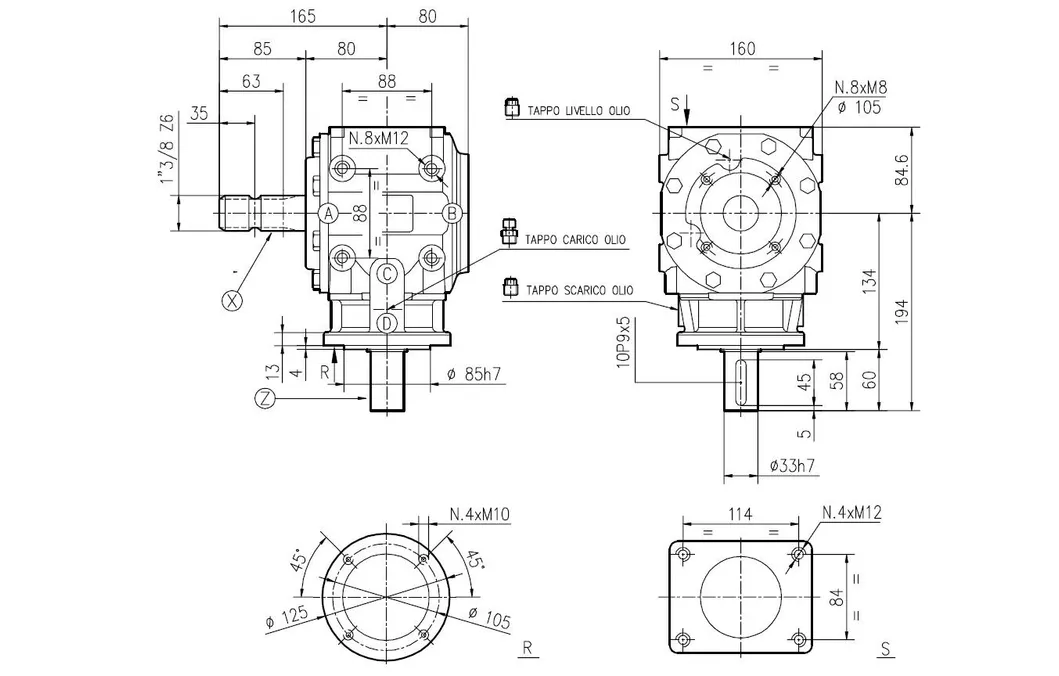

| Shaft X |
1 3/8" (6) Z6
|
| Shaft Z |
33 h7
|

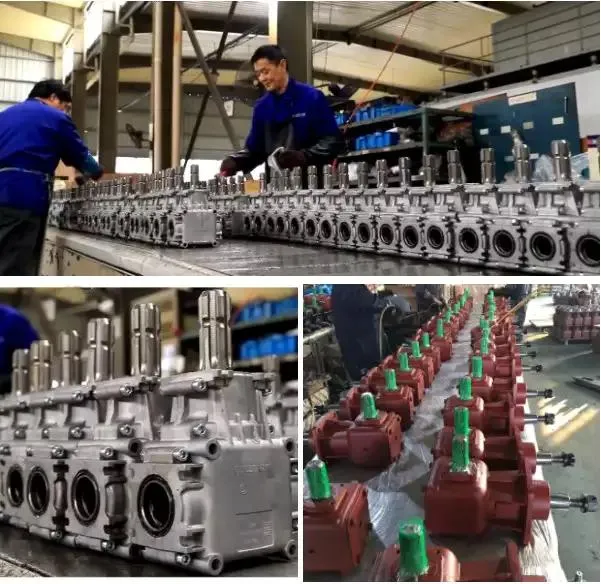

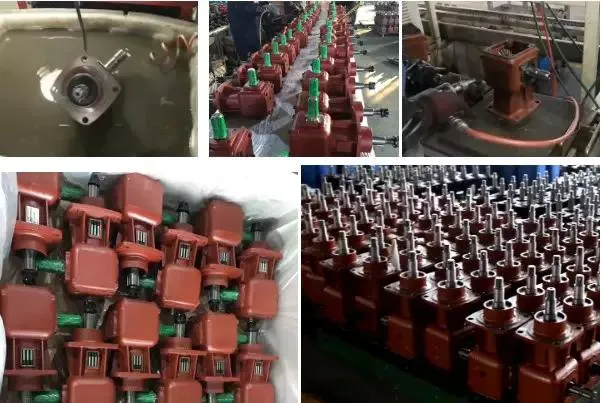

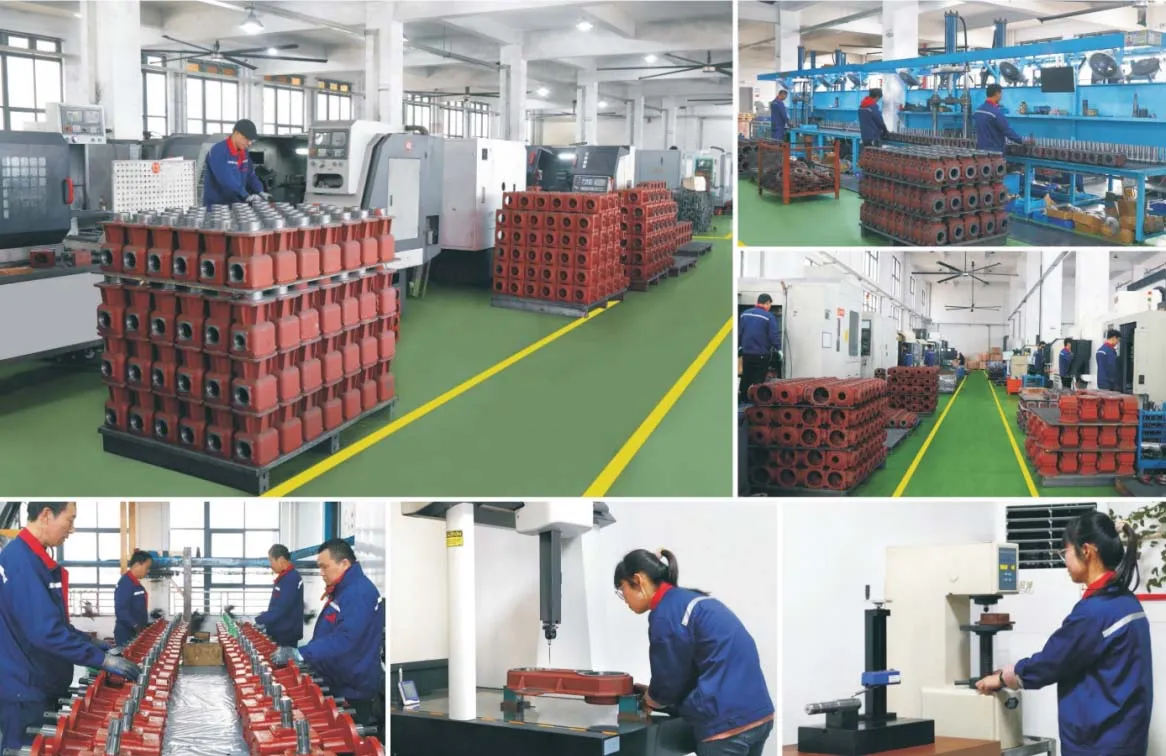

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
