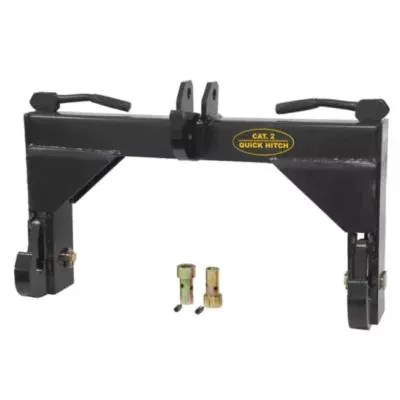

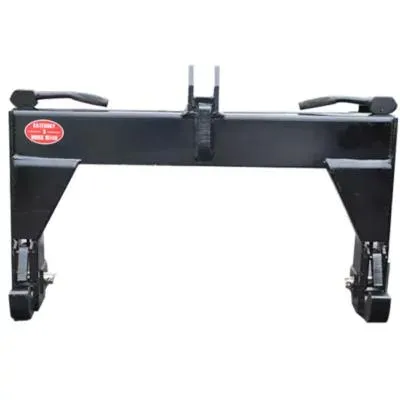

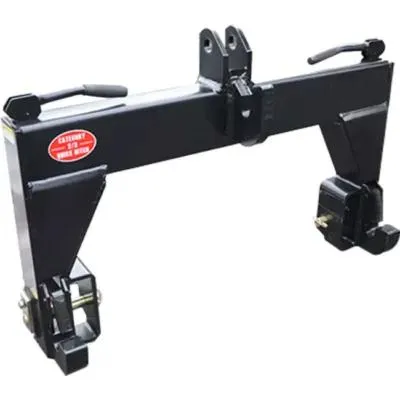

CAT 2 Category 2 Quick Hitch for 3-Point Tractor

CAT 2 Quick Hitch connects and quickly and painlessly closes your tool! During unloading and loading operations, you do not even have to leave the tractor seat! Comply with ASAE specifications for all Category 2 tractors Suitable for clearance between the lower hooks of tractors below 90 horsepower: 32 "3500 lb capacity 139 lb transportation weight Heavy steel structure

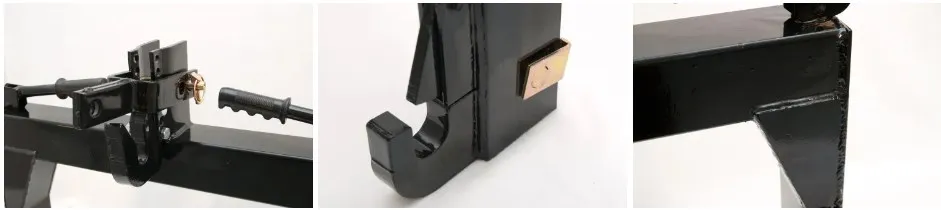

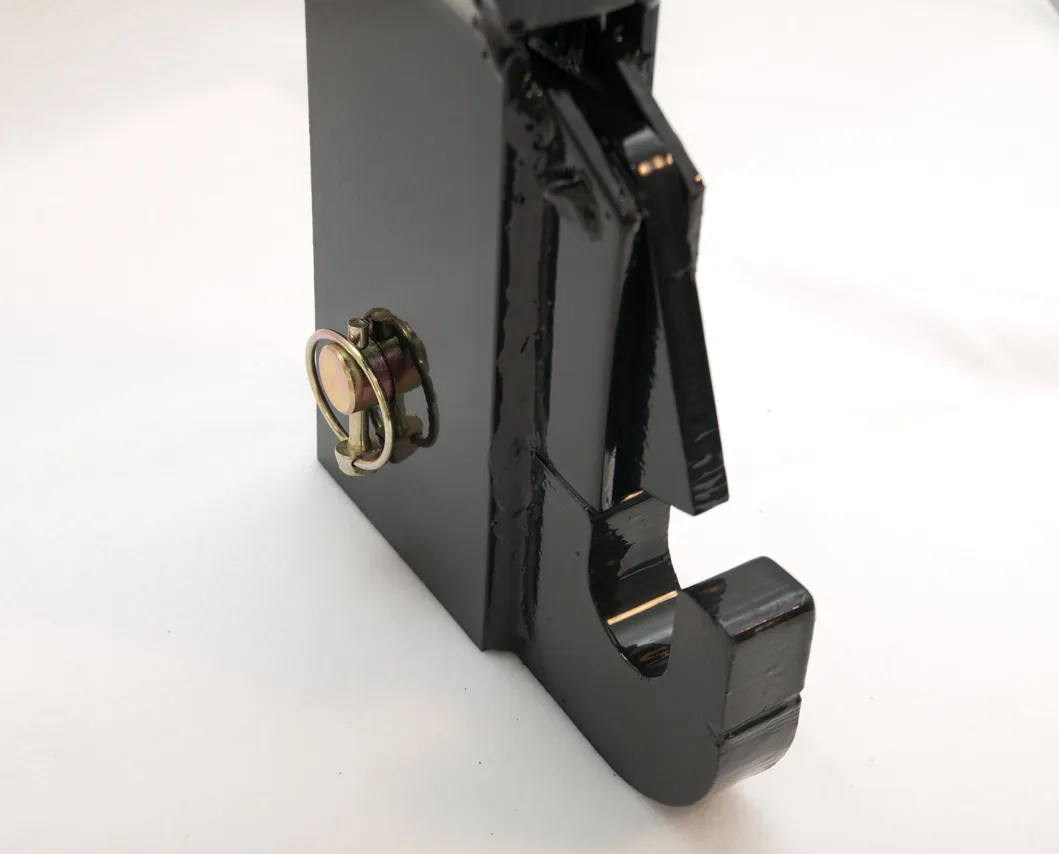

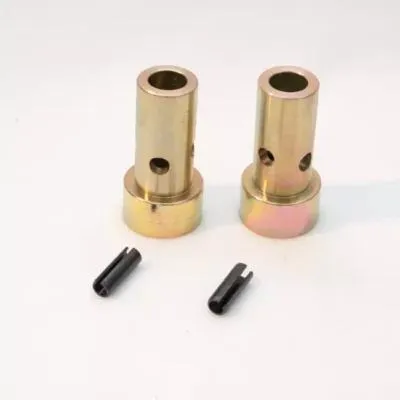

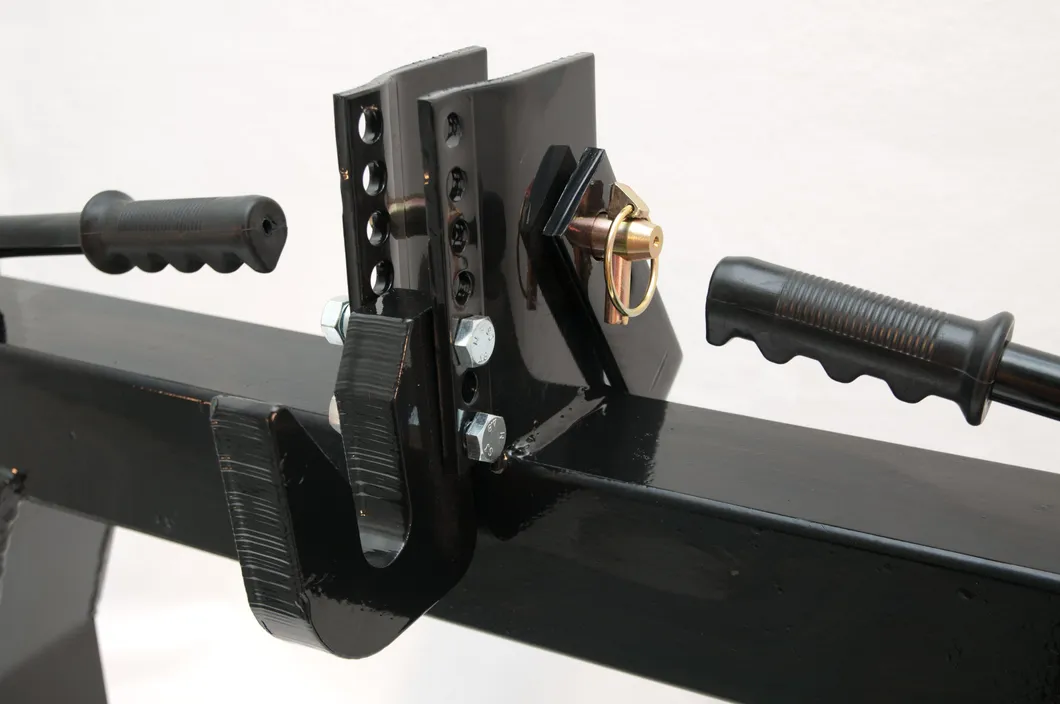

The quick tractor hitch is suitable for tractors, mainly for Level 1 and Level 2 tractors. It can be installed without damaging the tractor. The three-point quick connection device is made of alloy steel, with high strength and compressive strength. The tractor's quick hitch enhances stability by thickening the base plate and welding triangular steel plates. The detailed design of the quick-connect sleeve is very user-friendly. High compatibility No need for drilling Hard alloy steel reinforced structure Easy to operate

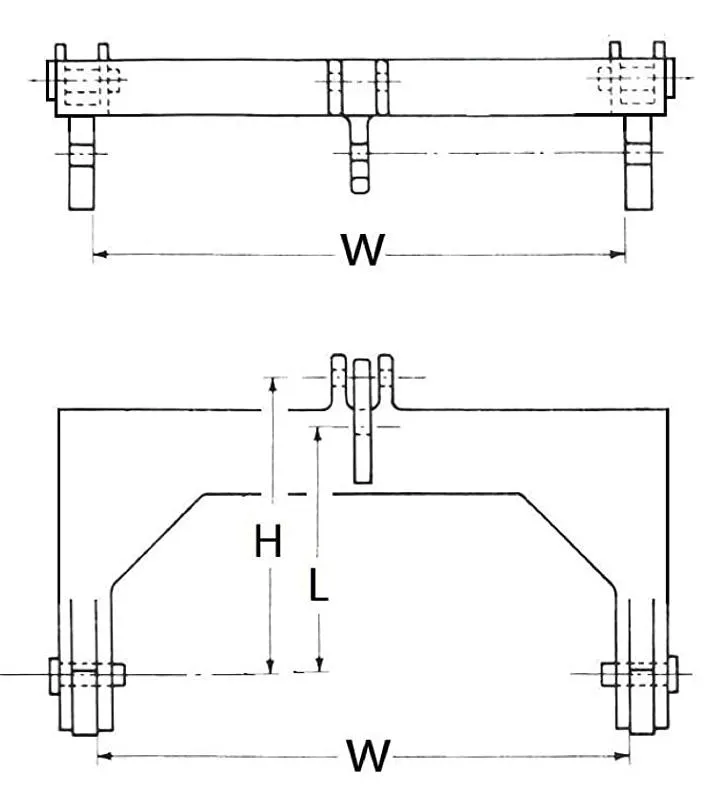

Category	W(IN)	H(IN)	L(IN)	Weight(LB)
CAT 1	27.25	18.5	15-18..5	80
CAT 2	32.75	21.5	15	139
CAT 2 HD	32.5	21.5	15	165
CAT 3	38.25	24.5	19	182
CAT 3 NARROW	32.6	24.5	19	176

What is a quick hook?
Quick hooking is an important tool in many industries. It allows quick attachment and removal of accessories from the drawbar of the machine without the need for a hammer or other tools. This makes it particularly useful in construction applications, where buckets and accessories can be replaced several times a day.
The quick hitch has a pin attached to the bucket arm of the excavator to quickly and easily replace accessories. This is particularly beneficial for operators, who can change the bucket on the excavator up to 30 times a day to maximize the productivity of the machine.
QH is a mechanical latch device that works by holding the lower pin of the accessory in place and making it easy to remove from the excavator bucket arm (see Appendix 2). This means that the operator can replace the bucket or accessory without stopping work, walk backward to the drawbar, and then insert the pin, which may take several minutes.
It is important for the machine owner to properly install and maintain the QH. If not, the equipment should be returned to the original manufacturer for inspection and possible replacement.
QHs, come in different types, depending on the manufacturer and the type of machine installed. The most common is semi-automatic (Appendix 2, Photo 1). As an additional safety measure, it requires the operator to leave the cab after operating the QH latch to insert the retaining pin.
Some semi-automatic systems also have a separate locking system that uses hydraulic pressure to lock the latch in the closed position, but this is not always effective because when the latch is unlocked, the operator cannot see the pin protruding from the side of the hook or confirm that the safety pin is locked.
The main risk of QH failure is that the bucket is separated from the hitch, which may cause injury to the operator or other personnel on site, and damage the hydraulic lines near the hitch. A large number of accidents investigated on excavators are attributed to the separation of the bucket from the QH, which is why it is important to properly install the QH and for the operator to fully understand its operation.
To prevent the risk of QH failure, operators should receive adequate training in the use of manual safety pins and always insert them. Operators should also be familiar with the machine and ensure that their authorized personnel are present when operating the QH.
Alternatively, the operator can set up a management system to check that the manual safety pins are always securely inserted and that there are instruction cards or manuals in the machine cab. Written policies or risk assessments should be attached to determine the operator's responsibility for managing QH safety.

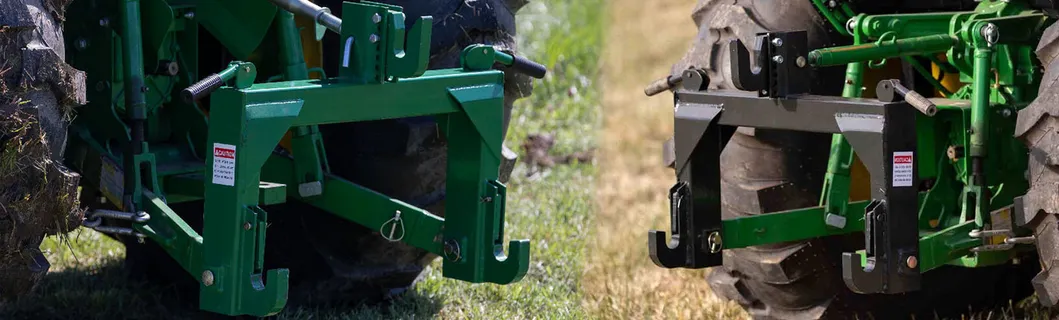

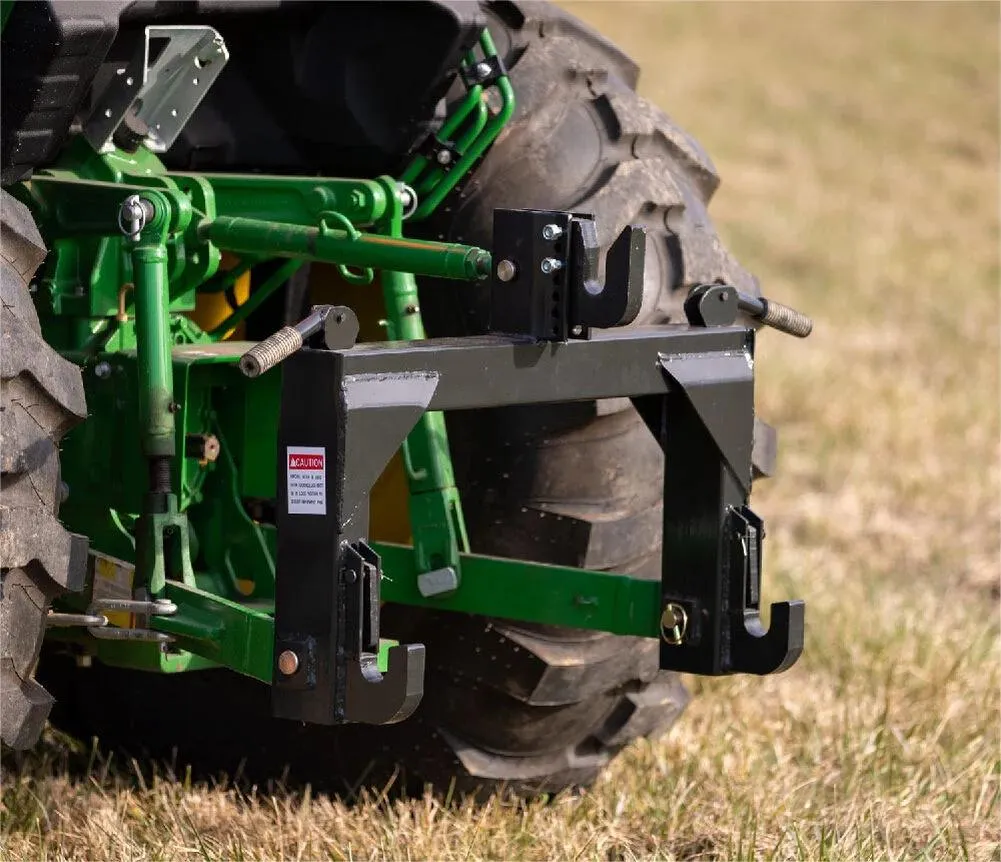

Agricultural machinery can be adjusted through a quick coupling device. Quick-connect devices can be applied to many different brands of agricultural tools. Specifically, it can be applied to all agricultural machines and tools that meet the international standards for three-point linkage, including but not limited to lawnmowers, lawnmowers, cultivators, seeders, harvesters, and so on. In addition, many agricultural machinery and equipment manufacturers also provide customized accessories for quick coupling devices to ensure the adaptability of agricultural tools and improve the coupling efficiency of agricultural tools through optimized design. Therefore, you can ensure that your equipment is compatible with fast-hitching devices by selecting standard three-point hitching agricultural tools or agricultural tools designed for quick-hitching devices, thereby improving agricultural production efficiency. Our hitches can be used on the following agricultural tractors: John Deere, Kubota, Case IH, and Mahindra......

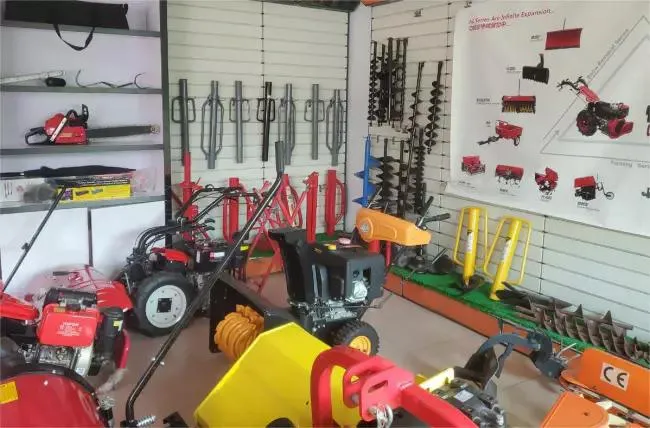

Quick Hitch Factory

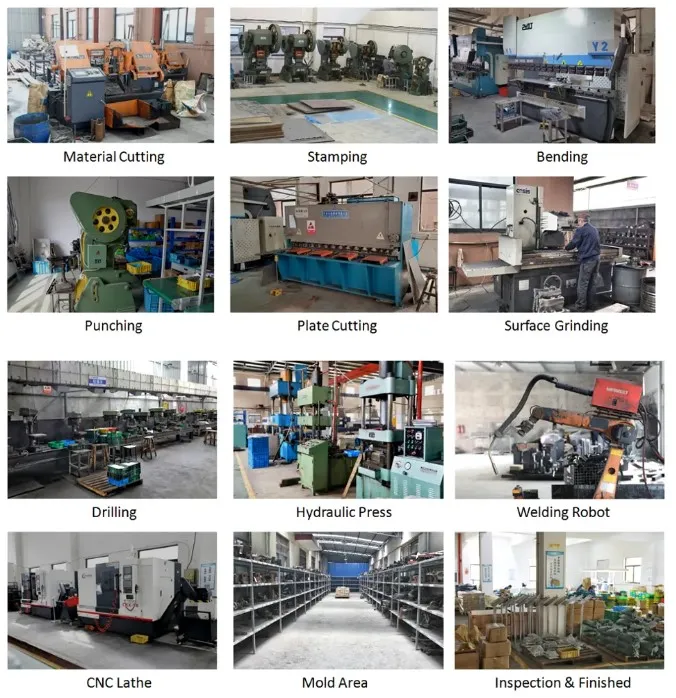

Our factory is a professional manufacturer of various agricultural tools. Our products can meet the needs of farmers, whether they are large-scale farms or household planting. Our product range ranges from basic hand tools to more advanced mechanized equipment. Among them, our three-point quick connect device is particularly popular because it can quickly and safely connect to tractors and provide some of the functions required for more efficient crop cultivation and traditional farm operations. Our production processes strictly follow high-quality standards to ensure that our products can provide long-term stable performance and reliable use. We are willing to help farmers better complete agricultural production through our efforts and dedication. CAT 2 (Category 2) Three Point Tractor Quick Hitch Manufacturing Materials - The manufacturing of quick-connect devices requires metallic materials such as steel and aluminum. The manufacturer must first purchase and manufacture these materials for production. Machining - Quick connect requires machining, including milling, drilling, turning, and riveting. Manufacturers need to equip machines and equipment to complete these processes, and track batches and inventory, to ensure smooth production. After assembly - machining, the manufacturer needs to assemble all parts into the quick hitch, including hydraulic parts and other additional parts. Proper installation and assembly may require robots and other advanced automation equipment.

• How to remove and install a quick hitch
  First, use an excavator to move the quick hitch to a flat place for easier removal and installation at a more convenient angle. Use a wrench or wrench to insert the mounting bolts, remove the nuts from the mounting bolts, and use a pulley or crane to support the quick hitch. Use a hydraulic cylinder to lift the quick hitch to disengage it from the attachment point on the excavator. You can now easily remove the quick hitch. Before installation, please clean the connection points and dust pads on the quick hitch and ensure that they are clean to avoid affecting the connection quality. Install the quick hitch to the excavator and ensure that the connection points are correctly aligned. Ensure that the bolts are aligned and inserted into the installed bolts. Reinstall the nut and tighten it. Finally, use a hydraulic cylinder to lower the quick hitch and connect it to the attachment point of the excavator. Note that these steps are only general guidelines, and the specific removal and installation steps may vary depending on different quick hitch models. Always ensure that the instructions and installation steps for the specific quick hitch model are followed to ensure a safe and correct installation. Follow the operation manual.
•

Installing a quick hitch typically involves the following steps:

How to Remove and Install the Quick Hitch

1.  First, use the excavator to move the Quick Hitch to a flat place so that you can disassemble and install it at a more convenient angle.
2. Use a wrench or wrench to insert the mounting bolt, remove the nut on the mounting bolt, and use a pulley or crane to support Quick Hitch.
3. Use the hydraulic cylinder to lift the Quick Hitch so that it can disengage from the attachment point on the excavator.
4. Now, you can easily remove Quick Hitch.
5. Before installation, please clean the attachment point and the dust pad on Quick Hitch, and ensure that they are clean, so as not to affect the connection quality.
6. Install the Quick Hitch on the excavator and ensure that the attachment points are correctly aligned.
7. Make sure that the bolts are aligned and insert them into the installed bolts.
8. Reinstall the nut and tighten it.
9. Finally, use the hydraulic cylinder to lower the Quick Hitch and connect it to the attachment point of the excavator.

It should be noted that these steps are only general guidelines, and the specific removal and installation steps may vary with different Quick Hitch models. Always make sure to follow the instructions and installation steps for the specific Quick Hitch model to ensure a safe and correct installation. Operate according to the operation manual.

Our factory is a professional manufacturer of various agricultural implements. Our products can meet the needs of farmers, whether it is large-scale farms or family planting. Our products range from basic hand tools to more advanced mechanized equipment. Among them, our 3-point quick coupling equipment is particularly popular because it can connect to the tractor quickly and safely, and provides more efficient crop planting and some functions required for the completion of conventional farm operations. Our production process strictly follows high quality standards to ensure that our products can provide long-term stable performance and reliable use. We are willing to enable farmers to better complete their agricultural production through our efforts and hard work.
