Product Description

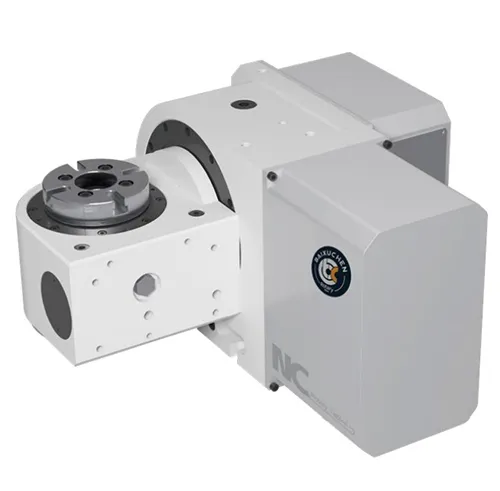

WT-RT170 Proper Price metal vertical cnc 5 axis machining center accessories

Characteristic

Five axis linkage machining

High segmentation accuracy, high performance and high efficiency

Strong braking system, Optional hydraulic brake

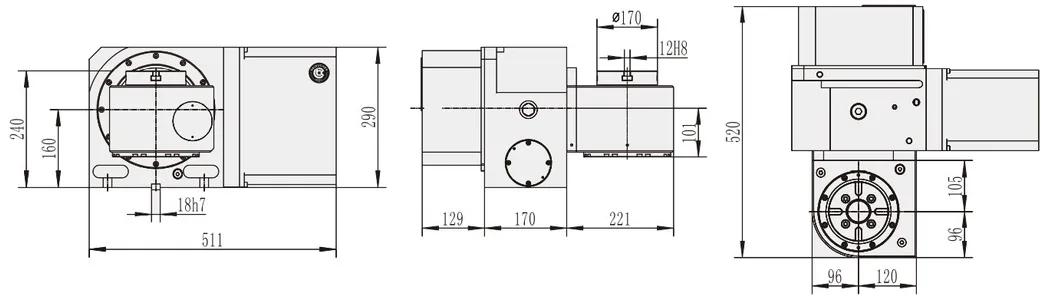

Product Model	WT-RT170	Servo motor (optional)	Rotation axisβ4i HF-54;Tilt axisβ8i HF-104
Panel Size	Φ170mm	Reduction Ratio	Rotation axis1:90 ;Tilt axis1:120
Disk Aperture	Φ50mm	Maximum Rotation Speed Of Worktable	Rotation axis 55.5r.p.m;Tilt axis 33.3r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	240mm	Segmentation Accuracy	Rotation axis15″sec;Tilt axis30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
Positioning Button	18H7mm	Locking Method	Rotation axis pressure 5Kg/cm²;Tilt axis oil pressure 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	Rotation axis 31Kg/m ;Tilt axis 140Kg/m
Net Weight (about)	120Kg	Allowable Cutting Force	Rotation axis18Kg.m;Tilt axis 55Kg.m
Horizontal placement	75KG	Placement	40KG
