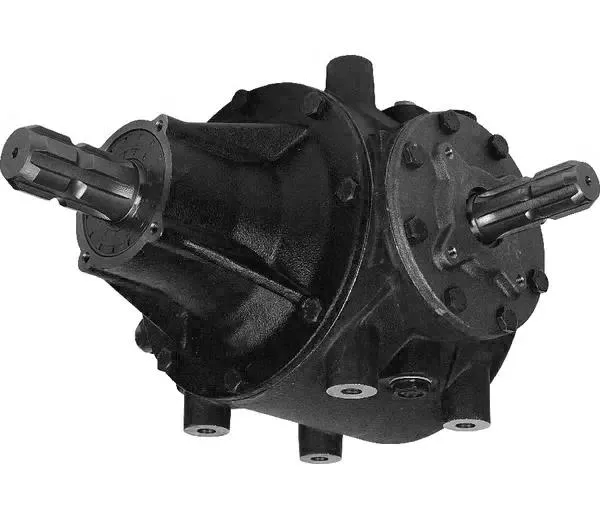

82 HP Flail Mower Gearbox Reducer

Model: T-269B
Technical features
Type of application:
Reduction gear unit
Input power rate: 53Cv-39Kw (540RPM)
Speed increasing unit
Input power rate: 85Cv-62.6Kw (540RPM)
Ratio: 3
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 40
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
