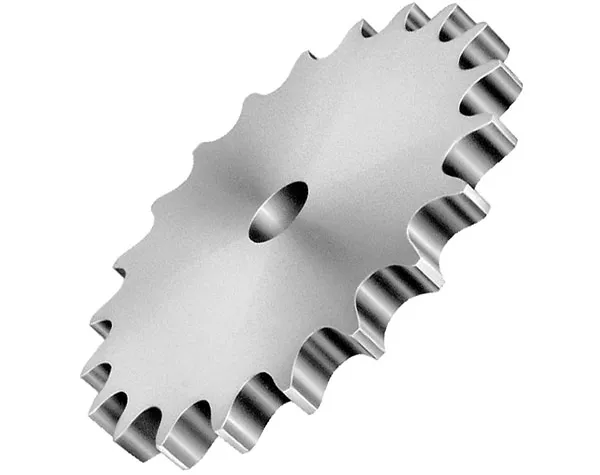

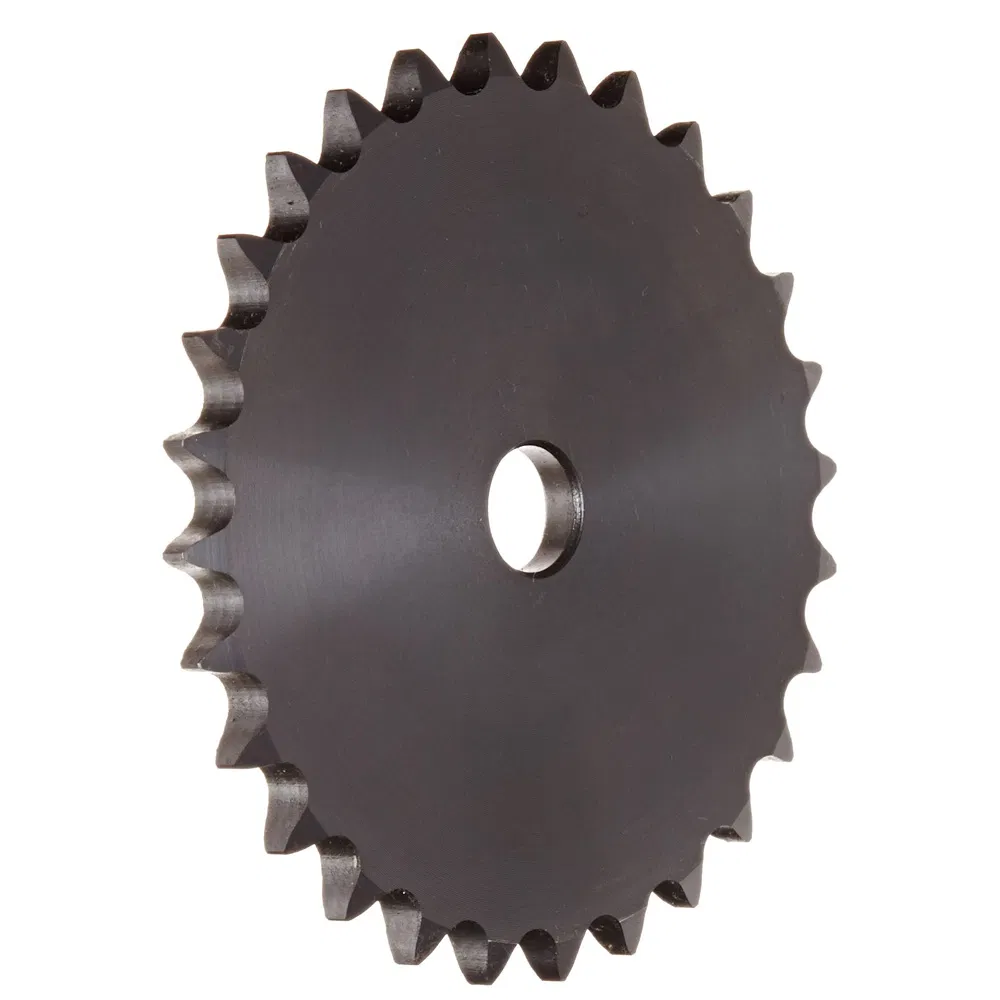

80 Chain Sprockets are manufactured in accordance with ANSI B29.1 Standards and are made for 1" pitch 80 and heavy-duty 80H roller chains. Being manufactured to The American National Standards Institutes dimensions means that these sprockets directly interchange with other manufacturers. Up to 30-teeth, our 80 sprockets feature hardened teeth for a dynamic performance factor increase and increased sprocket longevity. Out standard steel sprockets utilize a black-oxide coating for added corrosion protection, they are also manufactured from a premium high-strength grade of mild steel for an additional increase in sprocket life.
| Size | Type | Tooth Count | Stock Bore | Weight (LBS) |
|---|---|---|---|---|
| 80A09 | A | 9 | 15/16" | 0.8 |
| 80A10 | A | 10 | 15/16" | 1.0 |
| 80A11 | A | 11 | 15/16" | 1.3 |
| 80A12 | A | 12 | 15/16" | 1.5 |
| 80A13 | A | 13 | 15/16" | 1.8 |
| 80A14 | A | 14 | 15/16" | 2.2 |
| 80A15 | A | 15 | 15/16" | 2.5 |
| 80A16 | A | 16 | 15/16" | 2.9 |
| 80A17 | A | 17 | 15/16" | 3.3 |
| 80A18 | A | 18 | 15/16" | 3.7 |
| 80A19 | A | 19 | 15/16" | 4.1 |
| 80A20 | A | 20 | 15/16" | 4.7 |
| 80A21 | A | 21 | 15/16" | 4.9 |
| 80A22 | A | 22 | 15/16" | 5.5 |
| 80A23 | A | 23 | 15/16" | 6.3 |
| 80A24 | A | 24 | 15/16" | 6.7 |
| 80A25 | A | 25 | 15/16" | 7.2 |
| 80A26 | A | 26 | 1-3/16" | 7.8 |
| 80A27 | A | 27 | 1-3/16" | 8.6 |
| 80A28 | A | 28 | 1-3/16" | 9.3 |
| 80A29 | A | 29 | 1-3/16" | 9.8 |
| 80A30 | A | 30 | 1-3/16" | 10.7 |
| 80A31 | A | 31 | 1-3/16" | 11.3 |
| 80A32 | A | 32 | 1-3/16" | 12.1 |
| 80A33 | A | 33 | 1-3/16" | 13.6 |
| 80A34 | A | 34 | 1-3/16" | 14.3 |
| 80A35 | A | 35 | 1-3/16" | 14.8 |
| 80A36 | A | 36 | 1-3/16" | 16.1 |
| 80A37 | A | 37 | 1-3/16" | 16.8 |
| 80A38 | A | 38 | 1-3/16" | 17.2 |
| 80A39 | A | 39 | 1-3/16" | 17.9 |
| 80A40 | A | 40 | 1-3/16" | 18.9 |
| 80A41 | A | 41 | 1-1/4" | 21.0 |
| 80A42 | A | 42 | 1-1/4" | 21.8 |
| 80A43 | A | 43 | 1-1/4" | 23.6 |
| 80A44 | A | 44 | 1-1/4" | 24.3 |
| 80A45 | A | 45 | 1-1/4" | 25.2 |
| 80A46 | A | 46 | 1-1/4" | 26.6 |
| 80A47 | A | 47 | 1-1/4" | 26.4 |
| 80A48 | A | 48 | 1-1/4" | 27.8 |
| 80A49 | A | 49 | 1-1/4" | 28.9 |
| 80A50 | A | 50 | 1-1/4" | 30.9 |
| 80A51 | A | 51 | 1-1/4" | 32.2 |
| 80A52 | A | 52 | 1-1/4" | 33.0 |
| 80A53 | A | 53 | 1-1/4" | 34.9 |
| 80A54 | A | 54 | 1-1/4" | 36.6 |
| 80A55 | A | 55 | 1-1/4" | 37.5 |
| 80A56 | A | 56 | 1-1/4" | 39.4 |
| 80A57 | A | 57 | 1-1/4" | 40.4 |
| 80A58 | A | 58 | 1-1/4" | 41.3 |
| 80A59 | A | 59 | 1-1/4" | 42.9 |
| 80A60 | A | 60 | 1-1/4" | 45.3 |
| 80A65 | A | 65 | 1-1/4" | 52.2 |
| 80A70 | A | 70 | 1-1/2" | 59.8 |
| 80A72 | A | 72 | 1-1/2" | 65.7 |
| 80A76 | A | 76 | 1-1/2" | 70.2 |
| 80A80 | A | 80 | 1-1/2" | 79.6 |
| 80A84 | A | 84 | 1-1/2" | 86.1 |
| 80A90 | A | 90 | 1-1/2" | 101.0 |
| 80A96 | A | 96 | 1-1/2" | 120.0 |
| 80A112 | A | 112 | 1-1/2" | 165.0 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
