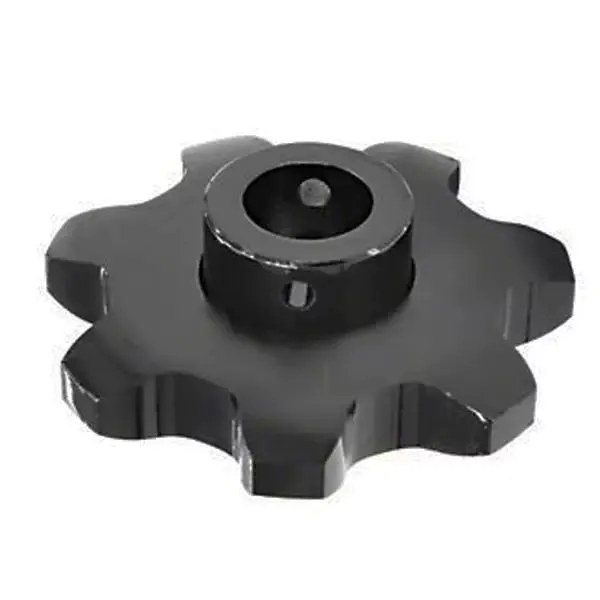

1317192C1 sprocket Replacement Chain Drive Fits Case IH Combine:
(Upper & Lower Clean Grain Auger) Case-IH COMBINE :1640 1644 1660 1666 1670 1680 1688 2144 2166 2344 2366
(Lower Clean Grain Auger) Case-IH COMBINE: 1682
(Upper Clean Grain Auger) Case-IH COMBINE: 2188 2388
Forage Harvester Case-IH: 2144
Description / Notes: 9 Teeth; 1-1/4″ Diameter Shaft; Hardened
Cross Reference Part #: 1317192C1; A-1317192C1; SP122; SP122H
Replaces OEM Part Number:1317192C1
Replace the worn Sprockets and Idlers on your combine to extend the life of your chains and improve overall performance
| Weight, W | kg | 1.5 |
|---|---|---|
| Inner diameter, d | mm | 35 |
| Outer diameter, D | mm | 132 |
| Number of teeth, Z | 9 | |
| Pitch, p | mm | 41.4 |
| Height, H | mm | 57 |
| Outside diameter, D1 | mm | 50 |
| Key slot | mm | 4x8x57 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
