The rotary mower gearbox LF-140J is a gearbox designed for use in rotary mowers. Rotary mowers are commonly used in agricultural applications, particularly for cutting grass and other vegetation. The rotary mower gearbox serves as a power transmission device for the rotary mower.
The rotary mower gearbox LF-140J is made of high-quality materials and is built to withstand the rigors of everyday use. The rotary mower gearbox features a 1:1.93 gear ratio, which provides plenty of power to the mower's blade. It also has a 6-spline input shaft and a 15-spline output shaft, which makes it compatible with a variety of different mowers. The rotary mower gearbox LF-140J is a reliable and durable product that is sure to provide years of trouble-free service.
 |
 |
| Product Description |

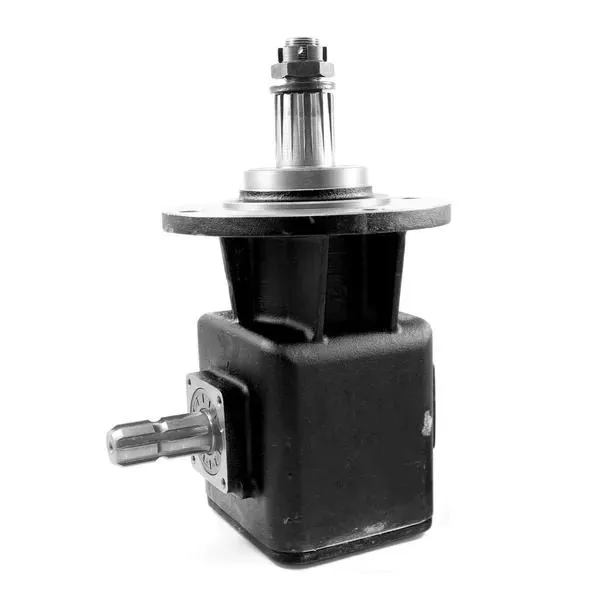

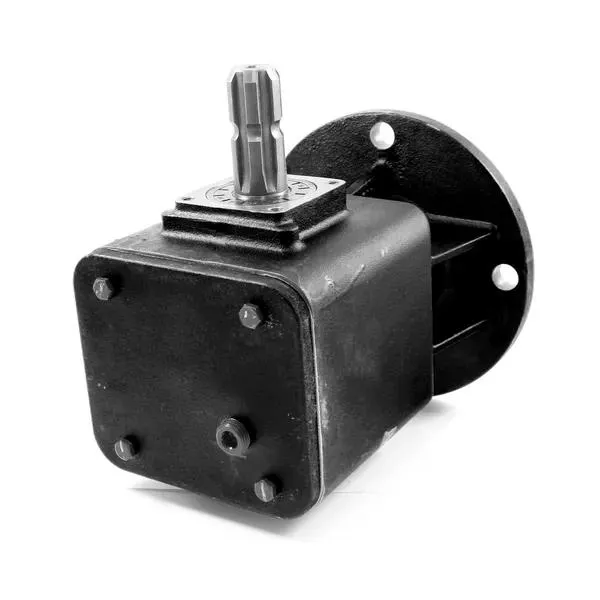

Rotary Mower Gearbox - Replacement of Comer Gearbox LF-140J
|
|---|---|
| Product details |
|
| Application range |
Mowers
|
| Consists of |
|
| Contains oil |
No
|
| Max. oil capacity |
1.4 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GGG40
|
| Weight |
28.5 kg
|
| Gear arrangement Increasing |
3
|
| Input power kW / HP Increasing |
44 / 60 kW/HP
|
| Input shaft Increasing |
X
|
| Output Torque DaNm Increasing |
39 daNm
|
| Ratio Increasing |
1:1.93
|
| Ratio Reducing |
1.93: 1
|

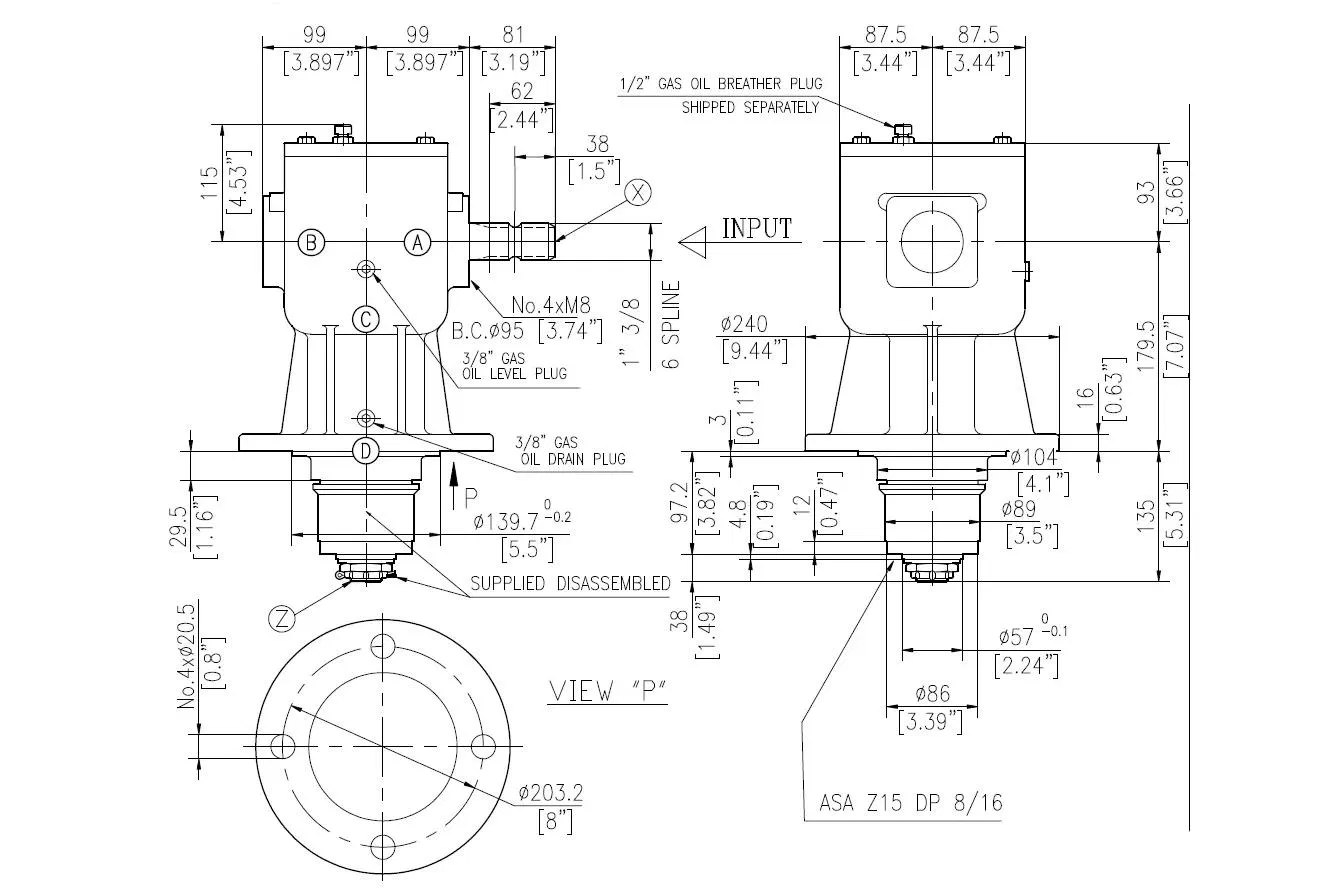

| Shaft X |
1 3/8" (6)
|
| Shaft Z |
ASA Z15 D.P. 8/16
|
We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.

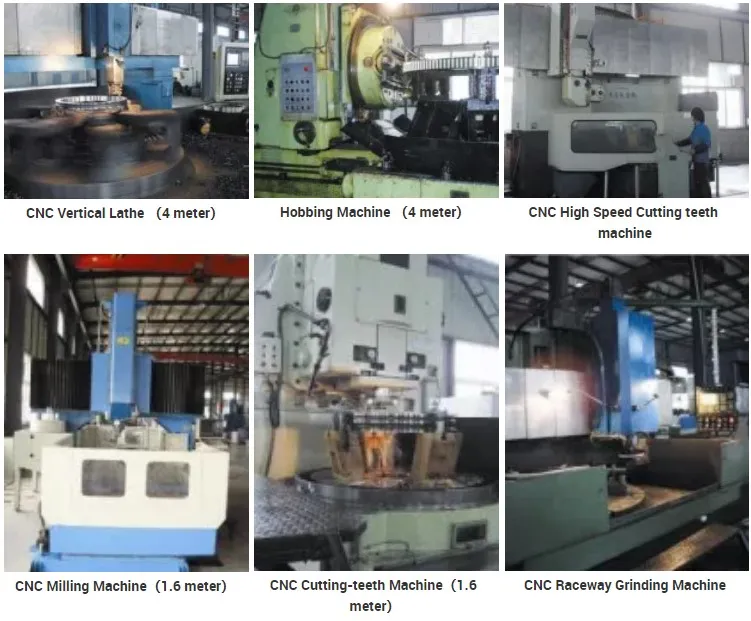

Our Equipments

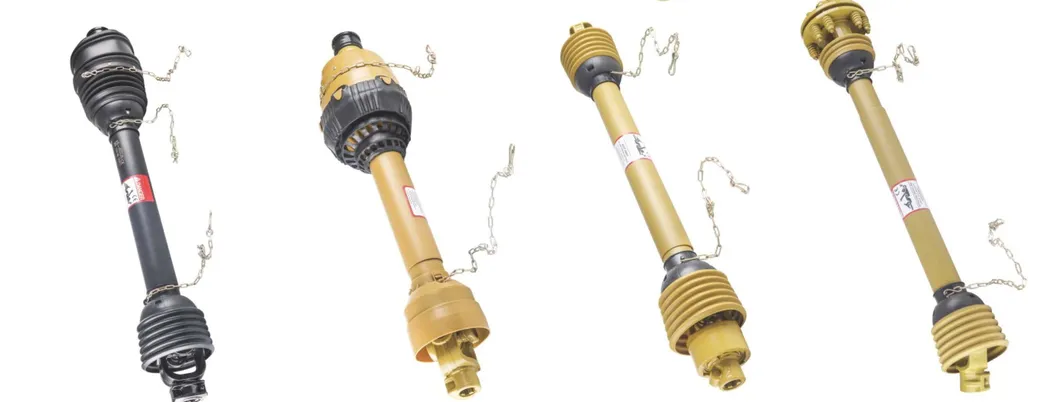

PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
