NK15B Sprockets

Product Description ChainNo.15 Pitch(P)4.7625 mmInternal Width(W)2.38 mmOutside Dia.(Dr)2.48 mmTeeth Width(T)2.0 mm Sprocket No.Outside Dia.DoPitch Dia.DpBore Dia.HubWeight(g)TypeZStock Bore Min.MaxBDBLNK15B1119.016.90457111091220.518.404581210101322.019.904591410141423.521.4067101512171525.022.916......

Send Inquiry

Product Description

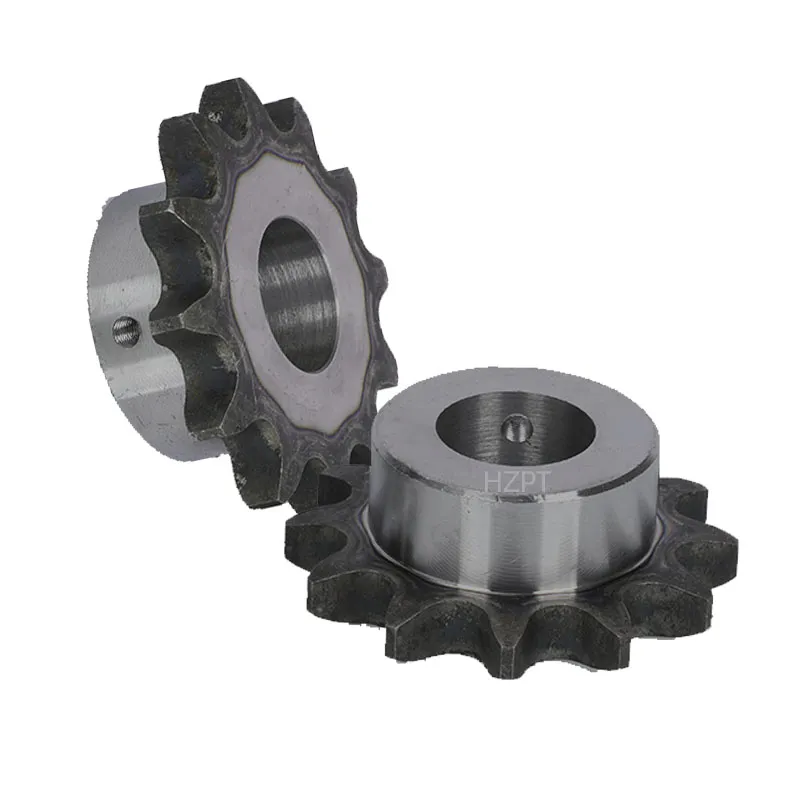

Nk Standard Nk15b Sprockets B Type for Roller Chain

Chain	No.15
Pitch	(P)	4.7625 mm
Internal Width	(W)	2.38 mm
Outside Dia.	(Dr)	2.48 mm
Teeth Width	(T)	2.0 mm

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia.			Hub		Weight (g)
Type	Z	Outside Dia. Do	Pitch Dia. Dp	Stock Bore	Min.	Max	BD	BL	Weight (g)
NK15B	11	19.0	16.90	4	5	7	11	10	9
	12	20.5	18.40	4	5	8	12	10	10
	13	22.0	19.90	4	5	9	14	10	14
	14	23.5	21.40	6	7	10	15	12	17
	15	25.0	22.91	6	7	12	17	12	22
	16	26.5	24.41	8	9	12	18	12	23
	17	28.0	25.92	8	9	14	20	14	32
	18	29.5	27.43	8	9	14	22	14	40
	19	31.0	28.93	8	9	15	23	14	44
	20	32.5	30.44	8	9	15	24	14	49
	21	34.0	31.95	8	9	17	26	14	57
	22	35.5	33.46	8	9	17	27	14	62
	23	37.5	34.98	8	9	17	28	14	68
	24	39.0	36.49	8	9	20	30	16	88
	25	40.5	38.00	8	9	20	32	16	100
	26	42.0	39.51	10	11	22	33	16	104
	27	43.5	41.02	10	11	25	35	16	117
	28	45.0	42.54	10	11	25	37	16	131
	29	46.5	44.05	10	11	25	38	16	139
	30	48.0	45.56	10	11	25	39	16	147
	31	49.5	47.08	10	11	25	40	18	175
	32	51.0	48.59	10	11	25	40	18	176
	33	52.5	50.10	10	11	25	40	18	178
	34	54.0	51.62	10	11	25	40	18	180
	35	55.5	53.13	10	11	25	40	18	182

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.
