PTO Shaft for Curtis Tractors

Unleash peak performance with Raydafon Group's PTO Shaft for Curtis Tractors—engineered for durability and precision. Ideal for farmers and mechanics, it ensures smooth power transfer, reducing downtime and enhancing efficiency. Its superior design and robust materials offer unmatched reliability, solving common wear issues. Feel the confidence of a seamless operation. Upgrade now for dependable agricultural excellence.

Send Inquiry

Product Description

Agricultural replacement parts PTO shaft fit for Curtis Douglas Tecma Sovema Maschio Phoenix Sicma all Models

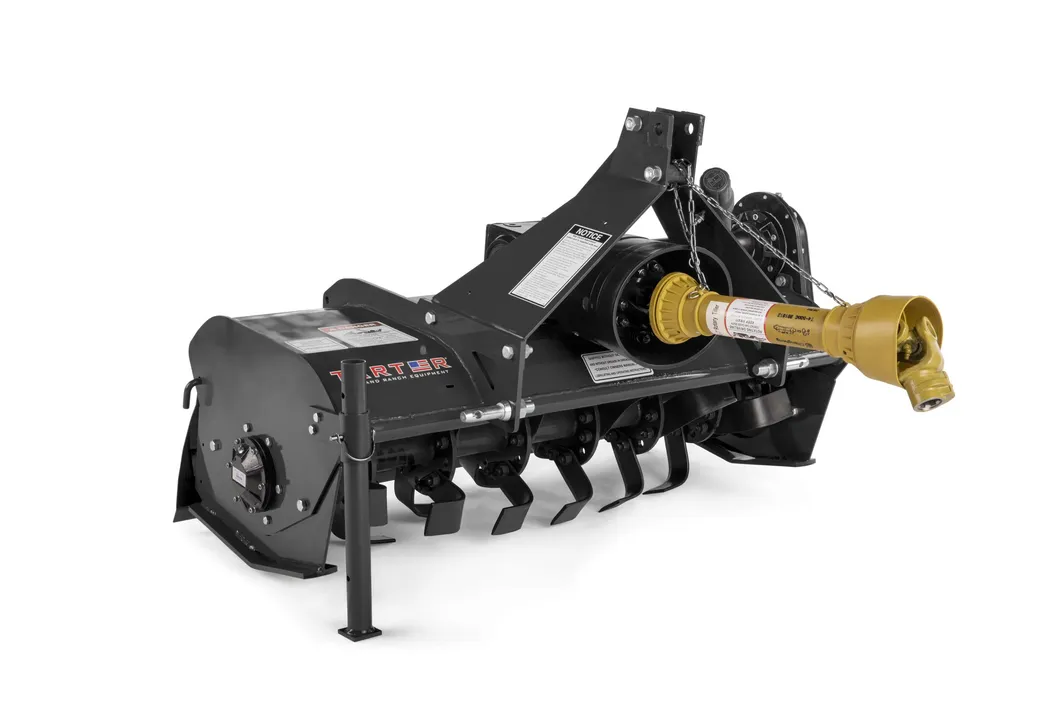

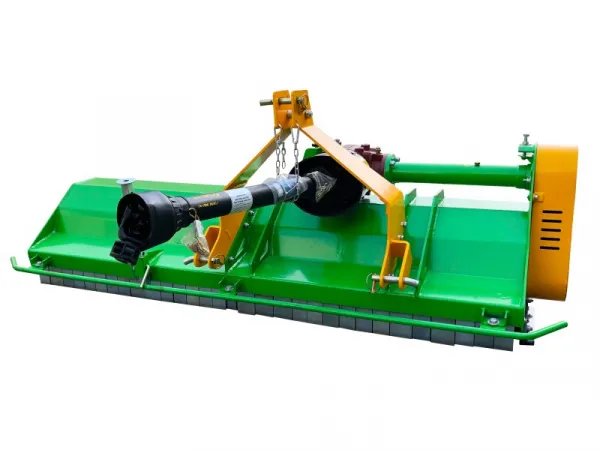

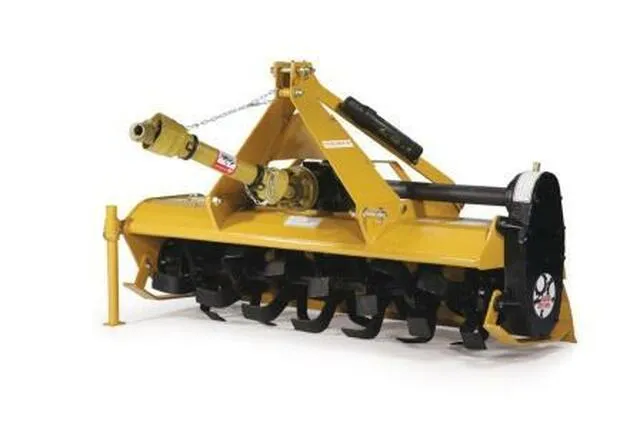

Replacement PTO shaft for Finish Mowers, Tillers, Spreaders, Hay Tedders and many more applications.

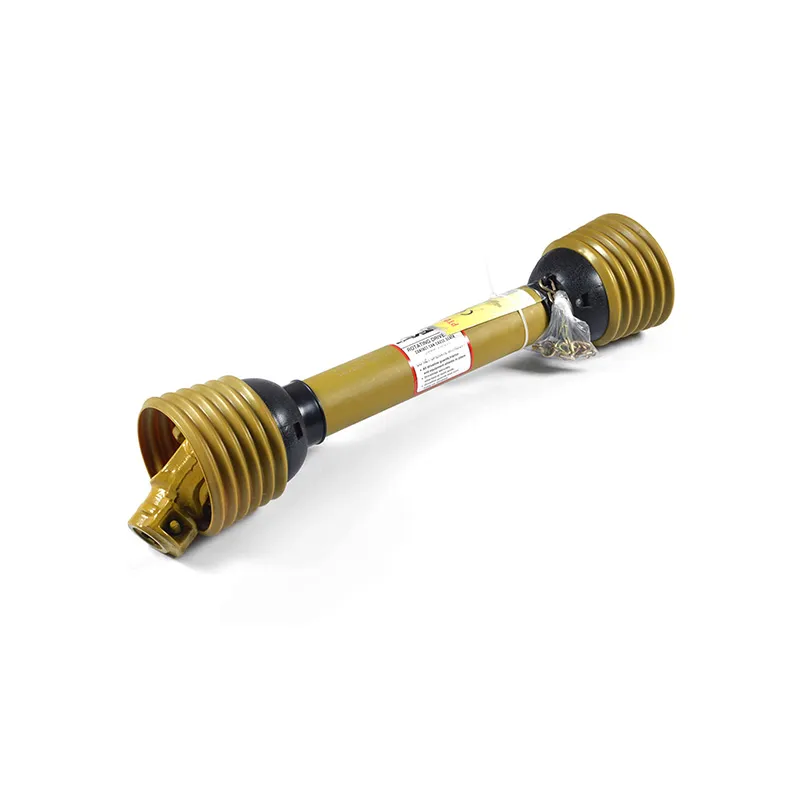

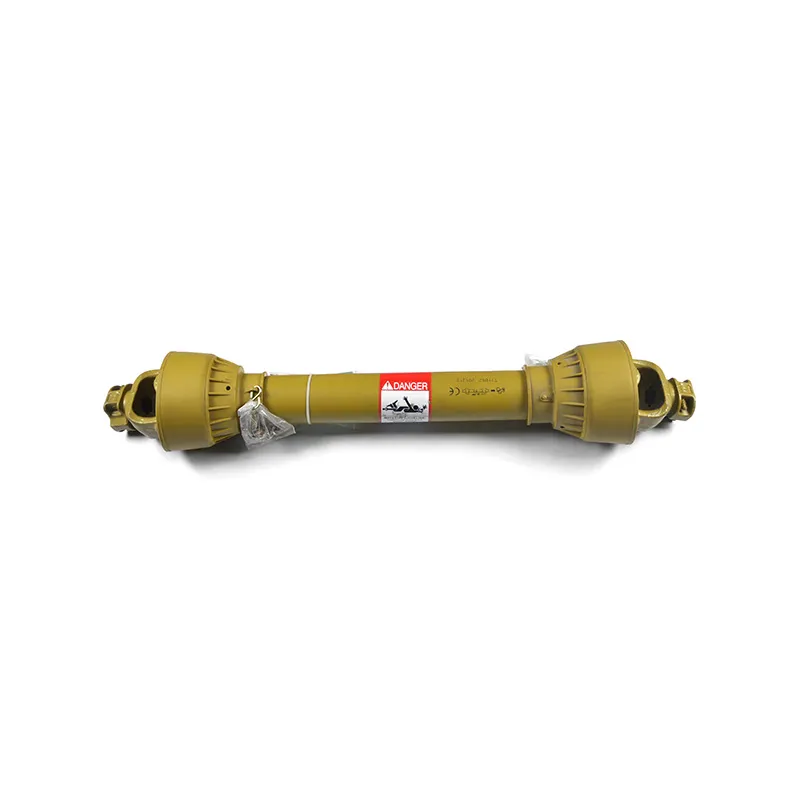

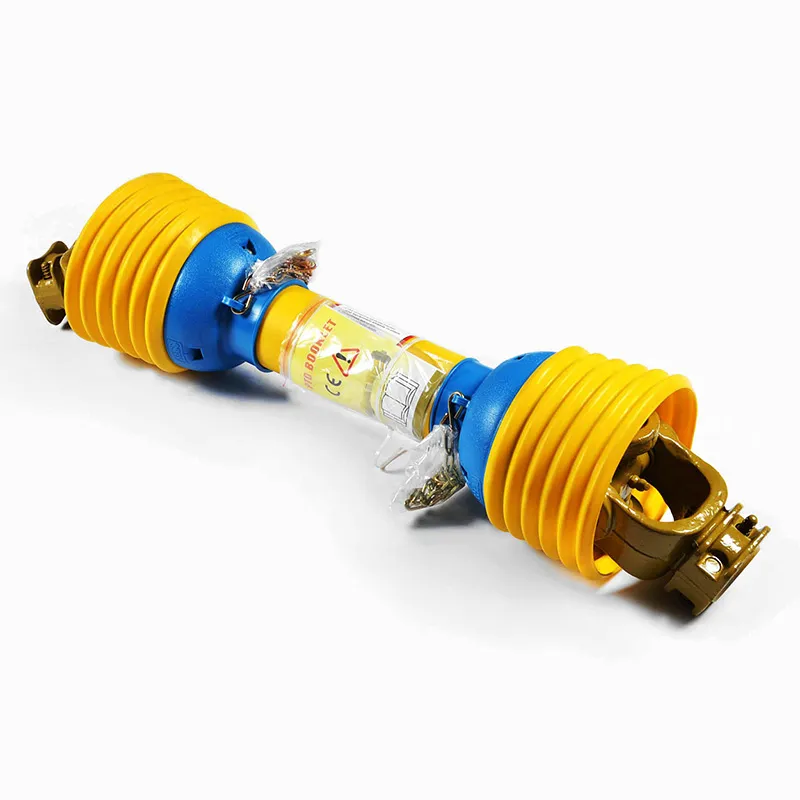

PTO is a series 4, rated for 40HP it has 1-3/8" 6 spline push pin on both ends for easy installment. Complete with safety shield, The PTO measures 43" from end to end and has an 58" maximum extended length.

These PTO shafts fit the following Finish Mowers:

Bush Hog: ATH 600 and ATH 720, ATH 900, FTH 480, FTH 600, FTH 720, MTH 600, MTH 720 Series Mowers;

Landpride: FDR1548, FDR1560, FDR1572, FDR1648, FDR1660, FDR1672, FDR2548, FDR2560, FDR2572, AT2660, AT2672 Series Mowers;

Kubota: BL348A, B342A; Caroni TC480, TC590, TC710, TC910 with spline Input Shaft;

Befco most late models with splined input shafts, early models had some with smooth input shaft;

Curtis all Models;

Douglas all Models;

Tecma all Models;

Sovema all Models;

Maschio all Models;

Phoenix all Models;

Sicma all Models;

First Choice all Models

Related products
Agricultural Replacement Parts Pto Shaft Fit for Curtis Douglas Tecma Sovema Maschio Phoenix Sicma All Models

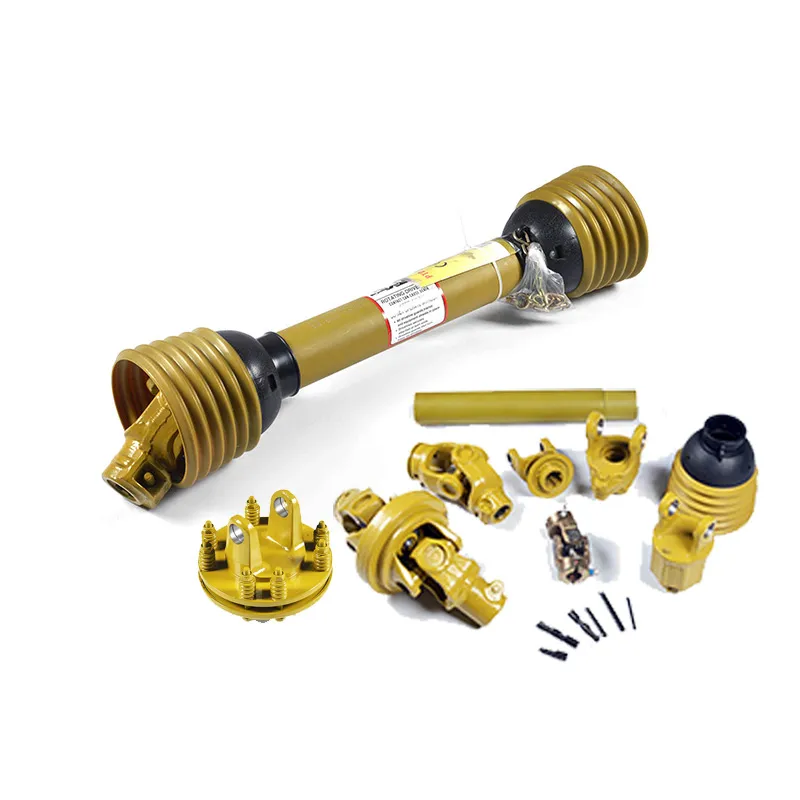

Materlal and Surface Treatment
Cross shaft	Heat treatment of 20Cr2Ni4A forging
Bearing cup	20CrMOTi forging heat treatment
Flange fork	ZG35CrMo, steel casting
Spline shaft	42GrMo forging heat treatment
Spline bushing	35CrM0 forging heat treatment
Sleeve body	42CrMo forging
Surface treatment:	spraying
Flat key, positioning ring	42GrMo forging

The above are standard models and materials.
If you have special supporting requirements, you can customize production according to customer needs.
