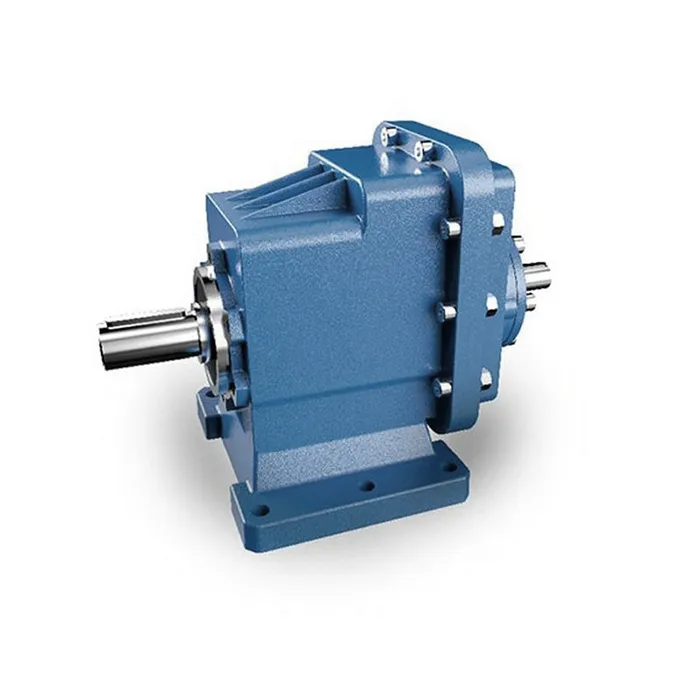

RC Series Helical Gear Reducer

Rc Series Helical Gear Box Speed Reducer Drive Power Transmission Right Angle Gear Reducer Parallel Shaft gearboxHousingAluminum AlloysGearsHardened Helical GearsInput ConfigurationsHollow Shaft with IEC Normalized Motor Flange /Solid Shaft InputApplicable MotorsIEC-normalized Motors and Brake Motor......

Send Inquiry

Product Description

Rc Series Helical Gear Box Speed Reducer Drive Power Transmission Right Angle Gear Reducer Parallel Shaft gearbox

Housing	Aluminum Alloys
Gears	Hardened Helical Gears
Input Configurations	Hollow Shaft with IEC Normalized Motor Flange /Solid Shaft Input
Applicable Motors	IEC-normalized Motors and Brake Motors/Explosion-proof Motors/Inverter Motors/Servo Motors
Output Configurations	Solid Shaft with B5 Output Flange/Solid Shaft with B14 Output Flange
Models	RC(Foot-mounted): RC01,RC02,RC03,RC04 RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04 RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04
Input Speed	1400rpm
Input Power	0.12kw~4kw
Ratio	3.66~54

Features:

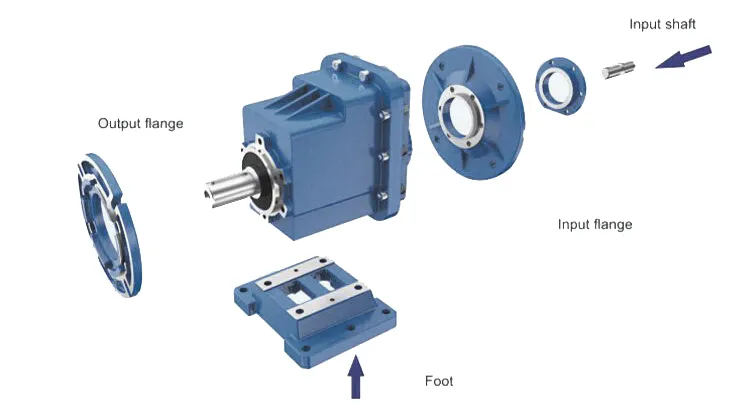

1. Modular design, dismountable frame foot, optional different frame sizes and flanges
2. Aluminum housing, compact structures, light weight
3. Carburizing and grinding hardened gears, sturdy and durable

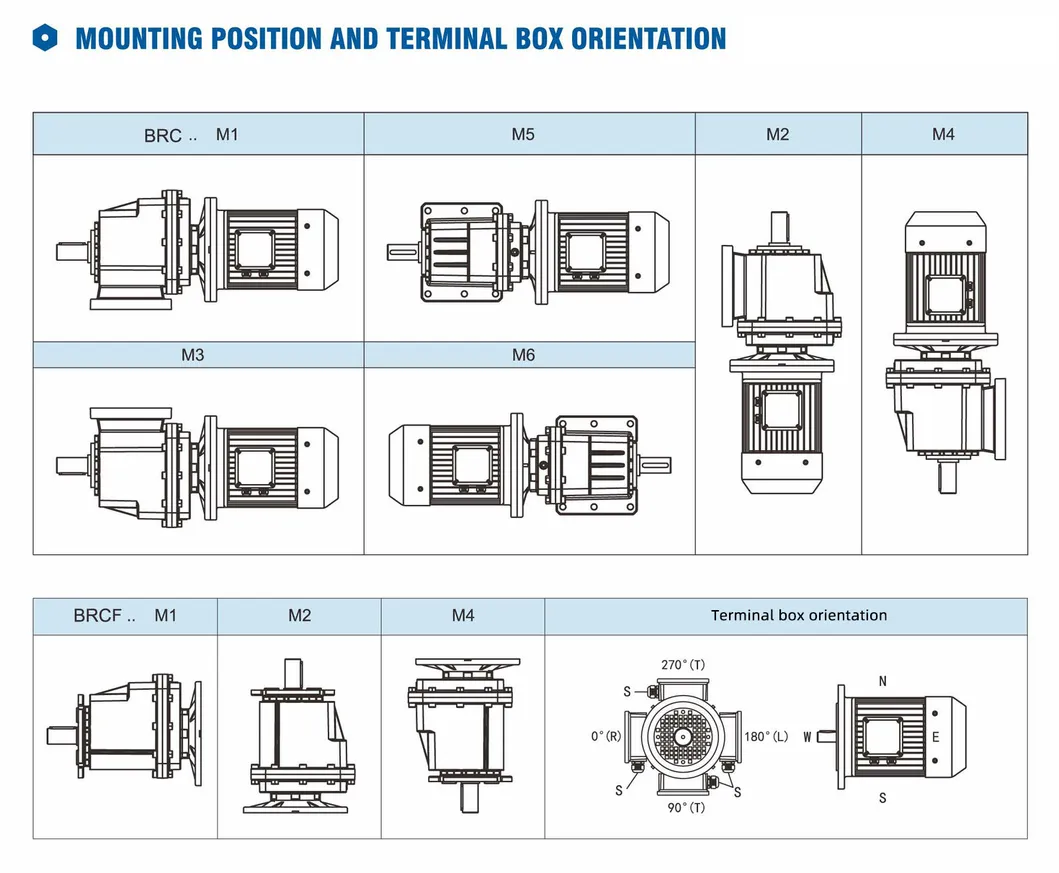

4. Multiple mounting positions
5. Low noise
