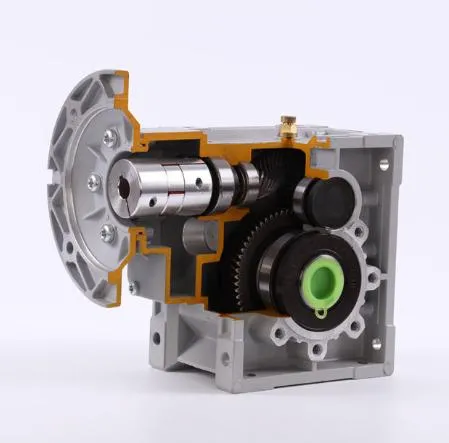

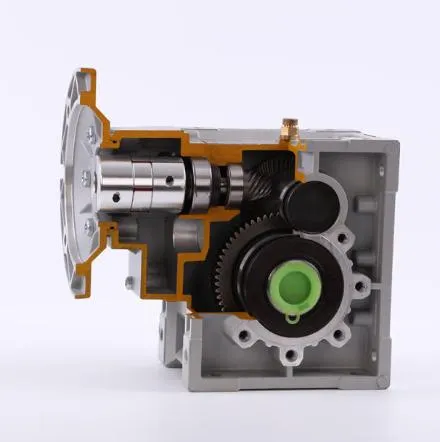

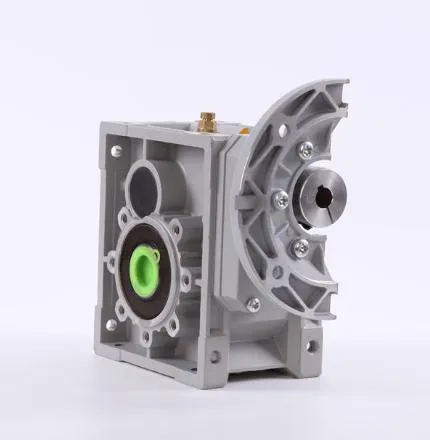

Small 90 Degree Hypoid Gearbox

Discover Raydafon Group's Small 90 Degree Hypoid Gearbox—perfect for compact machinery with smooth, efficient power transfer. Its hypoid design ensures quiet operation and durability, ideal for engineers and hobbyists seeking reliable performance. Feel confident solving space constraints and boosting productivity, a standout choice for superior build quality. Limited-time offer: secure yours with a satisfaction guarantee!

Send Inquiry

Product Description

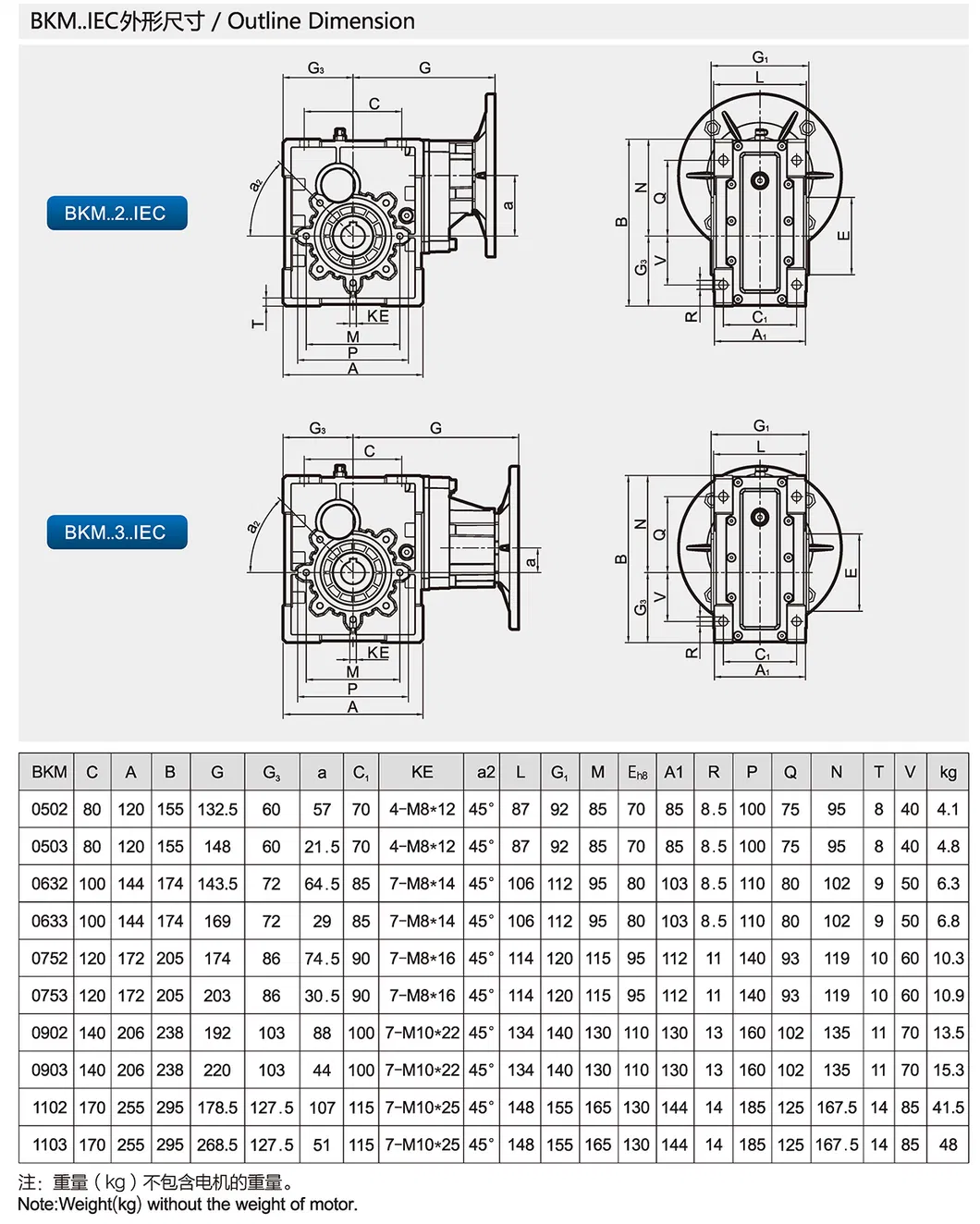

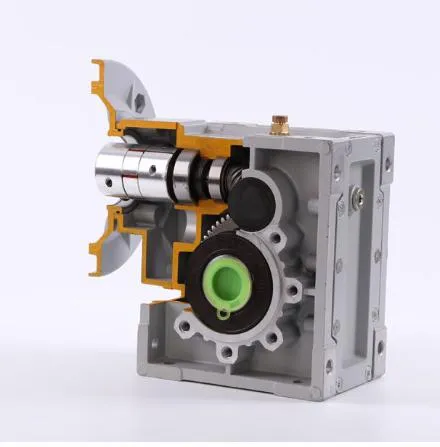

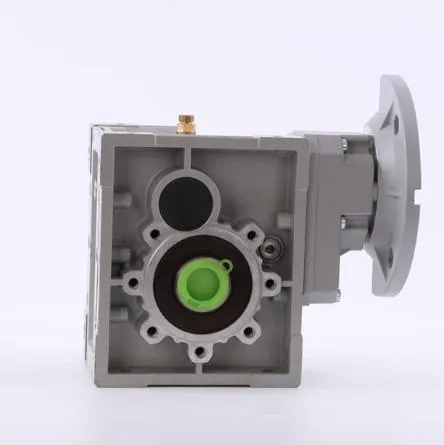

Km Series High Rpm 4 Speed 1: 50 Ratio 0.12kw~5.5kw Small 90 Degree Hypoid Gearbox Electric Motor Reductor for Automated Assembly Line Small Hypoid Gearbox

Housing	Nodular Cast Iron(Ductile Iron) QT600
Gears Profile	Hardened Helical Gears
Gears Material	20CrMnTi
Gears Processing	Carburizing, Quenching, Grinding
Gears Hardness	Surface Hardness: HRC58-62, Inner Hardness: HBS156-207
Gears Accuracy	6 Class
Shafts Material	40Cr
Input Configurations	Keyed Solid Shaft Input IEC Normalized Motor Flange
Output Configurations	Keyed Hollow Shaft Output
Oil Seal	TAIWAN SOG
Bearings	NSK, SKF, HRB, ZWZ, LYC
Spare Parts	Torque arm, Optional Backstop

Please click here for more types!

Our Services

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.

Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and efficiently.

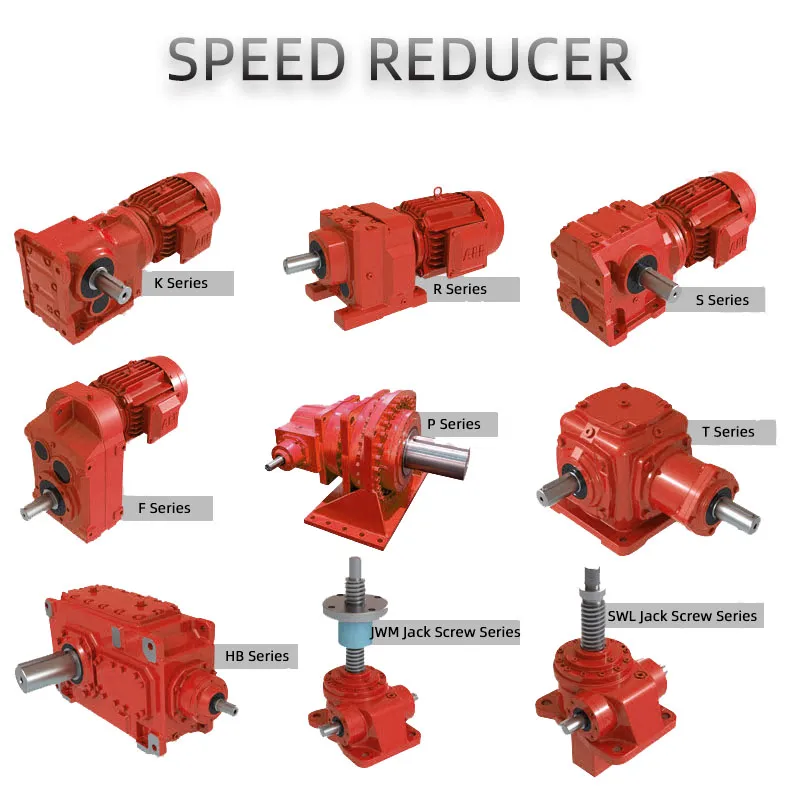

We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.

These features enable a reliable and safe service life of over 200 000 operational hours.

Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
