Stainless Steel Disc Coupling

Djm Flexible Stainless Steel Disc Coupling Shaft Torsionally Rigid Plate Elastic Single Double Spacer Diaphragm Coupling Metal flex couplings are disc type couplings in which several flexible metallic elements are alternately attached with bolts to opposite flanges. As polymeric elastomer is replace......

Send Inquiry

Product Description

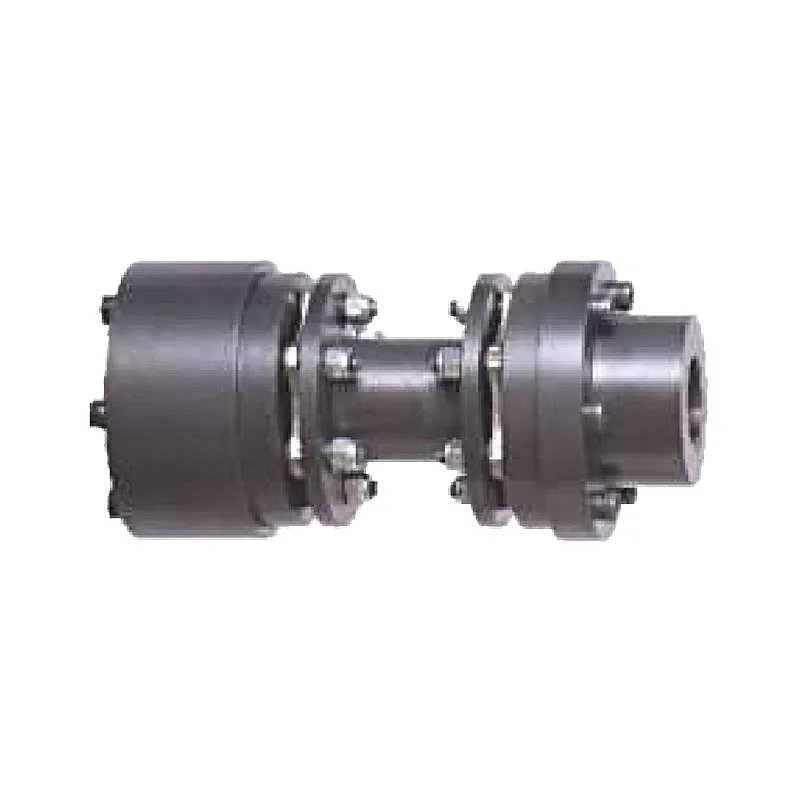

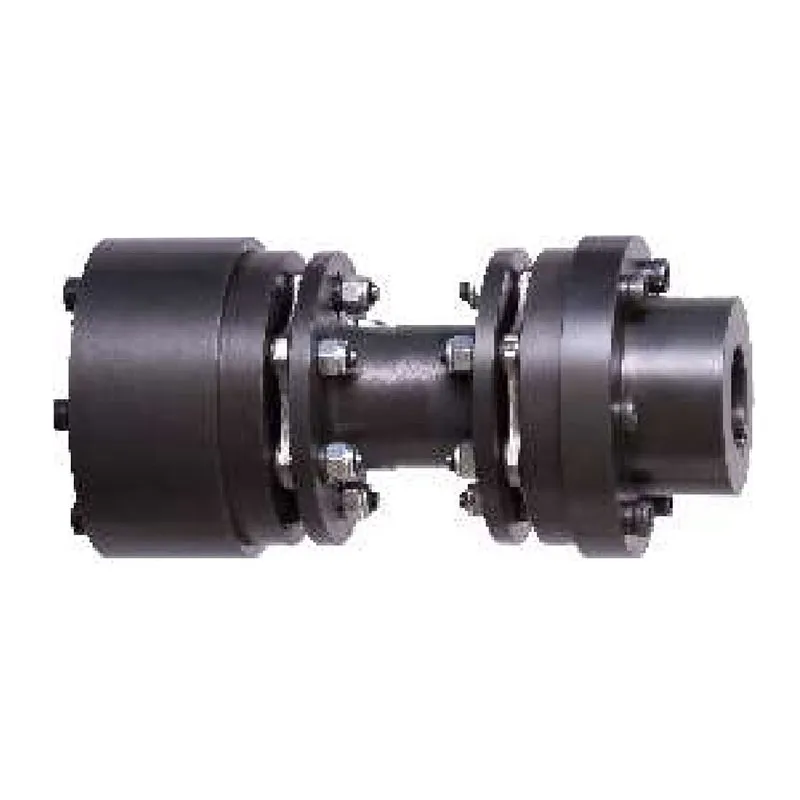

Djm Flexible Stainless Steel Disc Coupling Shaft Torsionally Rigid Plate Elastic Single Double Spacer Diaphragm Coupling

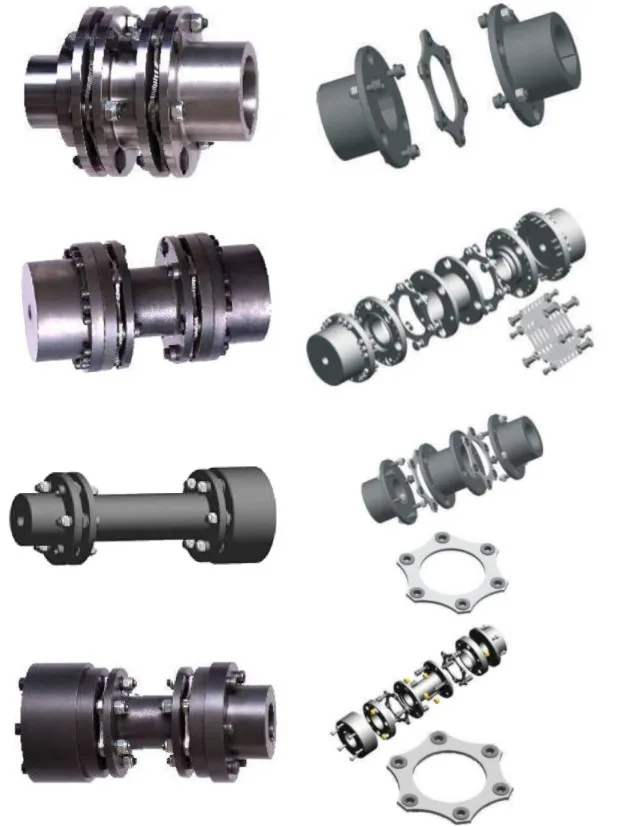

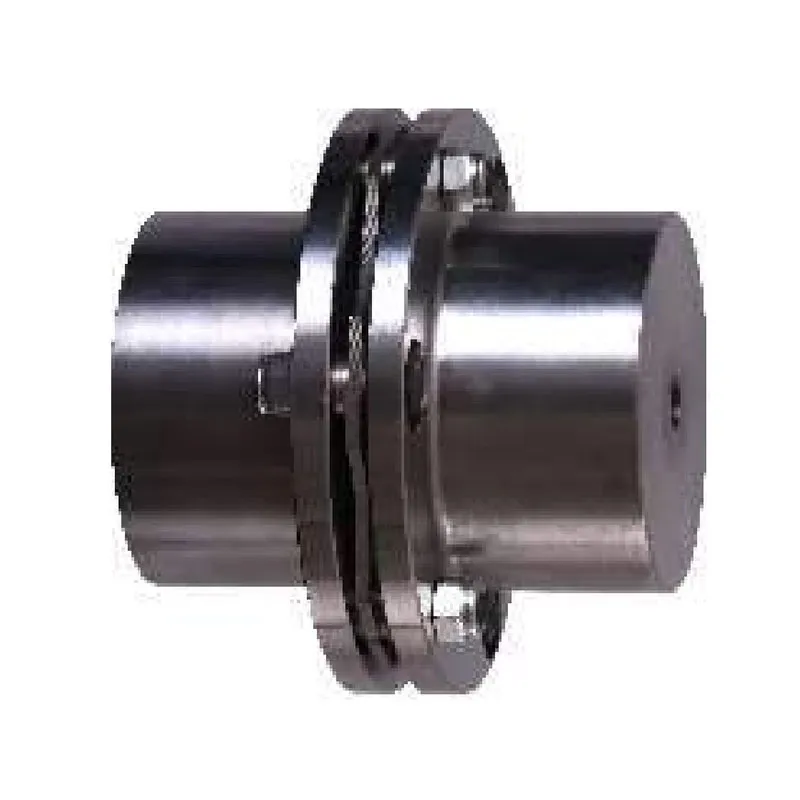

Metal flex couplings are disc type couplings in which several flexible metallic elements are alternately attached with bolts to opposite flanges. As polymeric elastomer is replaced by metal disc, Metal Flex coupling provides excellent temperature capability without sacrificing angular and axial misalignment. The coupling provides low axial and bending stiffness while possessing high torsional rigidity. The stretched shim pack design of EPT Metal Flex couplings provides zero backlash. EPT Metal Flex couplings are available up to 13367 Nm torque with single shim pack (UMK) and double shim pack (UMS) series.

FEATURES

1.Power to weight ratio high

2.Accommodates angular and axial misalignments

3.High temperature application

4.Visual inspection is possible without dismantling equipments

5.Low axial stiffness with high torsional rigidity

6.High-speed capacity

7.Range up to 12000 Nm

8.Added advantage of stretch fitted shim pack

Material Available	Stainless Steel:SS201,SS301, SS303, SS304, SS316, SS416 etc. 35CrMo 40CrMo42 CrMo Steel:mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# Aluminum:AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Iron:A36, 45#, 1213, 12L14, 1215 etc. Plastic:ABS, PC, PE, POM, Delrin, Nylon, , PP,PEI, Peek or as customer required .
CNC Turning	φ0.5 - φ300 * 750 mm,+/-0.005 mm
CNC Milling	510 * 1020 * 500 mm(max),+/-0.001 mm-+/-0.005 mm
Surface Finish	Aluminum:Clear Anodized,Color Anodized,Sandblast Anodized,Chemical Film,Brushing,Polishing,Chroming. Stainless Steel:Polishing,Passivating,Sandblasting,Laser engraving. Steel:Zinc plating,Oxide black,Nickel plating,Chrome plating,Carburized, Heat treatment,Powder Coated. Plastic:Painting,Chrome plating,polishing,Sandblast,Laser engraving.
Drawing Format	IGS,STP,X_T ,DXF,DWG , Pro/E, PDF
Test Equipment	Measurement instrument, Projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc.

Related products:

Djm Flexible Stainless Steel Disc Coupling Shaft Torsionally Rigid Plate Elastic Single Double Spacer Diaphragm Coupling

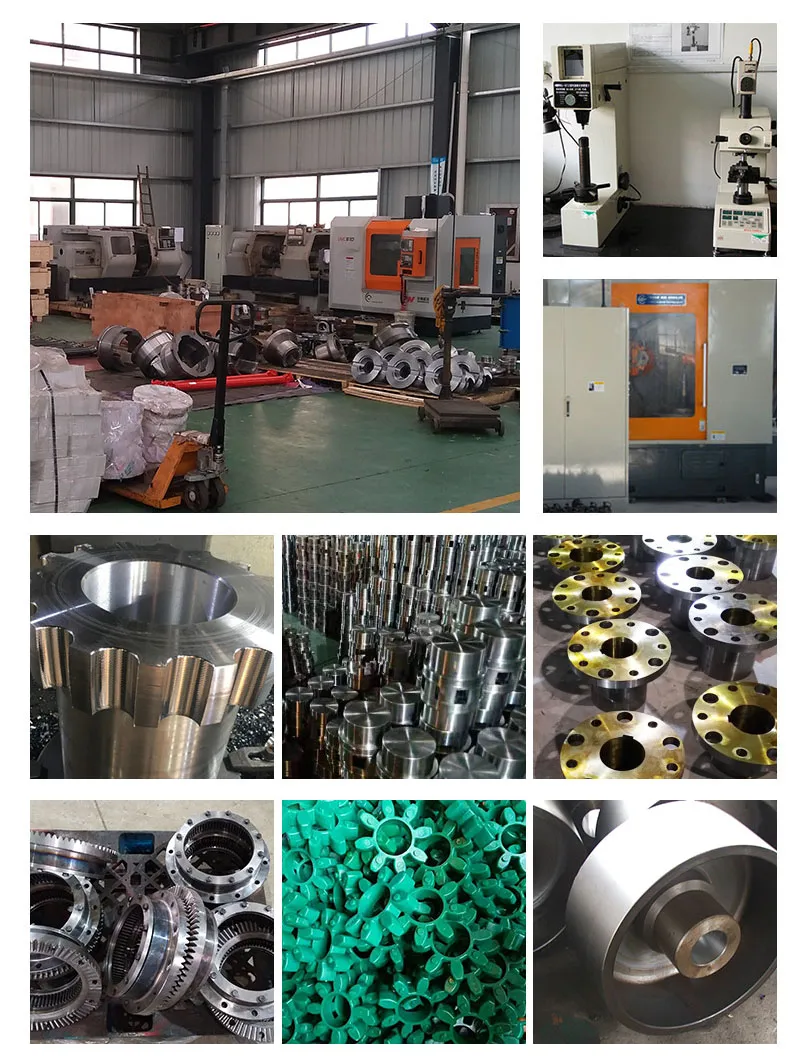

Production workshop:

Company information:

Hot Tags: Djm Flexible Stainless Steel Disc Coupling Shaft Torsionally Rigid Plate Elastic Single Double Spacer Diaphragm Coupling, Spacer Couplings, Jaw Coupling
