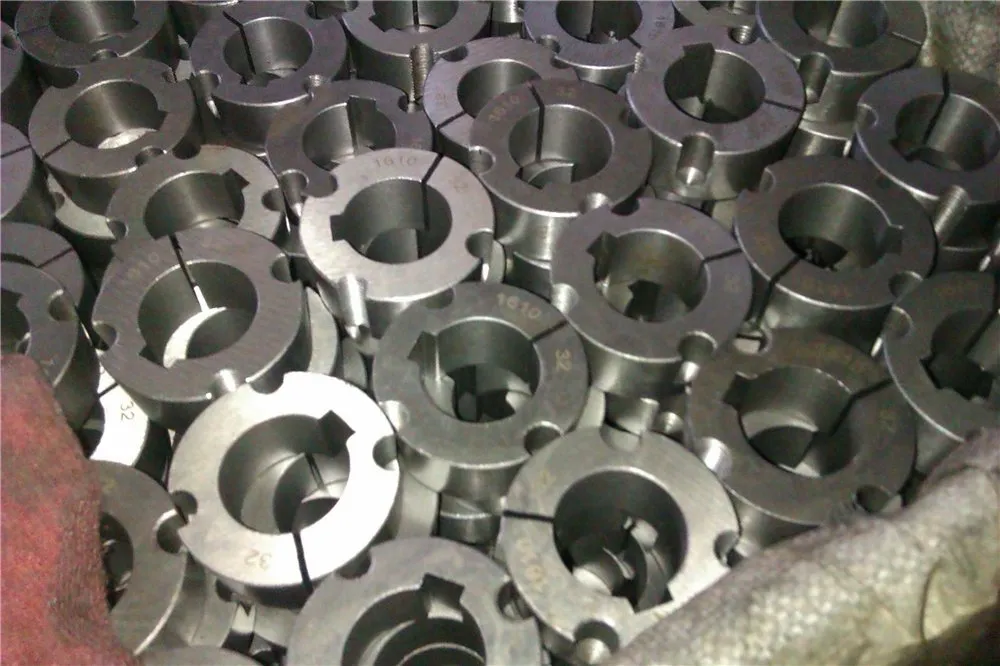

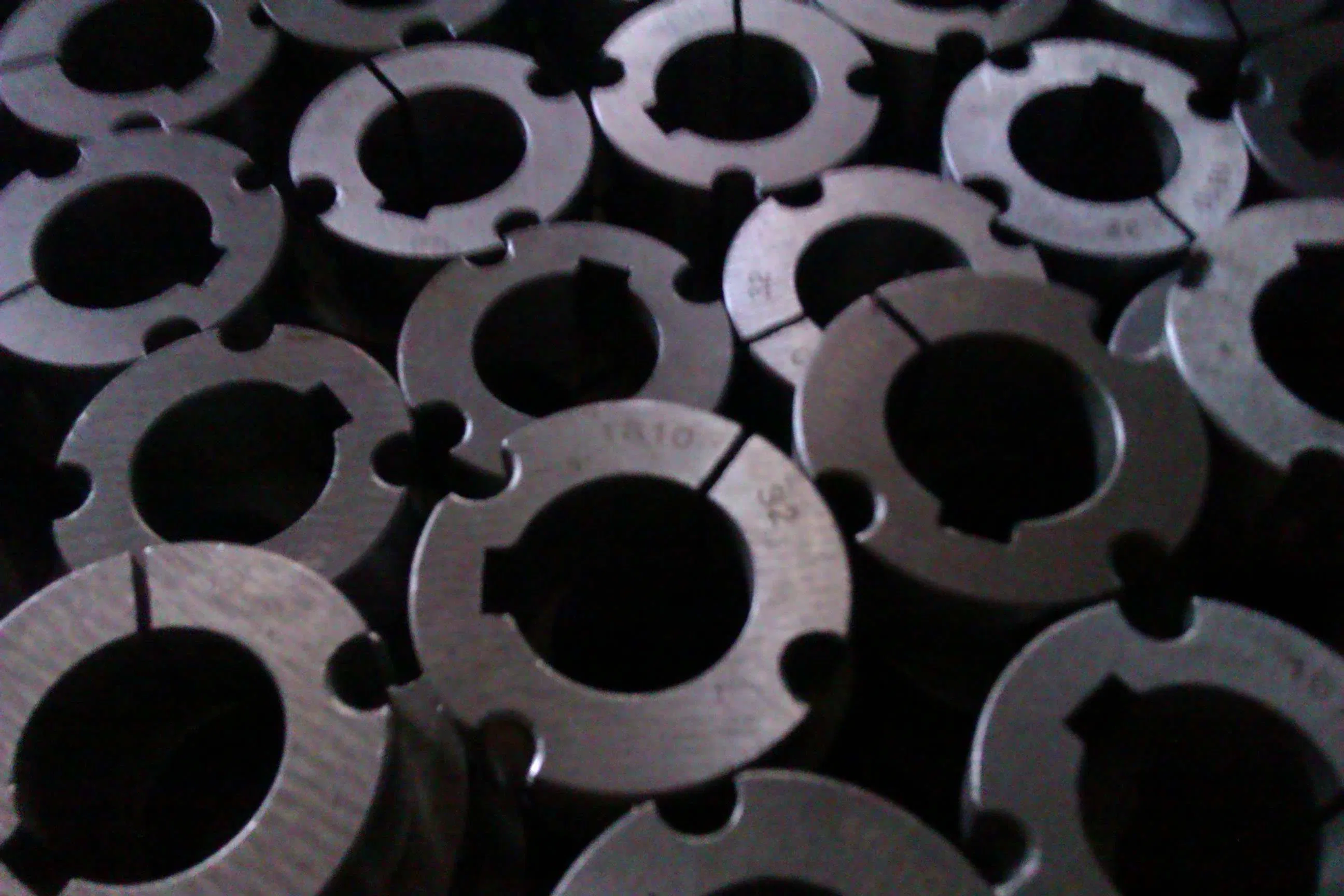

Taper Lock QD Bushings



Description:

Taper Lock Bushings with Split Bushes, Taper Bushing, China Taper Bushing
1, High standardization
2, High precision
3, Compact structure
4, Easy assembling
5, Highest torque-carrying capacity
6, Double split barrel assure true concentricity -grips the shaft with positive clamp fit
China manufacturer of bush & hub, Specialist in: taper bushes, qd bushes, taper bushings with split, weld on hubs, steel hubs, taper bore adapters.

Quick Detail:
Taper Lock Bushings with Split Bushes, Taper Bushing, China Taper Bushing
Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer's demand.





To measure Taper Sleeves, follow these steps:
Determine the required Taper Sleeve diameter and length. Usually, the diameter of a Taper Sleeve should be 1.05 to 1.10 times the diameter of the connected pipeline or shaft to ensure good sealing performance. The length should be selected based on specific connection requirements.
Prepare measurement tools. You can use a diameter measurement tool or a Taper Sleeve measurement tool to measure the diameter and length of a Taper Sleeve.
Place the Taper Sleeve on the measuring surface and use a diameter measuring tool or Taper Sleeve measuring tool for measurement. Ensure that both ends of the Taper Sleeve have sufficient length to fully cover the end face of the pipeline or shaft during installation.
Purchase appropriate Taper Sleeves based on measurement results. When purchasing a Taper Sleeve, it is necessary to determine the diameter and length based on the measurement results. If there is a difference between the measurement results and the recommended value, it is necessary to consider whether correction is necessary.
In summary, measuring the diameter and length of the Taper Sleeve is a very important task to ensure reliable sealing of the connection and no leakage. Following the above steps can help you accurately measure your Taper Sleeves and purchase the one that suits your needs.

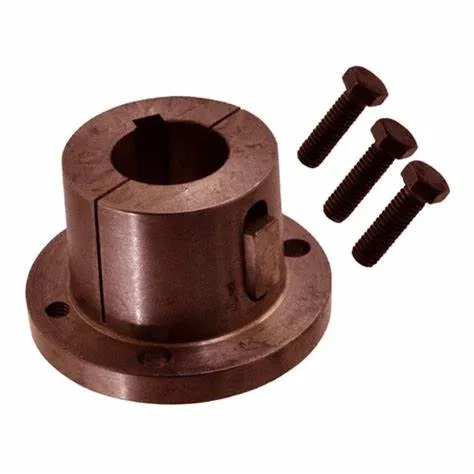

QD bushings (inch and metric sizes) have a flanged design and feature a 4° taper with conventional or reverse mounting. They are stocked in popular finished bore sizes and minimum plain bore for custom reboring.

Use a tapered or QD bushing from Grainger with sheaves, pulleys, sprockets and many other power transmission applications. Flanged quick-disconnect bushings feature a completely split design to help provide easy installation and disassembly. A tapered bushing with straight edges uses an internal screw to help drive the bushing into the shaft, while a split taper has a flange and a key on the bushing to help provide more drive.
Features
1.Material:High grade cast iron GG25;Steel C45

2.Surface treatment:Black-phosphate or original color without finishing

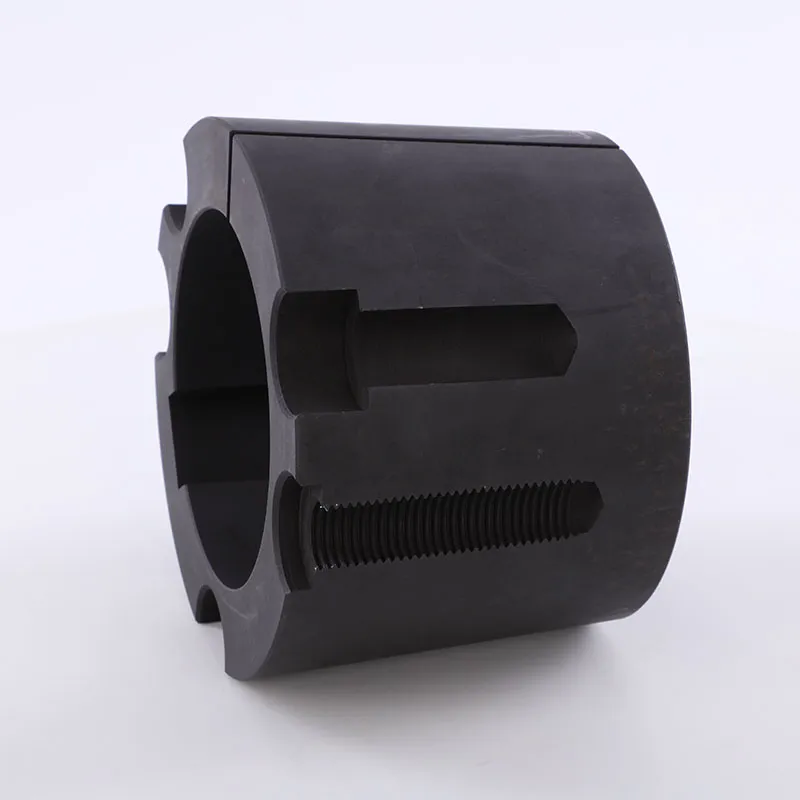

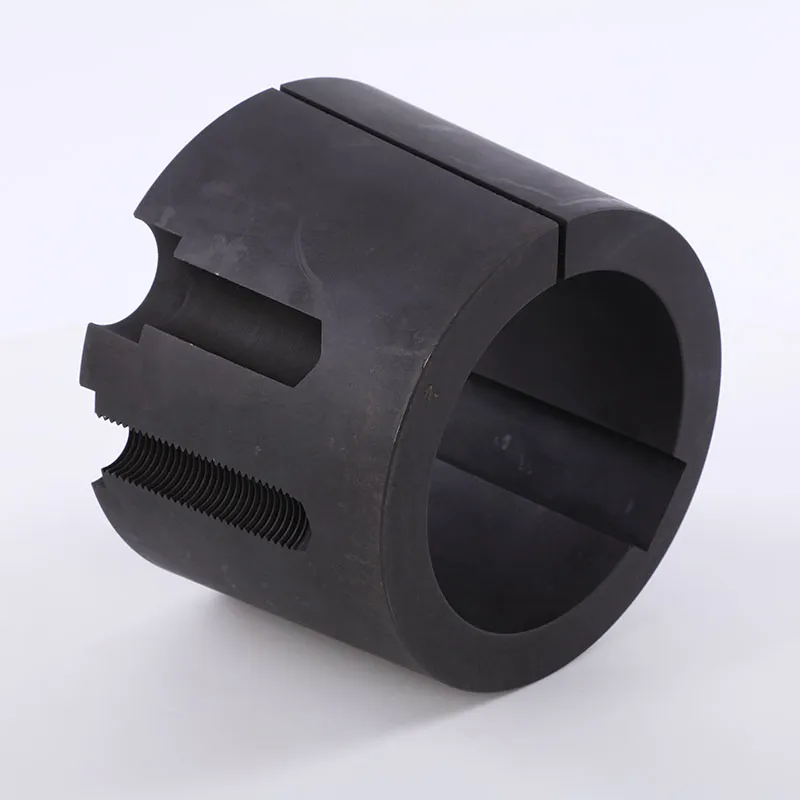

3.taper lock bush:Easy-on and easy-off

4.Machined to high precise tolerance

5.A full range of both metric and imperial sizes taper bushes are available

6.Complete short reach range available,for compact lightweight assemblies
