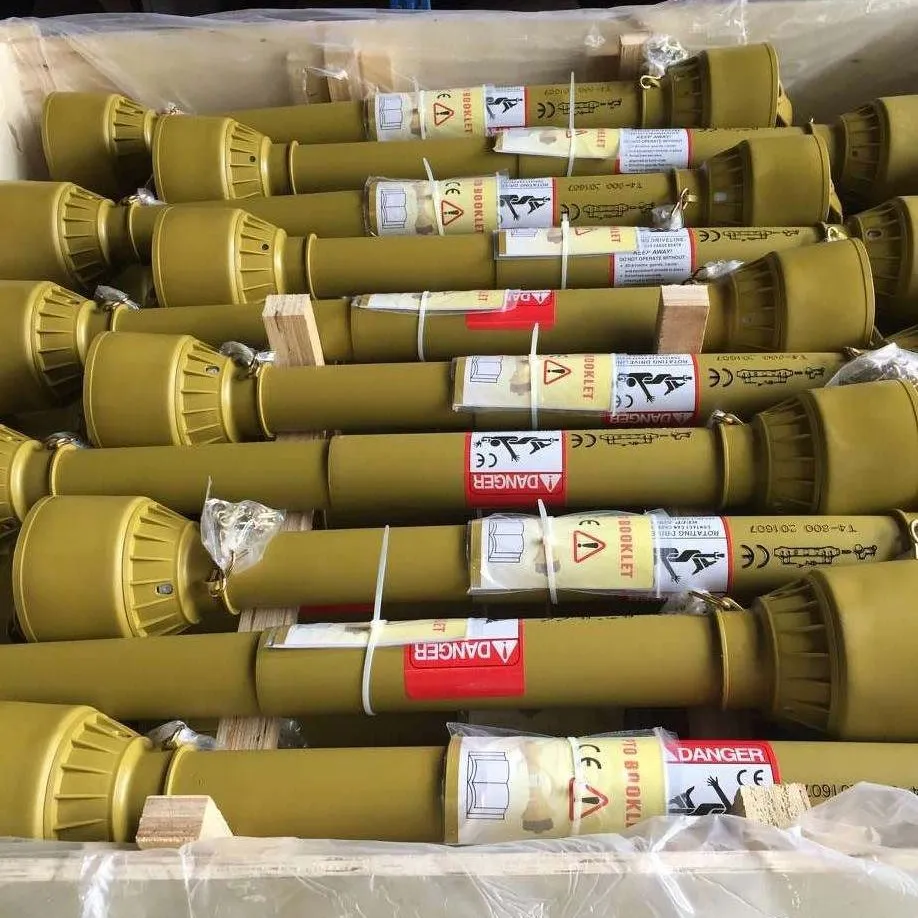

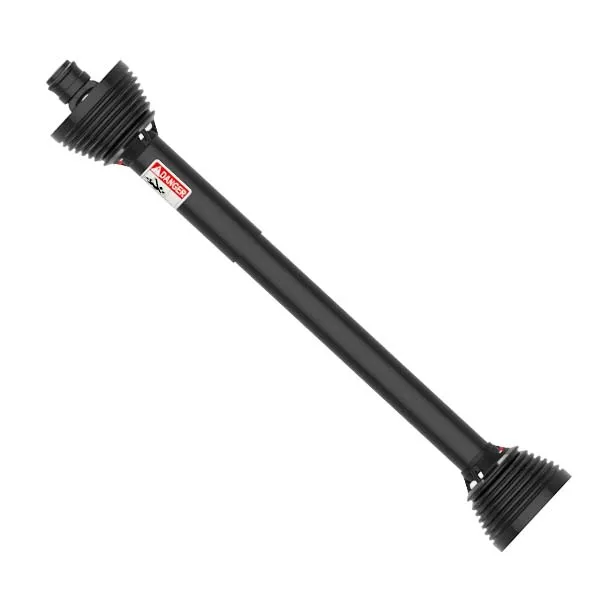

The Weasler 14 series PTO shaft is a driveline component used to transfer power from tractor to implements in agricultural and industrial machinery. It's a standard size and design used with a variety of equipment and feature a 1-3/4 inch 20 spline (6 tooth) male end yoke and 1-3/8 inch 21 spline (6 tooth) female end yoke. The shaft has six cover sizes ranging from 38 inches to 108 inches and is made of high-strength steel.
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 Spline | |
| Bore 2 | 1.25 inches | 32 mm |
| Bore 2 | 1 1/4 round 1/4 keyway | |
| Compressed (Closed) Length | 39.75 inches | 1010 mm |
| Compressed Overall Length | 47.94 inches | 1218 mm |
| Connection 1 | SPRING-LOK | |
| Connection 2 | keyway | |
| Extended Length | 66.75 inches | 1695 mm |
| Extended Overall Length | 74.94 inches | 1903 mm |
| HP@1000RPM | 48 HP | 36 kilowatts |
| HP@540RPM | 28 HP | 21 kilowatts |
| Keyway 2 | 0.25 inches | 6 mm |
| Length | 47.94 inches | 1218 mm |
| Outside Diameter | 7.31 inches | 186 mm |
| Shipping Dimensions | 47.94" L × 7.31" H × 7.31" W | 122cm L × 19cm H × 19cm W |
| Shipping Volume | 2561.73 in3 | 41979 cm3 |
| Shipping Weight | 34.00 pounds | 15 kilograms |
| Weight | 34.00 pounds | 15 kilograms |
|

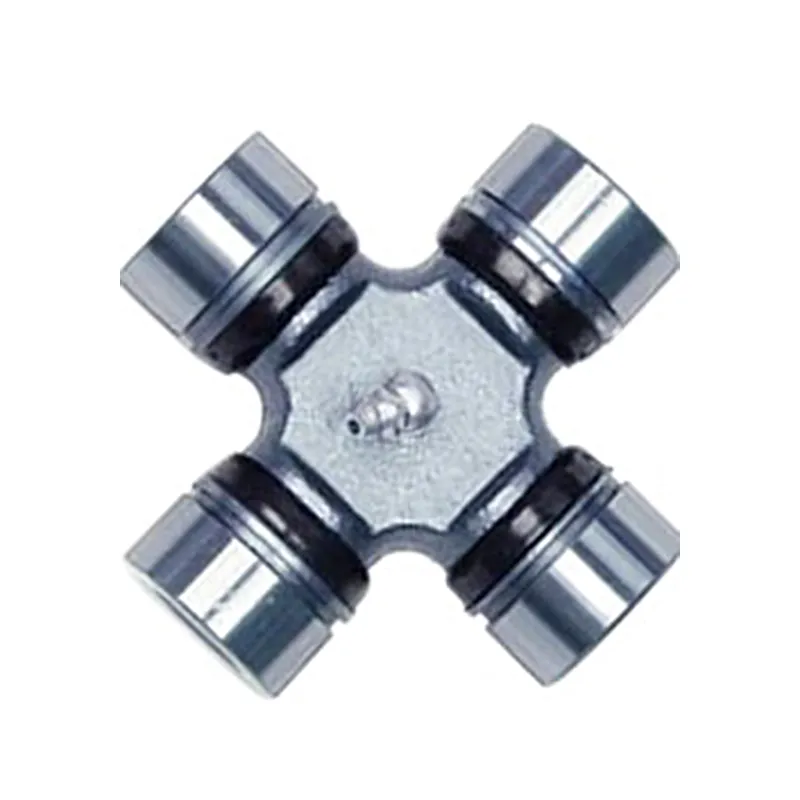

Cross Kit/ Universal Joint
|

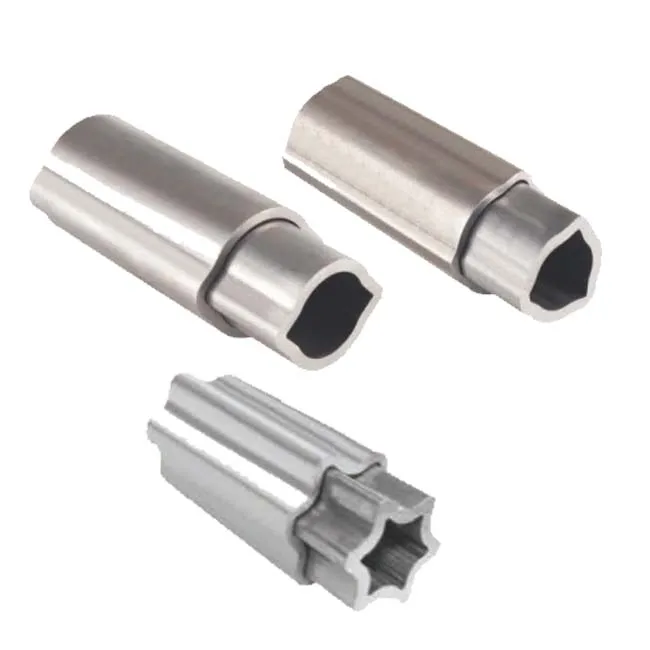

Tube
|

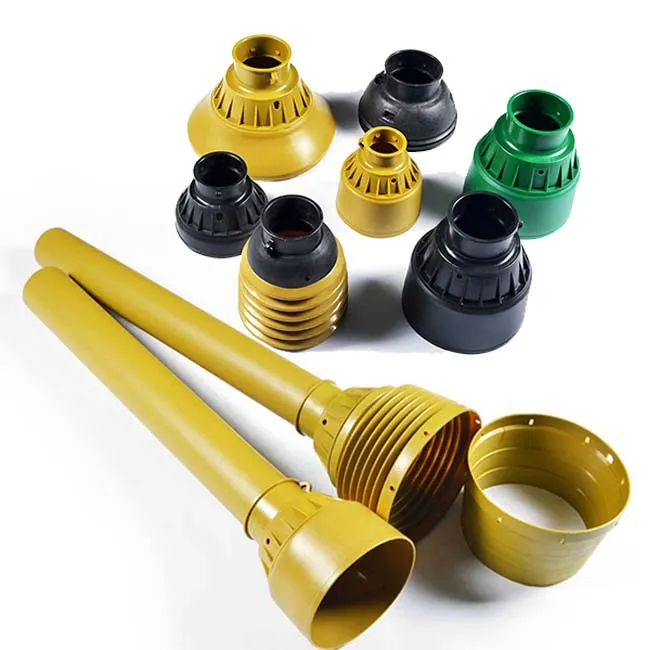

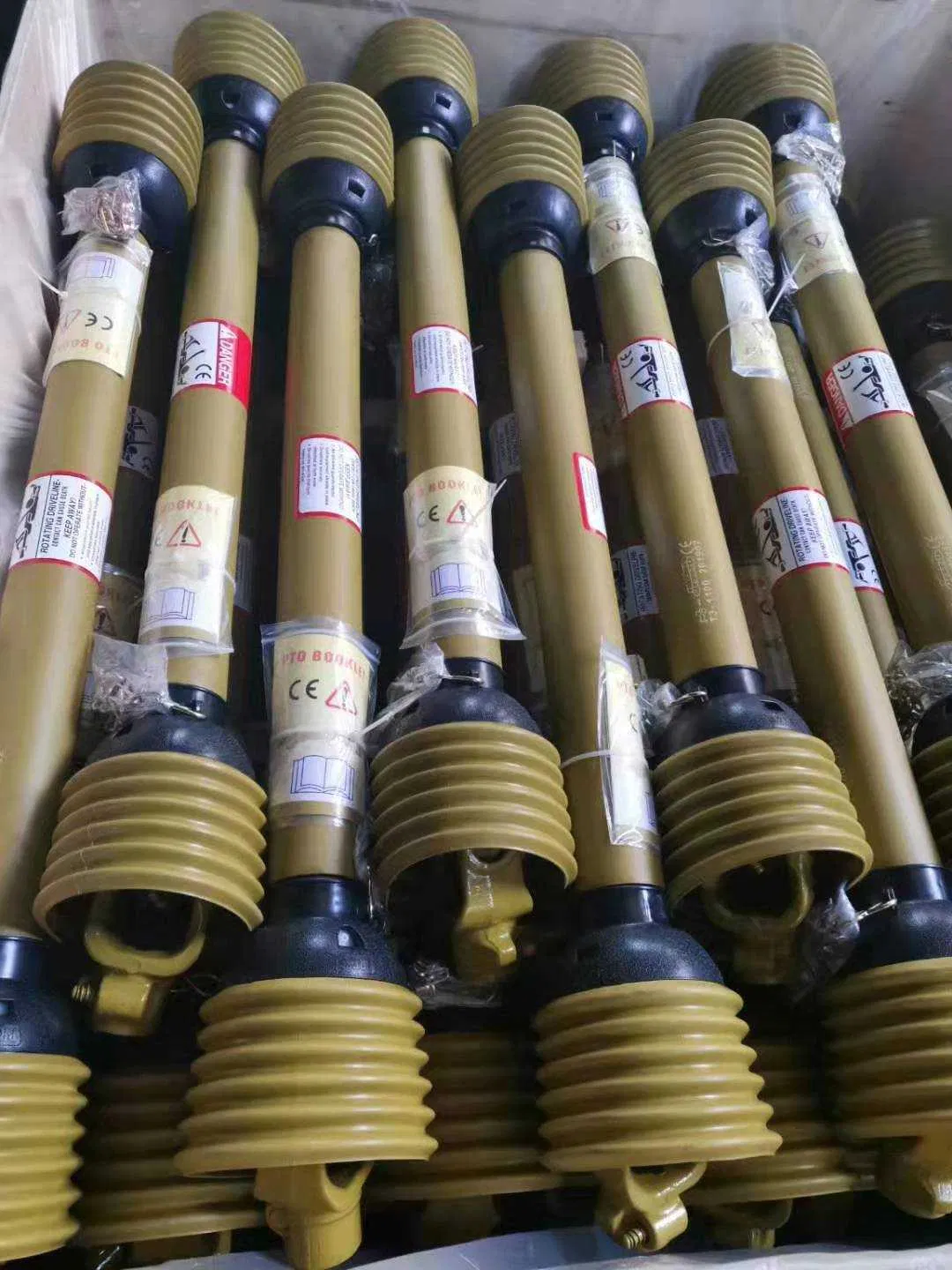

Shaft Shield Guard
|

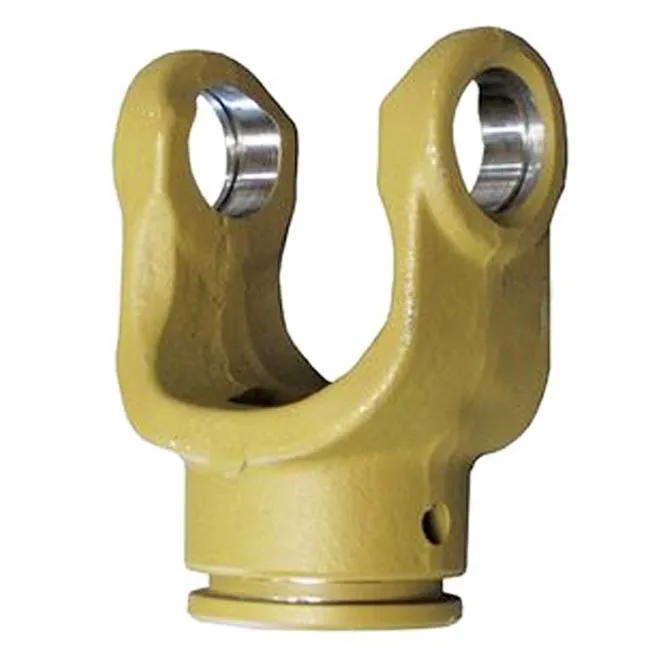

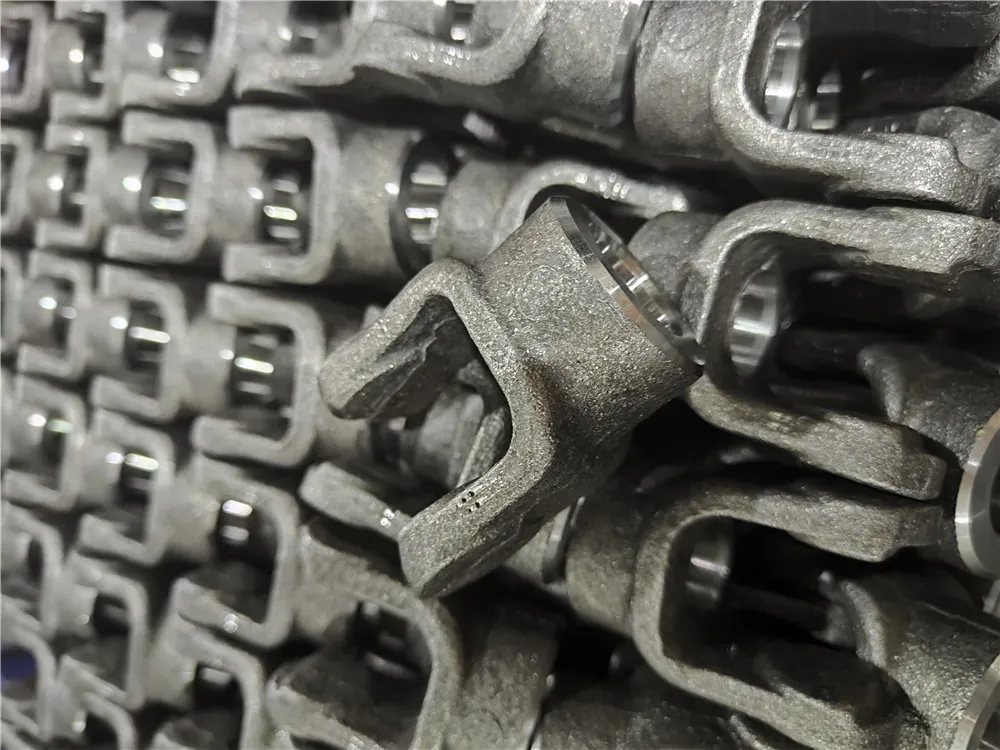

Yoke
|
|

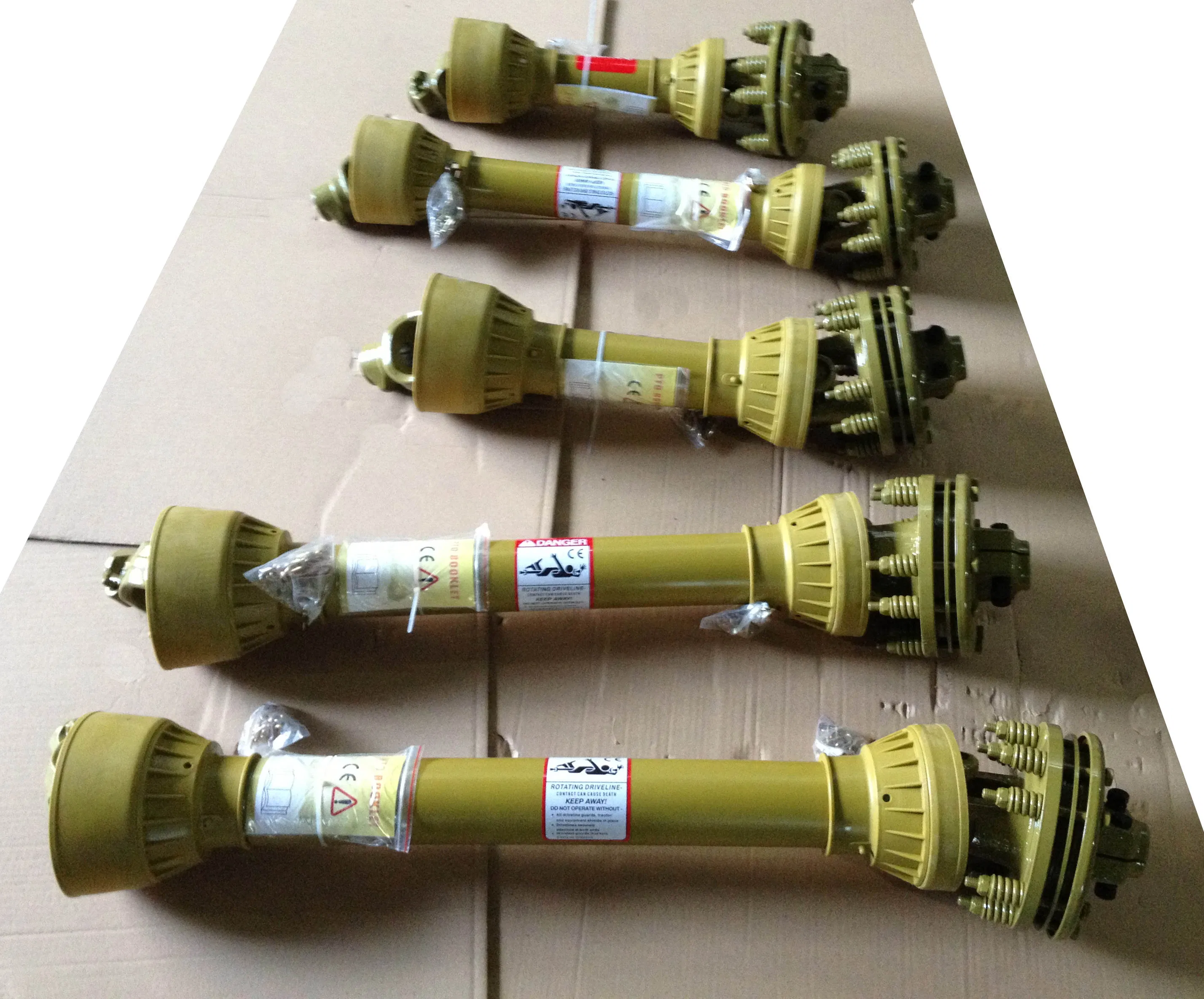

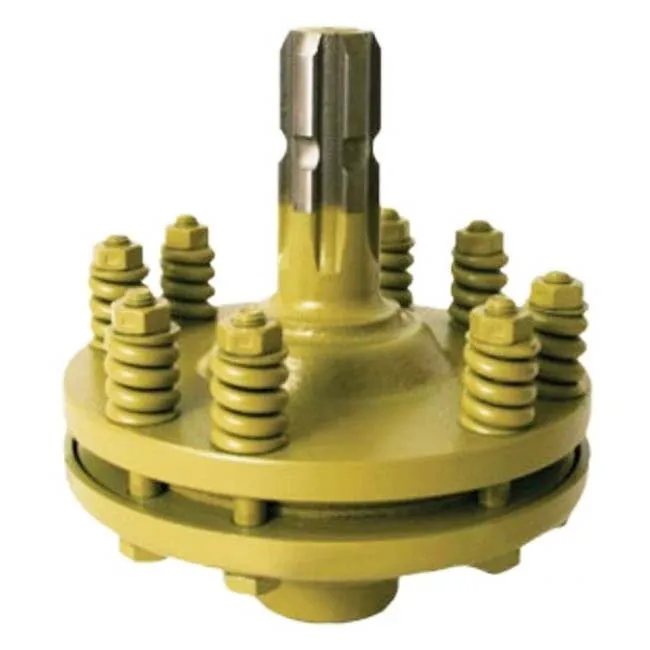

Torque Limiter
|

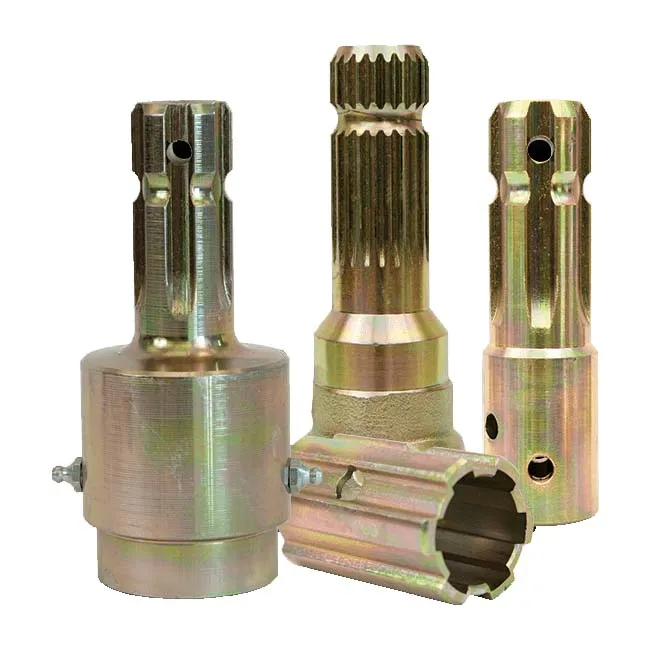

PTO Spline & Adaptor & Hub
|

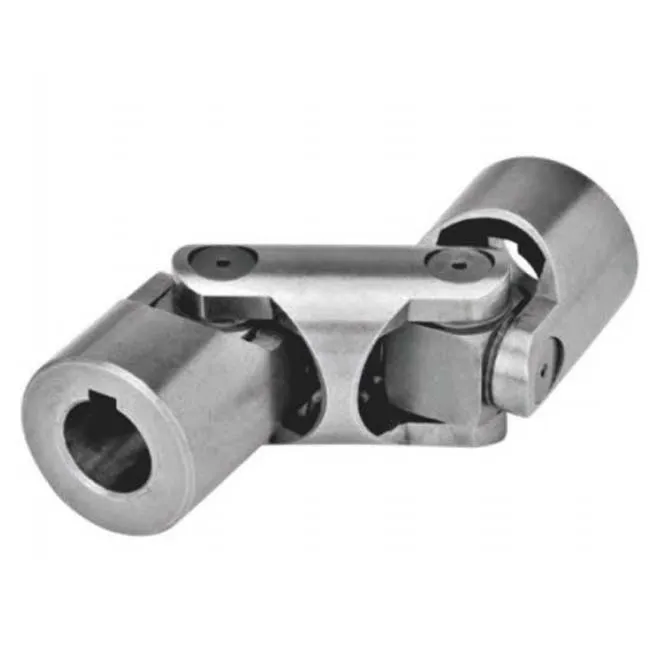

Universal Coupling
|

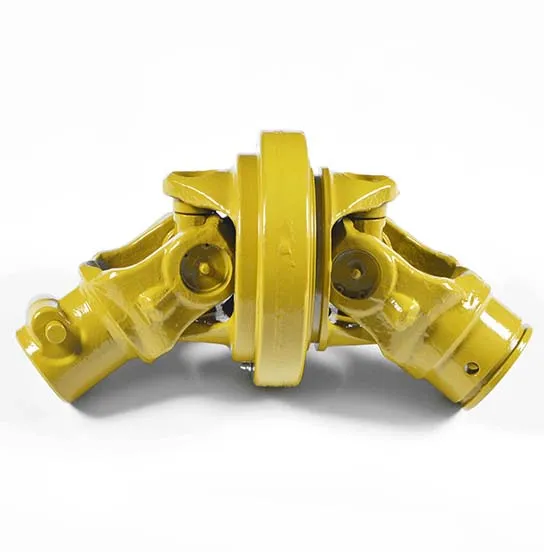

Wide Angle Joint
|

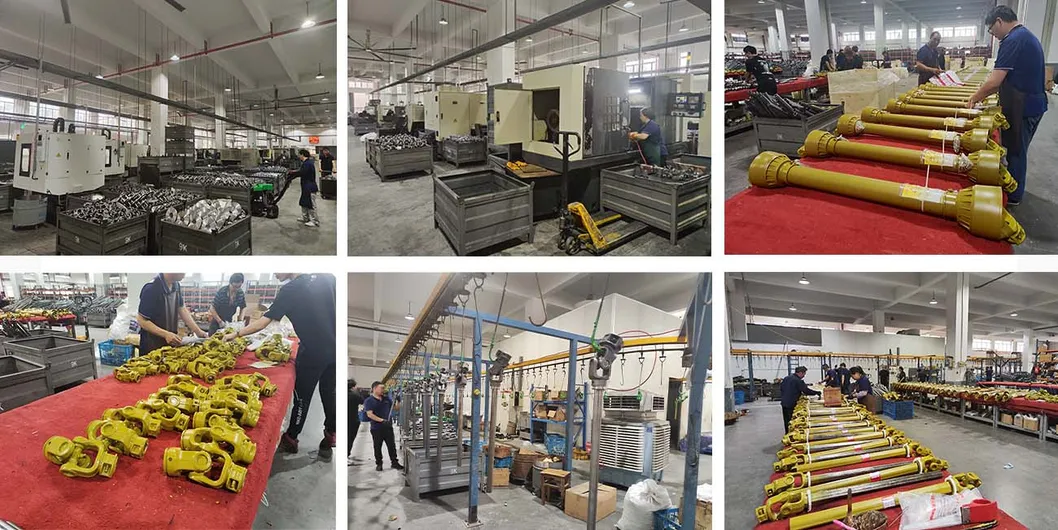

As a China PTO shaft manufacturer, we have the following advantages:
