321 Series Gearbox

321 Series inline Planetary Gearbox Gear Reducer 321L1 321L2 321L3 321L4 321R4 replacement of bonfiglioli Product Description The 300L series and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli300L 1300L 2300L 3300L 4300R2300R3300R4301L 1301L......
Send Inquiry
Product Description

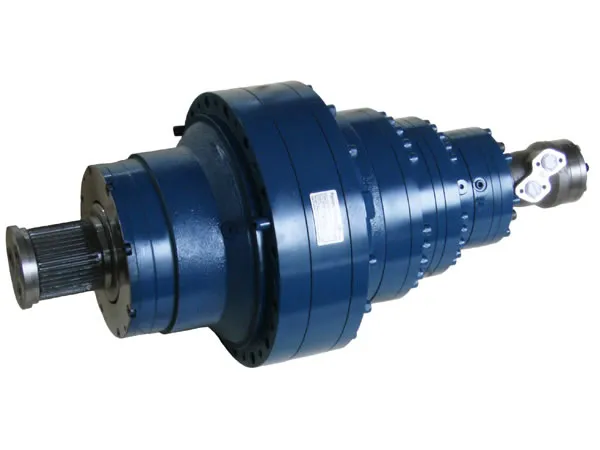

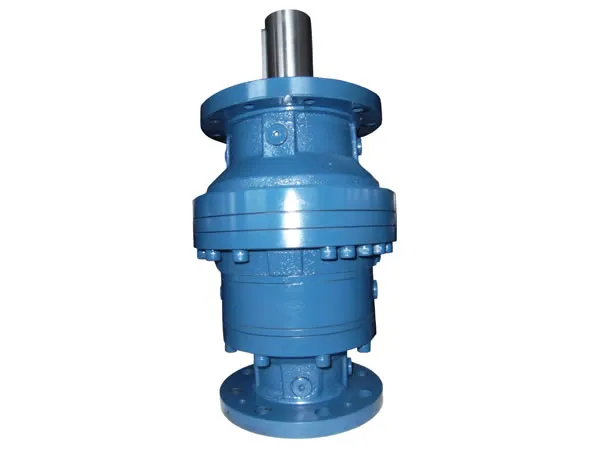

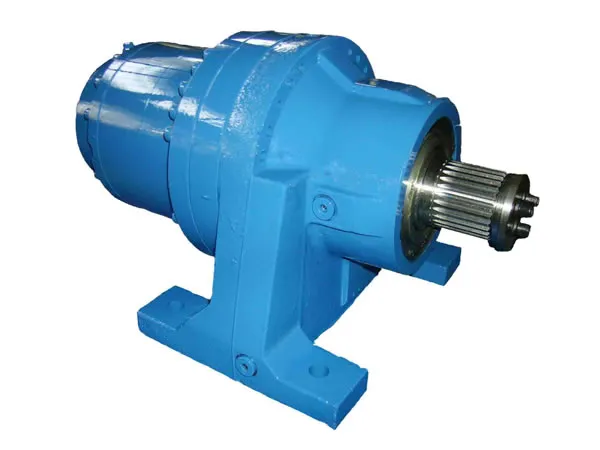

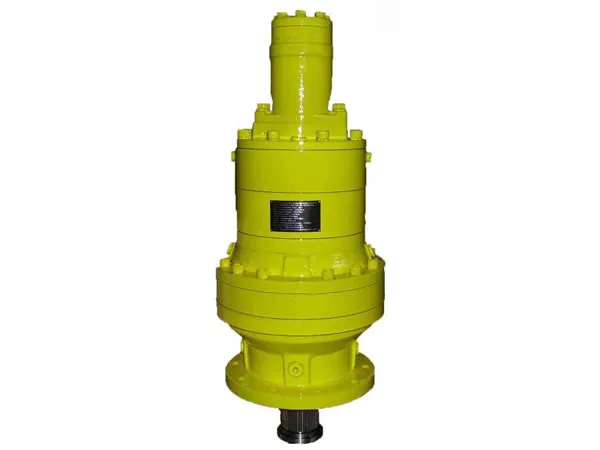

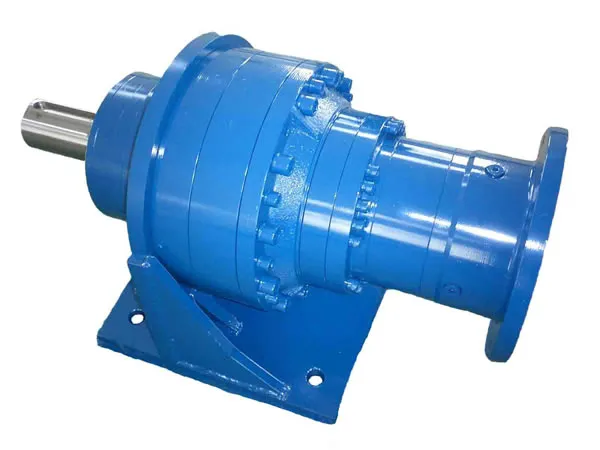

321 Series inline Planetary Gearbox Gear Reducer 321L1 321L2 321L3 321L4 321R4 replacement of bonfiglioli

Product Description



The 300L series and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli

300L 1 300L 2 300L 3 300L 4 300R2 300R3 300R4
301L 1 301L 2 301L 3 301L 4 301R2 301R3 301R4
303L 1 303L 2 303L 3 303L 4 303R2 303R3 303R4
305L 1 305L 2 305L 3 305L 4 305R2 305R3 305R4
306L 1 306L 2 306L 3 306L 4 306R2 306R3 306R4
307L 1 307L 2 307L 3 307L 4 307R2 307R3 307R4
309L 1 309L 2 309L 3 309L 4 309R2 309R3 309R4
310L 1 310L 2 310L 3 310L 4 310R2 310R3 310R4
311L 1 311L 2 311L 3 311L 4 311R2 311R3 311R4
313L 1 313L 2 313L 3 313L 4 313R2 313R3 313R4
315L 1 315L 2 315L 3 315L 4   315R3 315R4
316L 1 316L 2 316L 3 316L 4   316R3 316R4
317L 1 317L 2 317L 3 317L 4   317R3 317R4
318L 1 318L 2 318L 3 318L 4     318R4
319L 1 319L 2 319L 3 319L 4     319R4
321L 1 321L 2 321L 3 321L 4     321R4



  • Torque range
    1,000 ... 1,100,000 Nm (8,850 … 9,735,820 in-lb)

  • Gear ratios
    3.4 ... 5,000

  • Transmissible Mechanical Power
    up to 1,050 kW

  • Brake options
    Hydraulic brake
    Hydraulically released parking brake on request
    Electric brake
    DC and AC type

  • Output
    Foot and flange mounted
    Output shaft: solid with key, splined, splined hollow, hollow with shrink disc

  • Input
    Flanged axial piston hydraulic motors
    Hydraulic orbit motors
    IEC and Nema motor adapters
    Solid input shaft

  • Applicable motors
    Piston hydraulic motors
    Hydraulic orbit motors
    Electric motors IEC

Key Features
1. Torque range: 1000-450.000 Nm
2. Transmissible mechanical power: up to 540 kW
3. Gear ratios: 3.4-9.000
4. Gear unit versions: in line
5. Output configurations:
    1) Foot and flange mounted
    2) Output shaft: solid with key, splined, splined hollow
    3) Hollow with shrink disc
6. Input configurations:
    1) Flanged axial piston hydraulic motors
    2) Hydraulic orbit motors
    3) IEC and Nema motor adaptors
    4) Solid input shaft
7. Hydraulic brake: hydraulically released parking brake
8. Electric brake: DC and AC type

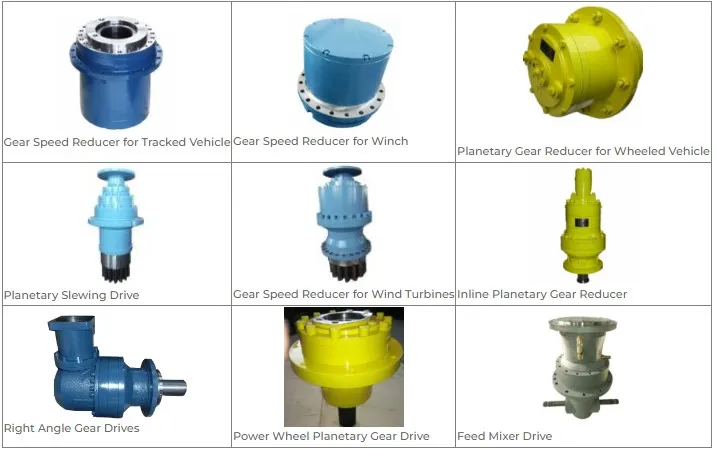

Application
321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli

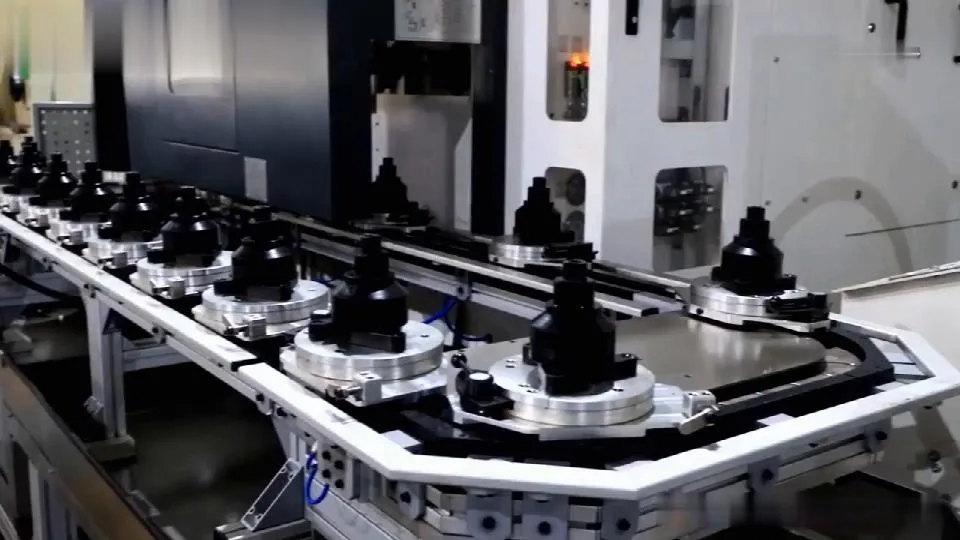

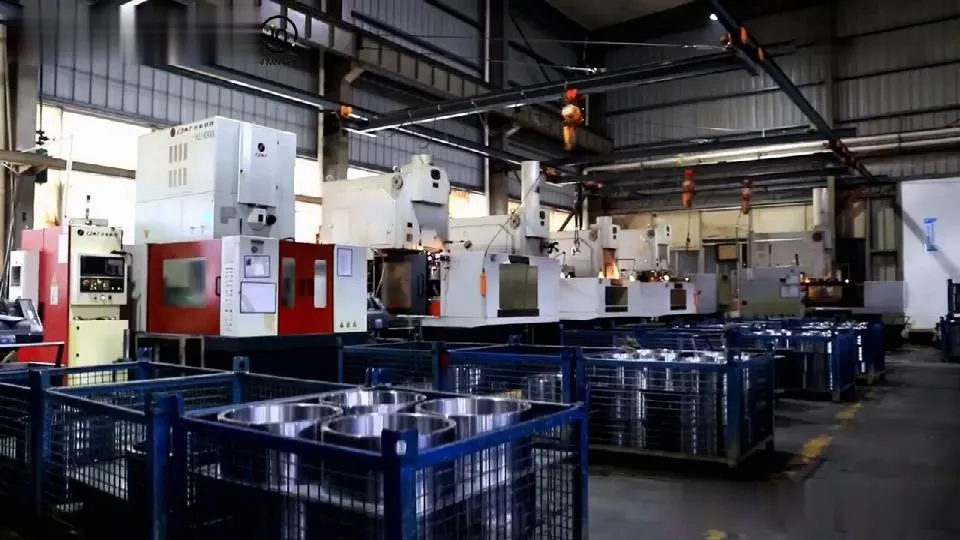

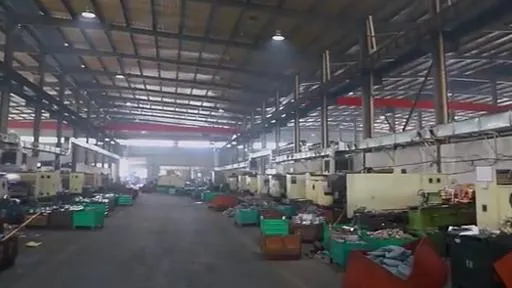

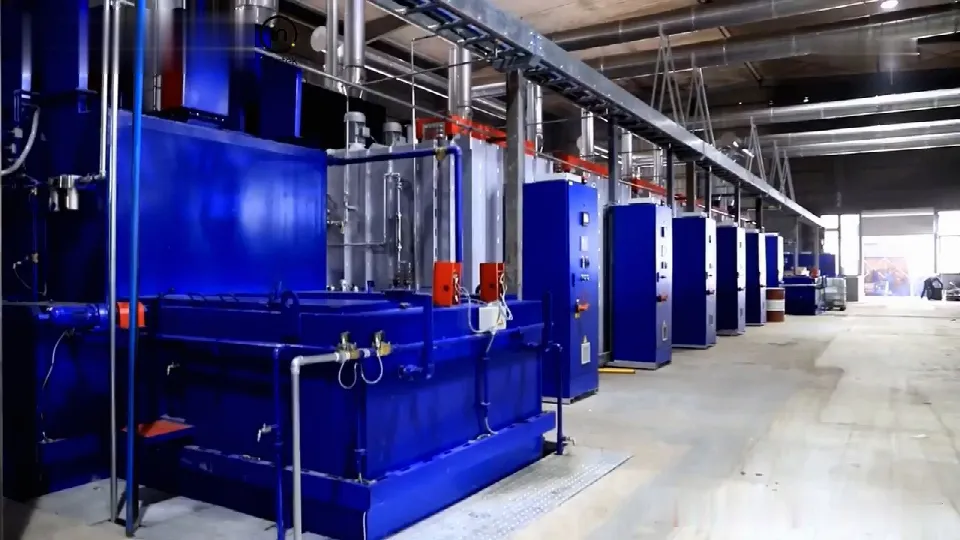

Our factory
321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli 321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli
321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli 321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli

Related Products
321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli

For more reducers and mechanical accessories, please click here to view
321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli
321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli

321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli


Hot Tags: 321 Series Inline Planetary Gearbox Gear Reducer Replacement of Bonfiglioli, Bonfiglioli Gearbox, 321 Series Planetary Gearbox
