Replaceable model
Our planetary gear units, wheel drive gearboxes, winch drive gearboxes, and track drives can be interchanged with the following models produced by Brevini riduttori.
SL Series
| SL3001 | SL3002 | SL3003 | SL3004 | SC3002 | SC3003 | SC3004 |
| SL4001 | SL4002 | SL4003 | SL4004 | SC4002 | SC4003 | SC4004 |
| SL6001 | SL6002 | SL6003 | SL6004 | SC6002 | SC6003 | SC6004 |
| SL8501 | SL8502 | SL8503 | SL8504 | SC8502 | SC8503 | SC8504 |
| SL12001 | SL12002 | SL12003 | SL12004 | SC12002 | SC12003 | SC12004 |
| SL18001 | SL18002 | SL18003 | SL18004 | SC18002 | SC18003 | SC18004 |
| SL25001 | SL25002 | SL25003 | SL25004 | SC25002 | SC25003 | SC25004 |
| SL35001 | SL35002 | SL35003 | SL35004 | SC35002 | SC35003 | SC35004 |
| SLS3002 | SLS3003 | SLS4002 | SLS4003 |
Characteristics of planetary gearbox
1. Gear unit version:
In line or right angle (with spiral bevel gear pair Gleason)
2. Output configuration:
Base and flange installation
3. Output shaft:
Solid hollow shaft with key, spline, spline hollow and shrink disk
4. Gear unit input configuration:
IEC standardized motor adapter or solid input shaft
5. Characteristics of main brake motor:
DC and AC brakes
Hydraulic brake:
Fast braking and/or releasing the brakes by:
6. Installation dimensions can be provided upon request.
7. According to requirements, brakes, balance valves, shuttle valves, and distributors that can integrate various functional valves can also be provided.
Planetary gearbox parameters
Torque: 16.000-2170.000nm
Maximum torque: 54.000-5400.000nm
Ratio: 4-3000 and above
Version: inline or right angle
| Size | Torque 10000h (Nm) | Max Torque (Nm) |
| 300 | 34.000 | 76.000 |
| 400 | 40.000 | 84.000 |
| 600 | 63.000 | 140.000 |
| 850 | 88.000 | 195.000 |
| 1200 | 120.000 | 293.000 |
| 1800 | 168.000 | 390.000 |
| 2500 | 300.000 | 570.000 |
| 3500 | 430.000 | 810.000 |
| 5000 | 490.000 | 1100.000 |
| 7500 | 712.000 | 1800.000 |
| 10000 | 1035.000 | 2600.000 |
| 15000 | 1500.000 | 3750.000 |
| 20000 | 2170.000 | 5400.000 |

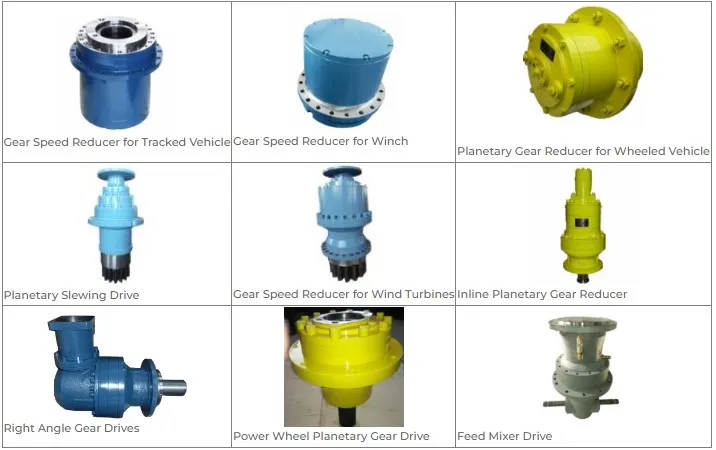

Planetary Gearbox ManufacturerYongli power is a scientific and technological enterprise engaged in the research, development, and production of planetary gear transmission products, such as walking reducers, rotary reducers, lifting reducers, hydraulic planetary winch, etc.
The company always takes quality management as the top priority of company development. The manufacturing of planetary gear transmission products complies with international ISO 4301 and ISO9001 standards, American SAE j706, and European Union CE standards.
 |
 |
 |
 |
