Product DescriptionThe flail mower gearbox L-5A is a type of gearbox that is used in flail mowers. Flail mowers are a type of lawn mower that use a series of rotating blades to cut grass. The flail mower gearbox is responsible for transmitting power from the engine to the rotating blades. The flail ......
The flail mower gearbox L-5A is a type of gearbox that is used in flail mowers. Flail mowers are a type of lawn mower that use a series of rotating blades to cut grass. The flail mower gearbox is responsible for transmitting power from the engine to the rotating blades. The flail mower gearbox L-5A is a heavy-duty gearbox that is designed to withstand the rigors of use in a flail mower. It is made of cast iron and has a gear ratio of 1:1.89. The gearbox is also equipped with a safety clutch that will disengage the blades if the engine stalls or if the operator releases the throttle. The flail mower gearbox L-5A is a popular choice for flail mowers because it is durable, reliable, and easy to maintain. It is also available at a reasonable price.

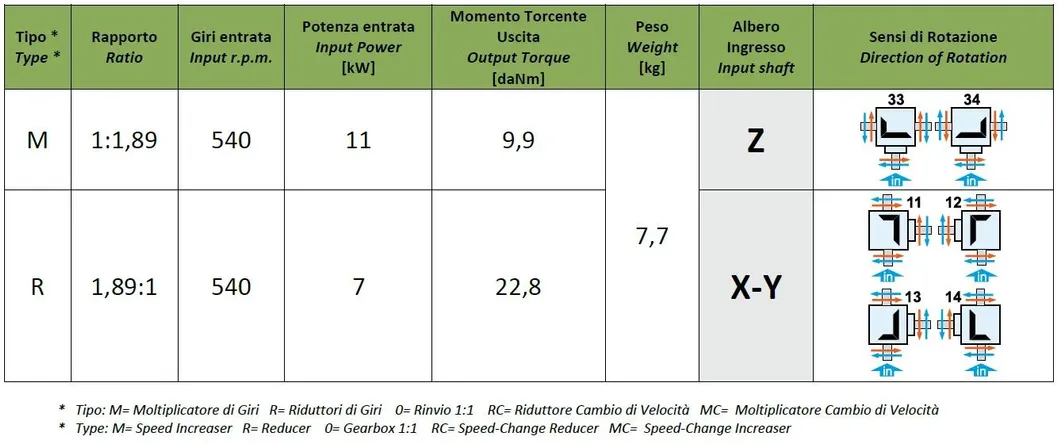

Product Parameters
Product Description

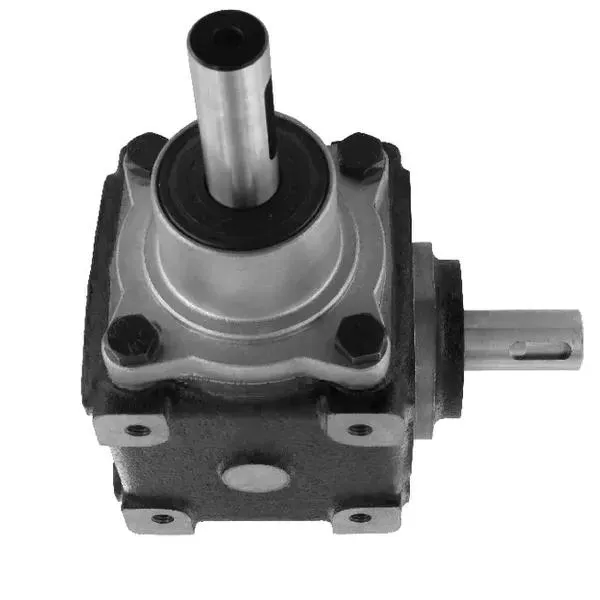

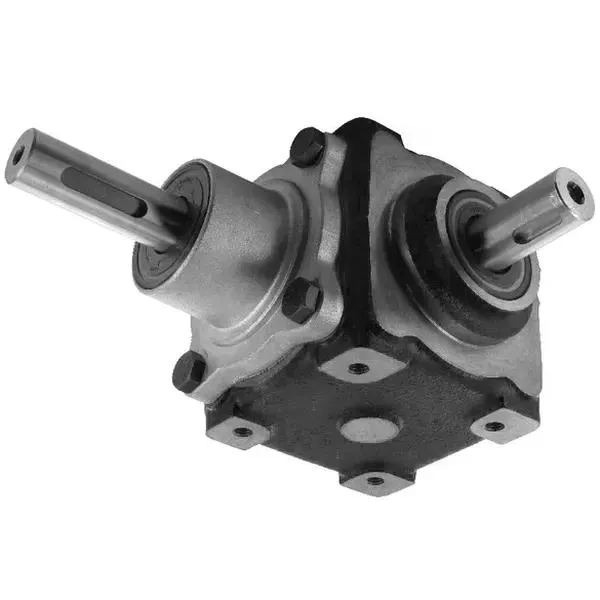

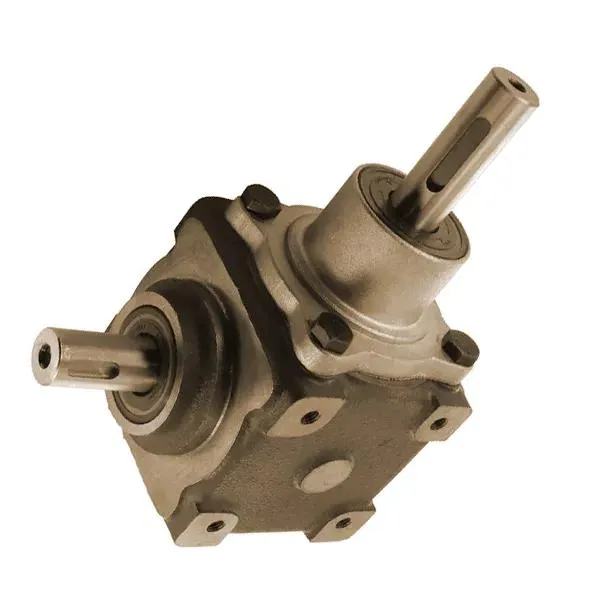

Flail Mower Gearboxes - Replacement of Gearbox L-5A 1:1.89
Product details
Contact us for power at a different RPM
The gearbox is delivered without oil and must be filled before first use.
First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range
Various (agricultural) applications
Mowers
Band saws
Consists of
Gearbox
Without oil
Max. output torque
22.8 daNm
Contains oil
No
Max. oil capacity
0.4 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG20
Weight
7.7 kg
Gear arrangement Increasing
13 - 14
Gear arrangement Reducing
1 - 2
Input power kW / HP Increasing
11 / 15 kW/HP
Input shaft Increasing
X
Input shaft Reducing
Z
Input power KW / HP Reducing
7 / 9.5 kW/HP
Output Torque DaNm Increasing
9.9 daNm
Ratio Increasing
1: 1.89
Ratio Reducing
1.89: 1

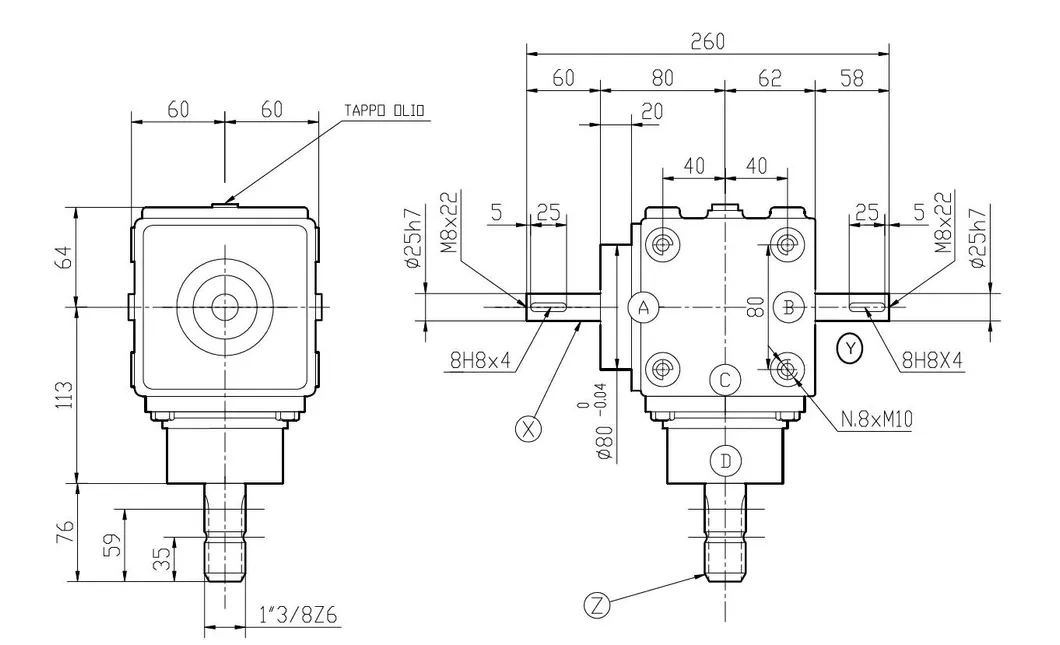

Shaft X
25 (M)
Shaft Z
25 (D)

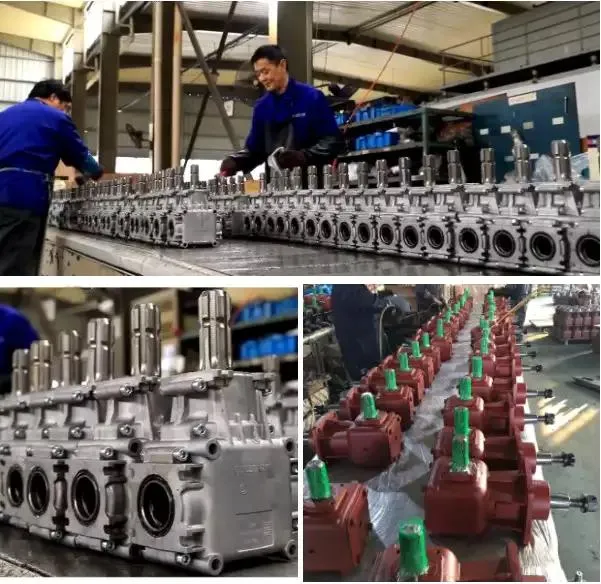

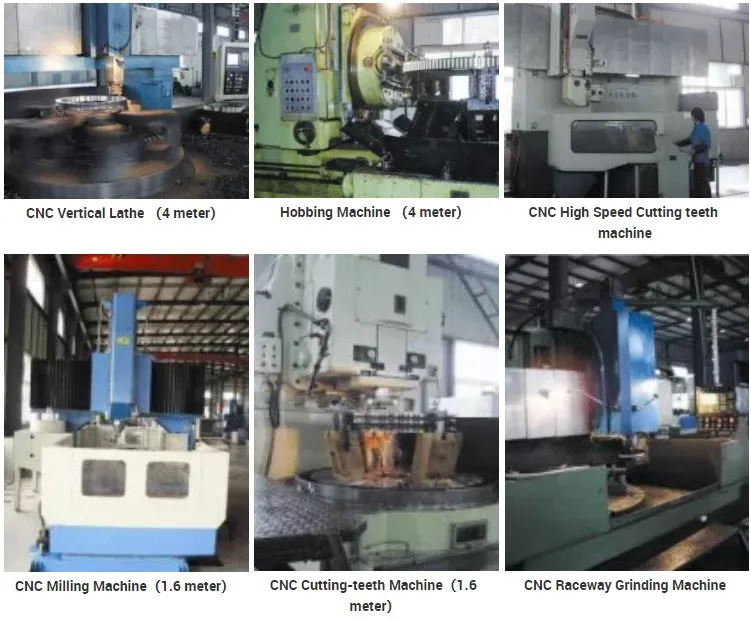

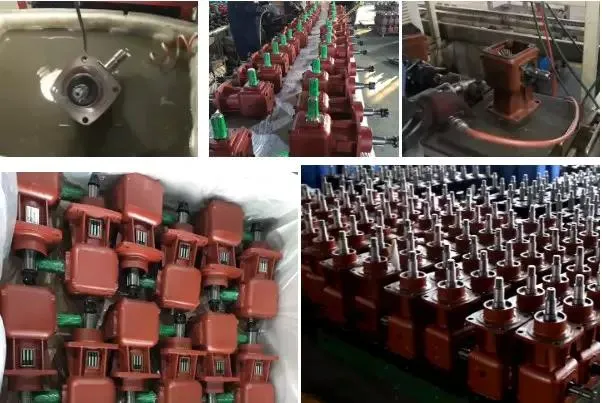

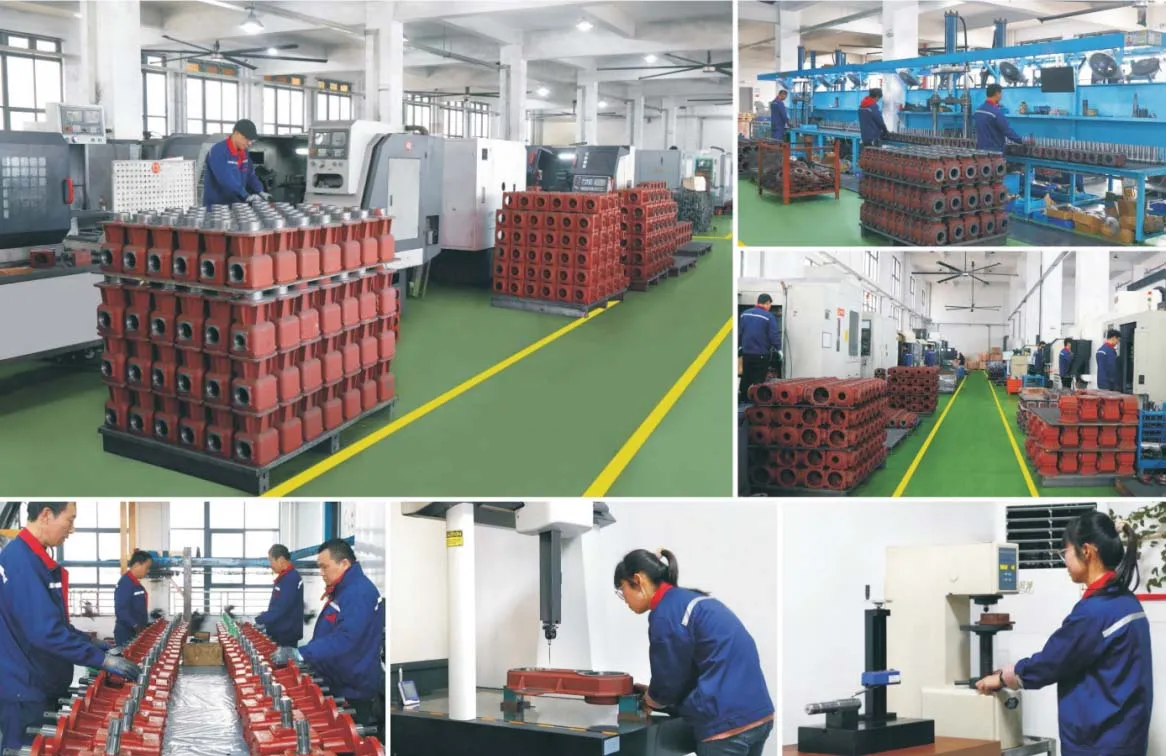

Company Profile
Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
