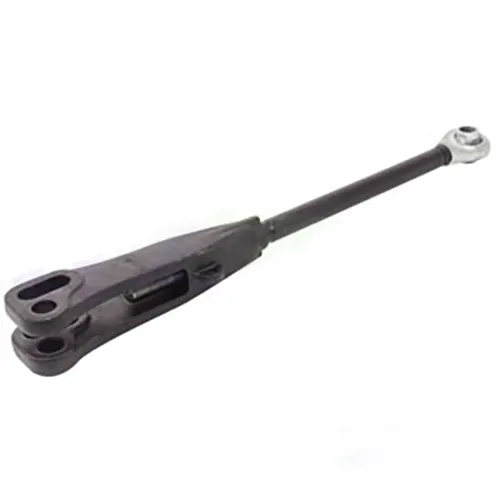

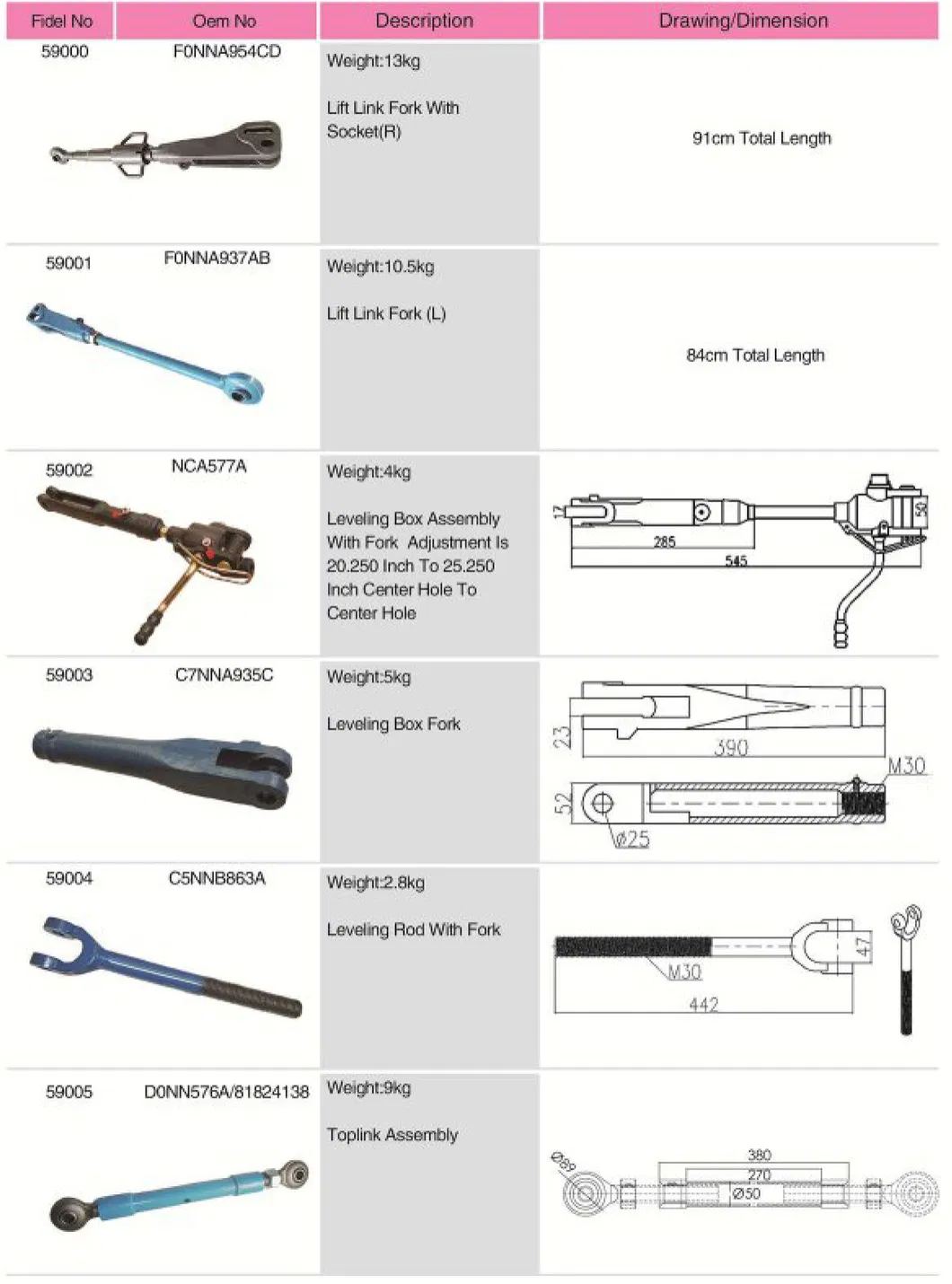

F0NNA937AB Agricultural spare parts Lift Link Fork(L)
Characteristic
If you're looking for agricultural implement spare parts, then this is the article for you. We've outlined some of the most common agricultural implements, and also described how to fix them to a tractor's lifting hitch. Read on to discover the different types of lifting hitches and their uses. And then learn how to buy agricultural implement spare parts. You'll be glad you did!
Fixing an agricultural implement to a lifting hitch of a tractor
Before you can properly fix an agricultural implement to a tractor's lifting hitch, you should first make sure the tractor has a
three-point hitch. This type of hitch has a lower lift arm and a top link. Using wrenches, secure the top link with the lower lift arms. Now, it is time to back up the tractor to the right pin and adjust the length of the top link to fit the size of the
implement. One of the most common types of hitches used to attach agricultural implements to tractors is the three-point hitch. This hitch has three points resembling the letter A, which is why it is also known as a "triangle-shaped" hitch. The pointers on this type of hitch are positioned so that the tractor and agricultural implement can be connected by a single operator.An implement hitch can be made up of arms that are designed to fit different categories of implements. The arms may be customized by having a stepped diameter to accommodate coupling balls that have progressively smaller through bores. The pin extensions may also have transverse holes for receiving stops, spring clips, and retaining pegs. Lastly, the pin extensions can be connected to other components of the tractor's lifting hitch through a cable or chain.
Common agricultural implements
Agricultural machinery, commonly known as implements, is an essential tool in the farming process. Its functions are varied and depend on the type of implement it is used for. In the field, it is commonly used to turn over the top layer of soil, remove weeds and other plant debris, and prepare the ground for planting. Agricultural machinery can be electric, diesel, petrol, or hydraulically powered. It can be operated manually or run with the assistance of a computer program.
The lift arm is a rigid bar with ball joints that is attached to the front loader arm of a tractor. A hydraulic system is used to
move the upper lift arms and raise the implement attached to them. Harry Ferguson patented a 3 point linkage system that included various purpose-built implements. The Ferguson System revolutionized farming by mounting agricultural implements instead of towing them, thereby improving traction, safety, and efficiency.
Agricultural implements with lifting hitches
Three-point lifting hitches are common in agricultural implements. They offer upward and downward lift while preventing rearward pivoting of the implement. Compression springs are also commonly used. They prevent the implement from forward pivoting and transmit down-pressure forces to tillage tools. In the agricultural implements illustrated in FIGS. 2 and 3, the lifting hitch consists of a support frame and a box beam tool bar.
The flexible system allows the three-point hitch to connect an agricultural implement to a tractor. The system is compact and is particularly well suited for tool bar type implements that lack a rigid frame for anti-pitch stabilizers and stress-relief
linkages. These implements are sometimes referred to as "short-frame" implements due to their shorter longitudinal dimension during normal operation. Agricultural implements with lifting hitches offer many advantages over traditional hitches.The 3-point hitch was an important innovation for farmers as it simplified the process of connecting implements to tractors. It also prevented the operator from having to get out of his or her seat when hooking an implement. This hitching system was soon adopted by almost all tractors. Almost all tractors today have this feature. Agricultural implements with three-point hitches are capable of functioning like part of a tractor.
