Product Description

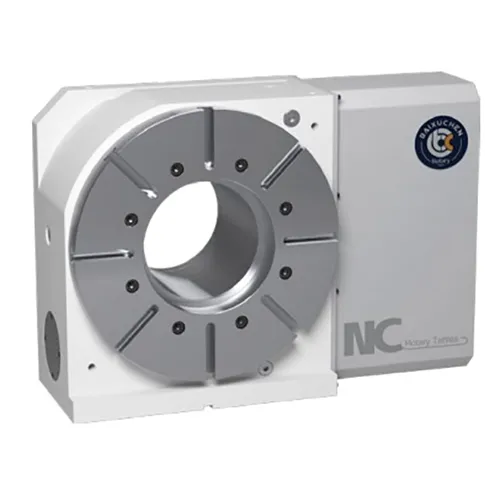

WT-320-2P china industrial cnc vertical machining center cnc machining center accessories

Characteristic

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

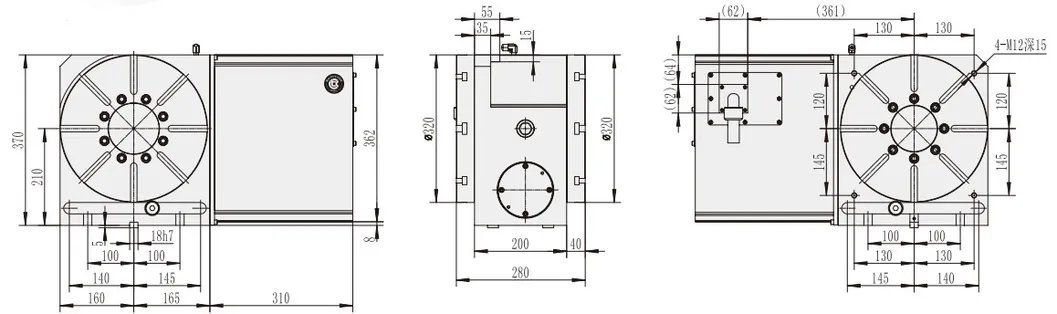

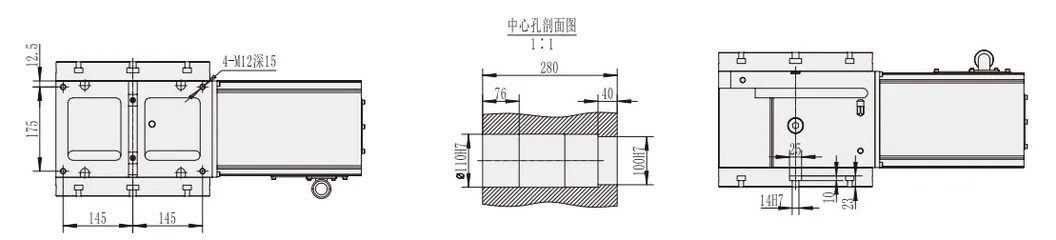

Product Model	WT-320-2P	Segmentation accuracy	15 ″
Disk Diameter	Φ320mm	Repeat positioning	4 ″
Center Diameter	Φ110H7mm	Locking Mode	115kg.m
Spindle Hole	Φ110mm	Servo Motor	β22is;HF-204
Center Height	210mm	Speed Reduction Ratio	1:120
T-Slot Width	14H7mm	Maximun Speed	33.3r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	44.8kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	80Kg.m
Weight(Without Motor)	180Kg	Vertical	150KG
		Tailstock applied	350KG

Wt-320-2p China Industrial CNC Vertical Machining Center CNC Machining Center Accessories

1. Tool Holders: CNC machining centers require tool holders to securely hold cutting tools during the machining process. There are various types available, such as collet chucks, end mill holders, and hydraulic tool holders.

2. Tool Presetters: These devices are used to measure and preset cutting tools before they are installed in the CNC machine. They ensure accurate tool length and diameter measurements, improving setup time and machining accuracy.

3. Workholding Fixtures: Workholding fixtures, such as vises, clamps, and fixtures, are used to secure the workpiece in place during machining. They provide stability and precise positioning, allowing for accurate and repeatable machining operations.

4. Rotary Tables: Rotary tables enable the machining center to rotate the workpiece, providing multi-axis capabilities. They allow for complex machining operations, such as milling or drilling at various angles or in cylindrical patterns.

5. Probing Systems: Probing systems use touch probes or laser sensors to measure and verify the position and dimensions of the workpiece or tool. They help in tool setup, part alignment, and quality control, improving machining accuracy and reducing scrap.

6. Coolant Systems: CNC machining centers often use coolant systems to lubricate and cool the cutting tools and workpiece during machining. These systems help prolong tool life, improve surface finish, and remove chips or debris.

7. Chip Conveyor: A chip conveyor is used to remove chips and debris from the machining area, keeping it clean and preventing interference with the machining process. It helps maintain a safe and efficient working environment.

8. Tool Storage and Management Systems: To organize and manage a large number of cutting tools, CNC machining centers can utilize tool storage systems. These systems provide secure storage, tool tracking, and quick access to the required tools, reducing setup time and improving efficiency.

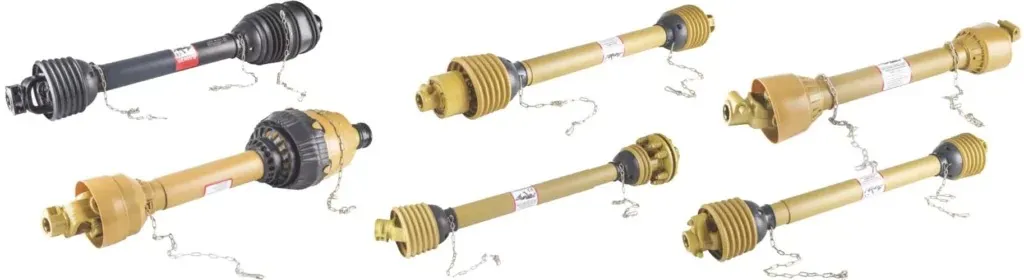

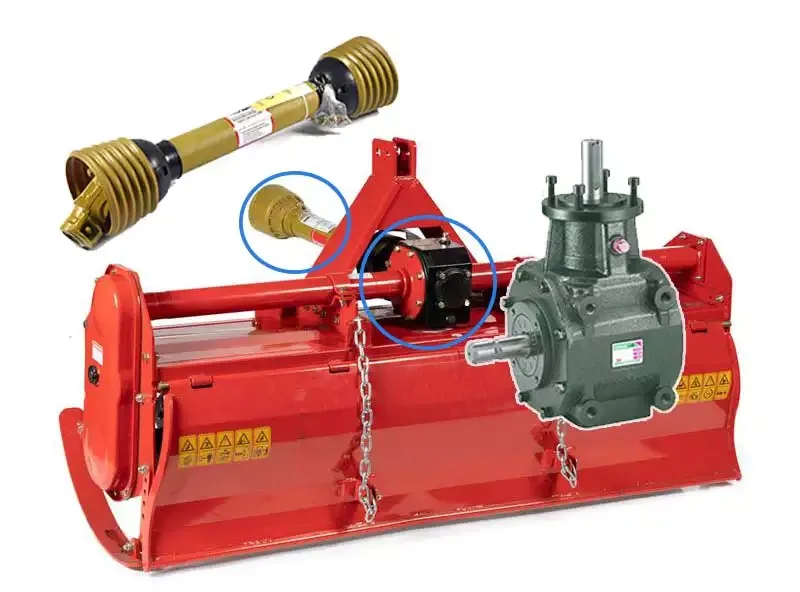

We Also Supply PTO Shafts & Agricultural Gearboxes
