Product Description

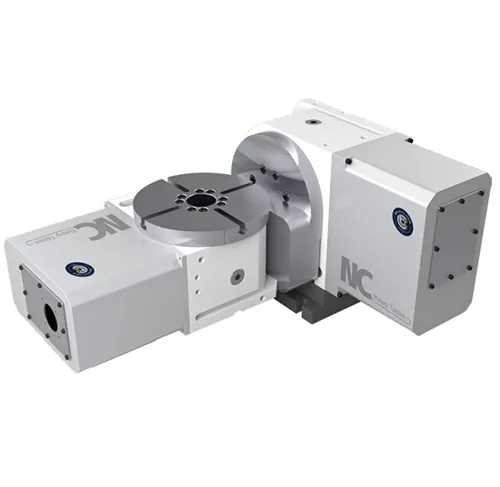

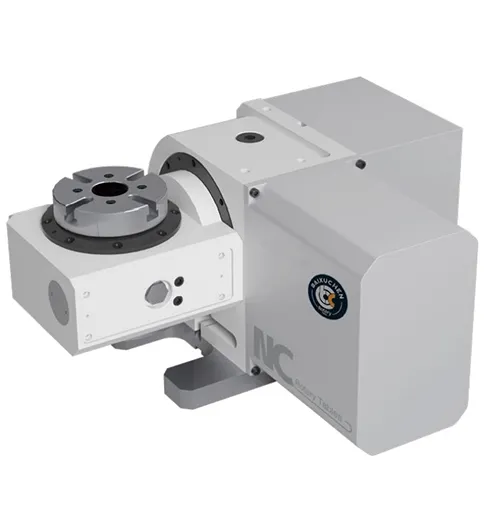

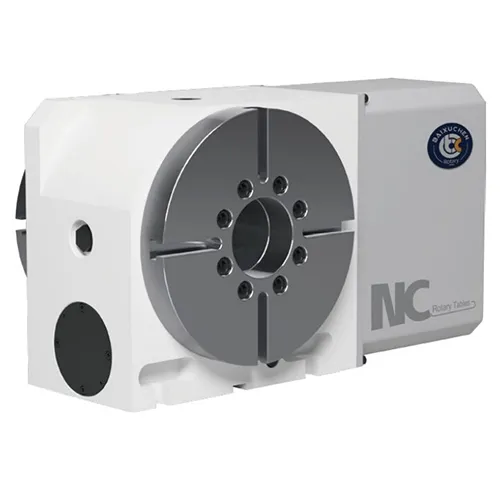

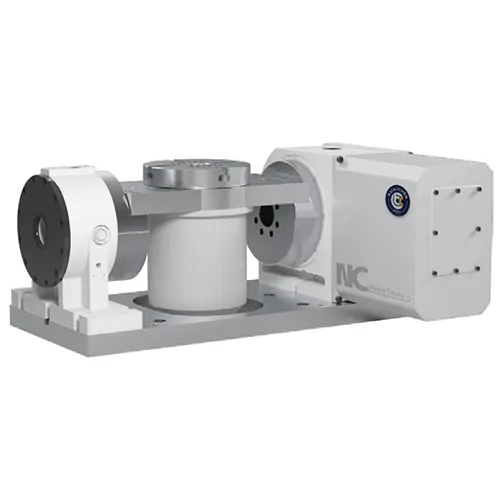

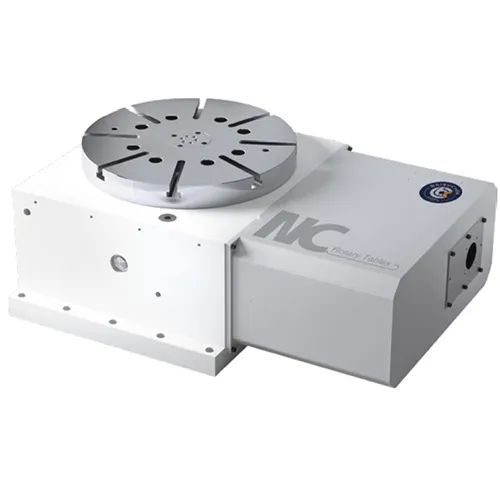

WT-H400 Sell Well New Type 4 axis cnc machining center products accessories

Characteristic

Suitable for horizontal machining

Four axis linkage processing, high segmentation accuracy

High performance, high efficiency and strong braking system

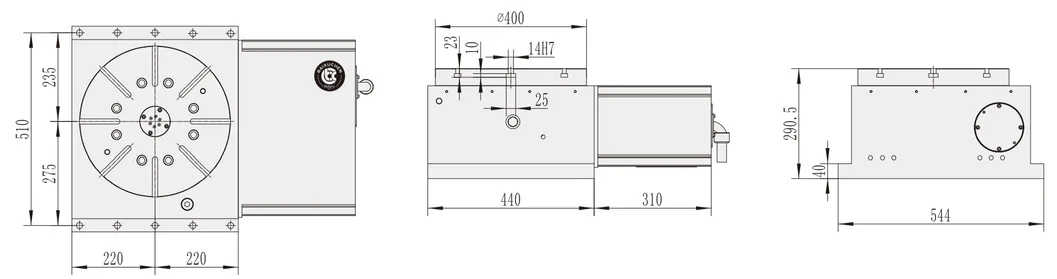

Product Model	WT-H400	Servo motor	β22is;HF-204
Panel Size	Φ400mm	Speed Reduction Ratio	1:120
Center Diameter	Φ180H7mm	Maximun Speed	33.3 r.p.m
Spindle Hole	Φ115mm	Min lncrement	0.001°
Flat Bottom Height	290.5mm	Segmentation Accuracy	15″
T-Slot Width	14H7mm	Repeat Positioning	4''
Positioning Button	18H7mm	Locking Mode	200kg.m
Tilt Axis Angle Range	-45 ~110°	Allowable Work Inertia	100kg.cm.sec2
Net Weight (about)	300Kg	Allowable Cutting Torque	170Kg.m
Horizontal	500KG

Wt-H400 Sell Well New Type 4 Axis CNC Machining Center Products Accessories

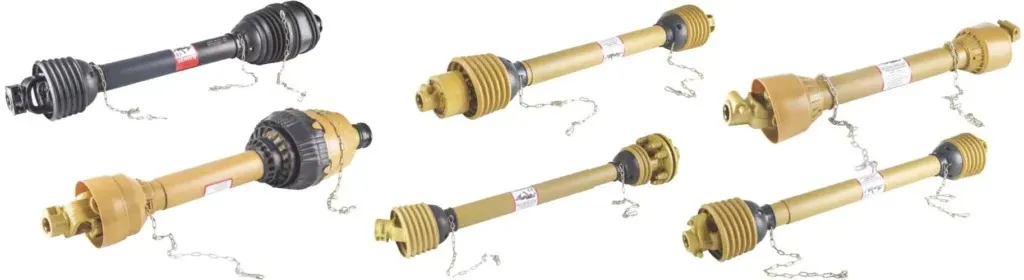

We Also Supply PTO Shafts & Agricultural Gearboxes
