Product Description

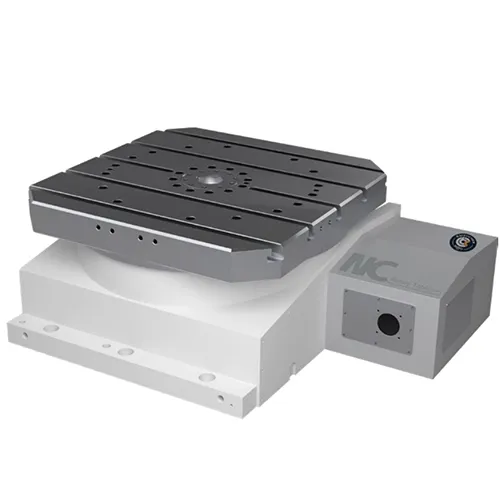

WT-H630 Hot Selling Good Quality 860Kg china cnc machining center accessories products

Characteristic

Horizontal tooth table Suitable for horizontal machining and horizontal boring machines hydraulic lock,

Heavy-duty cutting non-simultaneous machining

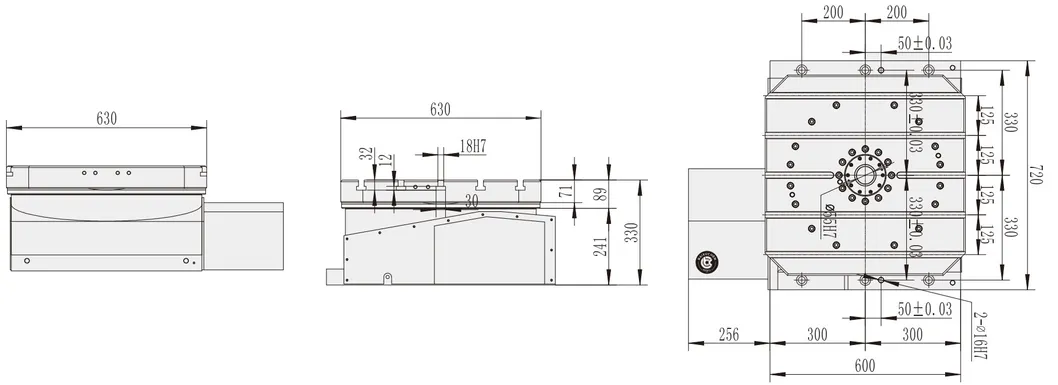

Product Model	WT-H630	Servo motor	1FK7083 α22i
Panel Size	630×630	Total Reduction Ratio	1:180
Disk Aperture	Φ55mm	Maximum Rotation Speed Of Worktable	11r.p.m
Flat Overall Height	330mm	Minimum Setting Angle	1°/5°
Disk T-Slot	18H8mm	Segmentation Accuracy	8″sec
Positioning Button	14H7mm	Repeat Positioning Accuracy	2″sec
Center Height	255mm	Locking Method	oil pressure 35Kg/cm²
Net Weight (about)	860Kg	Locking Force	6000Kg
Max.load Horizontal	1200KG

Wt-H630 Hot Selling Good Quality 860kg China CNC Machining Center Accessories Products

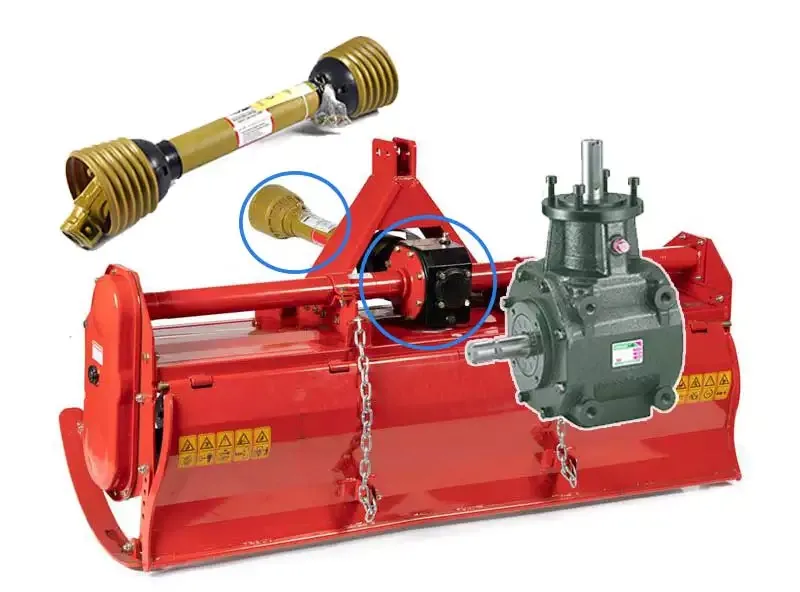

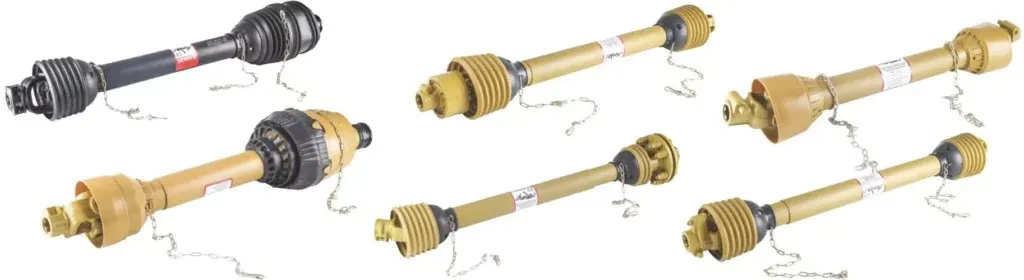

We Also Supply PTO Shafts & Agricultural Gearboxes
