NK11SSB Sprockets B Type

Product DescriptionNK Standard Sprockets B Type ChainNo.11 Pitch(P)3.7465 mmInternal Width(W)1.83 mmOutside Dia.(Dr)2.285 mmTeeth Width(T)1.6 mmSprocket No.Outside Dia.DoPitch Dia.DpFormBore Dia.HubSetScrewsWeight(g) TypeZMin.MaxBDBL NK11SSB1216.214.48B-I469.410.5M3X0.55.9 1519.918.0291311.5 1621.11......

Send Inquiry

Product Description

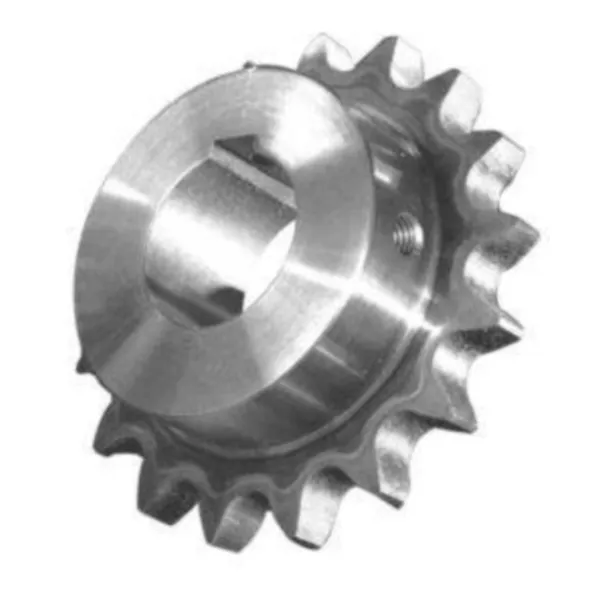

NK Standard Sprockets B Type

Japanese Kana Nk Standard Nk11ssb Sprockets B Type

Chain	No.11
Pitch	(P)	3.7465 mm
Internal Width	(W)	1.83 mm
Outside Dia.	(Dr)	2.285 mm
Teeth Width	(T)	1.6 mm

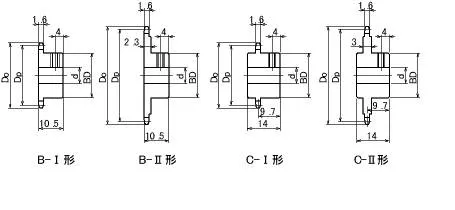

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Form	Bore Dia.		Hub		Set Screws	Weight (g)
Type	Z	Outside Dia. Do	Pitch Dia. Dp	Form	Min.	Max	BD	BL	Set Screws	Weight (g)
NK11SSB	12	16.2	14.48	B-I	4	6	9.4	10.5	M3X0.5	5.9
	15	19.9	18.02			9	13			11.5
	16	21.1	19.2			9	14			13.5
	18	23.5	21.58			11	16			17.7
	20	25.9	23.95		6	13	19		M4X0.7	23.3
	24	30.7	28.7							25.7
	28	35.5	33.46							28.7
	30	37.9	35.84	B-II	6	13	19			29.7
	34	42.7	40.6							37.9
	36	45.1	42.99							40.7
	40	49.8	47.75							46.5
	48	59.4	57.28							60.5
	12	16.2	14.48	C-I	4	6	9.4	14	M3X0.5	7.4
	15	19.9	18.02			9	13			14.7
	16	21.1	19.2			9	14			17.3
	18	23.5	21.58			11	16			22.8
	20	25.9	23.95		6	13	19		M4X0.7	30.3
	24	30.7	28.7							32.7
	28	35.5	33.46							35.7
	30	37.9	35.84	C-II						39.3
	34	42.7	40.6							48.9
	36	45.1	42.99							52.4
	40	49.8	47.75							59.9
	48	59.4	57.28							77.8

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: Japanese Kana Nk Standard Nk11ssb Sprockets B Type, Roller Sprocket, Sprockets Kana
