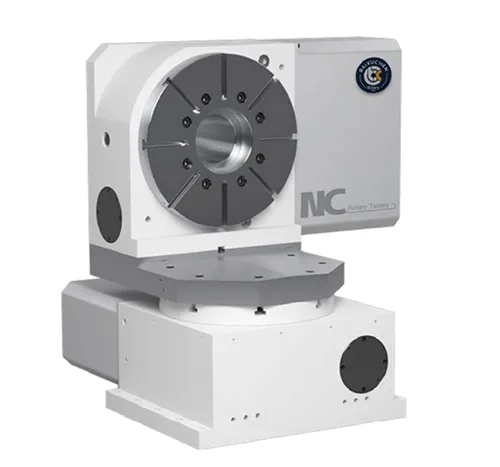

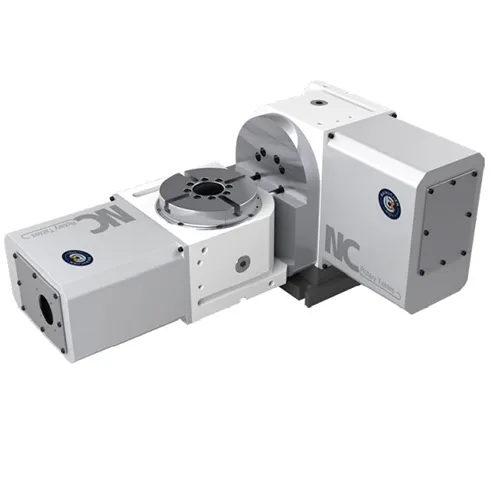

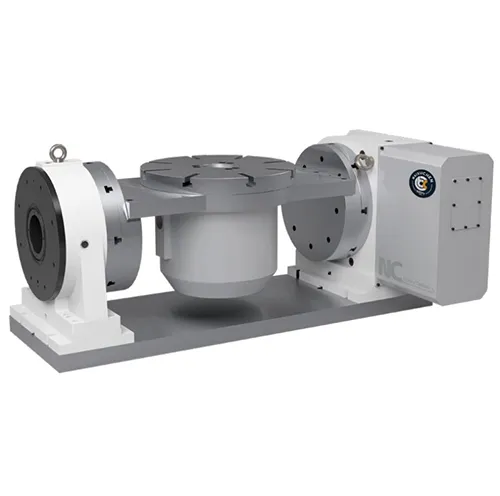

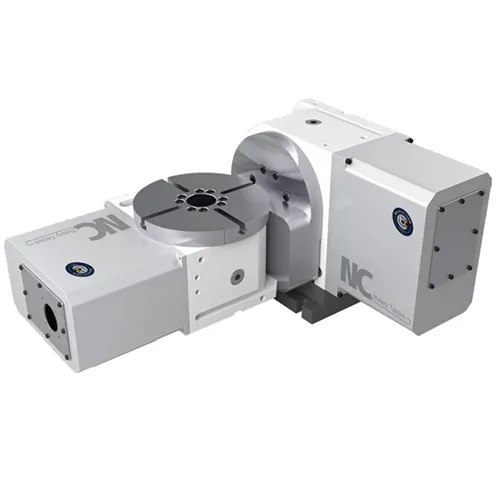

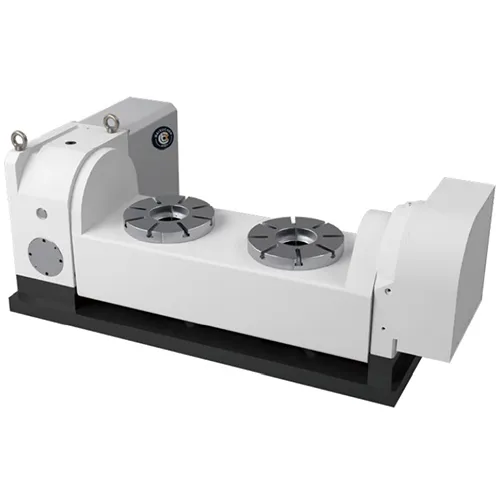

WT-S255-T2 Promotional Various chinese vertical cnc machining center accessories

Characteristic

Cradle type and extended type

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanism

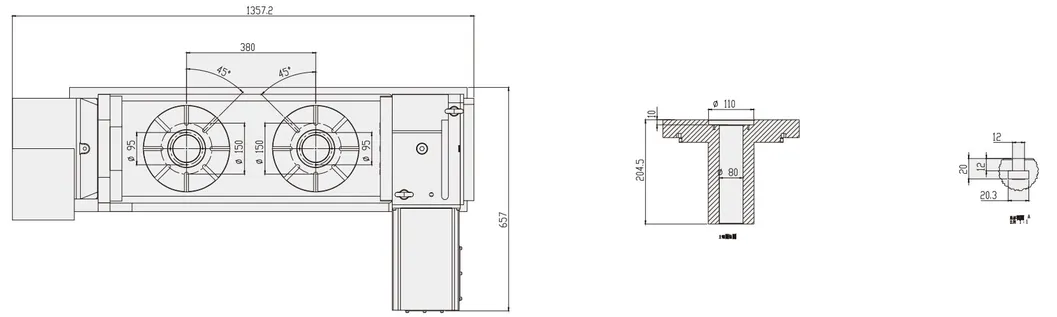

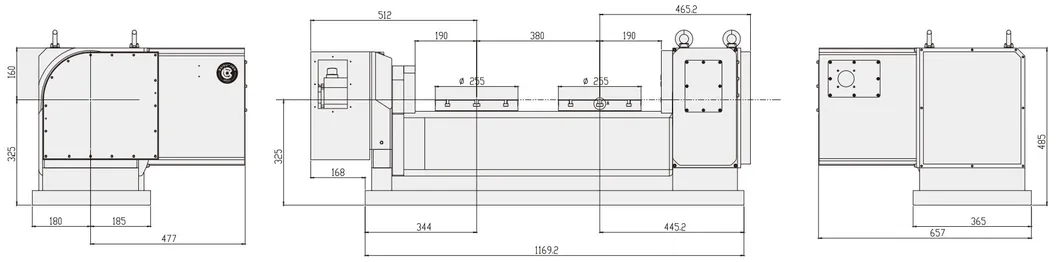

Product Model	WT-S255-T2	Servo motor (optional)	Rotation axisβ12i HF-154;Tilt axisβ22i HF-204
Panel Size	Φ255mm	Reduction Ratio	Rotation axis1:120 ;Tilt axis1:180
Disk Aperture	Φ110mm	Maximum Rotation Speed Of Worktable	Rotation axis 25r.p.m ;Tilt axis 16.6r.p.m
Center Trough Hole	Φ80mm	Minimum Setting Angle	0.001°deg
Disk Height	325mm	Segmentation Accuracy	Rotation axis15″sec;Tilt axis30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	Rotation axis 4″sec;Tilt axis4''sec
Positioning Button	18H7mm	Locking Method	Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	Rotation axis 31Kg/m ;Tilt axis 31Kg/m
Net Weight (about)	600Kg	Allowable Cutting Force	Rotation axis 80Kg.m ;Tilt axis 80Kg.m
Horizontal placement	150KG	Placement	100KG
