Product Description

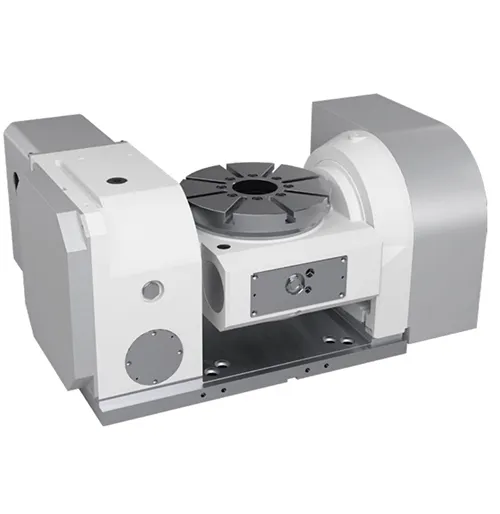

WT-S250 Hot Selling Cheap Custom 5 axis industrial cnc machining center accessories

Characteristic

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulicbrake mechanism

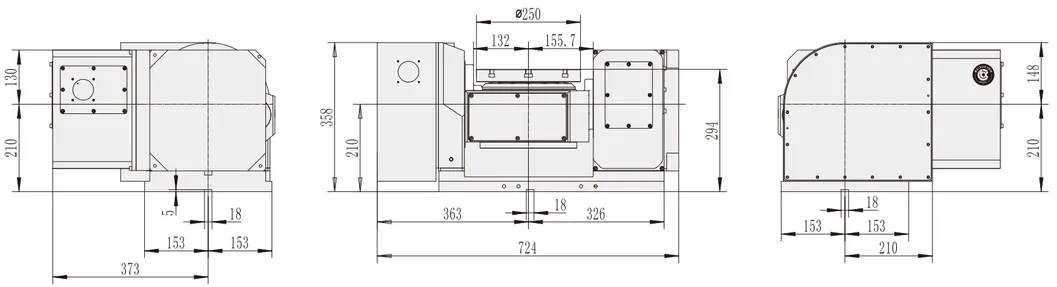

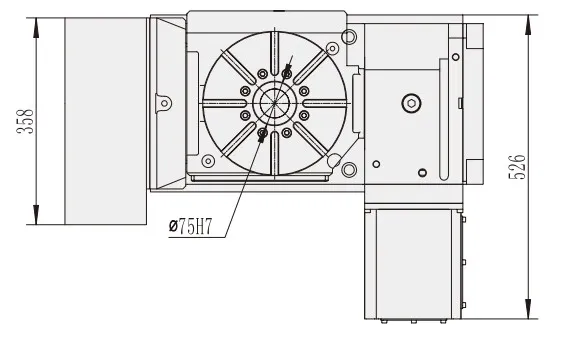

Product Model	WT-S250	Servo motor (optional)	Rotation axisβ8i HF-104;Tilt axisβ12i HF-154
Panel Size	Φ250mm	Reduction Ratio	Rotation axis1:120 ;Tilt axis1:120
Disk Aperture	Φ80mm	Maximum Rotation Speed Of Worktable	Rotation axis 33.3r.p.m ;Tilt axis 33.3r.p.m
Center Trough Hole	Φ50mm	Minimum Setting Angle	0.001°deg
Disk Height	294mm	Segmentation Accuracy	Rotation axis15″sec;Tilt axis50″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis8''sec
Positioning Button	18H7mm	Locking Method	Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	Rotation axis 70Kg/m ;Tilt axis 140Kg/m
Net Weight (about)	290Kg	Allowable Cutting Force	Rotation axis 55Kg.m ;Tilt axis 55Kg.m
Horizontal placement	100Kg	Placement	75KG

Wt-S250 Hot Selling Cheap Custom 5 Axis Industrial CNC Machining Center Accessories
