5 Axis CNC Machining Center Parts

Discover Raydafon Group's 5 Axis CNC Machining Center Parts, delivering unparalleled precision and durability. Ideal for manufacturers seeking high-performance solutions, these parts enhance efficiency and reliability, offering superior quality and competitive value to boost your production capabilities.

Send Inquiry

Product Description

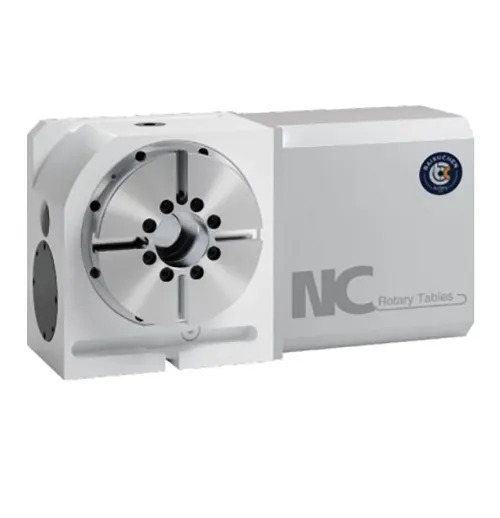

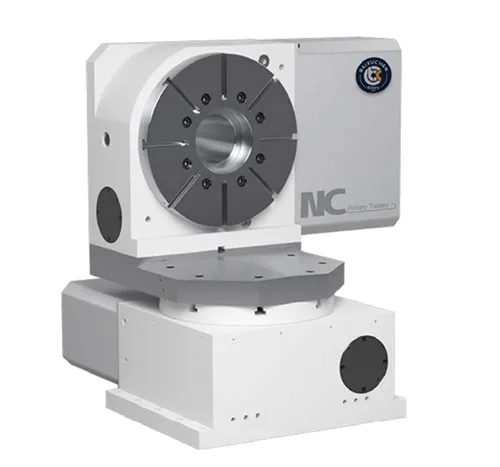

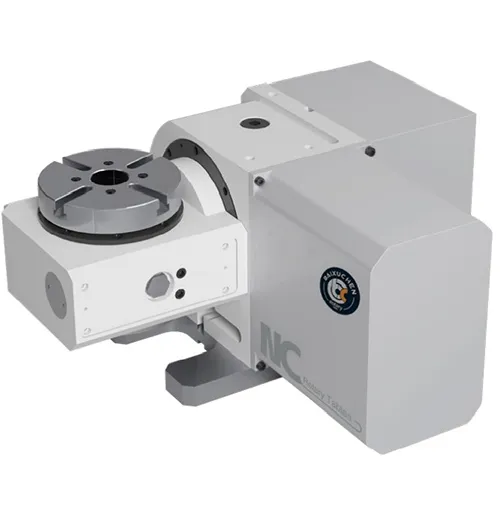

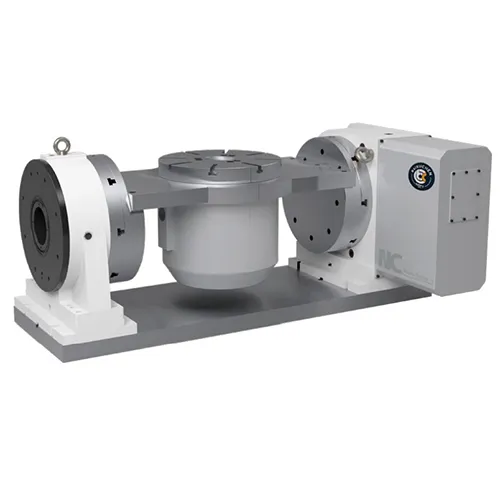

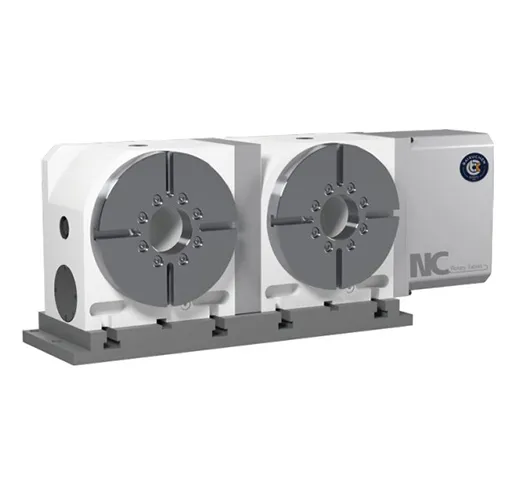

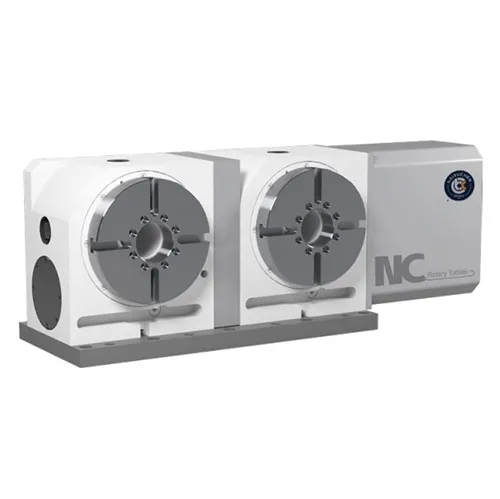

WT-RT150 Attractive Price New Type china industrial cnc machining center 5 axis accessories

Characteristic

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

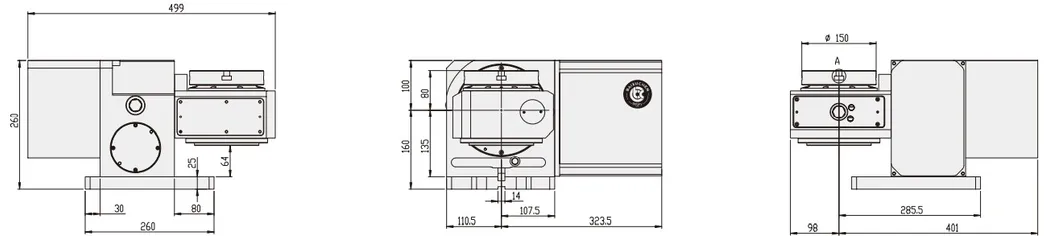

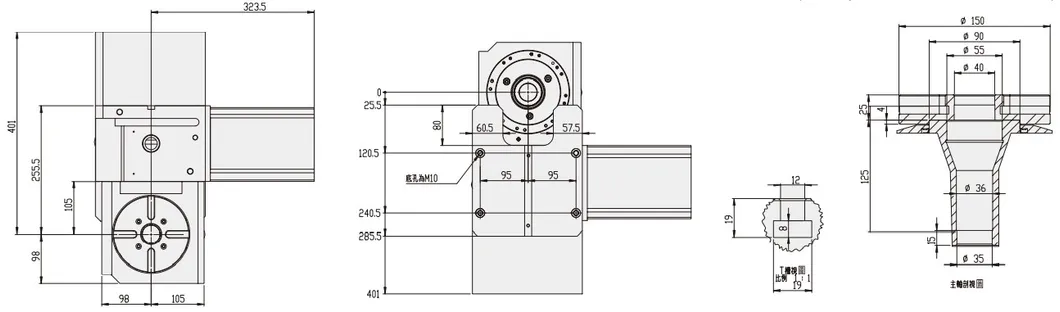

Product Model	WT-RT150	Servo motor (optional)	Rotation axisβ4i HF-54;Tilt axisβ8i HF-104
Panel Size	Φ150mm	Reduction Ratio	Rotation axis1:90 ;Tilt axis1:90
Disk Aperture	Φ50mm	Maximum Rotation Speed Of Worktable	Rotation axis 55.5r.p.m ;Tilt axis 55.5r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	160mm	Segmentation Accuracy	Rotation axis15″sec;Tilt axis30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	Rotation axis 4″sec;Tilt axis4''sec
Positioning Button	40H7mm	Locking Method	Rotation axis pressure5Kg/cm²;Tilt axis pressure 5Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	Rotation axis 10Kg/m ;Tilt axis 25Kg/m
Net Weight (about)	95Kg	Allowable Cutting Force	Rotation axis 18Kg.m ;Tilt axis 55Kg.m
Horizontal placement	40KG	Placement	20KG

Wt-Rt150 Attractive Price New Type China Industrial CNC Machining Center 5 Axis Accessories
