Product Description

WT-H800 china cnc machining center 11 r.p.m industrial machining center cnc accessories

Characteristic

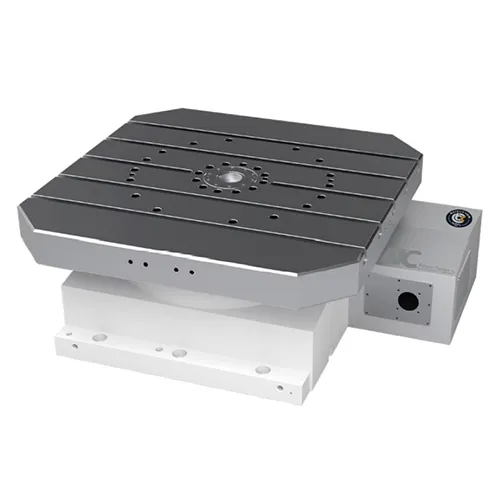

Horizontal tooth table Suitable for horizontal machining and horizontal boring machines hydraulic lock,

Heavy-duty cutting non-simultaneous machining

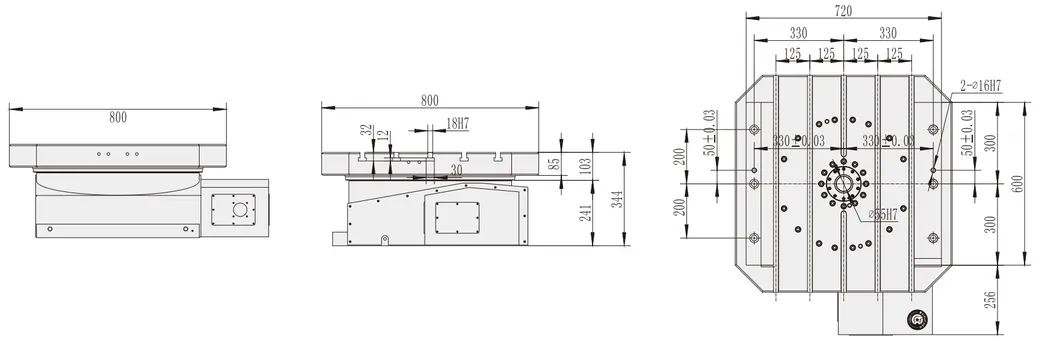

Product Model	WT-H800	Servo motor	1FK7083 α22i
Panel Size	800×800	Total Reduction Ratio	1:180
Disk Aperture	Φ55mm	Maximum Rotation Speed Of Worktable	11r.p.m
Flat Overall Height	330mm	Minimum Setting Angle	1°/5°
Disk T-Slot	18H8mm	Segmentation Accuracy	8″sec
Net Weight (about)	860Kg	Repeat Positioning Accuracy	2″sec
Max.load Horizontal	1200KG	Locking Method	oil pressure 35Kg/cm²
Locking Force	6000Kg

Wt-H800 China CNC Machining Center 11 R. P. M Industrial Machining Center CNC Accessories

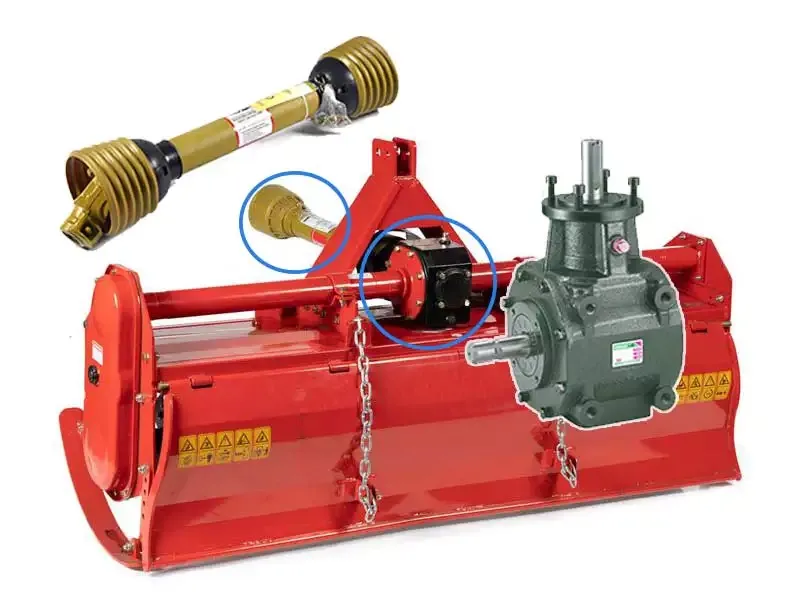

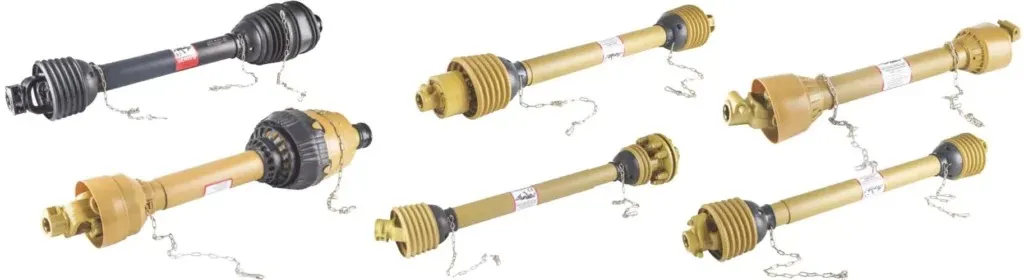

We Also Supply PTO Shafts & Agricultural Gearboxes
