Product Description

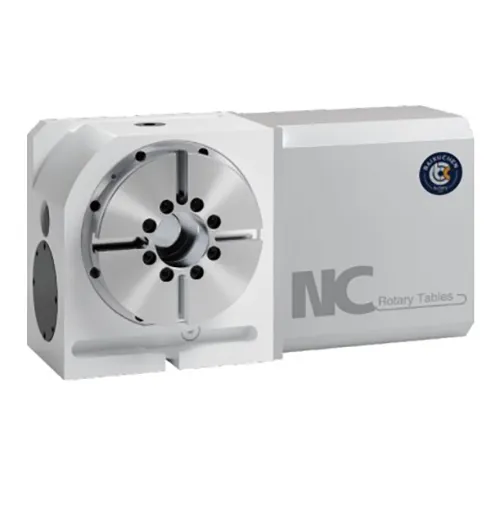

numerical control machine cnc machining center accessories

Characteristic

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

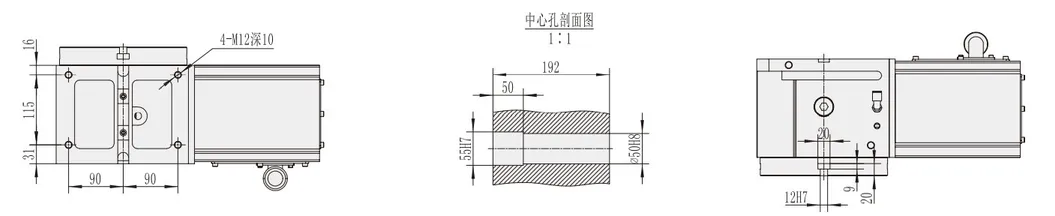

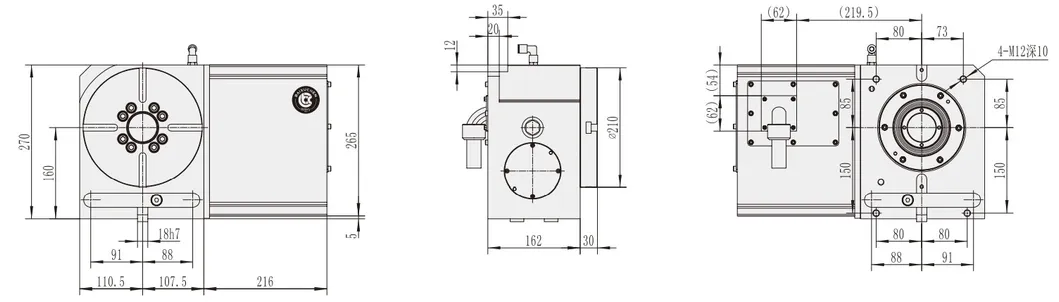

Product Model	WT-210	Segmentation accuracy	20 ″
Disk Diameter	Φ210mm	Repeat positioning	4 ″
Center Diameter	Φ55H7mm	Locking Mode	45kg.m
Spindle Hole	Φ50mm	Servo Motor	β8is;HF-104
Center Height	160mm	Speed Reduction Ratio	1:72
T-Slot Width	12H7mm	Maximun Speed	55.5r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	8.3kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	18Kg.m
Weight(Without Motor)	70Kg	Vertical	80KG
Horizontal	160KG	Tailstock applied	160KG

Numerical Control Machine CNC Machining Center Accessories

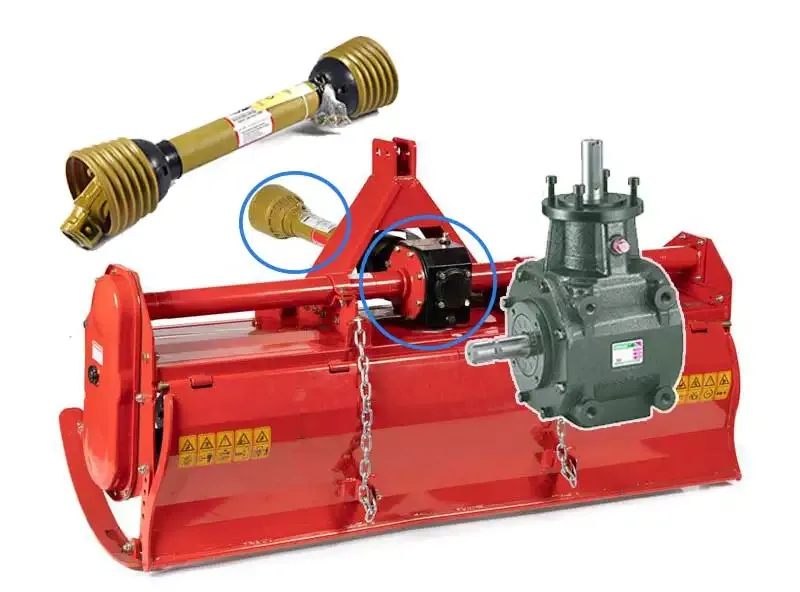

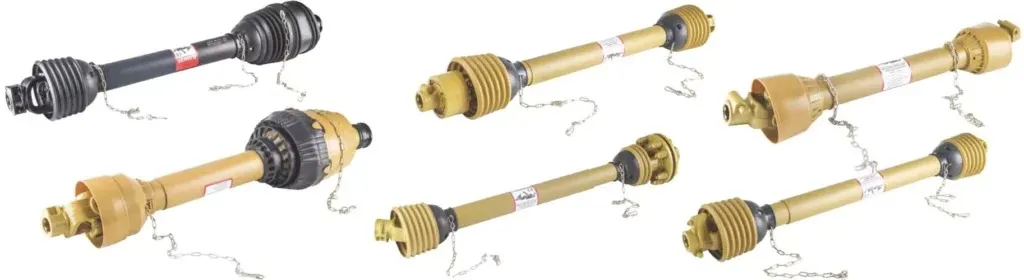

We Also Supply PTO Shafts & Agricultural Gearboxes
