K35A K Standard Sprockets

Product Description K Standard Sprockets A type K35A "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"BIG INVENTORY.REASONABLE PRICES.DELIVERY ON TIME.AVAILABLE MADE-TO-ORDER SPROCKET.Chain Pitch(P)9.525mm (3/8 inch)Inner Width(W)4.78mmBush Dia.(Dr)5.08mmTooth Width(T)4.3mm(Dimension : mm)Spro......

Send Inquiry

Product Description

K Standard Sprockets A type K35A

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

Chain Pitch	(P)	9.525	mm (3/8 inch)
Inner Width	(W)	4.78	mm
Bush Dia.	(Dr)	5.08	mm
Tooth Width	(T)	4.3	mm

(Dimension : mm)
Sprocket No.	Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d	Weight (kg)	Material	Teeth
Type	Teeth	Stock Bore	min.
K35A	10	34	30.82	9	11	0.02	Mild Steel	10
11	38	33.81	9	11	0.03	11
12	41	36.80	9	11	0.03	12
13	44	39.80	9	11	0.04	13
14	47	42.81	9	11	0.04	14
15	51	45.81	9	11	0.05	15
16	54	48.82	9	11	0.05	16
17	57	51.84	11	13	0.07	17
18	60	54.85	11	13	0.07	18
19	63	57.87	11	13	0.09	19
20	66	60.89	11	13	0.09	20
21	69	63.91	11	13	0.11	21
22	72	66.93	11	13	0.11	22
23	75	69.95	11	13	0.11	23
24	78	72.97	11	13	0.14	24
25	81	76.00	11	13	0.16	25
26	84	79.02	11	13	0.16	26
27	87	82.05	11	13	0.17	27
28	90	85.07	11	13	0.18	28
30	96	91.12	11	13	0.23	30
32	102	97.18	11	13	0.27	32
33	105	100.20	11	13	0.28	33
34	109	103.23	11	13	0.29	34
35	112	106.26	11	13	0.30	35
36	115	109.29	12	14	0.32	36
38	121	115.34	12	14	0.37	38
40	127	121.40	12	14	0.40	40
42	133	127.46	16	18	0.43	42
45	142	136.55	16	18	0.49	45
46	145	139.58	16	18	0.51	46
48	151	145.64	16	18	0.55	48
50	157	151.70	16	18	0.60	50
54	169	163.81	16	18	0.70	54
55	172	166.85	16	18	0.71	55
60	187	182.00	16	18	0.80	60
65	203	197.15	16	18	1.02	65
70	218	212.30	16	18	1.18	70
80	248	242.61	16	18	1.50	80

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

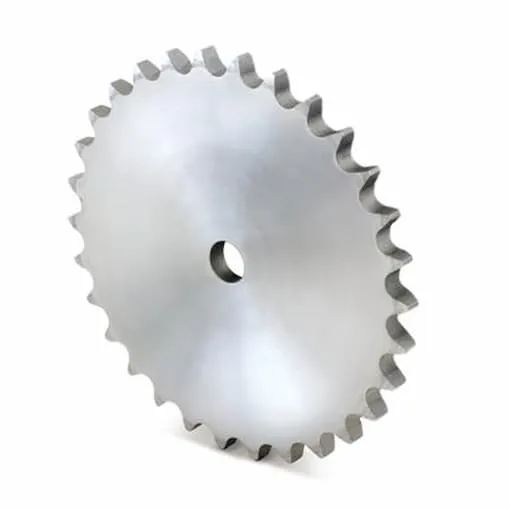

K Standard Plate Wheel Sprockets a Type K35A (Japanese KANA Standard)

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: K Standard Plate Wheel Sprockets a Type K35A (Japanese KANA Standard), Chain Sprockets, K35A Sprocket
