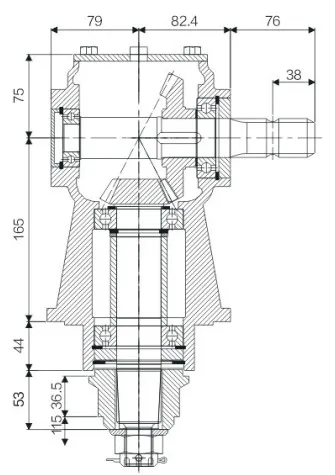

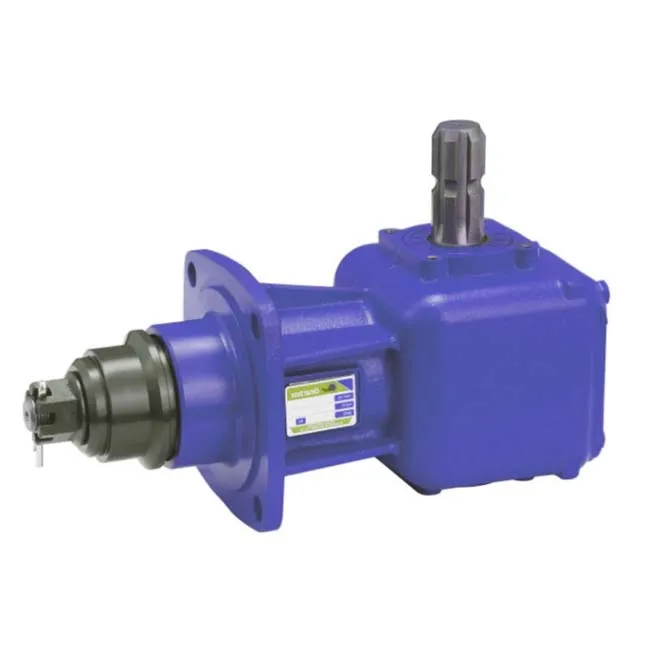

New lawnmower Gearbox, LF-205. The gearbox ratio is 1:1.92. The input shaft is 1-3/8″ 6 spline. The 12 spline output shaft has tapered splines, bushing must be ordered separately (12 spline bushing A-U920580500). The mounting pattern is 171.5 mm. The gearbox is rated at 30 hp at 540 rpm and has a CCW (Counterclockwise) rotation. Fits Comer Rotary Cutters.
The output shaft has tapered splines, bushing must be ordered separately. (12 spline bushing: U0135700000). The mounting pattern is 171.5mm.
| ITEM | EP-LF205 |
| Ratio | 1:1.93/1:1.46 |
| Teeth | 23/12 22/15 |
| Module | 5.0 / 5.0 |
| Power(HP) | 30 |
| Rated Input | 540rpm |
| Input/Output Description | 1-3/8 Z6 Optic Axis
Taper Spline |
| Weight(N.W) | 19KG |
We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.

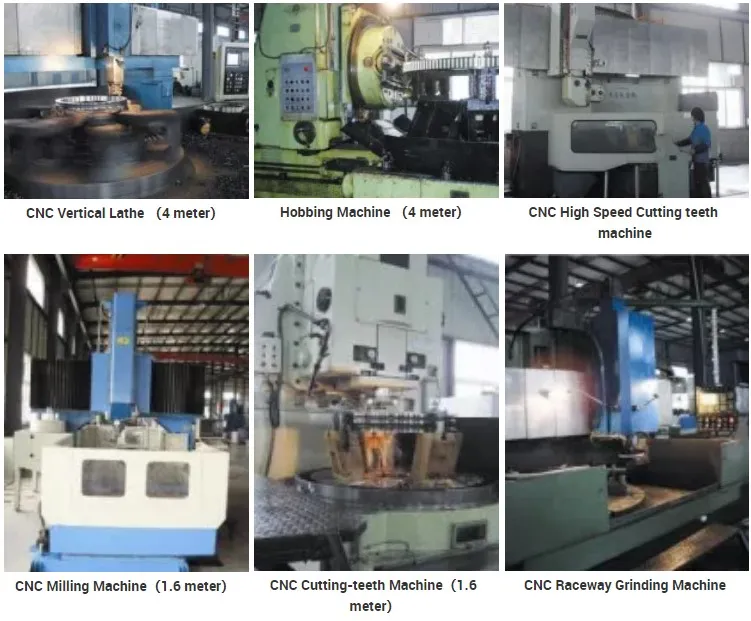

Our Equipments

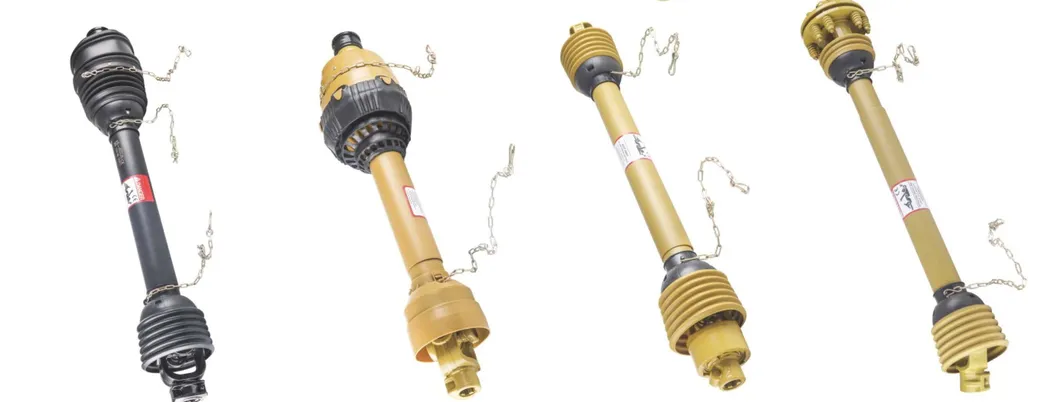

PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
