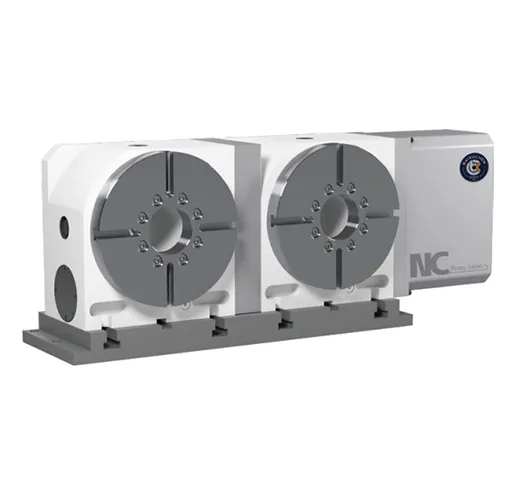

WT-255-2W CNC Machining Center

WT-255-2W small cnc vertical machining center price cnc machining center accessoriesCharacteristic Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-255-2WSegmentation accuracy15 ″Disk DiameterΦ255mmR......

Send Inquiry

Product Description

WT-255-2W small cnc vertical machining center price cnc machining center accessories

Characteristic

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

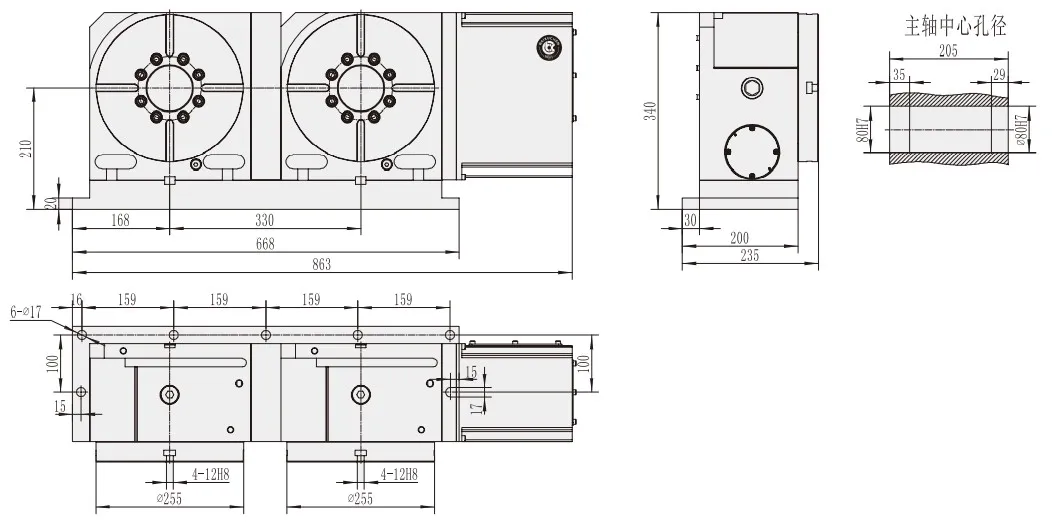

Product Model	WT-255-2W	Segmentation accuracy	15 ″
Disk Diameter	Φ255mm	Repeat positioning	4 ″
Center Diameter	Φ80H7mm	Locking Mode	70kg.m
Spindle Hole	Φ80mm	Servo Motor	β8is;HF-154
Center Height	210mm	Speed Reduction Ratio	1:120
T-Slot Width	12H7mm	Maximun Speed	33.3r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	20.3kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	55Kg.m
Weight(Without Motor)	240Kg	Vertical	100KG

Wt-255-2W Small CNC Vertical Machining Center Price CNC Machining Center Accessories

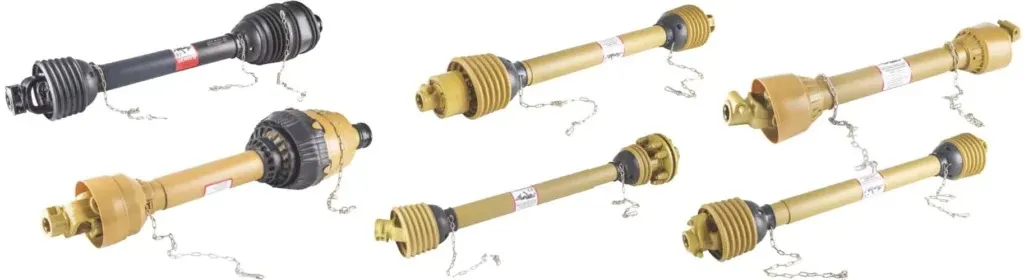

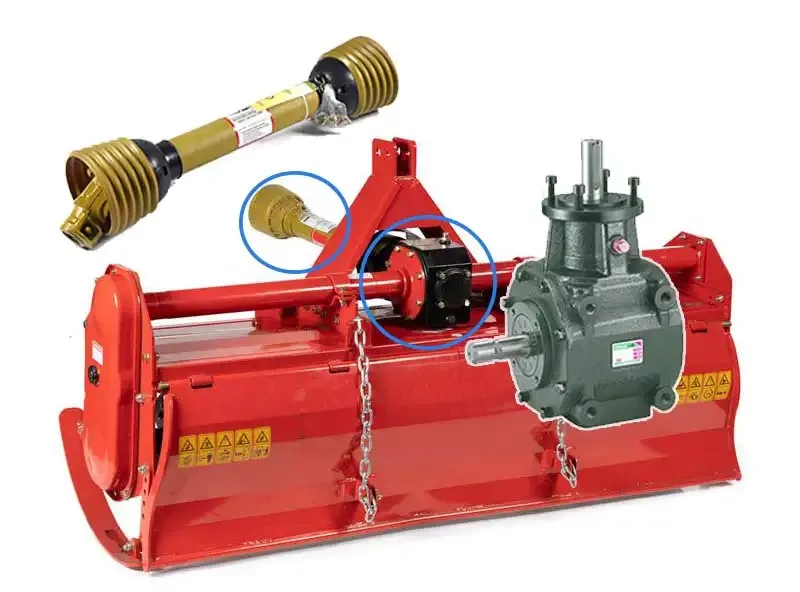

We Also Supply PTO Shafts & Agricultural Gearboxes
